help with balancer

Quick Learner from south carolina

Mar 13, 2020 4:46 pm

balancer has 34B stamped on it. Cannot locate similar balancer with the hook style up top. I believe your 795 series is the closest I can find. Any help would be greatly appreciated. I need to order 2.

3 user uploaded images

10 Replies

Tom from SWISCO

Mar 16, 2020 1:04 pm

You window balance unfortunately not something we can supply. You are correct in surmising that you can use our Series 795, but there is one issue with that. Our S795-34 has a screw tab on the top while yours has a hook. You also have the smaller 1" shoe.

That means your balance will have to be custom made by us to fit those specifications. We'll be using a 34B S795-34 with a 15-198 top hook and 15-194 bottom shoe. Does that sound good to you?

I'll email you a custom order link and price quote right now for 2. If any of those details don't look good to you, let me know and we can straighten them out.

Quick Learner from south carolina

Mar 16, 2020 2:14 pm

Certainly appreciate your help Tom. Just placed order through link you sent. Thanks again! Andy

Tom from SWISCO

Mar 16, 2020 2:22 pm

Fantastic, thank you! Please let us know how it works out or if you had any other questions.

Home Owner from Maryland

Jun 2, 2020 8:39 pm

I have the same design for the balance with a hook top and delressed end with a 1" cam T shoe. I skready bought 15 1" shoes. Mine measure 34C. Also, the stock ones you sell will not slide back into the sill channel due to the rivets on the balance. I almost need one that is 1/16 narrower. Is there any type of custom order you can do for a S795 34C, with a hook, a tad narrower?

Tom from SWISCO

Jun 5, 2020 10:49 am

There is a narrower version of the Series 795, but it is much narrower and very unique. Just to play it safe, can you show me a photo of the hardware you have now? Can you also give me precise measurements?

Home Owner from Maryland

Jun 5, 2020 11:12 am

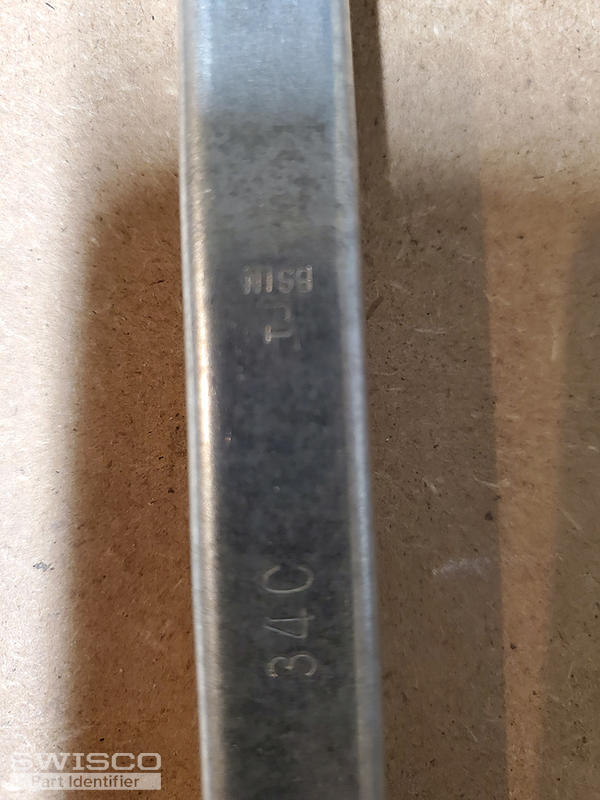

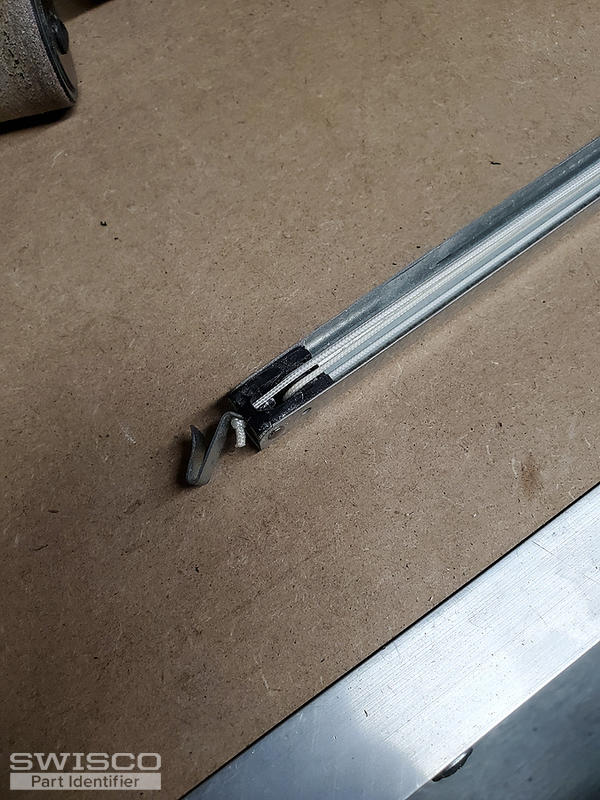

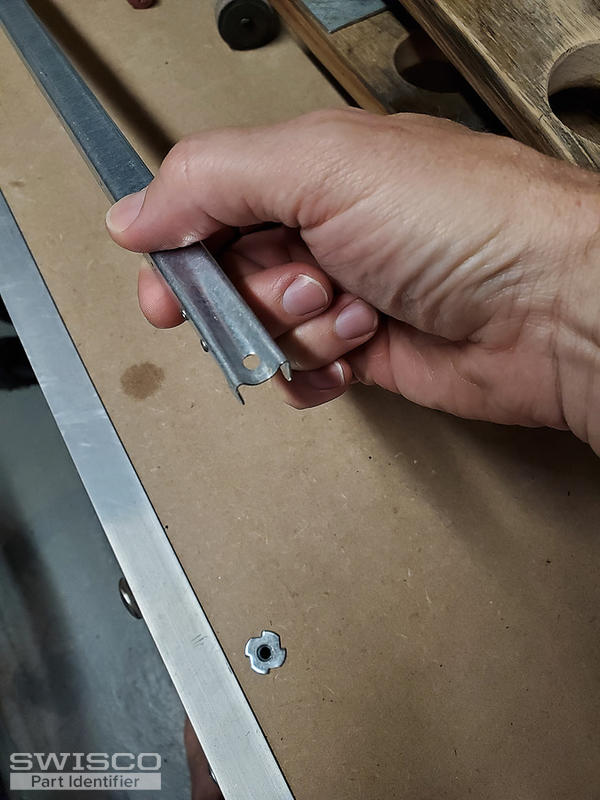

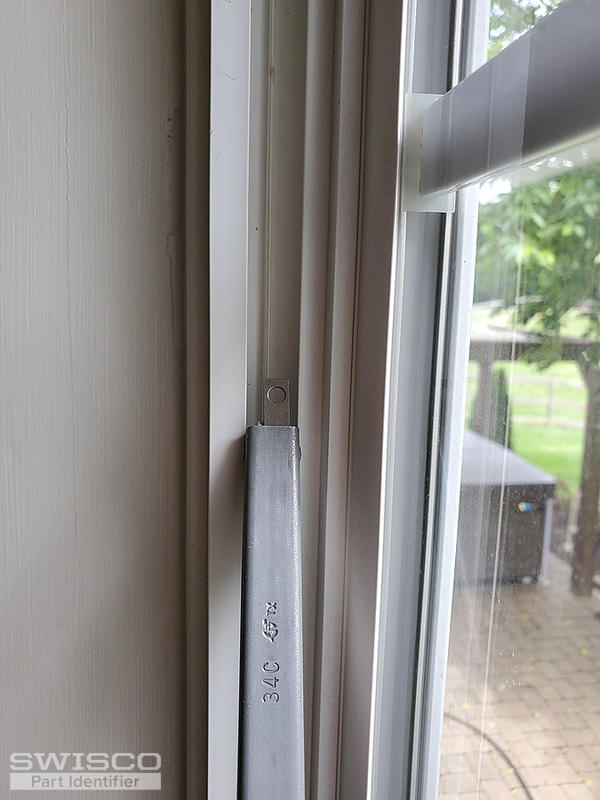

Attached are pictures for the original balance showing the hook, the depressed end (although your product + 1" shoe resolves that issue), the stamp, and how your 795 balance won't quite fit requiring something a bit more narrower. The metal body of the balance is a really tight fit/push; the rivets hold it back. The channel is about 1/2" wide.

4 user uploaded images

Tom from SWISCO

Jun 5, 2020 1:08 pm

Thanks! This isn't the skinny version I had in mind. Your old one was just made by a different manufacturer, they're otherwise the same parts. Concerning the rivets, you will need to work the rivets pass the edge of the window frame. Once in, it will fit in the channel. You can also tap the rivets down if you're handy, but otherwise you should be able to work them in.

If you were still interesting in ordering our custom Series 795 with a hook, let me know how many you needed and I can email you an order link and price quote for that quantity.

Home Owner from Maryland

Jun 5, 2020 7:20 pm

Interested in the series with a hook, looking for 7 please. Thanks!

Tom from SWISCO

Jun 8, 2020 10:24 am

Great, thanks! I'll send that over now.
