replacement parts

A home owner from Novi Mi says:
August 29, 2022
Can you help me find some of these? I need a bunch!!

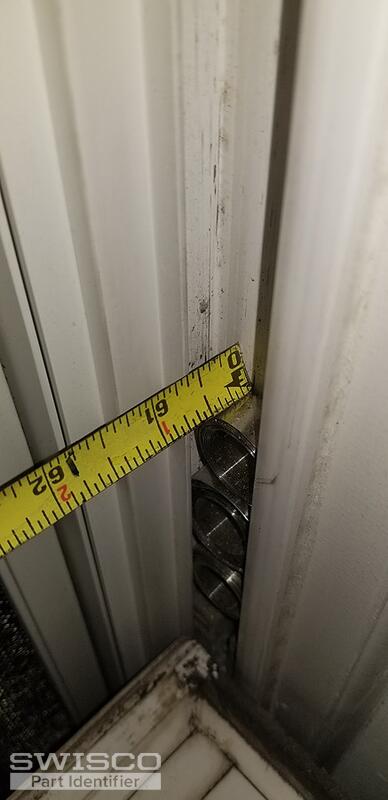

Thumbnail of the uploaded file named bal spr 2.jpg
Thumbnail of the uploaded file named bal spr.jpg

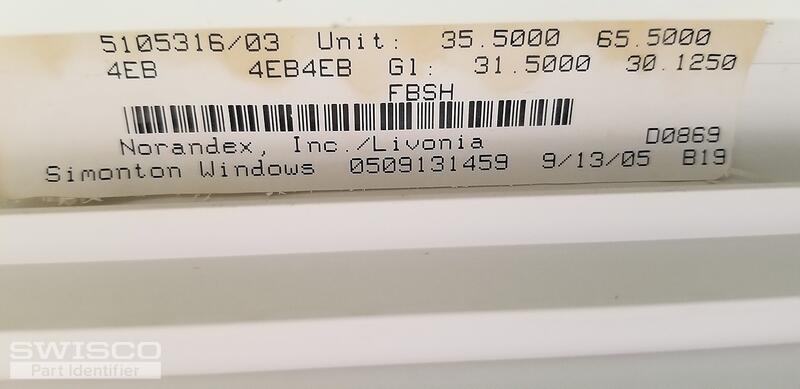

Thumbnail of the uploaded file named upstairs bedroom.jpg

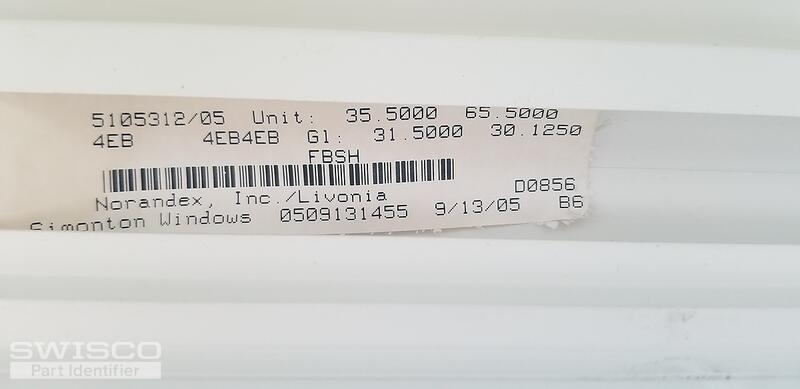

Thumbnail of the uploaded file named downstairs living room.jpg

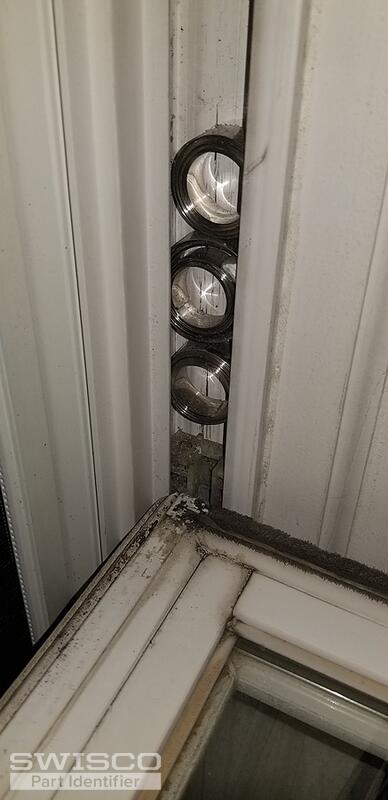

Thumbnail of the uploaded file named bal spring 2.jpg
Profile picture of Tom
Tom from SWISCO responded:
September 1, 2022

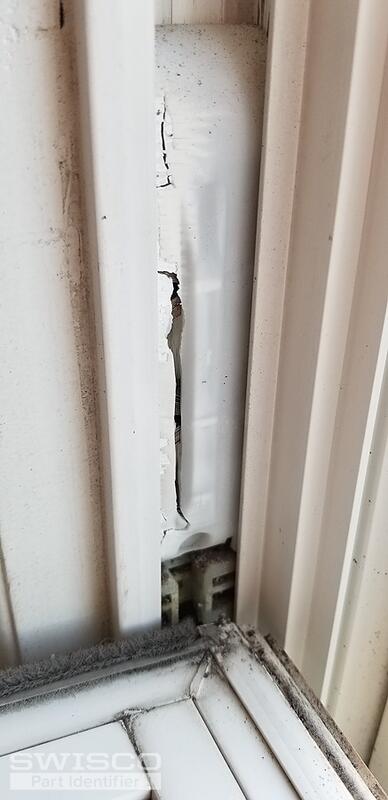

Sure, we should be able to help. Your pivot shoe here appears to be a match for our 15-199, which is designed to be used with either the 1/2" thick Series 160 or 3/8" thick Series 165. You will need to measure your old springs to confirm which size you have.

Then, depending on that, you could use either the 1/2" 15-150T or 3/8" 15-205 triple spring supports.
3/8" Egress Coil Triple Support
3/8" Egress Coil Triple Support
15-205
$2.10
1/2" Coil Triple Support
1/2" Coil Triple Support
15-150T
$1.96
Pivot Shoe, 17/32" Thick
Pivot Shoe, 17/32" Thick
15-199
$3.70
4.5 lbs Series 160 Coil Balance
4.5 lbs Series 160 Coil Balance
S160-04
$4.50
4 lb Series 165 Egress Coil Balance
4 lb Series 165 Egress Coil Balance
S165-4
$4.70
