simonton triple coil balance assembly replacement

Home Owner from Annville, PA

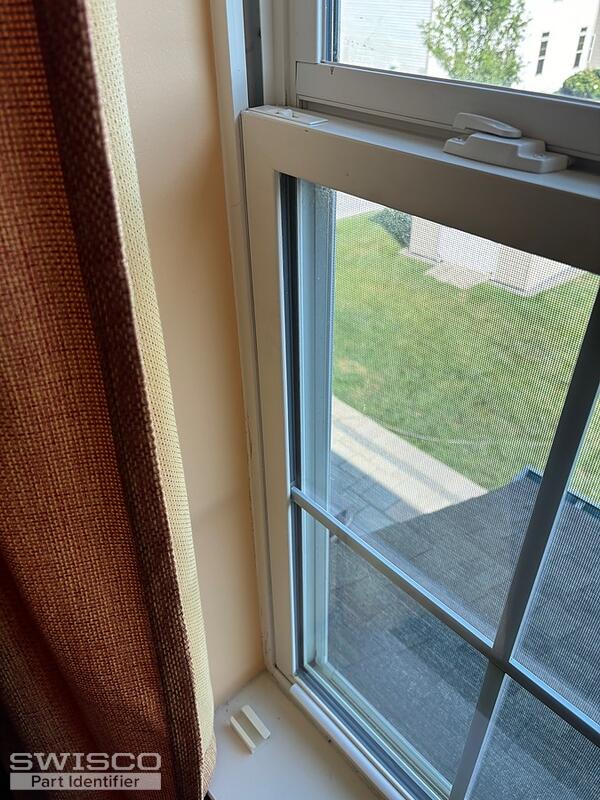

Hello; have a double-hung, tilt-in Simonton window (installed 2014) that won't stay open; researched/investigated and found out both triple coil balance adjustments had snapped and become disconnected from the shoe assembly (see pictures--previous owner; not sure what caused it).

Triple coils all have this marking on them: #5.0 35".

I am interested in an equivalent replacement for both sides of the window and would appreciate any help or advice you can give on the specific parts! I feel comfortable on the install.



Thank you very much for your time!

-Steve

4 user uploaded images
4 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for posting. This looks like a 15-199 Pivot Shoe. Are the coil springs 3/8" thick, rather than 1/2"? If so, then use the S165-5 5 pound springs. For a new coil cover, see the 15-205. Let me know if you have any other questions.

Home Owner from Annville, PA
Good eye! They are 3/8'' thick. Thank you very much; will order the parts you suggested.
Bob
Bob from SWISCO
SWISCO
Expert

Awesome, thanks so much! We appreciate the business.

Best of luck on the project and please let us know if we can be of any further assistance.
