5232208 window spring
Handy Person from iowa
Jul 21, 2020 5:44 pm

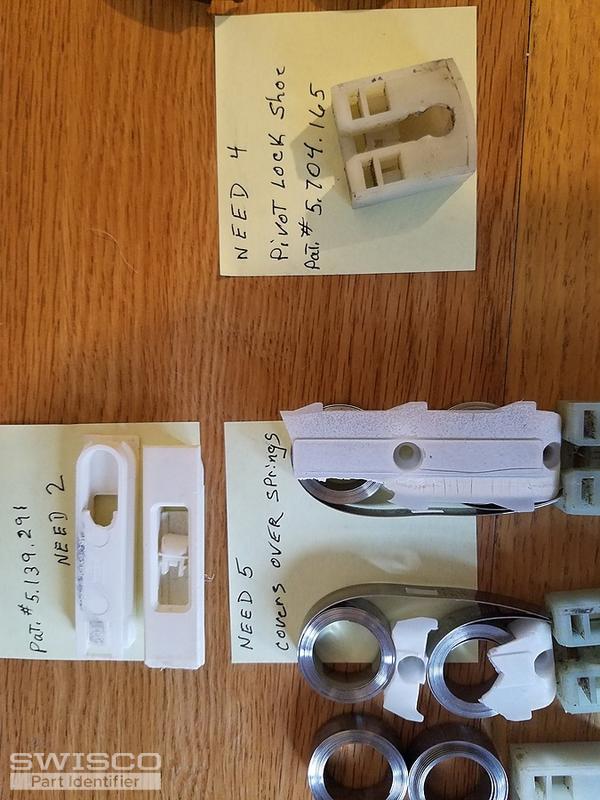

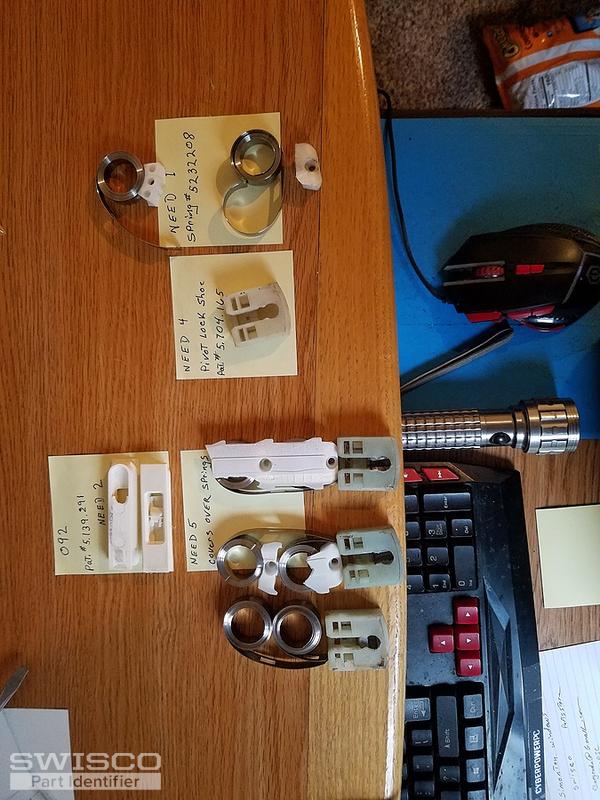

tried shopping but not finding what i need. sent photos.
i need at lest one spring. the number on the spring is 5232208
i need 4 pivot lock shoe. no number but i do have pat. # 5.704.165
i need 5 covers that goes over the spring. i have no numbers for them.
i need 2 latches at the top of window to pull it out. #092 is one # that i see
also the pat.#5.139.291
in the shop page i seen no springs, pivot locks i see but not sure which one to pick.
5 user uploaded images
4 Replies
Tom from SWISCO
Jul 23, 2020 4:25 pm
Your pivot shoe looks like our 15-199, which itself is compatible with either the 1/2" thick Series 160 or 3/8" thick Series 165. Measure your old spring to determine the better match.
If you go with the Series 160, you also want the 15-150D cover. Conversely, if you have the Series 165, you want the 15-204 cover instead.
Handy Person from iowa
Jul 24, 2020 9:03 am
thank you . that was a lot of help.
the spring i will be needing is the 165 series. before i order parts the coil spring list 3lb,4lb,5lb,6lb . which do you recommend.
spring has a # stamped on it, # 5232208
the spring i will be needing is the 165 series. before i order parts the coil spring list 3lb,4lb,5lb,6lb . which do you recommend.
spring has a # stamped on it, # 5232208
Tom from SWISCO
Jul 24, 2020 10:47 am
I'm not familiar with what your stamp represents. That's a weird one. I recommend weighing your sash on a scale and telling me what you get. Please be as precise as possible. With that, I can do a little math to figure out the proper spring calibration.
