window crank

Home Owner from Louisville, Ky

May 21, 2025 5:59 pm

Casement window crank rear mount. (Truth window part)

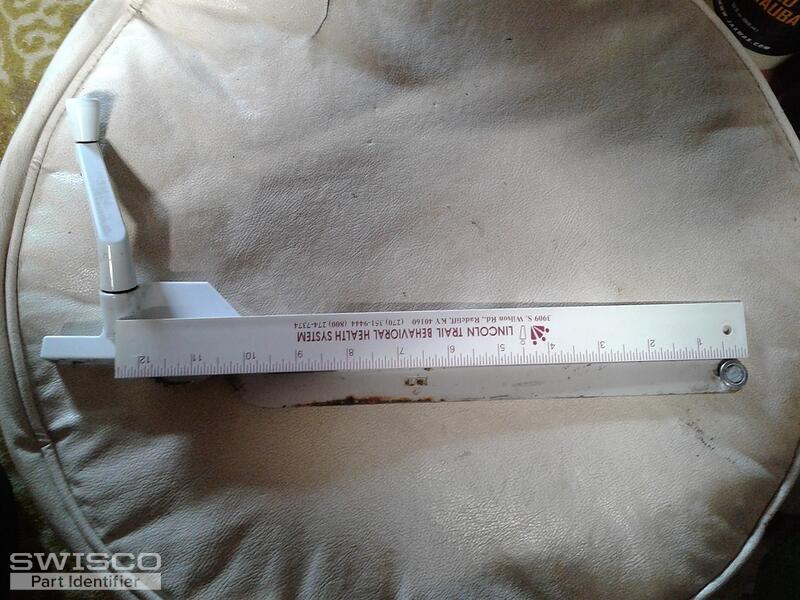

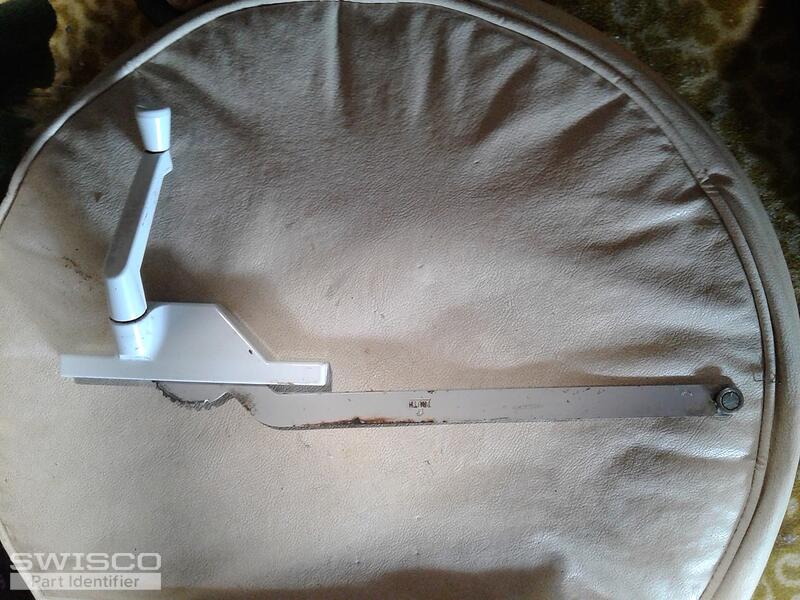

Five pictures of my window crank assembly.
Would you have a part number to replace this crank assembly?

5 user uploaded images

4 Replies

Jasmine from SWISCO

May 23, 2025 10:54 am

This window operator reminds me of the 39-477 Rear Mount Casement Operator. Carefully review and compare the dimensions below to confirm if the measurements are a match.

The opposite handed version along with the compatible hardware and accessories have also been tagged below for your review.

Dimensions for 39-477

Home Owner from Louisville, Ky

May 24, 2025 12:33 pm

Arm is to short.

Jasmine from SWISCO

May 27, 2025 9:33 am

Take a look at the 39-022 and 39-023 to see if this is a better match for your repairs. They are available in white. The installation hole spacing is the same on the base of these operators.

Dimensions for 39-023
