Product Code: 81-148

Roller Assembly, 1-1/8" Steel Ball Bearing, Adjustable

Name: Roller Assembly, 1-1/8" Steel Ball Bearing, Adjustable
SKU: 81-148
Price: 10.97 USD
Availability: InStock

$10.97

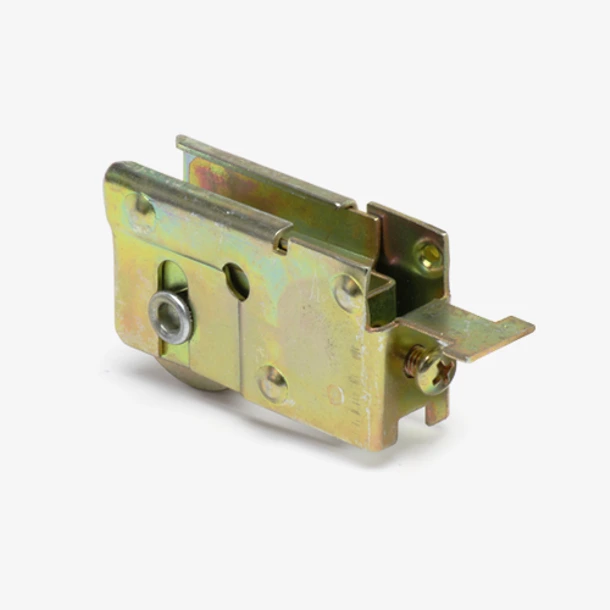

Roller Assembly, 1-1/8" Steel Ball Bearing, Adjustable Image

Product Description

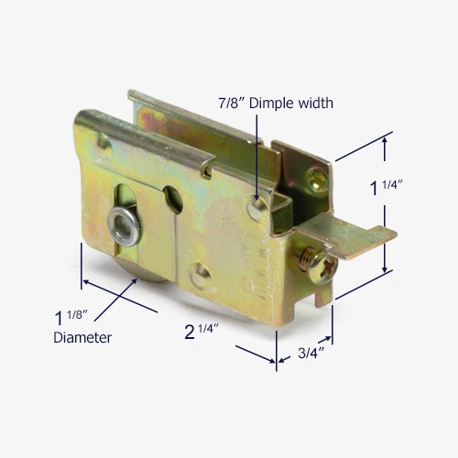

This popular sliding glass door roller assembly has a 23/32 inch wide, 1-1/4 inch tall adjustable steel housing assembly. The 1-1/8 inch steel concave ball bearing roller measures 5/16 inch wide. This assembly fits on doors manufactured by many patio door companies.

Good Idea!

The typical patio sliding glass door uses two roller assemblies, one on each bottom corner of the sliding door. We recommend replacing both sliding door rollers at the same time to prevent extra wear-and-tear to one new roller, which will have to work twice as hard when paired with an old roller.

Sliding glass door roller

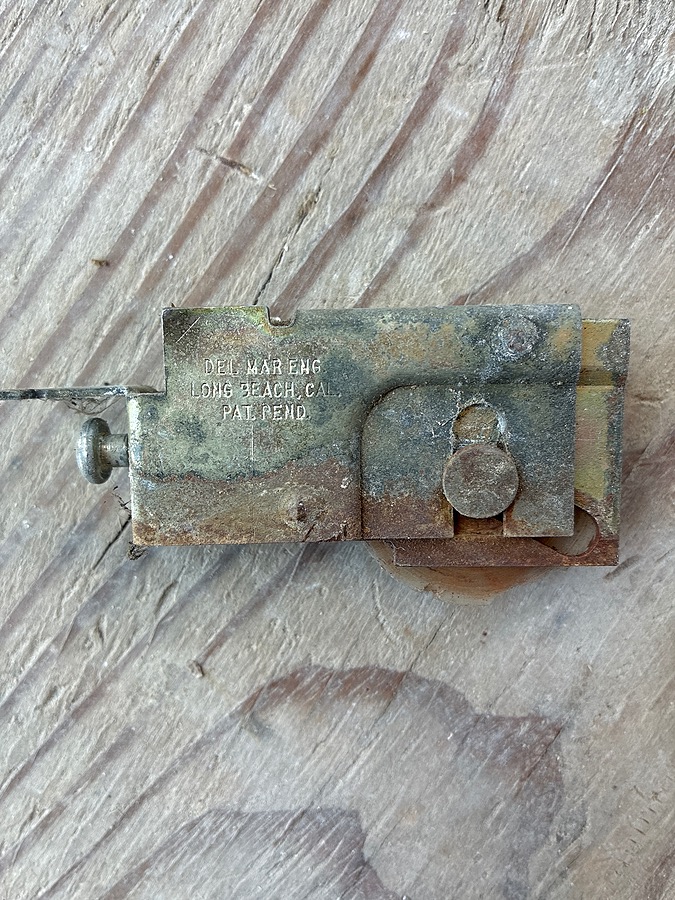

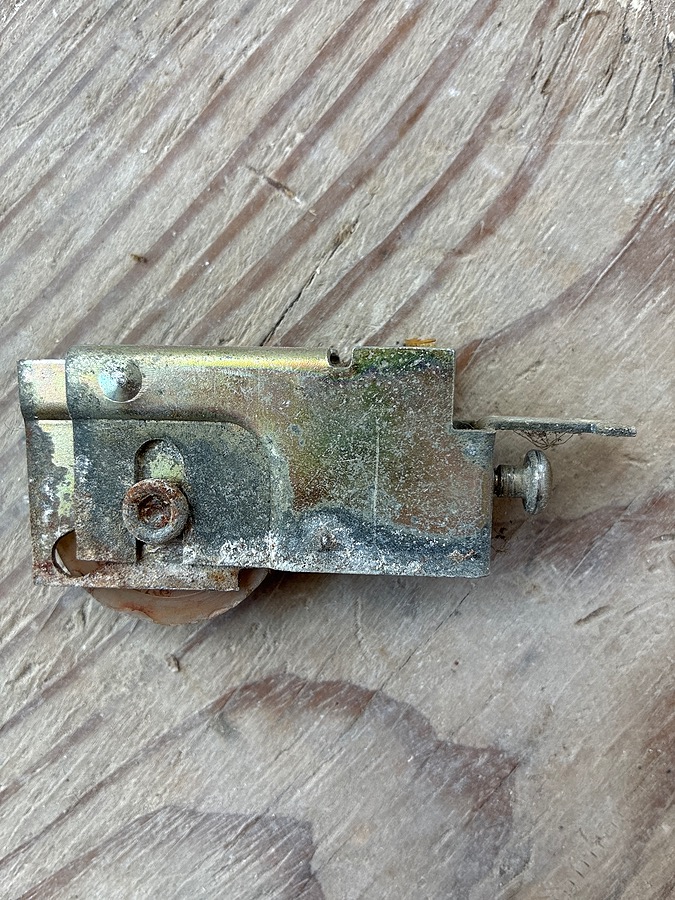

I have a oller that ws made by Del Mar Eng, Long Beach, CA. It is all metal and I can't seem to find a matching roller. Can you identify this?

Roller Assembly for Sliding Glass Door

Thought I had the right roller from Home Depot but didn't see the original roller has a notch cut out of the front on top. Otherwise this part looks exactly correct. Maybe you can cross reference. Lastly the sticker is from the screen glass door giving a model number. Can you match the old roller in ... (cont.)

Patio door rollers - "DEL MAR ENG LONG BEACH CAL PAT. 3,670,357"

nylon Rollers badly degraded and door hopping off track. Currently measure 1.25" suspect they may have once been 1.5". Seems similar to International 81-162 but dimple width appears to be just under 13/16 not 7/8

Stainless steel

Wheel is approximately 1/4

Rollers for sliding patio door

Dimensions: 3/4" wide at the widest point 1 3/16" tall body is 2 1/4" long without the "T" shaped tail body is a total of 3" with the "T" shaped tail
