Product Code: 36-022HD

12" Four Bar Hinge, 45 Degree, Heavy Duty

Name: 12" Four Bar Hinge, 45 Degree, Heavy Duty
SKU: 36-022HD
Price: 24.82 USD
Availability: InStock

$24.82

12" Four Bar Hinge, 45 Degree, Heavy Duty Image

Quantity	Price
1-9	$24.82/ea
10-24	$23.58/ea
25-49	$22.34/ea
50-99	$21.10/ea
100+	$20.35/ea

Please Note: Bulk pricing applies only to purchases of the same option

Quantity

Add to Wishlist

Product Description

Stainless steel four bar hinge with brass shoe, measures 5/8" in overall depth. Opens to 45 degrees with stop. This hinge is non-handed, it can be used in either left handed or right handed applications. For aluminum, steel, and wood windows, projected, casement, or transom type.

Crank out window parts.

Need 2 mechanism for both sides and lower clip for bottom mechanism

Truth casement hardware

The only numbers are on the inside of the white crank/handle. It says 30614 and 30893. The existing window from the interior has the hinge/pivot on the right and the latch/lock on the left. The "cranking" mechanism is stripped and the window does not function.

Casement window track

Look for the bottom track assembly for a left opening and also right opening

Window dead

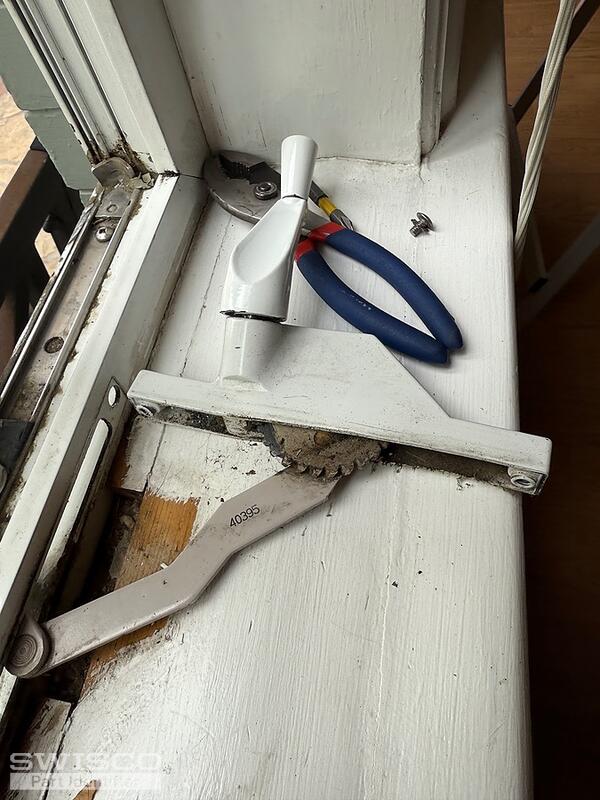

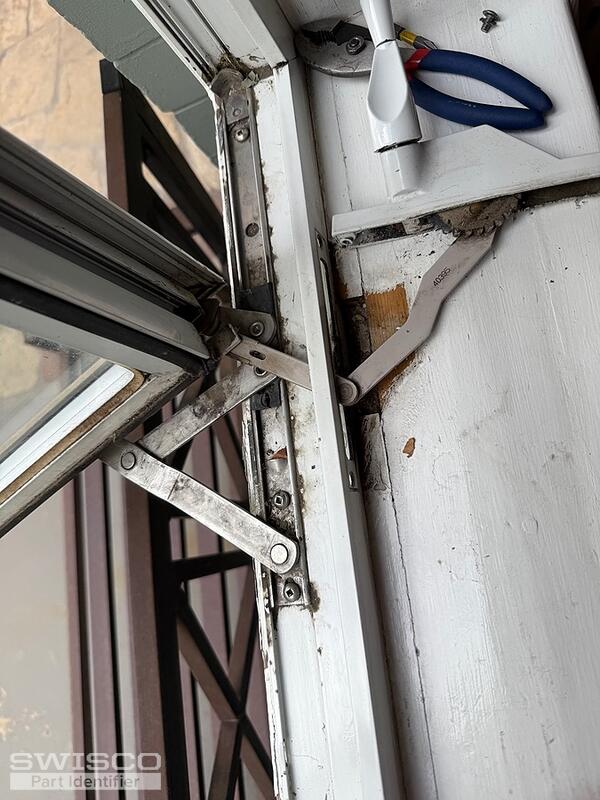

Hi! I need a new window dyad and was hoping you could tell me which one to get. The brown straight bar says 40395 and the white part that attaches to the arm crank says 30615 and 30894. Thank you!

Bathroom Casement Operator

Only marking I can see is "TRUTH"Problem appears to be the plastic slide (cracked, no longer attached to the arms)that accepts the two arms guiding the correct angle / opening of the Window.Slide rail on the bottom of the apparatus is 12" in length.Operator (inside) apperas to be in the middle of th ... (cont.)
