Viewing all customer Discussions for:

36-022HD 12" Four Bar Hinge, 45 Degree, Heavy Duty

The only numbers are on the inside of the white crank/handle. It says 30614 and 30893. The existing window from the interior has the hinge/pivot on the right and the latch/lock on the left. The "cranking" mechanism is stripped and the window does not function.

Look for the bottom track assembly for a left opening and also right opening

Hi! I need a new window dyad and was hoping you could tell me which one to get. The brown straight bar says 40395 and the white part that attaches to the arm crank says 30615 and 30894. Thank you!

Only marking I can see is "TRUTH"Problem appears to be the plastic slide (cracked, no longer attached to the arms)that accepts the two arms guiding the correct angle / opening of the Window.Slide rail on the bottom of the apparatus is 12" in length.Operator (inside) apperas to be in the middle of th ... (cont.)

This is an example of one dual casement window with broken operators. The crank/arm assembly are junk and need to be replaced. The hinge assembly is also junk because of the plastic component that is prone to break.. There are another half dozen to replace but I can not assume that all the others ... (cont.)

I need to replace both the top and bottom hinges on this window. The track measures 12" long. Thanks, Mark

Need 2 mechanism for both sides and lower clip for bottom mechanism

Hinges for vertical swing window

Please identify the parts I need to replace existing casement windows hinges or operating mechanism.

Looking to find a source for these old channel guides.

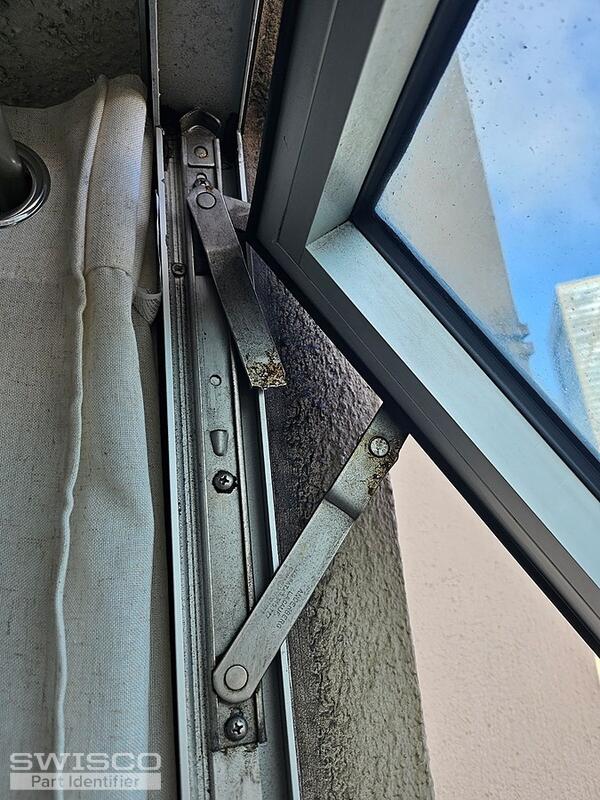

I have casement window in building built in 2002, top left hinge at plastic guide/ slide broken, photos attached

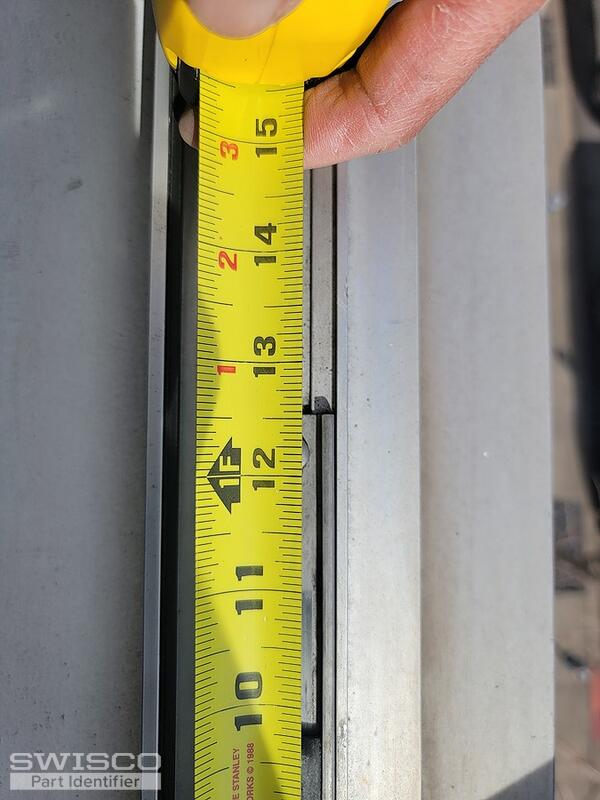

Hello Swisco, I beleive the operator is the 39-188. Trying to identify the proper bottom hinge . This casement window opens 90? at the stop, the main track is 12" long x approx 3/4" wide (I had to ask the out of state homeowner to measure for me, hence the yellow ruler) Thank You, Frank S. ... (cont.)

I need a replacement piece for my operator.Thelong chrome piece measures 12in. the numbers on one end of chrome piece are 40301. I need direction on how to proceed to order the replacement piece.

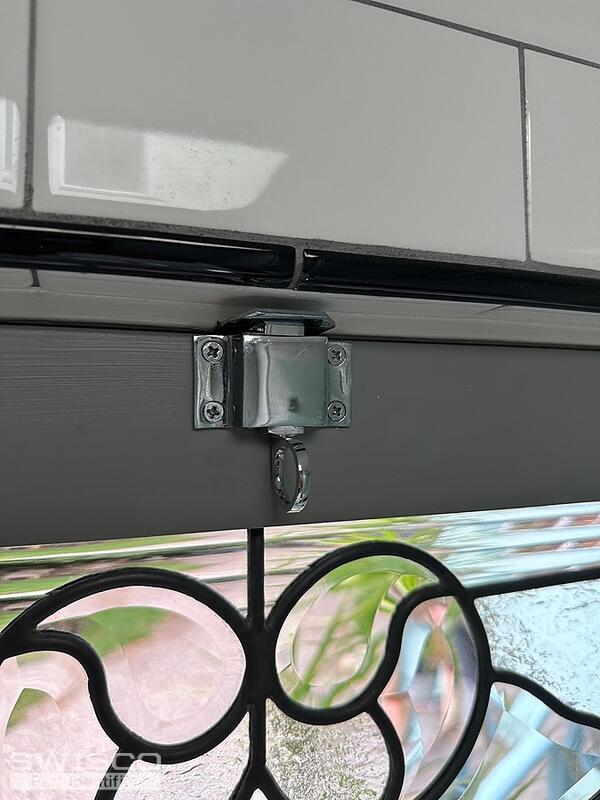

I need a latch like this in polished chrome. I also need a pair of 12" Truth stainless steel heavy duty four bar hinges. Can you help me with these ? Thanks

Good Afternoon, This hardware 16-1/4" long bottom rail ... top rail is 11" ... Can't seem to find this configuration on your website

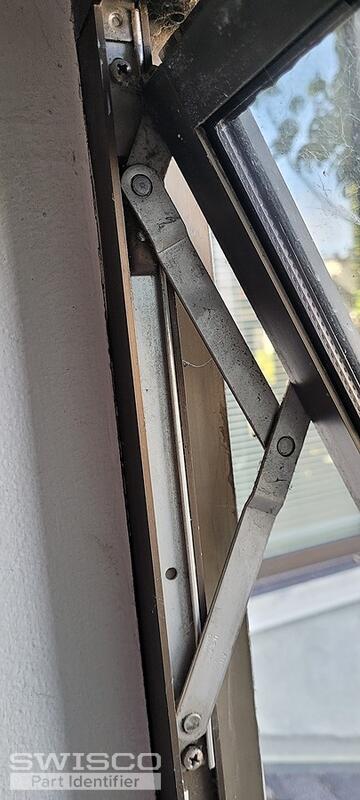

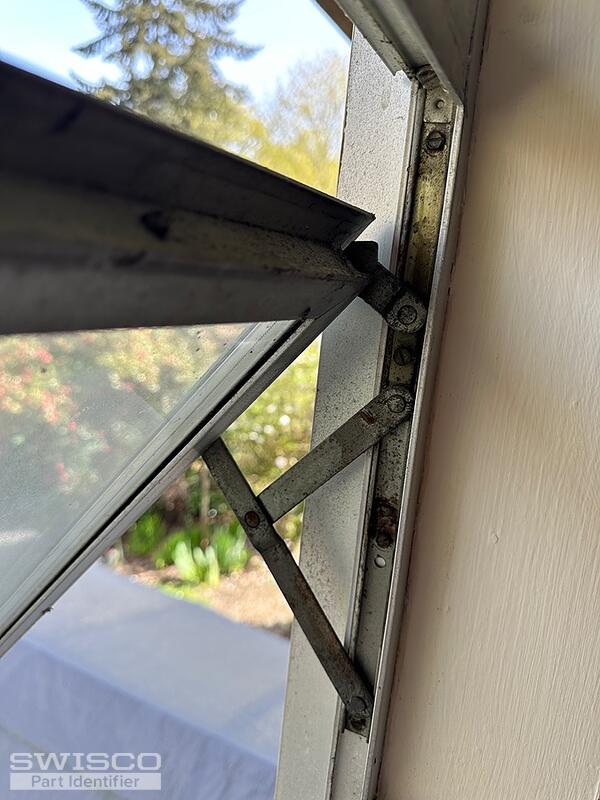

I have a right side awnng window hinge that is broken. (The photo shows the left side hinge.) I believe it is a 3-bar hinge - please confirm. It is 12 inch hinge. Do you carry the replacement hinge? Also, is it sold as a pair for the leftand right hinges?

Need help to Identify this hinge.

The plastic/nylon part on the left side is broken. I'm looking for replacement of the closing mechanism.

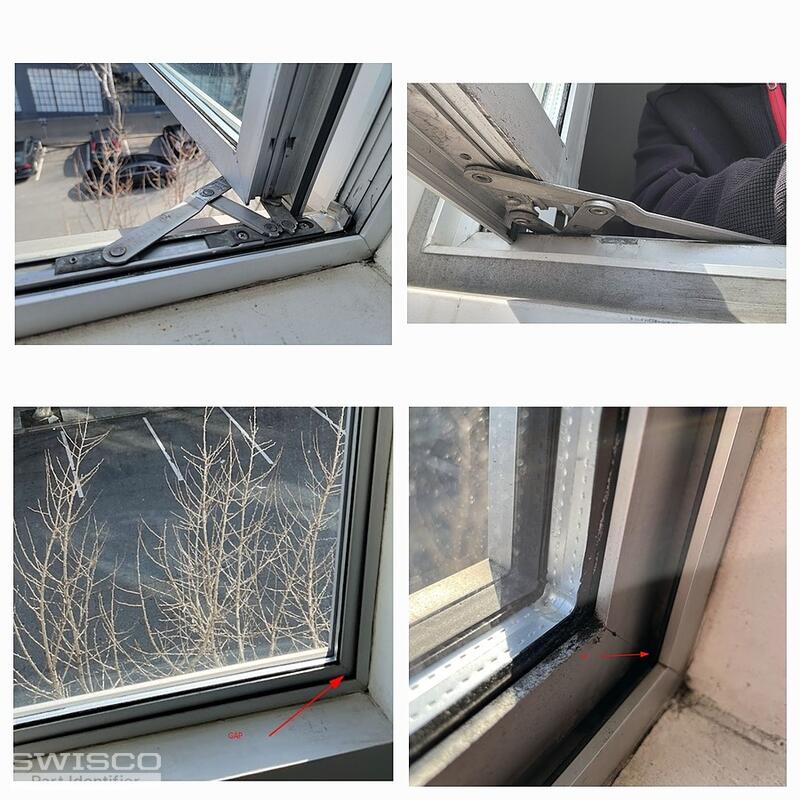

Hello, I'm having an issue with my window not forming a tight seal in the bottom right corner. I think it's an issue with the hinge not pulling the window in tight. Here are pictures of the gap and of the window hinge and of the existing hardware. What will be a suitable replacement part for thi ... (cont.)

Window hardware is broken on left side. Other pic is right side. see photos
