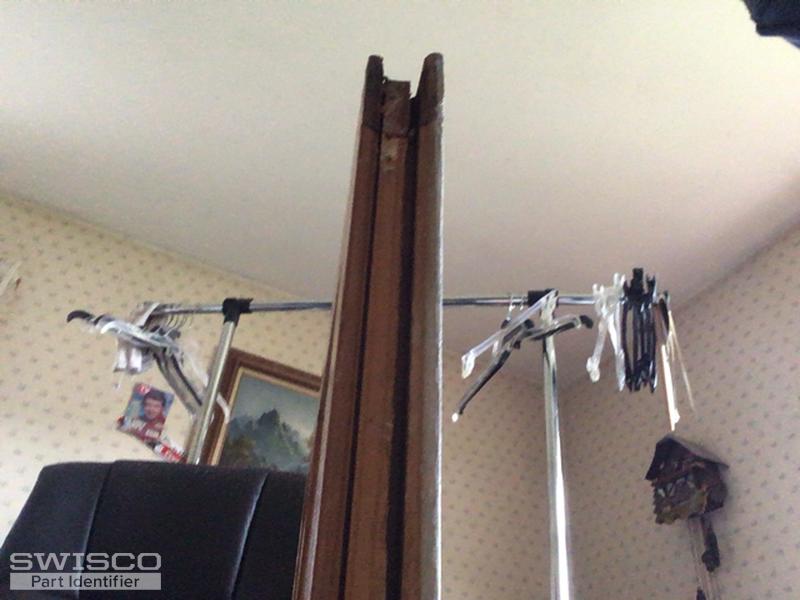

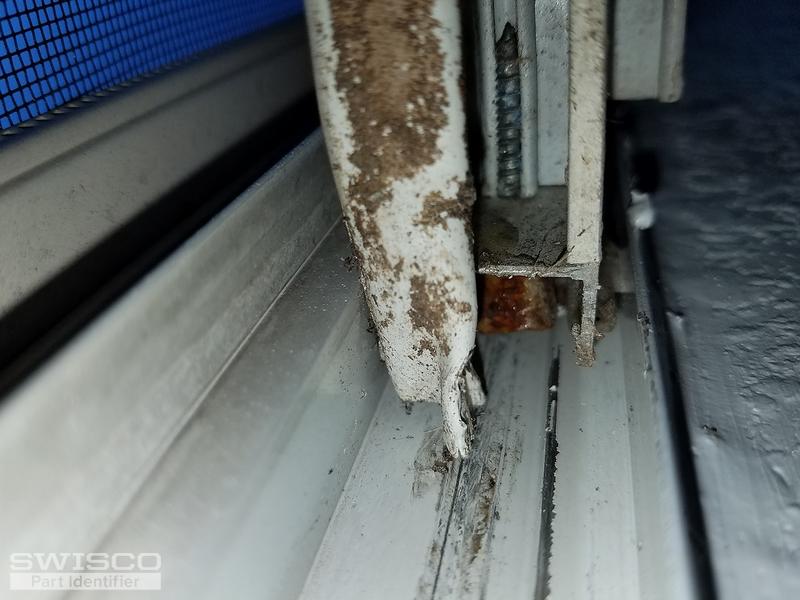

This is a Series 500 spiral balance, a popular balance that is used in both wood and aluminum non-tilt windows. It moderates the operation of your window sash to allow the window to stay open when raised.

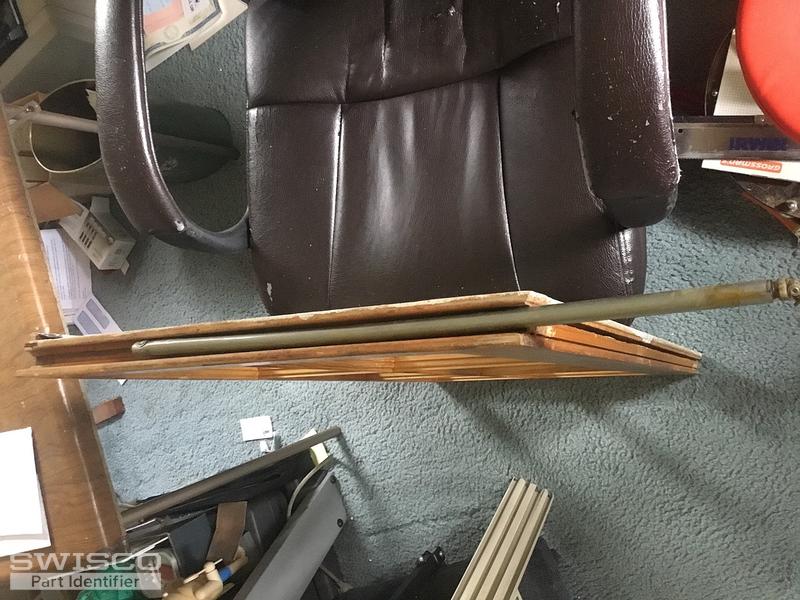

• This balance has a 12" long metal tube with an internal rod that measures 12-1/2" in length.
• The strength you need should be indicated as a color tip at the end of your old metal tube. If you do not see a color tip weigh your sash on a scale and refer to the chart below.

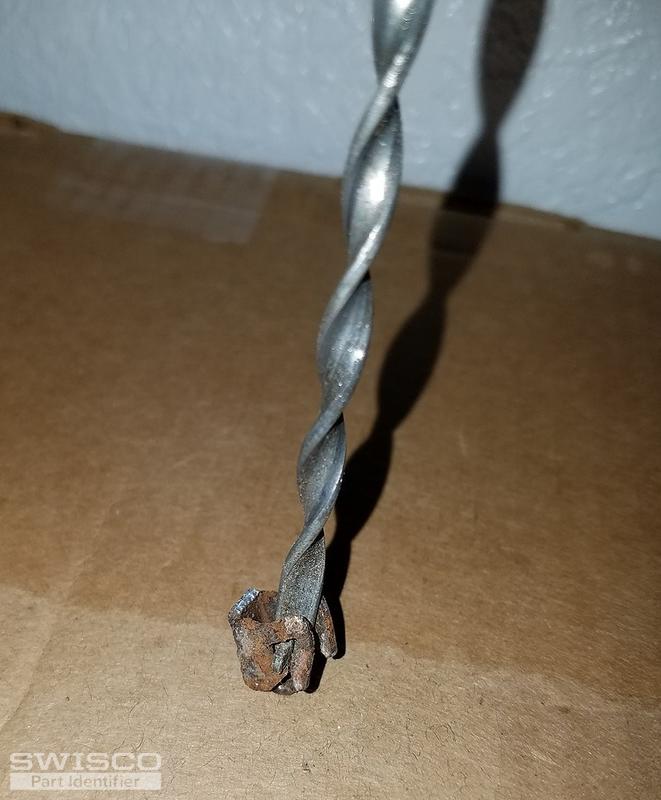

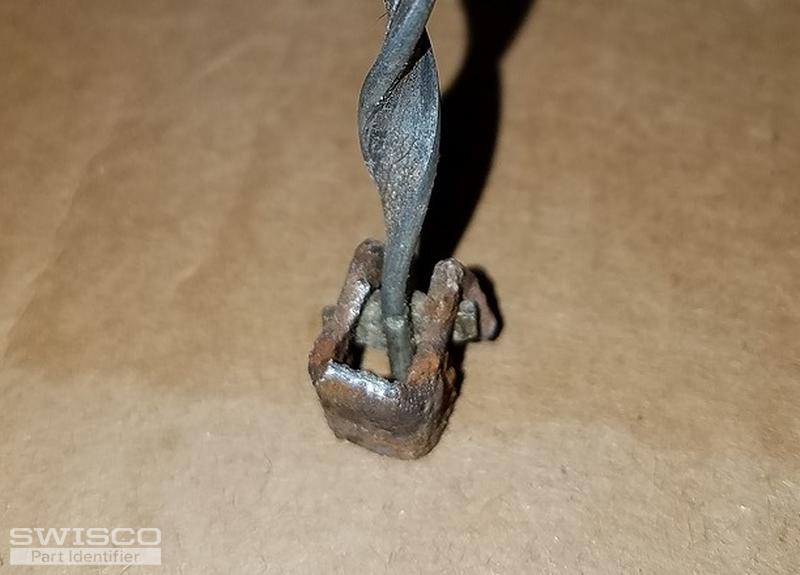

• The tube measures 9/16" in diameter but it is considered 5/8" in the trade and houses an internal spiral rod with cross-piece.
• Can work for either the left or right side of the window interchangeably.
• Spiral window balances come fully lubricated and ready to be charged.



Color Tip	Sash Weight Range
Red	6 to 18 lbs

*This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
