Product Code: S140-19

19 lb Series 140 Quick-Tilt, Dual

Name: 19 lb Series 140 Quick-Tilt, Dual
SKU: S140-19
Price: 15.59 USD
Availability: InStock

$15.59

Quantity	Price
1-11	$15.59/ea
12-49	$14.03/ea
50-99	$13.25/ea
100-249	$12.47/ea
250+	$11.69/ea

Please Note: Bulk pricing applies only to purchases of the same option

Quantity

Add to Wishlist

Product Description

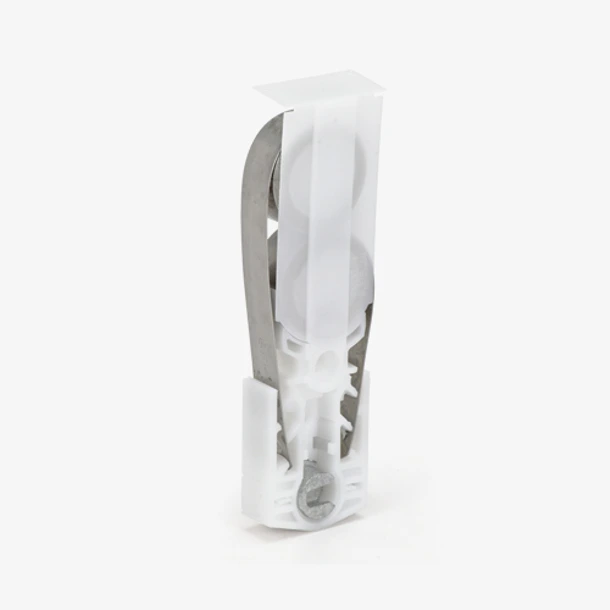

This is a Series 140 replacement constant force balance system for tilt windows. It moderates the operation of your window sash using specifically calibrated coil springs that allows the window to stay open when raised and remain shut when closed.

This balance comes complete with a pivot shoe, dual coil springs, and coil spring cover.
The springs are stainless steel and Teflon-coated to be corrosion resistant.
Travel extension: 32-1/2"

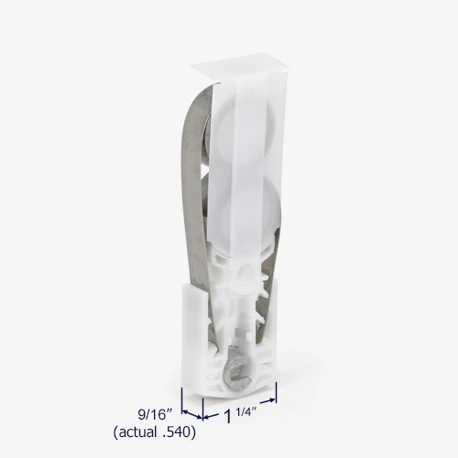

Fits pocket size 9/16" x 1-1/4" (.562 x 1.292).
A pair of 19 lb assemblies will carry 37-38.99 lbs, (sold individually). The weight you need should be indicated as a stamp or imprint on your old balance cartridge cover.
Each assembly can work for either the left or right side of the window interchangeably.

Good Idea!

For best results, replace window balances in pairs (though sold individually). An old balance will overwork a new one, causing faster wear and uneven operation. Paired replacement ensures optimal, lasting performance.

18 or 19?

Existing window has 3 coils and is labeled 18, but they are hard to open. Can I increase the tension by 1 pound to help make opening the window easier? Will this disrupt the window operation?

Tape balancer

Thanks for posting. This looks an older version of our Series 140 Coil Balance system. The number '19' might signify this is an S140-19, but I can't be certain. The best thing to would be to weigh your window sash. Dividing that exact weight in half will tell you how much support you need on both si ... (cont.)

Need Window Parts

The only part number I can find is on the coil #540. The window weighs 19 lbs. Instead of buying 4 #540 coils for ea. window would 2 S140-19 work for ea. window and 2 pivot bars?

19lb spring coil

need a 19lb spring coil

Coil balance replacement

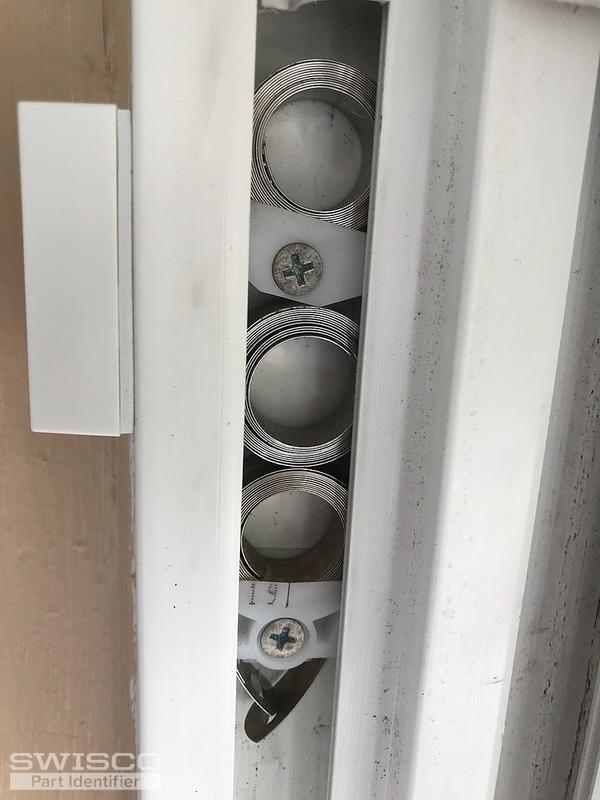

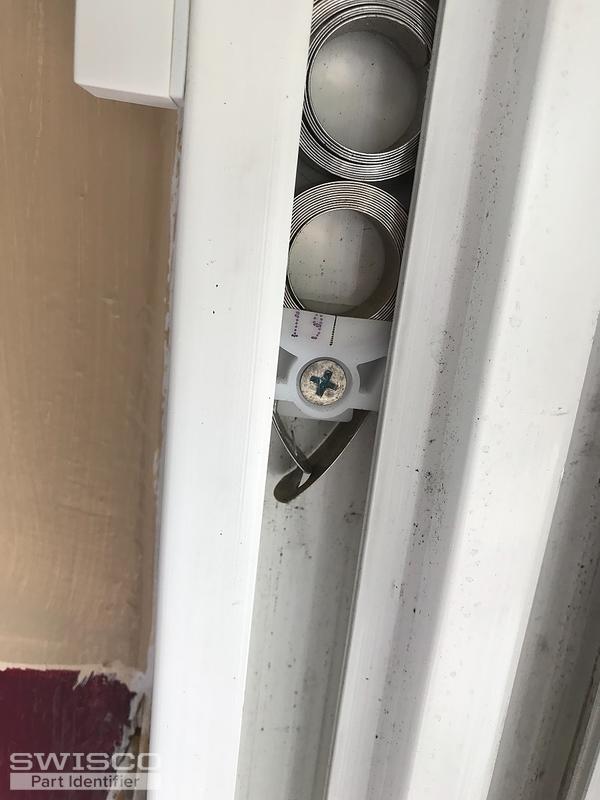

I am fixing a customers window. It has triple coil balances. I already ordered the carrier setup, and I can't figure out how to get all three coils attached to the bracket. After research I came across the same question answered on your site. I have given up on using the original setup, and I am goi ... (cont.)

Start a new Discussion

Notice:

Your inquiry will be addressed by one of our specialists promptly. If your inquiry is time-sensitive, please feel free to reach us at (888) 991-1929 or at help@swisco.com.

Expect a reply within 4–5 business days.

Note: We are currently experiencing a higher volume of inquiries than usual.

Need immediate assistance? We’re here to help! Give us a call at (888) 991-1929 or email us at help@swisco.com.

19 lb Series 140 Quick-Tilt, Dual
