Product Code: S765-20

20" Series 765 Balance

Name: 20" Series 765 Balance
SKU: S765-20
Price: 13.97 USD
Availability: InStock

$13.97

How to measure the length of the Series 765 channel balance.

Quantity	Price
1-11	$13.97/ea
12-49	$12.57/ea
50-99	$11.87/ea
100-249	$11.18/ea
250+	$10.48/ea

Please Note: Bulk pricing applies only to purchases of the same option

Quantity

Add to Wishlist

Product Description

This is a Series 765 channel balance for tilt-in windows. It moderates the operation of your window sash using a specifically calibrated spring and pulley system that allows the window to stay open when raised.

This balance has a 20" long metal channel.
Comes fully assembled with a screw clip on top and a pivot shoe hook attached at the bottom and will be ready to install out of the box.
The strength you need should be indicated as a stamp or imprint on your old metal channel. If you do not have a stamp, or cannot match it up to our options, weigh your sash on a scale and refer to the chart below.
Can work for either the left or right side of the window interchangeably.
Used in American Craftsman and Silver Line vinyl, single hung, new construction windows, as well as Silver Line Series 1200 vinyl, double-hung, replacement windows.

Stamp Option	Sash Weight Range
19-1	5 to 8 lbs
19-3	8 to 12 lbs
19-5	12 to 16 lbs
19-7	16 to 21 lbs
19-9	21 to 26 lbs

*This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.

Repairing replacement windows

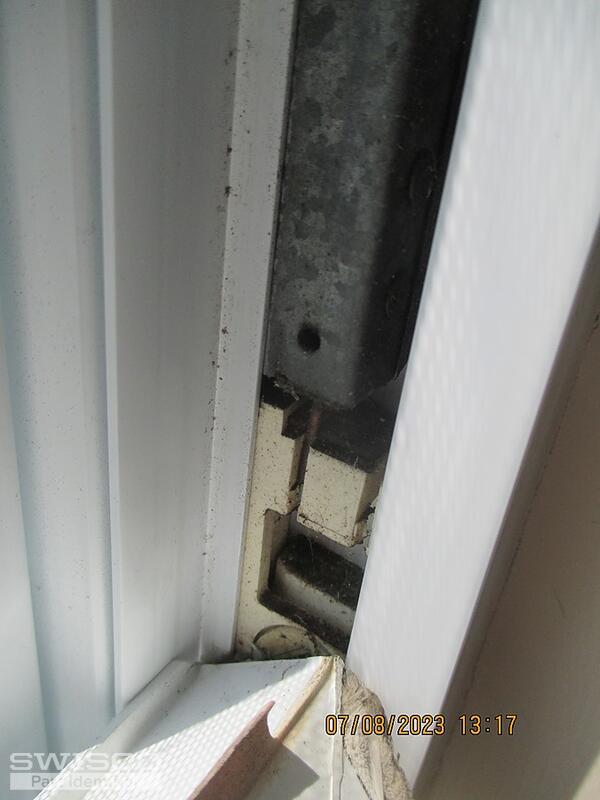

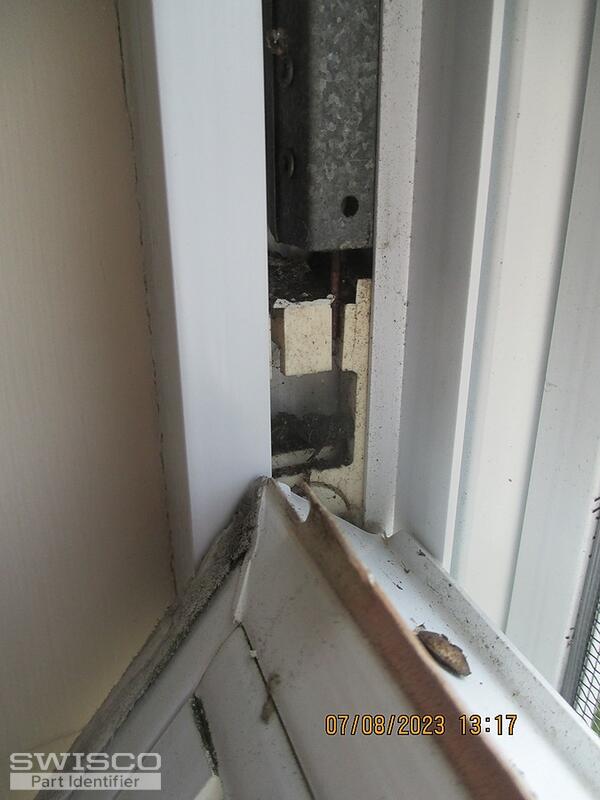

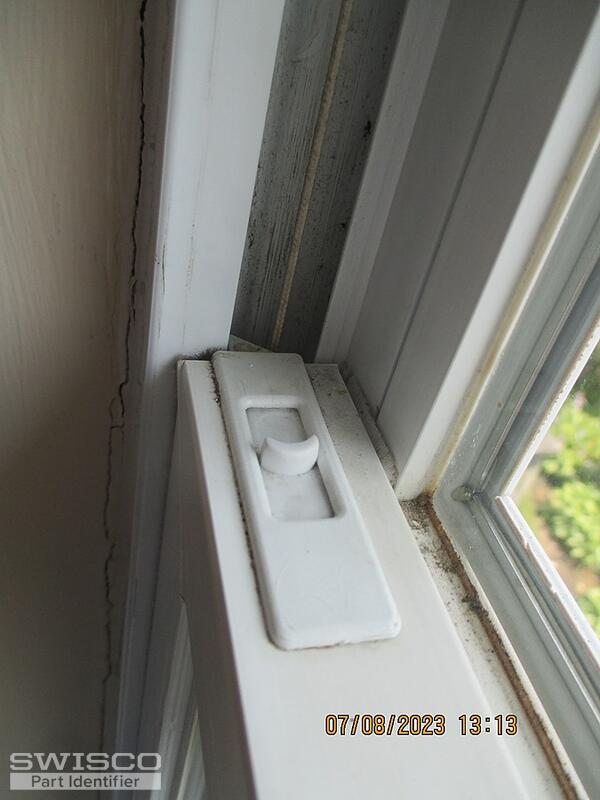

My contractor told me to see if I could get the parts to my windows. I didn't realize they had to be lifted up before i opened them and I broke a few windows. I think the metal pieces that go on the side are called valences. The number on mine is 19 7 C10S CMC. I need the plastic parts that are ... (cont.)

+27

+26

Window balence

The old window balance's were broken and need two new window balance. It is 20 inches long, 1/2 inch deep and 5/8 wide.

channel balances question

Hi - do these parts come with sash cords and springs?

Tilt window balance

Hello, What I have are 2 tilt window balances one is stamped C3140 and is 32" long and the other is stamped C1950 and is 20" long. I seen your Series 765 and it looks identical to what I need. I need 4 ea of the long and 2 ea of the little. I tried to add them to the cart and submit it but it says ... (cont.)

looking for window channel balances 19-d-40 size

to whom it may concern, we are looking for window channel balances 19-d-40 size ...we just want to know what size of window channel balances we can use , we need suggestion please....
