23" Series 371 Channel Balance

Product Code: S371-23

23" Series 371 Channel Balance
$10.03/each
Quantity Price
1-11 $10.03
12-49 $9.03
50-99 $8.53
100-249 $8.02
250+ $7.52
Please Note: Bulk pricing applies only to purchases of the same option
Option:
Product Description
This is a Series 371 channel balance for non-tilt windows. It moderates the operation of your window sash using a specifically calibrated spring and pulley system that allows the window to stay open when raised.
  • This balance has a 23" long metal channel. When determining the length, do not include the attached fittings. Only measure the metal channel.
  • Comes fully assembled with the 19-031 top and 15-005 (1" deep) bottom fittings and will be ready to install out of the box.
  • The strength you need should be indicated as a stamp or imprint on your old metal channel. If you do not have a stamp, or cannot match it up to our options, weigh your sash on a scale and refer to the chart below.
  • The width of the metal channel measures 9/16" but is considered 1/2" in the trade.
  • Can work for either the left or right side of the window interchangeably.
  • Often used with Rollyson non-tilt windows.
Stamp Option Sash Weight Range
2210 5 to 8 lbs
2220 8 to 12 lbs
2230 12 to 19 lbs
2240 19 to 23 lbs
2250 23 to 27 lbs
*This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
Good Idea!
Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.
Helpful Tip!
The stamp option is a code that indicates how much weight a pair of balances can support. You can use the stamp on your original channel balance as a reference in most cases, or you can weigh your sash and refer to the chart above. If your sash's weight falls outside the weight ranges listed on that chart, or you are still unsure how to proceed, ask our experts for help.
Guides
  • How to replace a non-tilt channel balance
  • Choosing a Non-tilt Channel Balance: What Will We Need?
    • Related Videos
    Related Item(s)
    18-124P
    $3.92
    Top Sash Guide Pair, Rollyson
    Customer Questions & Answers
    Discussion Posts Last Post Date

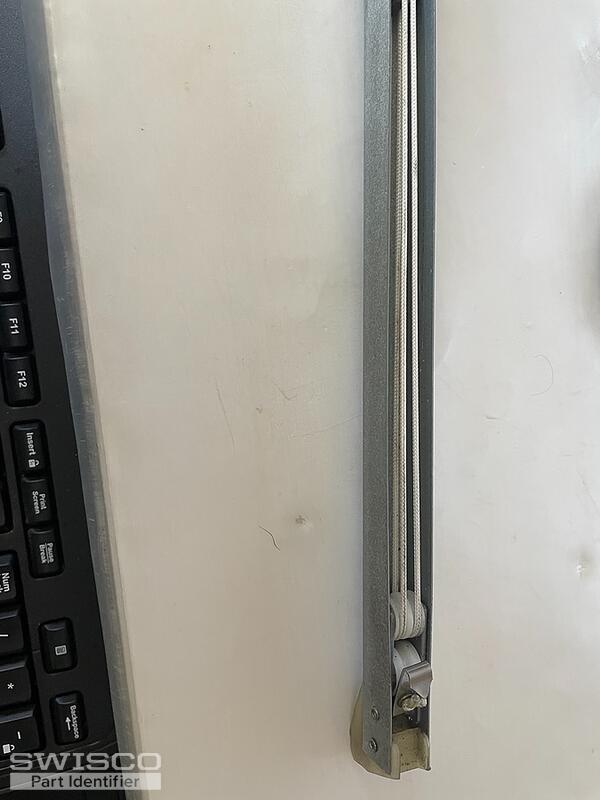

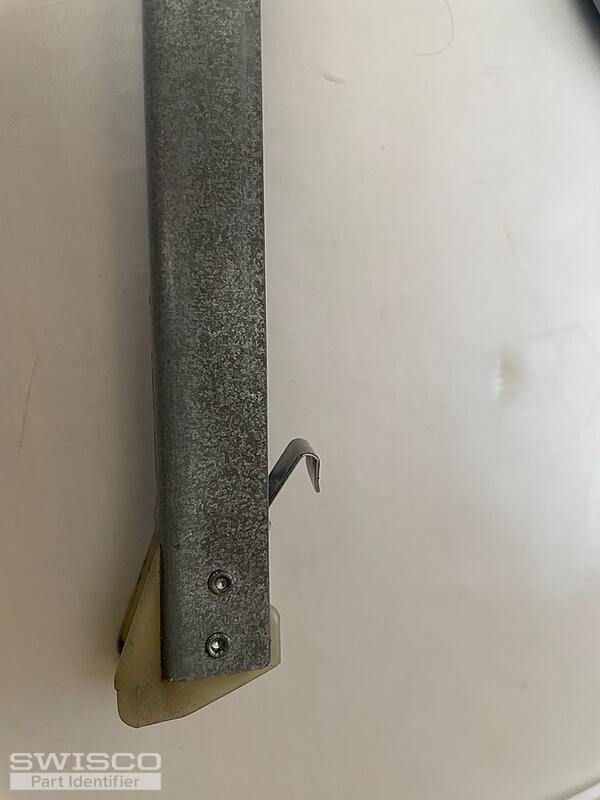

    1/2" Channel balance, 23" Long Non-tilt window
         		4 Jan 4, 2023

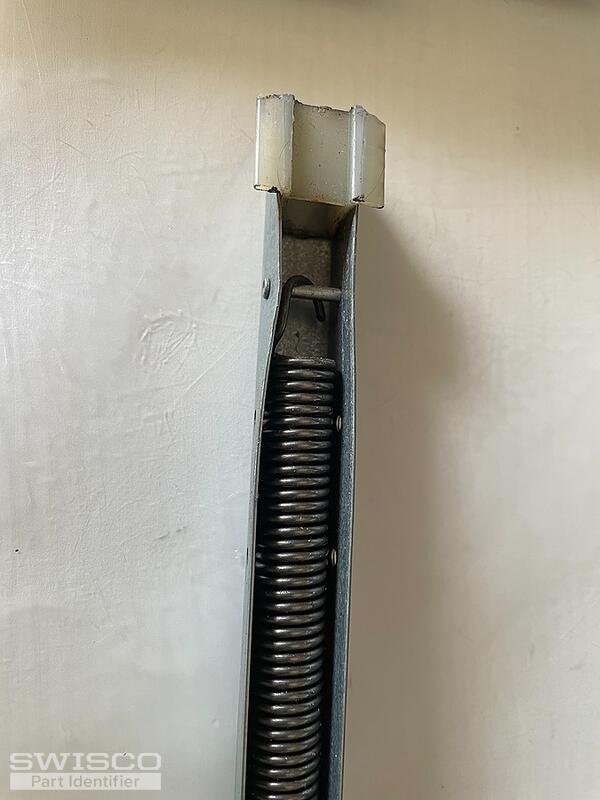

    Channel balance 2210
         		This discussion includes image(s). 4 Jul 15, 2020
    milgard window balance
         		2 Jan 22, 2020

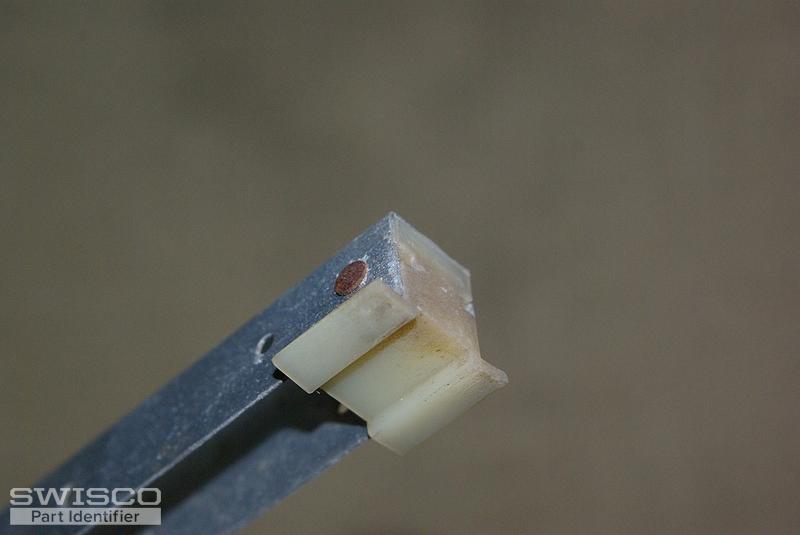

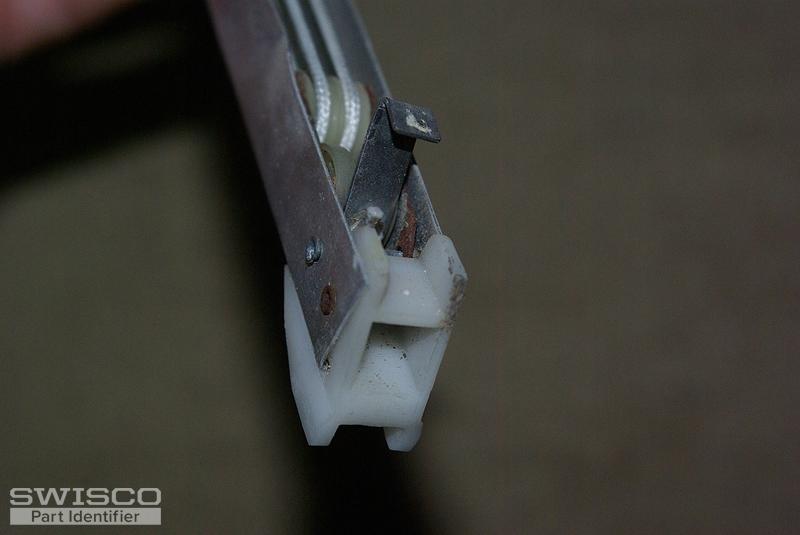

    Part
