25" Series 370 Channel Balance

Product Code: S370-25

Product Description
This is a Series 370 channel balance for non-tilt windows. It moderates the operation of your window sash using a specifically calibrated spring and pulley system that allows the window to stay open when raised.
  • This balance has a 25" long metal channel. When determining the length, do not include the attached fittings. Only measure the metal channel.
  • Comes fully assembled with the 19-004 top and 15-002 (1" deep) bottom fittings and will be ready to install out of the box.
  • The strength you need should be indicated as a stamp or imprint on your old metal channel. If you do not have a stamp, or cannot match it up to our options, weigh your sash on a scale and refer to the chart below.
  • The width of the metal channel measures 9/16" but is considered 1/2" in the trade.
  • Can work for either the left or right side of the window interchangeably.

  • Stamp Option Sash Weight Range
    2410 5 to 9 lbs
    2420 9 to 15 lbs
    2430 15 to 19 lbs
    2440 19 to 24 lbs
    2450 24 to 27 lbs
    2460 27 to 30 lbs
    2465 30 to 33 lbs
    *This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
Good Idea!
Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.
Helpful Tip!
The stamp option represents the strength of the channel balance. Locate the stamp on your channel balance. If your stamp does not match any of the stamp options available or you are unsure of which stamp option you should choose: ask our experts for help.
Guides
Customer Questions & Answers
Discussion # Of Replies Last Post Date

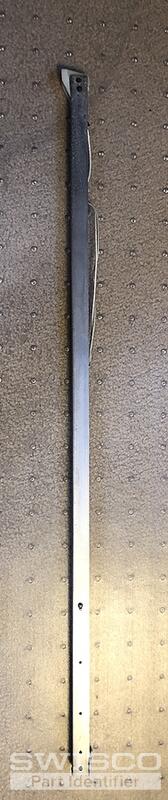

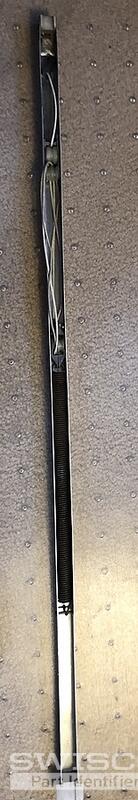

Window sash channel balanceThis discussion includes image(s). 2 Jul 23, 2018
stamped 2420 on balancerThis discussion includes image(s). 2 Oct 27, 2017
balance weight 2 Apr 11, 2017

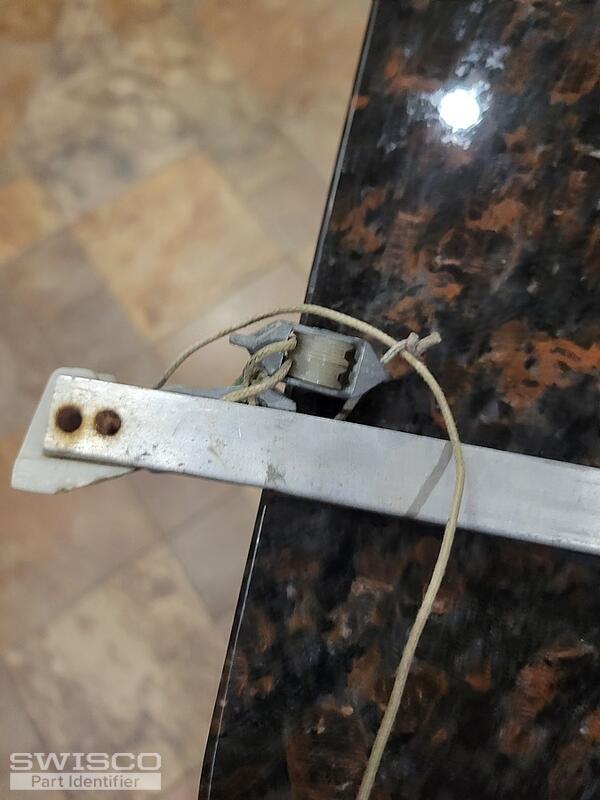

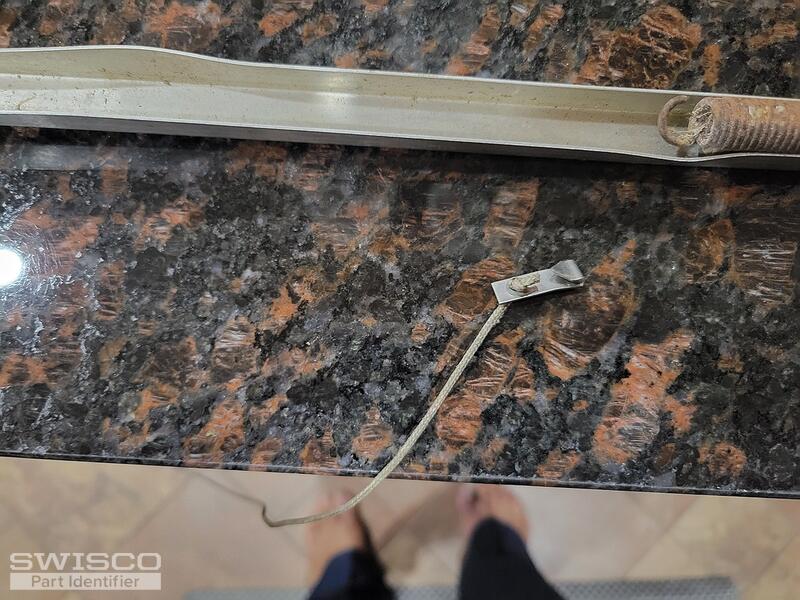

Various balance partsThis discussion includes image(s). 0 Sep 9, 2016
what option to get with channel balance This discussion includes image(s). 0 Sep 7, 2016
Channel Balance Stamp 2 May 19, 2015
What option do I need for a 24 B stamp? 2 May 12, 2015

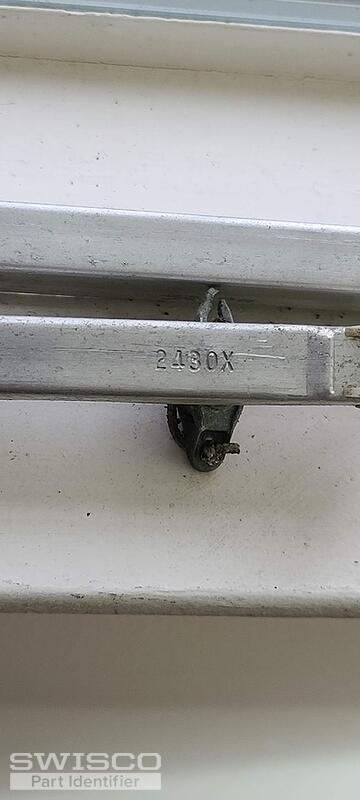

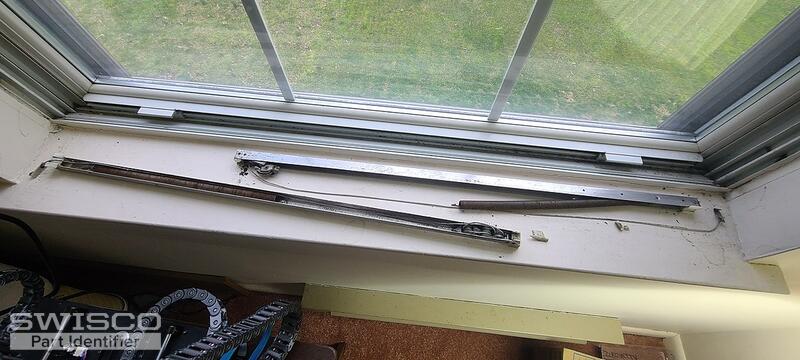

Channel Balances 2420X, Tops & Bottoms This discussion includes image(s). 3 Nov 20, 2014
