3 Coil Balance 5.0 35" / Shoes / Rods

Home Owner from Centereach New York

Sep 23, 2024 5:02 pm

Hi

Need to replace window parts for Simonton Window
Window is 25lbs

Need 3 Coil Balances w/Covers ( marking on hardware above )
Need 2 Shoes
Need 2 Rods

Thank You John

2 user uploaded images

9 Replies

Home Owner from Centereach New York

Sep 23, 2024 5:09 pm

Hi again

Need 2 Sets of 3 Coil Balances . One Set for each side

Ty

Emily from SWISCO

Sep 26, 2024 9:46 am

Hello there!

Thank you for reaching out to us. Our 15-199 pivot shoe appears to match what you have here. The 1/2" S160 and 3/8" S165 are compatible with this part. Can you tell us the width of the coil spring band? Can you show us a photo of an undamaged "rod" removed from the window?

Home Owner from Centereach New York

Sep 26, 2024 5:02 pm

Hi

Width 1 2/16 picture

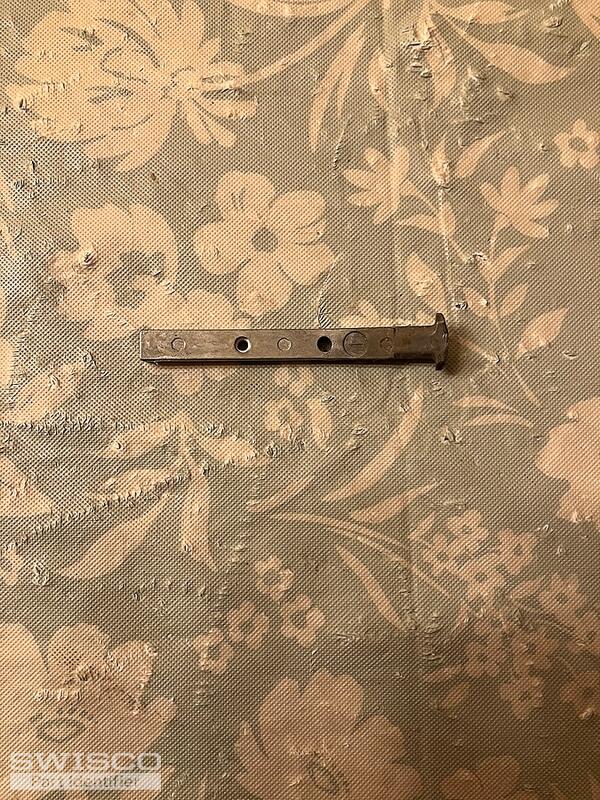

Rod - picture

Thanks

2 user uploaded images

Emily from SWISCO

Sep 27, 2024 2:07 pm

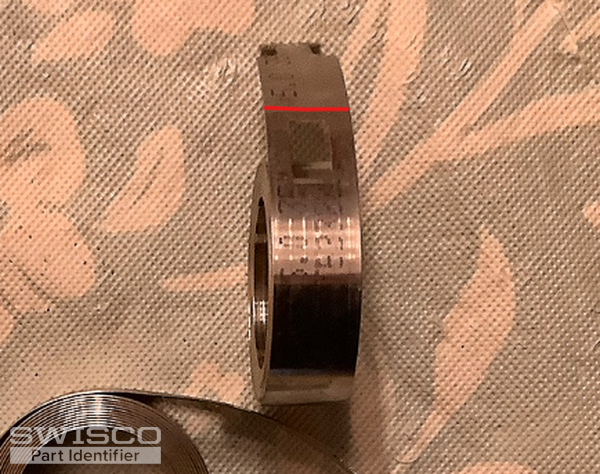

My apologies, I should have been more clear. Can you measure the spring as shown below and tell us what you find?

Home Owner from Centereach New York

Sep 27, 2024 2:19 pm

Hi

Do you mean the measurement of the Red Line ?

Emily from SWISCO

Sep 27, 2024 2:52 pm

Yes, that is correct!

Home Owner from Centereach New York

Sep 27, 2024 3:26 pm

Hi

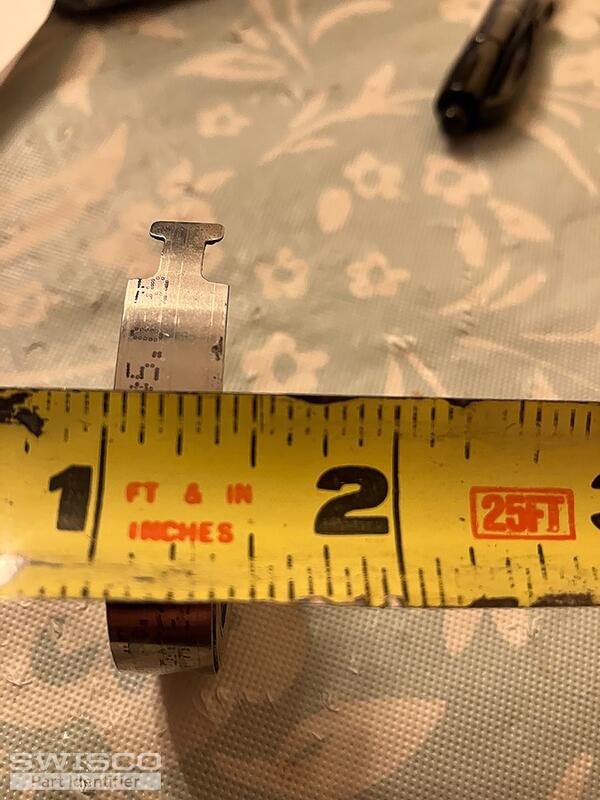

Looks like 6/16 based in photo

1 user uploaded image

Emily from SWISCO

Sep 30, 2024 8:20 am

Thank you! From your photo, the width of the spring band looks to be 3/8". If the window sash is 25 pounds, you can use two S165-5 5-pound springs and one S165-3 3-pound spring on each side of the window. With 13 pounds of support on each side, this will total 26 pounds of overall support. For the pivot bar and spring support, see the 26-378 and 15-205.
