Coil balancers

Question

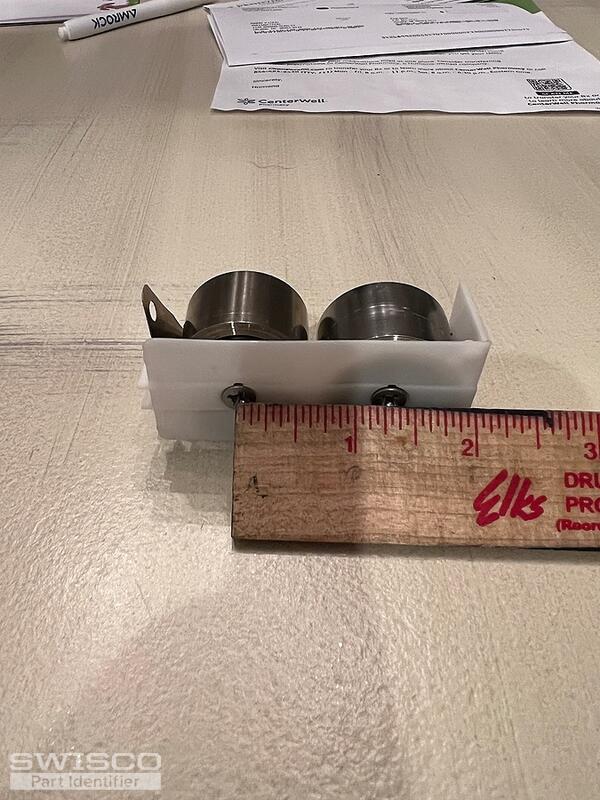

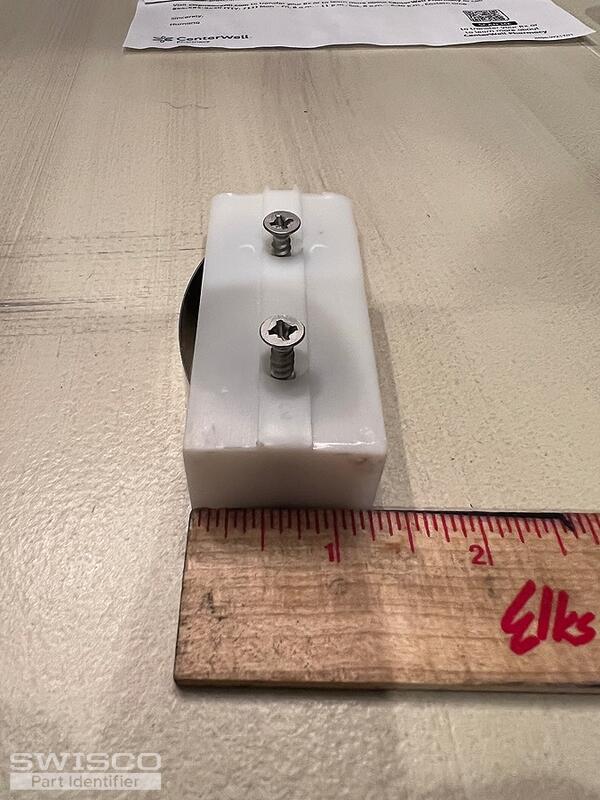

Hi, I need a left and right balance assembly, the shoe has a pat # 5,704,165, it's about 1 1/4" wide and 13/16" deep and 1 5/8 high, the upper coil has a 6 on it and the lower coil has a 9 on it, would like to purchase a left and right assembly already assembled

Jasmine · Accepted Answer

The best replace option for your shoe is the 15-259 Coil Balance Pivot Shoe. It is compatible with the Series 159 Coil Balance, which uses the 15-256 Coil Double Support. You'll need the S159-06 and the S159-09 to replace the coils.

I also suggest double checking the existing pivot bar to determine if it is compatible with the 15-259. This shoe uses the 26-083.

Dimensions for 15-259

Detail of 26-083

Due to the many different combinations of coils the balance system uses, we do not assemble them before they leave the warehouse. The video tutorial below shows a demonstration on how to install them once they are assembled.
