Product Code: S159-09

9.5 lbs Series 159 Coil Balance

Name: 9.5 lbs Series 159 Coil Balance
SKU: S159-09
Price: 6.27 USD
Availability: InStock

$6.27

Quantity	Price
1-11	$6.27/ea
12-49	$5.64/ea
50-99	$5.02/ea
100-199	$4.70/ea
200-399	$4.14/ea
400+	$3.82/ea

Please Note: Bulk pricing applies only to purchases of the same option

Quantity

Add to Wishlist

Product Description

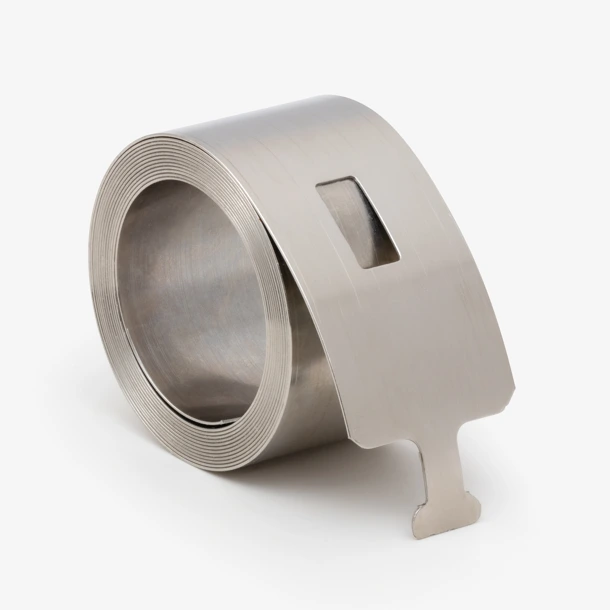

This is a Series 159 stainless steel spring for tilt windows. It moderates the operation of your window sash using a specifically calibrated coil spring that allows the window to stay open when raised and remain shut when closed.

Individually, this coil balance can hold 9-1/2 pounds. This is added together with the other coils to support the whole weight of the sash.
The weight you need should be indicated as a stamp or imprint on your old spring.

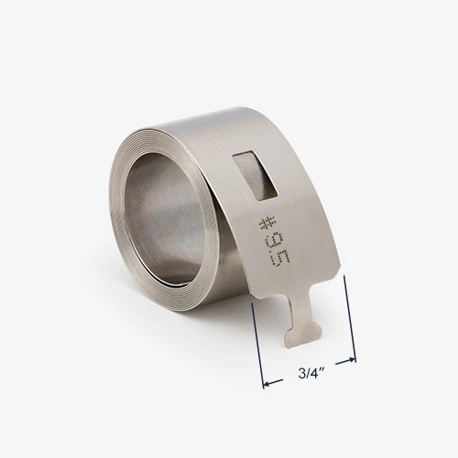

Measures 3/4" thick.
The maximum travel length is 40".
Designed to work with a pivot shoe (sold separately).
This coil balance spring is sold individually, not in sets.
Can work for either the left or right side of the window interchangeably.
Coil balances are also known as constant force window balances.

Series 159 Coil Balance Quote

409 is stamped on my spring? Which new spring does that match?

Coil balancers

Hi, I need a left and right balance assembly, the shoe has a pat # 5,704,165, it's about 1 1/4" wide and 13/16" deep and 1 5/8 high, the upper coil has a 6 on it and the lower coil has a 9 on it, would like to purchase a left and right assembly already assembled

Series 159 Coil Balance Quote

409 stamped into the spring.

parts for simonton window

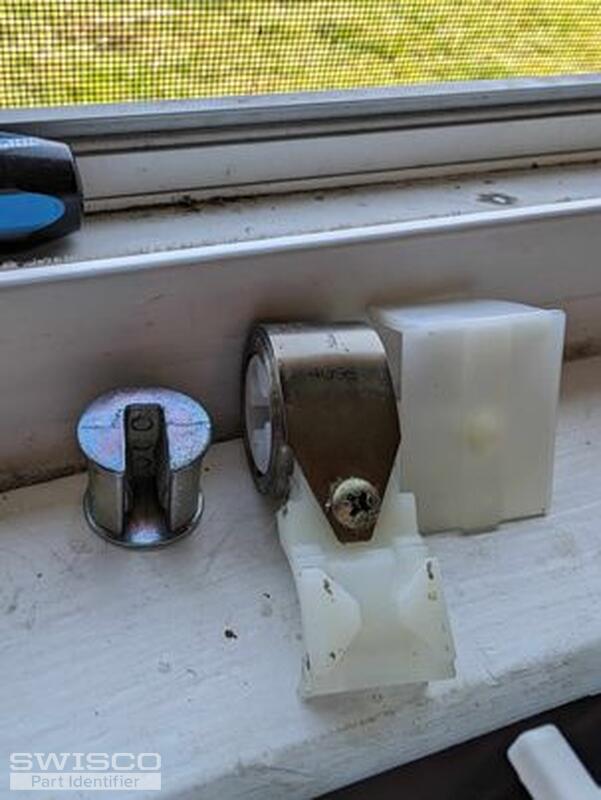

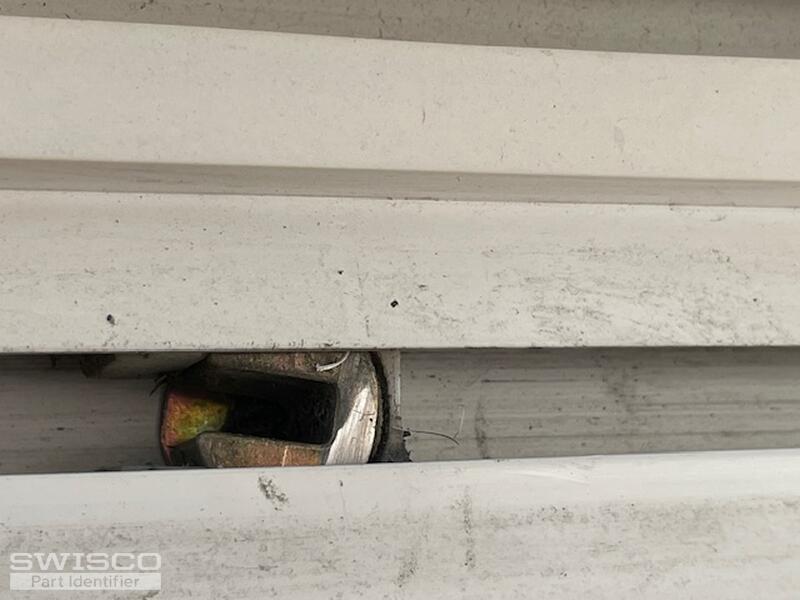

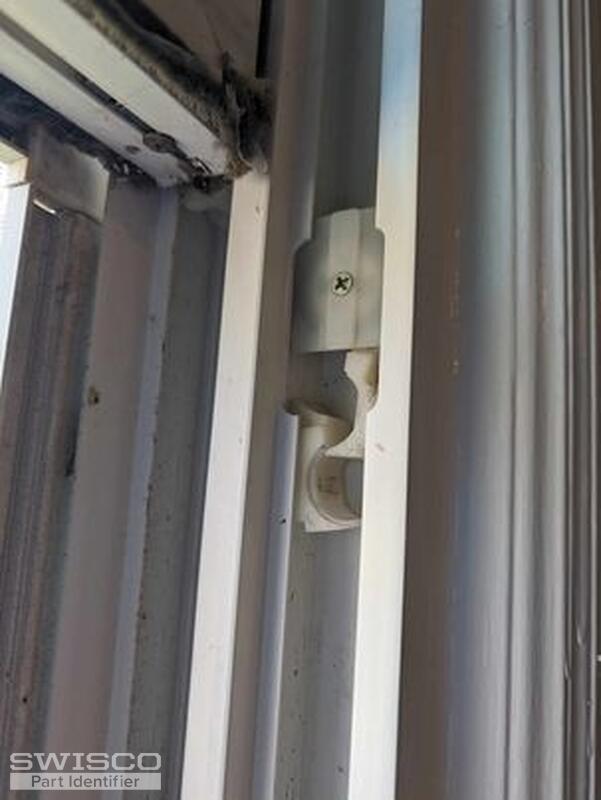

I need a balancer assembly and a pivot bar for a Simonton double-hung sash. The balancer goes on the right side of the window facing it from inside the house, and the pivot bar goes on the left. the photos of the installed balancer are of the left one, as I had already removed the broken right side ... (cont.)

Simonton Double Hung Windows

Need to purchase 8 balance assemblies for: Simonton Double Hung Windows 8088643/09 30.2500 58.2500 65DHWI 50073LEAR 6/25/04 B23WH The window weight is 18 lbs. Per your documentation, this would suggest I need (4) 4.5 lb springs in the new assembly. Would this work with one 9 lb spring? ... (cont.)
