Needing parts

Question

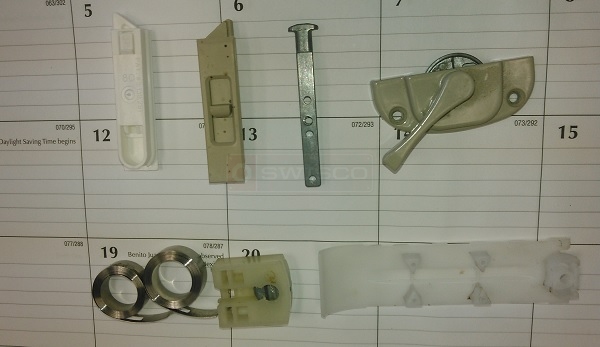

I am needing these replacement parts. Is this enough information to be able to determine what parts that are need? I have a customer needing a coil spring (5232208) that is 3/8" wide. One for a 4 lb x 35" window. And one for a 5lb x 35" window.

Paul · Accepted Answer

Thanks for posting! I would start by looking at our 90-274 lock, 26-243 and 26-244 tilt latches, 15-199 pivot shoe, and S165-4 and S165-5 3/8" wide coil springs. I would also look at our 15-205 spring cover and the 26-378 pivot bar. Carefully go over each part to make sure the dimensions all match up, but otherwise I think these parts are a good place to start.
