Replacement pivot shoe

Question

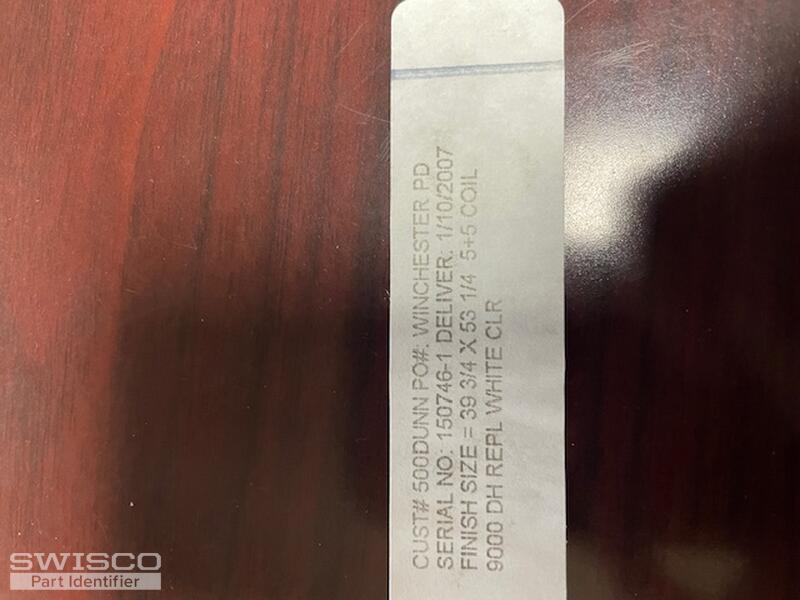

I think I just need the shoes for this coil shoe. I need both sides.

Jasmine · Accepted Answer

Hey there,

Thanks for writing in! Your exact coil shoe is no longer available but the 15-199 Pivot Shoe should work to replace it. You'll need to remove the assembly and compare the dimensions to confirm the shoe will be a fit in the track.

The compatible pivot bar is the 26-378.

Alternate view of 15-199

This shoe uses either the 1/2" wide Series 160 Coil Balance (uses the 15-150D Coil Double Support) or the 3/8" wide Series 165 Coil Balance (uses the 15-204 Coil Dual Support). You'll need to confirm the width of the existing coil to confirm the right replacement.

Once you've confirmed the series, you'll need to check for a stamp/marking on the metal to determine the correct replacement from the list of coils in the provided link. Take a look at the video tutorial below for instructions.
