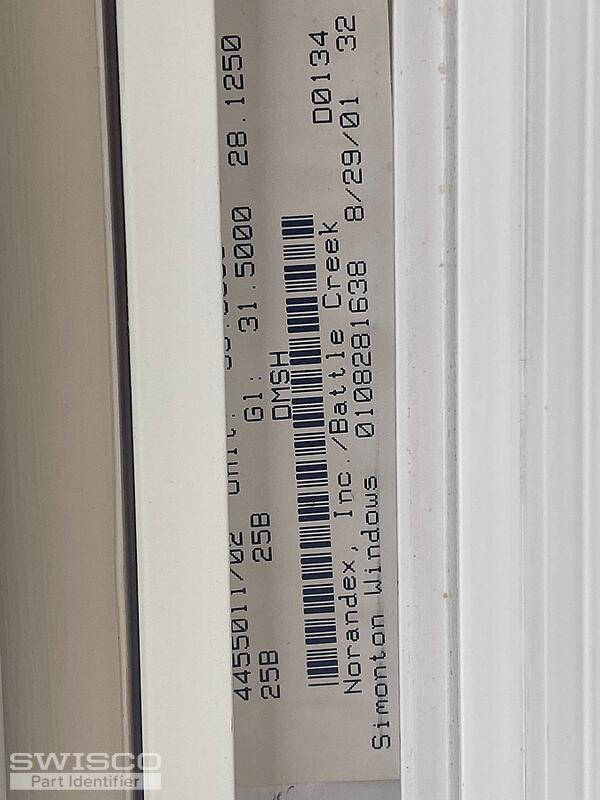

Simon ton window parts

A home owner from Michigan says:
April 24, 2022
I need these parts. Thanks.
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Profile picture of Tom
Tom from SWISCO responded:
April 26, 2022

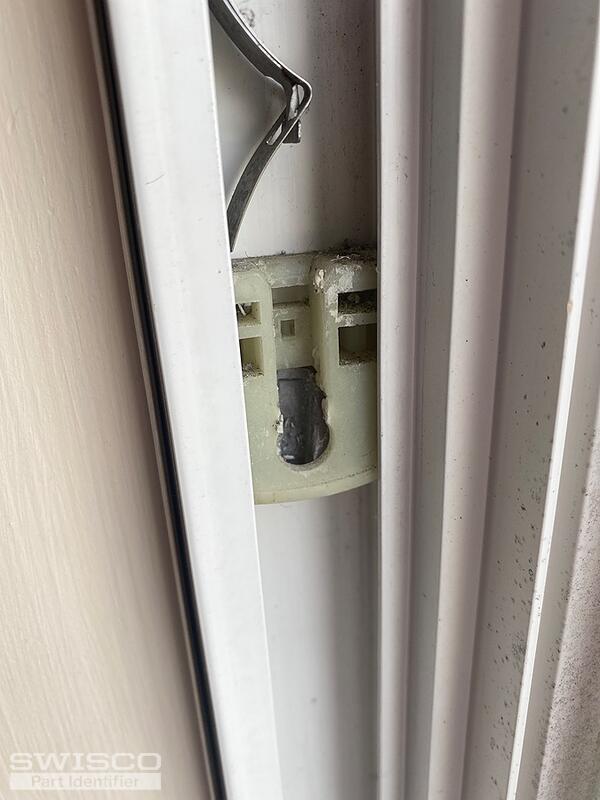

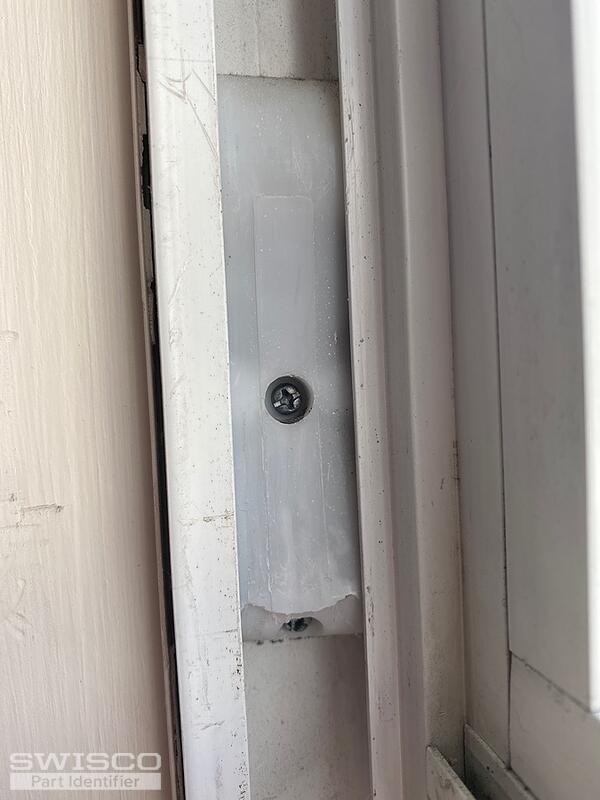

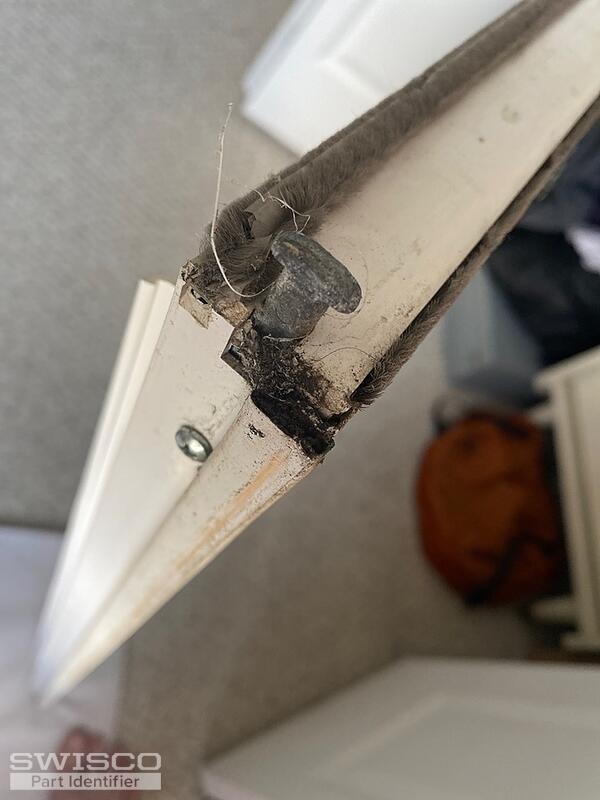

Sure thing! Take a look at our 15-199 pivot shoe and 26-378 pivot bar. For the coil spring, it could be either our 3/8" thick Series 165 or 1/2" thick Series 160. You can reuse your spring cover as long as it's in good condition.
A home owner from Michigan says:
May 1, 2022
What is the number for the spring cover?
Profile picture of Tom
Tom from SWISCO responded:
May 2, 2022

That would depend on which spring you go with. If you have the 3/8" thick Series 165 then you want the 15-204, while the 1/2" thick Series 160 takes the 15-150D.

Note that both of these covers are designed to carry 2 springs each. I believe that's how many you have on each side, but let me know if I'm wrong about that.
A home owner from Michigan says:
October 23, 2023

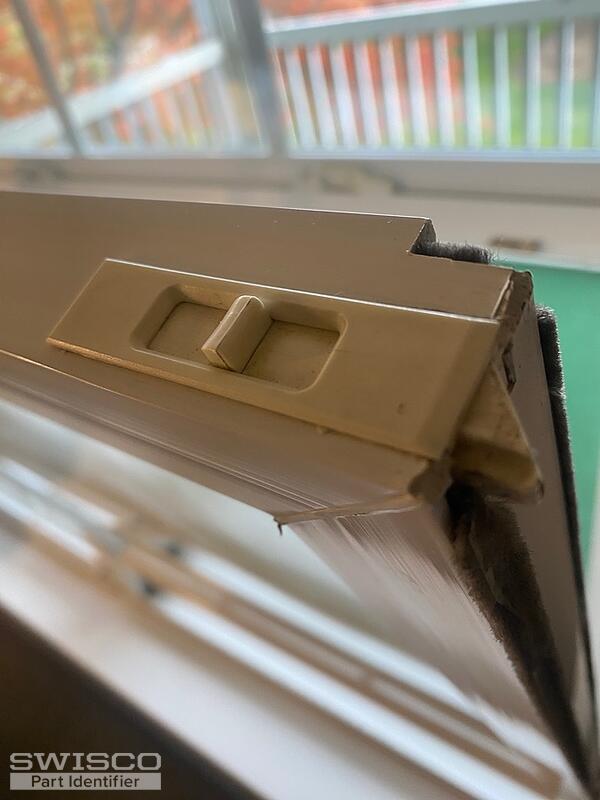

Can you help me this this part? Same window.
Thumbnail of the uploaded file named IMG_7001.jpeg
Profile picture of Tom
Tom from SWISCO responded:
October 24, 2023

Sure, that looks like a tilt latch. My top recommendation would be 26-243 and 26-244. Review our dimensions and see what you think!

Alternate view of 26-244
Alternate view of 26-244

Profile view of 26-244
Profile view of 26-244
Pivot Shoe, 17/32" Thick
Pivot Shoe, 17/32" Thick
15-199
$3.70
3/8" Coil Dual Support
3/8" Coil Dual Support
15-204
$1.88
1/2" Coil Double Support
1/2" Coil Double Support
15-150D
$1.57
Tilt Window Latch, Left Hand
Tilt Window Latch, Left Hand
26-243
$2.70
Tilt Window Latch, Right Hand
Tilt Window Latch, Right Hand
26-244
$2.70
