Hello,
I have one window in which the coil has snapped in half, I have been able to remove the parts but need assitance finding the correct Coils to purchase.
Would you be able to assist me in ordering the correct Coils?
I have attached photos of the parts/numbers. Please let me know if there is anything more you need from me.
Thank you,
Samantha D
Below I will type out the numbers I see on each Part. The coils are a bit difficult to read.

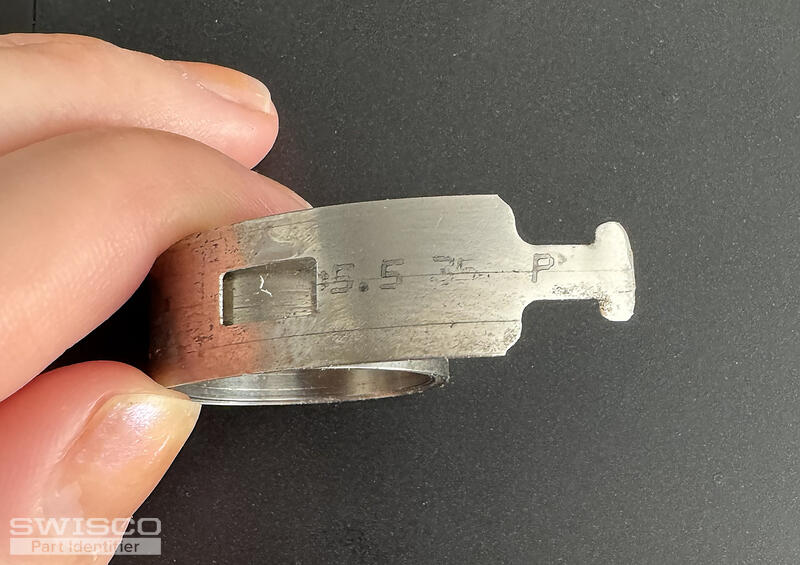

Coil 1: 5.5 35 P

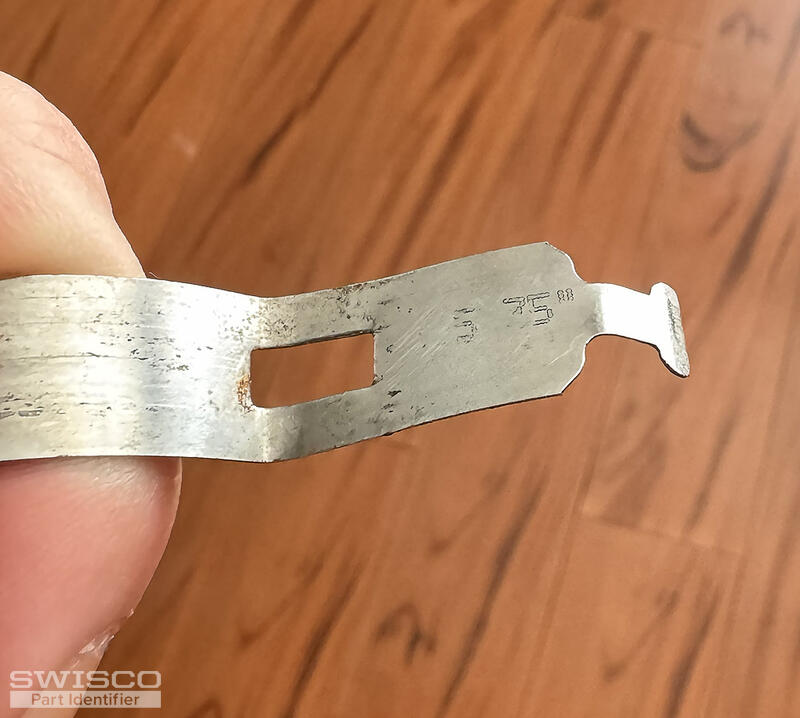

Coil 2: 5 75 P
Bracket : 801020
Window Balance/Coil
Quick Learner from Bedroom Window
Mar 23, 2026 12:28 pm
5 user uploaded images
4 Replies
Jasmine from SWISCO
Mar 25, 2026 3:42 pm
Hello,
Your balance shoe appears to be a match for the 17/32" thick 15-199 Pivot Shoe. Carefully look over the dimensions and compare them to confirm that this is the right replacement.
This shoe is most commonly used with the 26-378 pivot bar.
The coil support you have reminds me of the 15-150D Coil Double Support. They are compatible with the 1/2" wide Series 160 Coil Balance. Since yours seem to be marked with a 5, I suggest using the S160-05 to replace them.
Alternate view of 15-199
Quick Learner from Bedroom Window
Mar 26, 2026 6:28 pm
Great thank you for y'all the information.

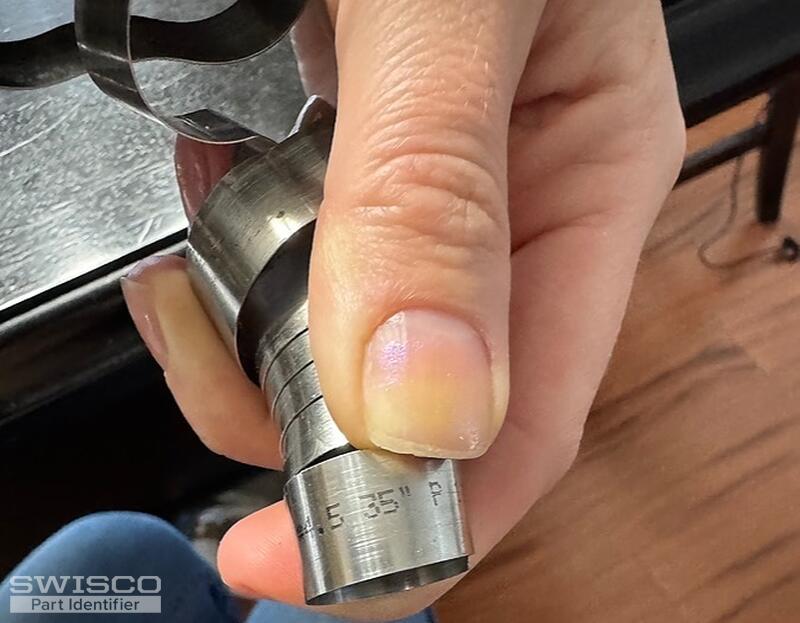

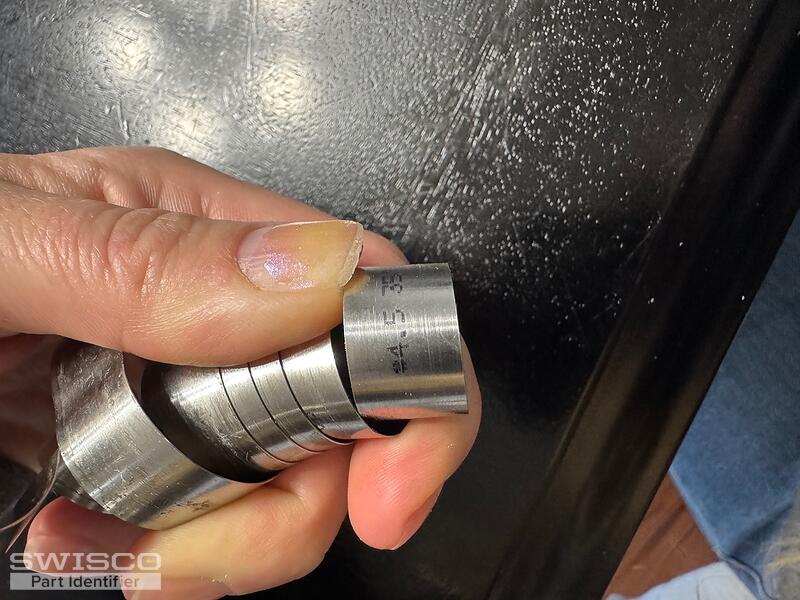

I was able to find one more number; 4.5 35" P.
It looks like I have a 5.5 and 4.5, I also checked over the dimensions that you sent and they matched up.
In which order do you recommend placing the 4.5 and 5.5 when installing ?
I was able to find one more number; 4.5 35" P.
It looks like I have a 5.5 and 4.5, I also checked over the dimensions that you sent and they matched up.
In which order do you recommend placing the 4.5 and 5.5 when installing ?
2 user uploaded images
