Window coil spring

Quick Learner from Pittsburgh Pennsylvania
I am looking to replace the right side window 11 lbs coil spring . I am not sure which part number to use from your website.
2 user uploaded images
6 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Thanks for reaching out to us. Before we recommend anything, can we see a photo of the pivot bar your pivot shoe engages with? That will help us determine which of our springs would be best for your repair.

Quick Learner from Pittsburgh Pennsylvania

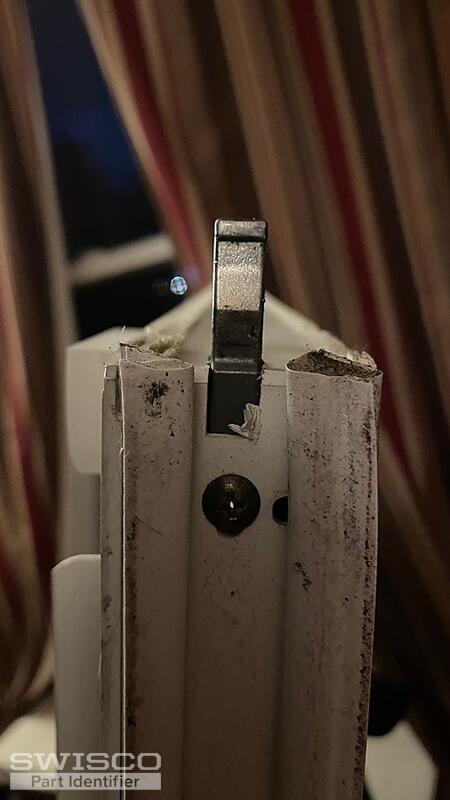

Here are pictures of the pivot bar.
2 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

Thank you! You have an old Simonton pivot bar which leads me to believe this is a Simonton brand window. With that said, we recommend the 15-259 pivot shoe and Series 159 coil springs. The video below will explain the replacement process and the additional parts you need.

For new springs, you can use one S159-04 4.5-pound spring and one S159-06 6.5-pound spring on both sides of the window. This will total 11 pounds of support on each side, equaling 22 pounds of overall support. Note that you'd need the 15-256 double support since you'd be using two springs per side.

Let me know if you have any questions!

Quick Learner from Pittsburgh Pennsylvania
Well I changed out all of the parts that I ordered and not the original pivot bar does not fit in Pivot Balance Shoe ( it's not deep enough). Now I cannot properly fix the window properly. I now need to order the correct Pivot Bar. Can you help? Thanks.
Emily
Emily from SWISCO
SWISCO
Expert

We recommend the 26-083 pivot bar. This is designed to be used with the 15-259 shoe.
