Product Code: S159-04

4.5 lbs Series 159 Coil Balance

Name: 4.5 lbs Series 159 Coil Balance
SKU: S159-04
Price: 5.92 USD
Availability: OutOfStock

$5.92

Quantity	Price
1-11	$5.92/ea
12-49	$5.33/ea
50-99	$4.74/ea
100-199	$4.44/ea
200-399	$3.91/ea
400+	$3.61/ea

Please Note: Bulk pricing applies only to purchases of the same option

This product will be back in stock soon. Click below to be notified of this product's availability

Notify me when available

Quantity

Add to Wishlist

Product Description

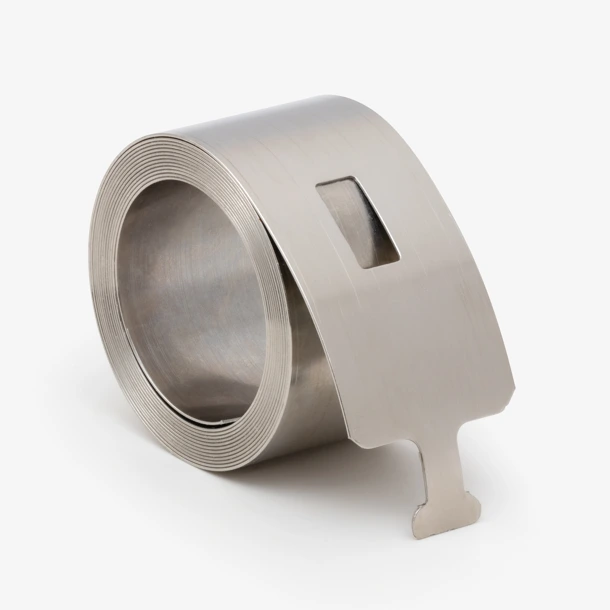

This is a Series 159 stainless steel spring for tilt windows. It moderates the operation of your window sash using a specifically calibrated coil spring that allows the window to stay open when raised and remain shut when closed.

Individually, this coil balance can hold 4-1/2 pounds. This is added together with the other coils to support the whole weight of the sash.
The weight you need should be indicated as a stamp or imprint on your old spring.

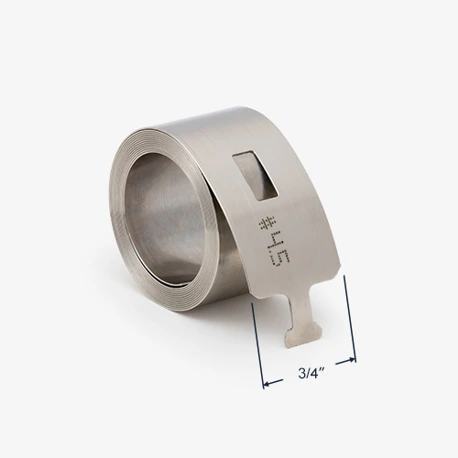

Measures 3/4" thick.
The maximum travel length is 40".
Designed to work with a pivot shoe (sold separately).
This coil balance spring is sold individually, not in sets.
Can work for either the left or right side of the window interchangeably.
Coil balances are also known as constant force window balances.

Certainteed Coil Balance inquiry

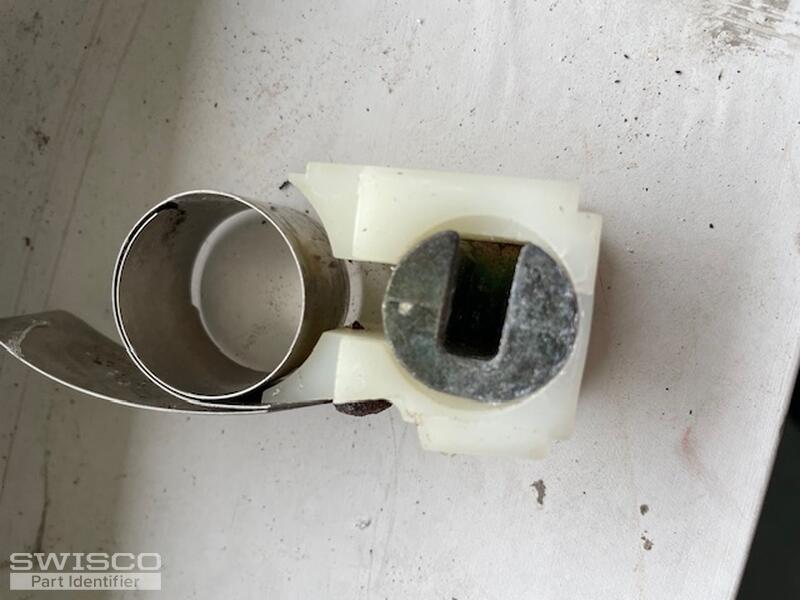

I have 22 year old Certainteed windows, I have 1 that's 31x57 ish. and the balance coil broke. The old one that's still good looks like a figure 8 (almost broken also) and the other one is the broken one. The plastic piece it hangs on is 1.25 x 1.5 inches. The window seems heavy 9 ish pounds. ... (cont.)

window parts for raising and lowering double hung window

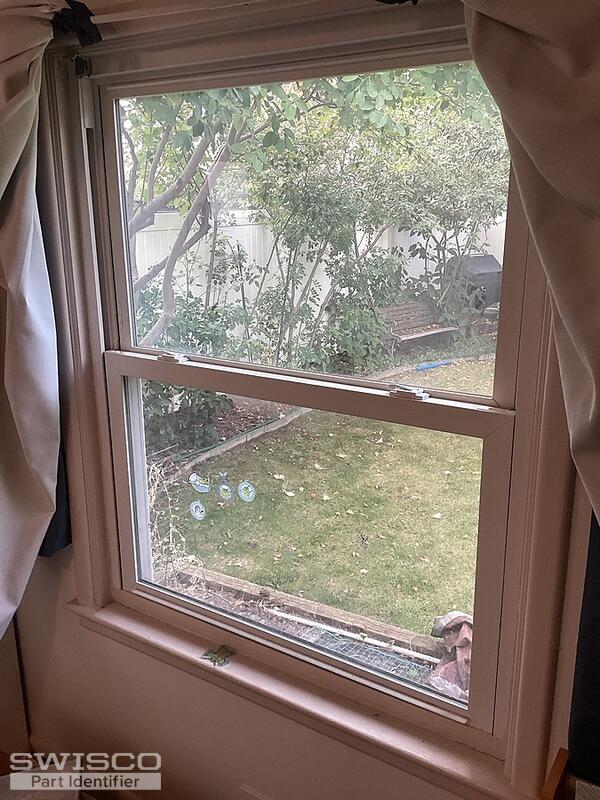

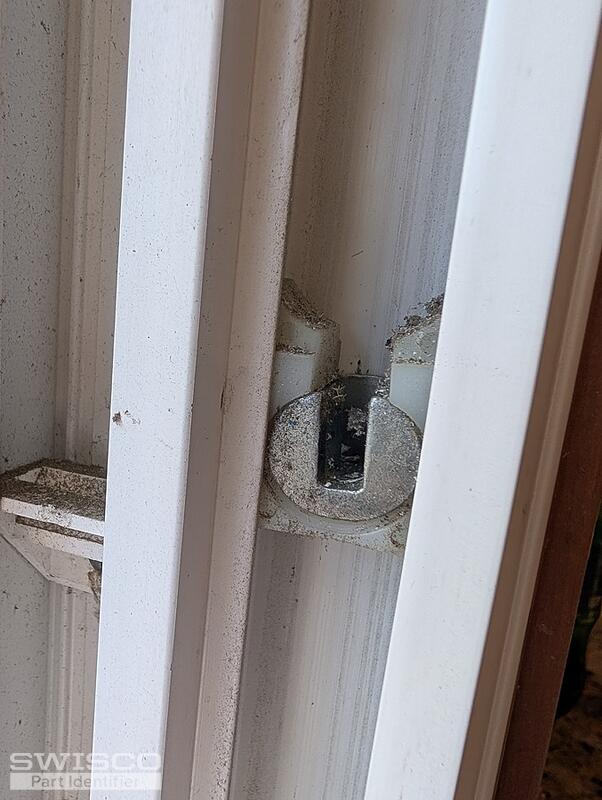

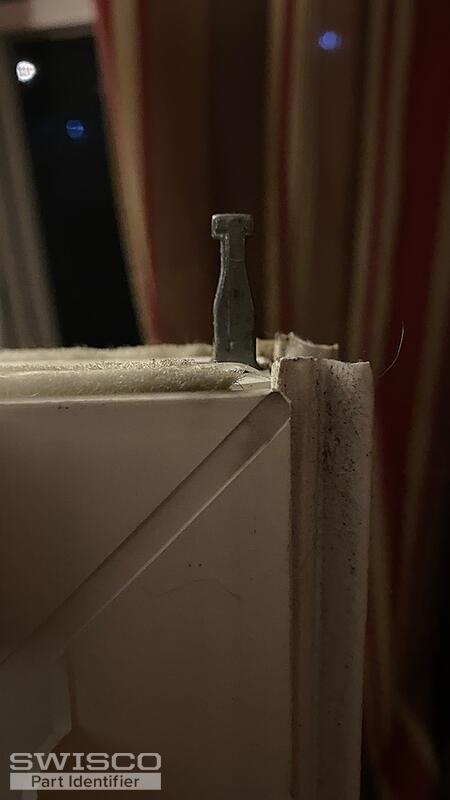

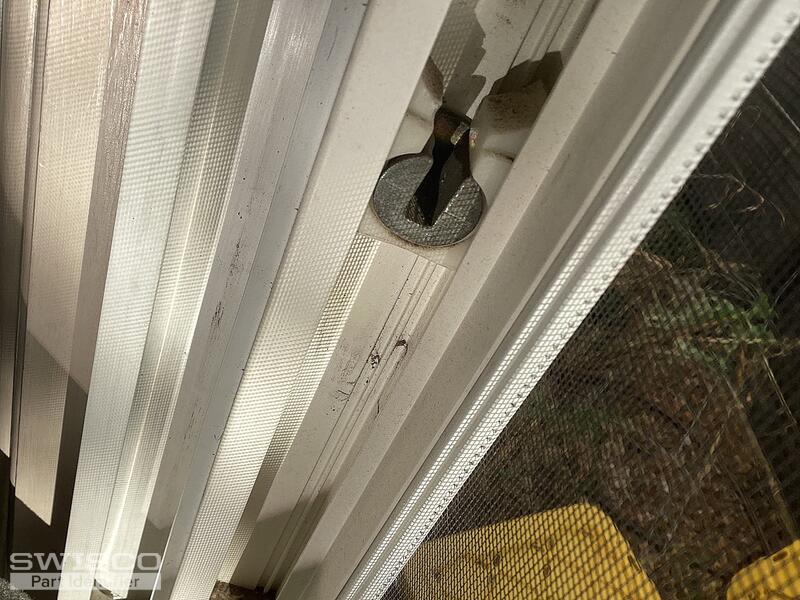

Please see the photos attached. - I don't have the ability to take them out to take pictures, too There are 2 different windows. Thank you

looking to replace the balance Balance Assembly (Internal) on double hung Simonton Window

I need to replace all 4 balance assemblies on window which includes upper sash. Weight of the window is approximately 17.5 lbs and dimension of lower sash 40" w x 18" h

Need to Replace Coil Hardware

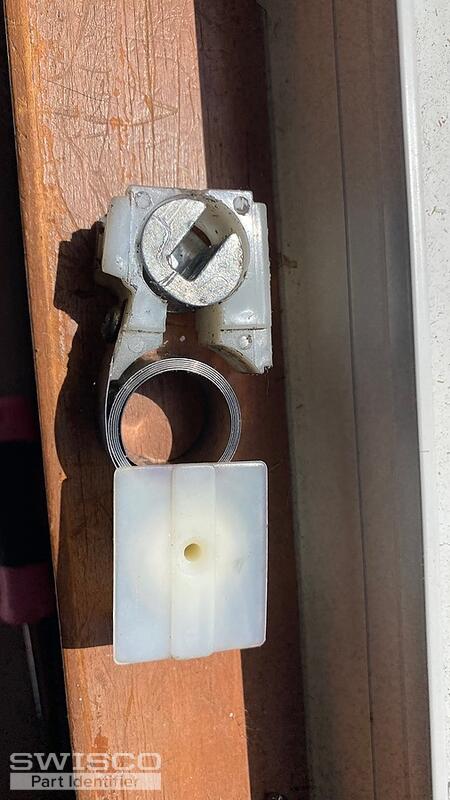

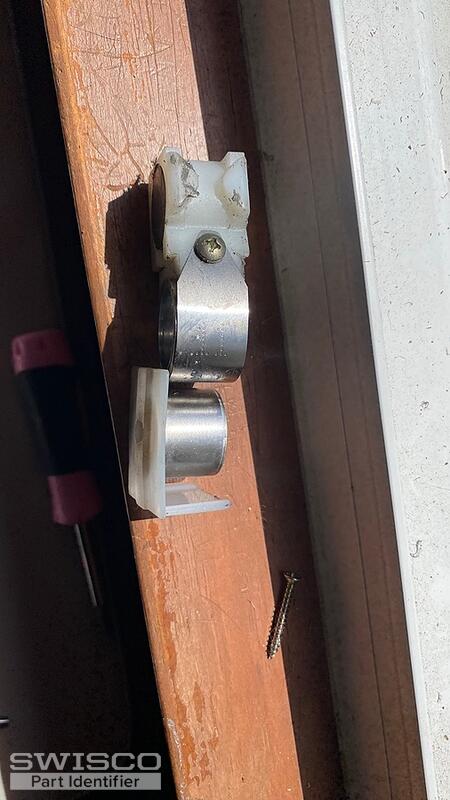

My double hung window will not stay open on its own. Using your helpful videos, I was able to determine that my coil balance unit was broken (see the plastic at the bottom of the unit).What parts and pieces do I need to replace the unit on both sides of the window frame? Based on your videos, I thin ... (cont.)

CertainTeed Replacement Parts

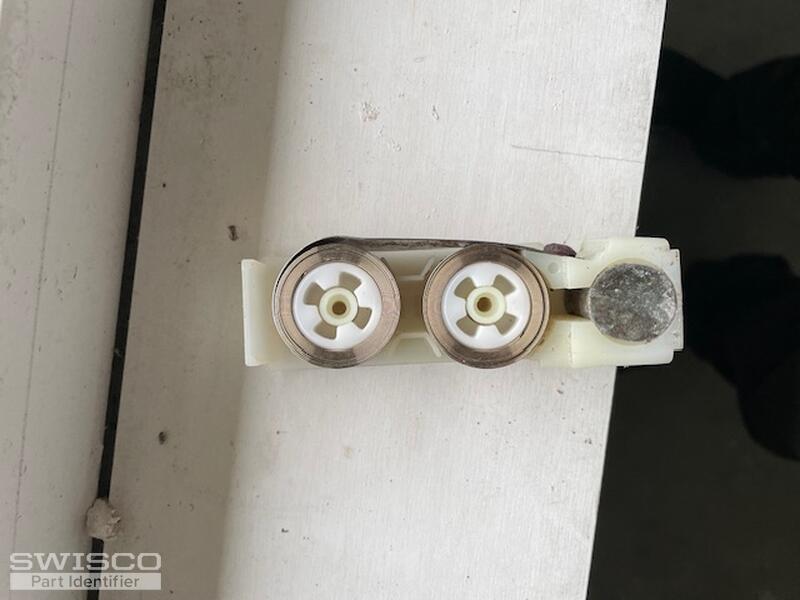

Hello, I'm trying to find out exactly what parts to order to replace the complete assembly on both sides of the window. I've attached pictures of the pivot shoe, the coil housings (M8637MXX), and the coils. One coil has "SA 406 500" imprinted on it and the other has "LA 406 500". ... (cont.)
