Window parts

Question

I have 30 windows that are in need of various parts.

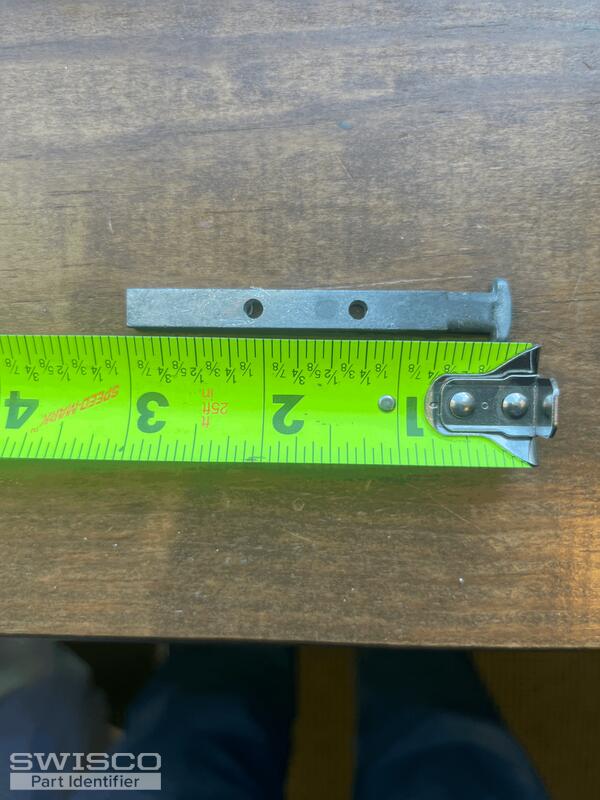

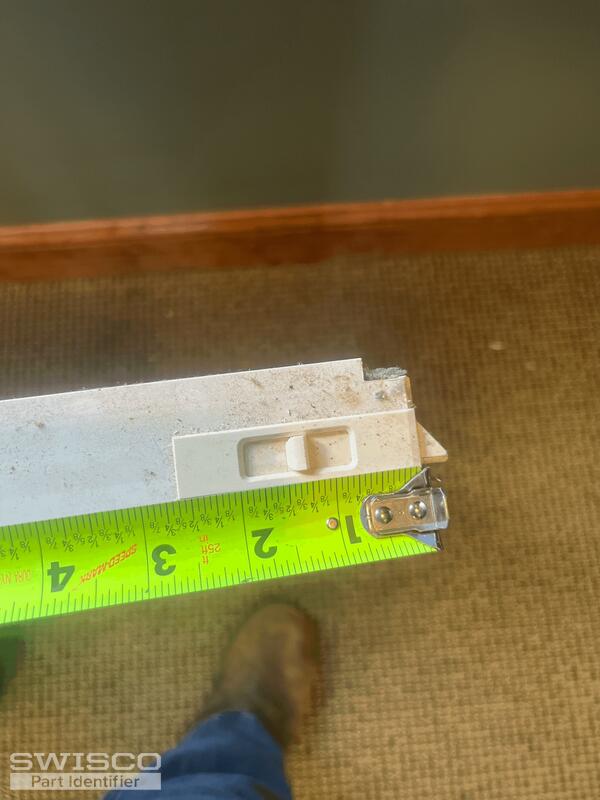

Pivpt Bar, Pivot Shoe, Coil Bal. Cam lock, Tilt Latch
they are all the same style window. I have included a photo of the ID tag I would like to place a parts order
Thank You Jud

Emily · Accepted Answer

Hi there Jud.

Thank you for reaching out to us. Take a look at the 15-199 pivot shoe, 26-378 pivot bar, 26-244A, and 26-243A tilt latches. Review the specifications and see how they compare with your old hardware.

The coil balances are the 1/2" S160 and 3/8" S165, so you'll have to measure the width of the old spring band to determine the correct match. There should also be a weight code on the spring.

For a new double coil support, see the 15-150D (1/2") or 15-204 (3/8").

Please let us know if you have any questions.
