Window parts : Balance coil

Start a new Discussion

Home Owner from Albany, NY

May 28, 2022 2:24 pm

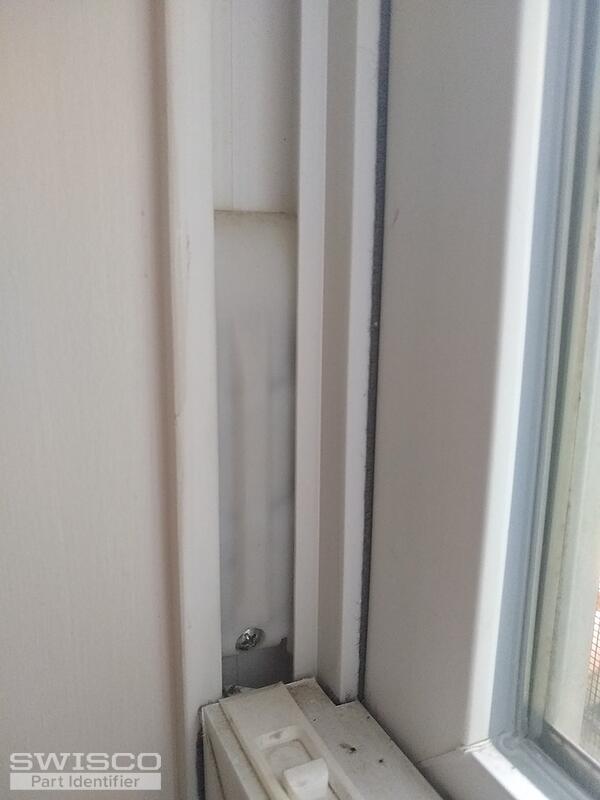

Where can I get this balance coil/window spring balance for my window?

1 user uploaded image

8 Replies

Emily from SWISCO

Jun 1, 2022 10:23 am

Hello!

We'd be happy to help but we'll need to see pictures of your pivot shoe removed from the window to compare to our inventory.

Thank you!

Home Owner from Albany, NY

Jun 1, 2022 3:41 pm

1 user uploaded image

Home Owner from Albany, NY

Jun 1, 2022 3:42 pm

1 user uploaded image

Emily from SWISCO

Jun 1, 2022 3:51 pm

This looks like a good match for our 15-199 that's designed to use 1/2" thick Series 160 or the 3/8" thick Series 165 coil springs. Compare the dimensions and see what you think. If you need the pivot bar, see if the dimensions of our 26-378 matches up.

Home Owner from Albany, NY

Jun 1, 2022 4:26 pm

I need the whole including the coils and the cover.

1 user uploaded image

Home Owner from Albany, NY

Jun 1, 2022 5:19 pm

Thanks, just ordered the parts needed as per the guidance.

Emily from SWISCO

Jun 2, 2022 8:06 am

I believe you have a triple coil support but please correct me if I'm wrong! If that's the case and if your springs are 1/2" thick, see our 15-150T. If your springs are 3/8" thick, see the 15-205 instead.
