looking for this part.

A quick learner from Dublin Pa says:
Number on the carrier 590 Pat#5740165. I was also wondering to the replacements come with the springs or are they separate?
Thumbnail of the uploaded file named 20220126_145406.jpg
Thumbnail of the uploaded file named 20220126_145410.jpg
Thumbnail of the uploaded file named 20220126_145413.jpg

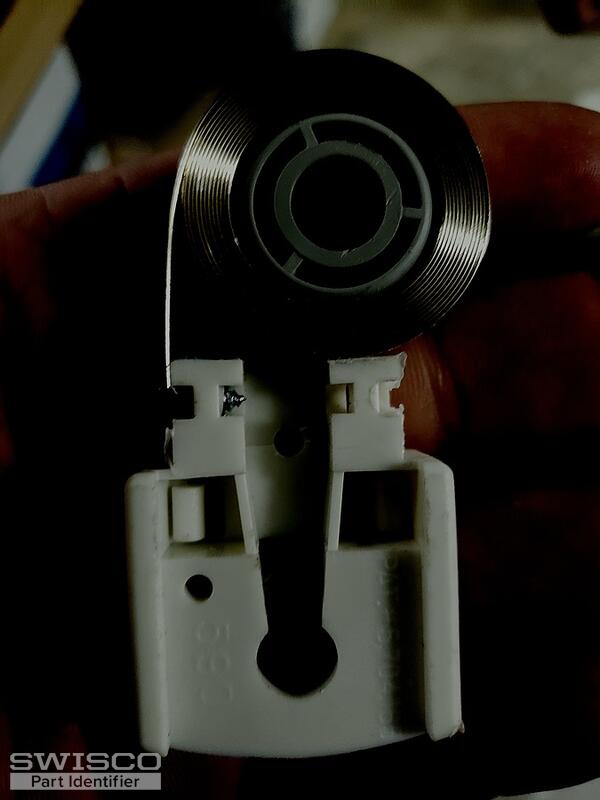

Thumbnail of the uploaded file named 20220126_161642.jpg

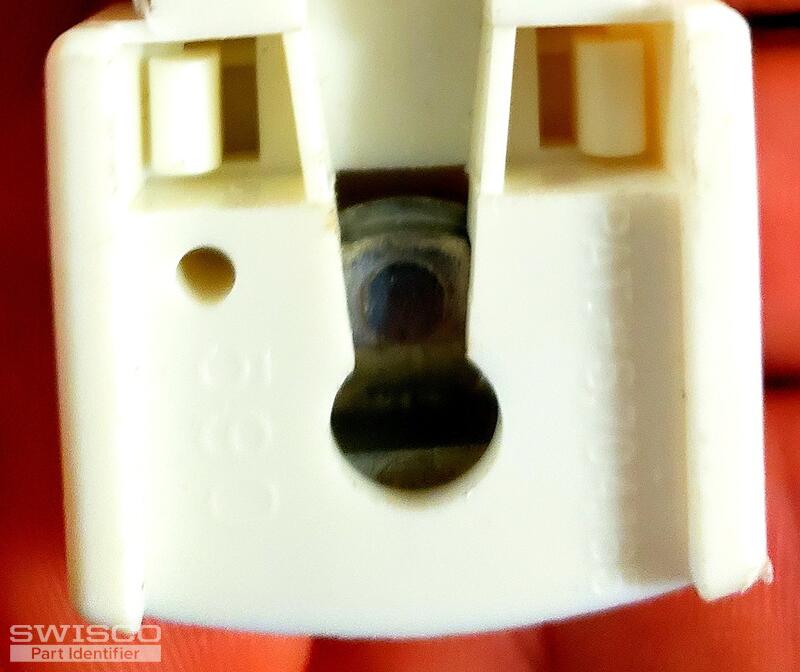

Thumbnail of the uploaded file named 20220126_161751.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

This is an older coil balance system that is no longer made. The good news is that we have a replacement option that we think has a good chance of working. It's no guarantee, but I think it's worth considering.

See our 15-199. This appears to be our best candidate. It's 17/32" thick by 1-1/4" wide and is compatible with our 1/2" thick Series 160 spring. It's also meant to be used with either our 15-150S, 15-150D, or 15-150T cover depending on how many springs are used in each side. It looks like you only have one spring per side, so 15-150S is what you'd want.

It's important to note that the Series 160 doesn't screw to the 15-199 pivot shoe, but instead kind of hooks in with that tab. That's my biggest concern, but as long as the width and thickness of your shoe match ours, and as long as the thickness of the spring is the same, then it should be okay.

The other concern is the pivot bar. I had one of our colleagues at our warehouse test the 26-378 pivot bar with the 15-199, and it does indeed work with it, so I believe this is what you'll need for this new assembly. Just look over the dimensions to confirm.
