How do you remove and then install a Lever type operator?

I have been trying to figure out how to replace a broken 39-069 window lever operator for years and now the time really has come! How the heck do you remove the crazy thing? The one pictured is a working window but identical to the broken handled one I want to replace.

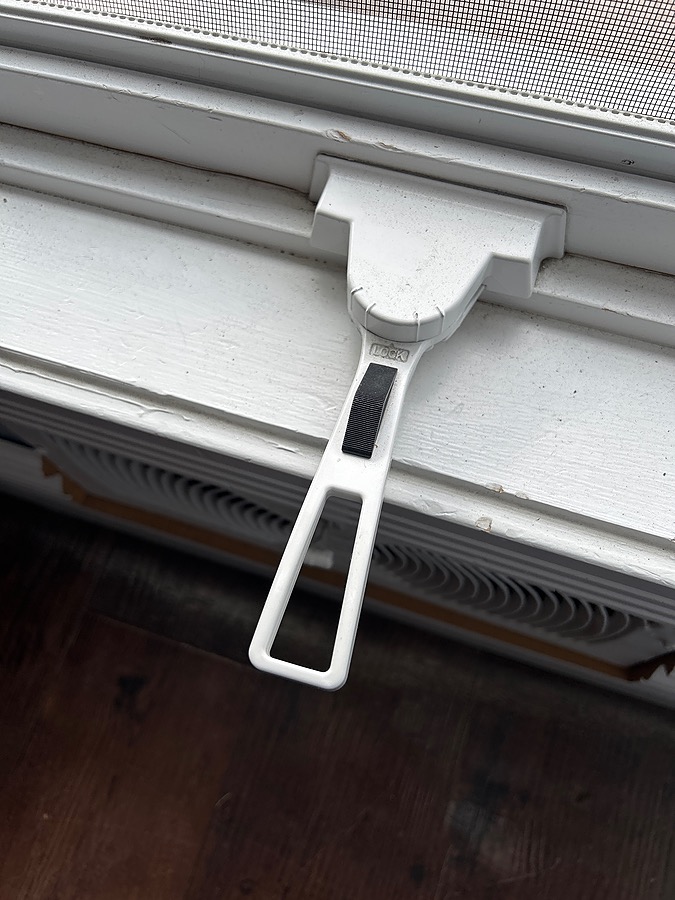

How do lock a lever operator?

with the 39-069 lever operator in the fully closed position, is the window essentially locked? or do you need an additional locking mechanism installed? thanks.

How do you connect a lever arm operator to the 39-170?

Hello! I'm sorry to hear that you're having trouble. I'll do my best to advise how the 39-070 operator is meant to work with the 39-170 bracket.After you install the 39-070 operator and the two 39-170 brackets to your window, follow these 3 steps:Unlock the bracket opening on operator using the meta ... (cont.)

Broken handle

I need replacement handle or hardware for this bathroom window.

+2

Handle and Casement Operator

Hi there, i am trying to source the leve and the correct casement operator for the attached photos. i know the 1 photo shows an awning but i do need 4 sets of the levers with operators. Price and availability?

Window opening latch

Hi do you have this part the latch broke and we need to replace it

Need replacement operator

I don't see any numbers or markings.

Window opener handle truth hardware

Truth hardware

Window Operator

I'd like to replace a window awning operator that has a broken handle. Attached photo is same operator with a working handle. Measurements are fairly accurate. Do you have part that will fit this application? Any help is appreciated,.

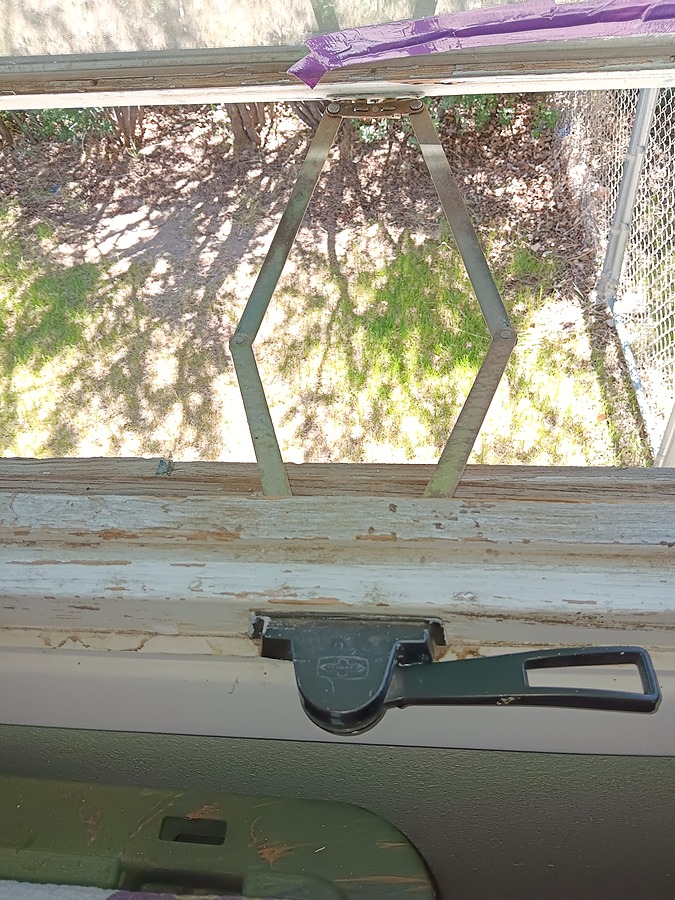

Window opening mechanism replacement due to handle breaking off

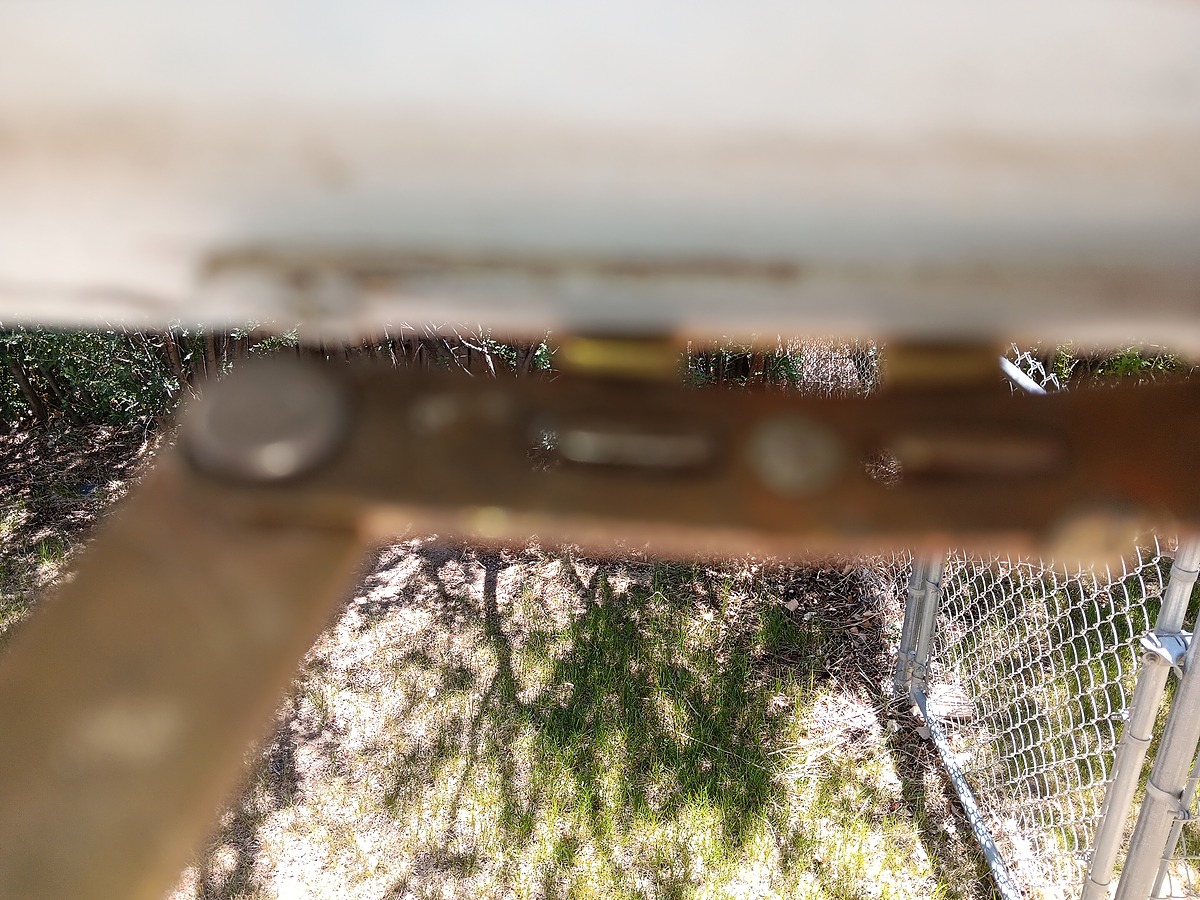

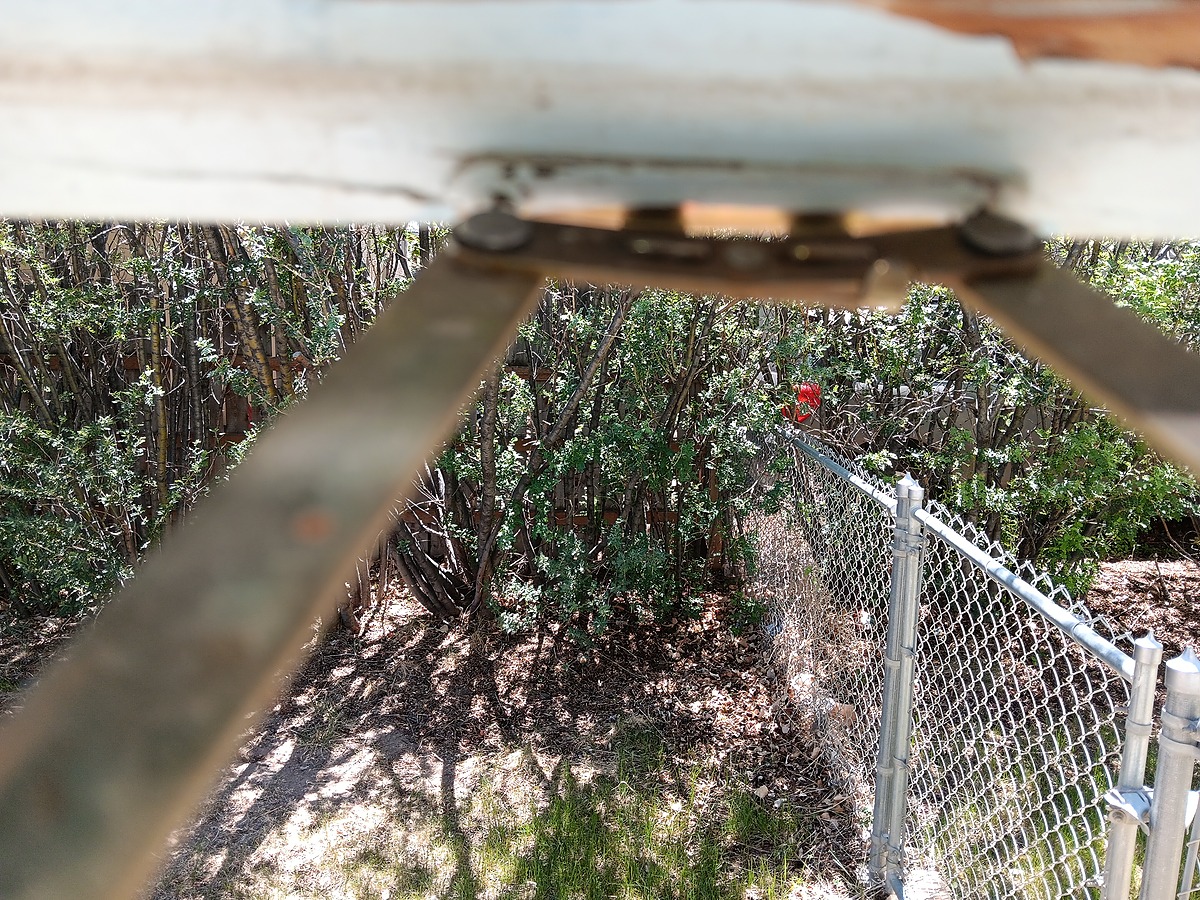

Part No 40314 engraved on the main body of the mechanism 30895 engraved on both legs 20008 engraved on piece that fastens to the window

+2

Crank out for awning

Looking for this crank out mechanism for this older style window . It works but it doesn't hold the window in completely. Like the window next to it does . It pulls in but you push the window and it wiggles out a half an inch. Please help thanks !

+2

Broken actuator handle

need replacement assembly

Clerestory Windows

Three out of 4 of the handles on our windows have broken

Hotel and Resort Edelweiss, Garmisch-Partenkirchen, Germany

Hello, I need a new handle or fitting like the attached pictures for my customer. Is it still possible to order such parts? Thank you.

Handle replacement for old truth casement window opener

Looking for a replacement or something close for this

No markings or manufacturing i.d.

Please determine if you have a suitable replacement for this awning control. I have several other similar windows with broken handles, but this one is most critical. Please let me know if you have a replacement and I will complete the order. Thank you.

Broken handle on one window

Attached are the two windows... both have the same equipment but one has a broken handle so I can not open it. I'd like to replace that broken one. If just the handle can be replaced then I want that part. If I have to replace the whole mechanism then I'd like to try and match it with the other o ... (cont.)

+2

Broken handle on opening mechanism

The photos are for the opening hardware for what I believe to be a Guardian product. Looking to replace the hardware you see in photos.

Truth hardware casement window fitment

Hi there I am wondering if you were able to tell me if this particular Windows sash hinge is adjustable as I have large gaps around the window. Thank you 358-1r and "Truth" is stamped on the hinge arm mechanism.

+2

Need Part

Do you carry the part depicted in photo No. 1 that is broken? I've included photos 2-4 to hopefully help you identify the part I'm looking for, shown in photo No. 1. Thank you.

+1
