Product Code: 81-190

Patio Door Roller for Tight Openings

Name: Patio Door Roller for Tight Openings
SKU: 81-190
Price: 10.54 USD
Availability: InStock

$10.54

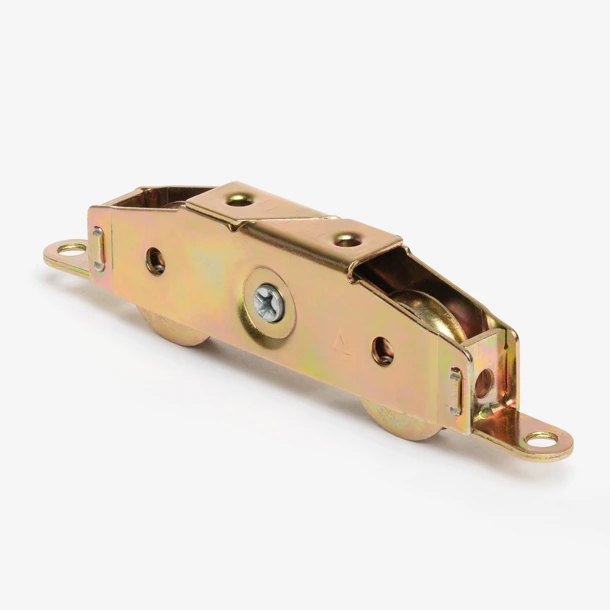

Patio Door Roller for Tight Openings Image

Quantity	Price
1-9	$10.54/ea
10-24	$10.01/ea
25-49	$9.49/ea
50-99	$8.96/ea
100+	$8.64/ea

Please Note: Bulk pricing applies only to purchases of the same option

Quantity

Add to Wishlist

Product Description

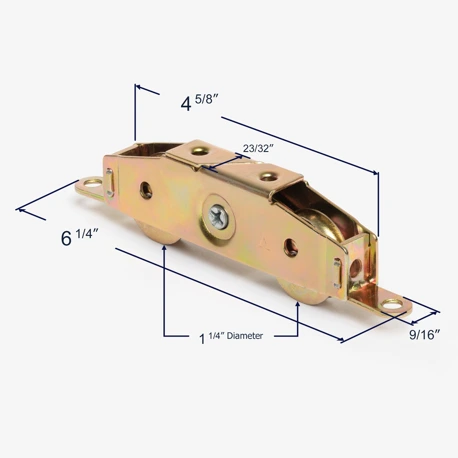

This tandem roller assembly features a side adjustable steel housing with 5-3/4" installation hole centers and 1-1/4" diameter steel concave ball-bearing wheels. This roller is specially made for tight openings; the minimum exposed wheel height reduces to 3/16".

Good Idea!

The typical patio sliding glass door uses two roller assemblies, one on each bottom corner of the sliding door. We recommend replacing both sliding door rollers at the same time to prevent extra wear-and-tear to one new roller, which will have to work twice as hard when paired with an old roller.

Measurements of current rollers - two replacements needed

6 1/4" overall length 5 3/4" center hole to center hole 11/16" width 1 3/4" depth 4 1/2" top measurement 1 3/16" height

How to disassemble a sliding glass doors to replace roller

Hello, I lesson carefully to your Youtubeurs video that explain how to do so, but my window seems different. I Have a Viceroy house (in France !) made in 1996, and the sliding doors are difficult to handle. I would like to know how I can remove them and where to buy some new parts when necessary. Th ... (cont.)

Need to replace rollers on 60 inch patio door

We bought and installed new rollers from lowrs that look the same But we cannot recess the wheels enough to put the door back on the track. We need to be able to recrss the wheels so they are flush with the bottom of the door. Help!! Is there a version of the 5.75" duel rollers that allow withdrawa ... (cont.)

need tandem roller(s) for NovaTech patio door

I bought two Item #81-018 Slinding Patio Glass Door Tandem Rollers from you and the wheels do not recess enough into the roller frame to allow door to be placed back into door frame.As you can see in the attached pictures (pic three and pic 4) the old roller wheels recess to 1/8" of wheel exposed an ... (cont.)
