Product Code: S140-14

14 lb Series 140 Quick-Tilt, Dual

Name: 14 lb Series 140 Quick-Tilt, Dual
SKU: S140-14
Price: 13.35 USD
Availability: InStock

$13.35

Quantity	Price
1-11	$13.35/ea
12-49	$12.02/ea
50-99	$11.35/ea
100-249	$10.68/ea
250+	$10.01/ea

Please Note: Bulk pricing applies only to purchases of the same option

Quantity

Add to Wishlist

Product Description

This is a Series 140 replacement constant force balance system for tilt windows. It moderates the operation of your window sash using specifically calibrated coil springs that allows the window to stay open when raised and remain shut when closed.

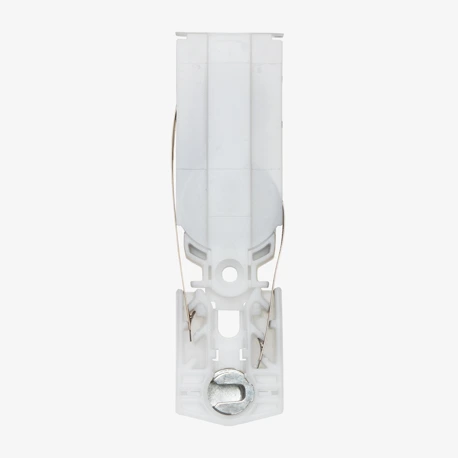

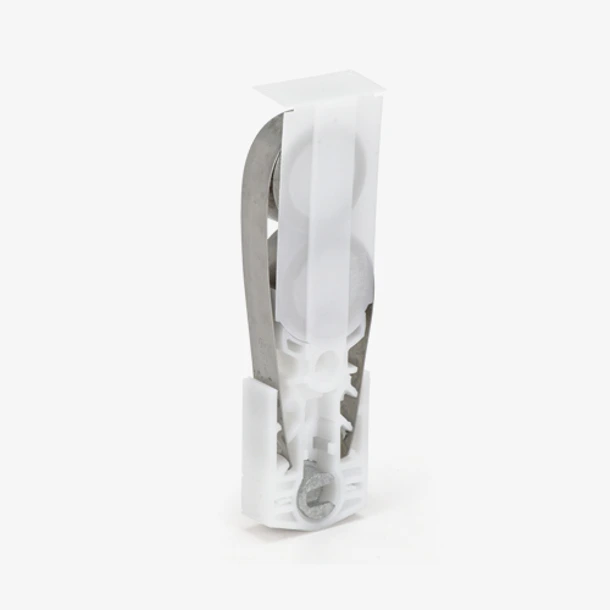

This balance comes complete with a pivot shoe, dual coil springs, and coil spring cover.
The springs are stainless steel and Teflon-coated to be corrosion resistant.
Travel extension: 32-1/2"

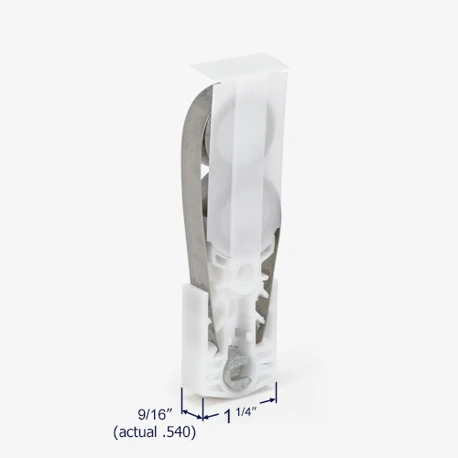

Fits pocket size 9/16" x 1-1/4" (.562 x 1.292).
A pair of 14 lb assemblies will carry 27-28.99 lbs, (sold individually). The weight you need should be indicated as a stamp or imprint on your old balance cartridge cover.
Each assembly can work for either the left or right side of the window interchangeably.

Good Idea!

For best results, replace window balances in pairs (though sold individually). An old balance will overwork a new one, causing faster wear and uneven operation. Paired replacement ensures optimal, lasting performance.

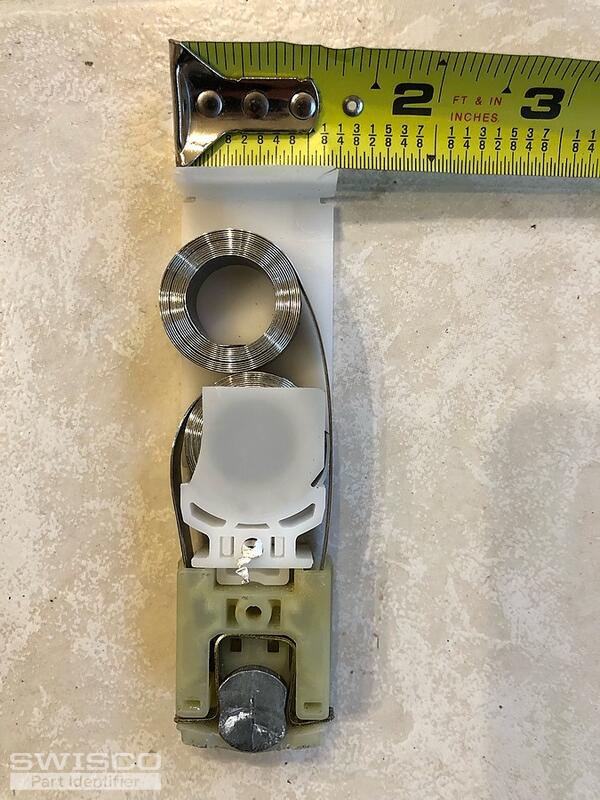

Window coil balance

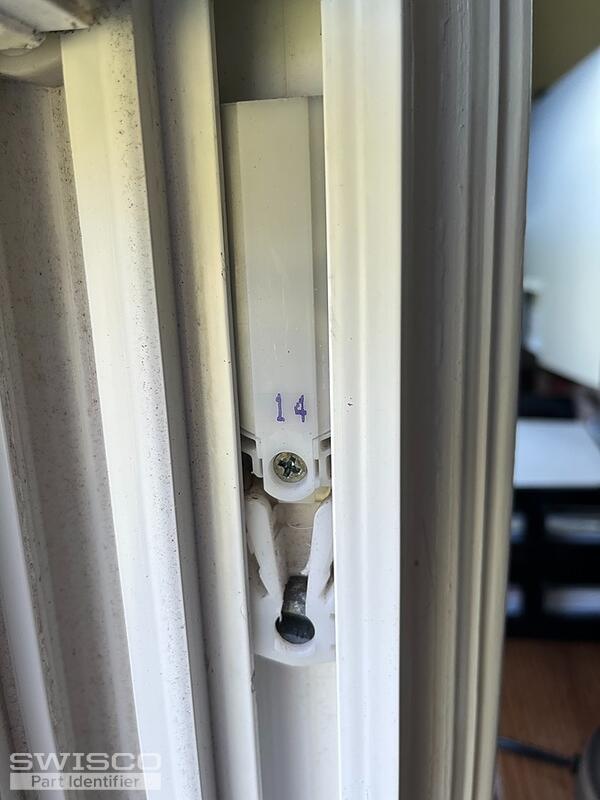

Balance coil on upper is marked 17. Lower balance coil is marked 14. I also need 3 sets for duplicate windows which are upper balance 15 lower balance coil is 13. Your quick response is greatly appreciated.There are two more windows upper is marked 11and the lower sash is marked 10.Jim ... (cont.)

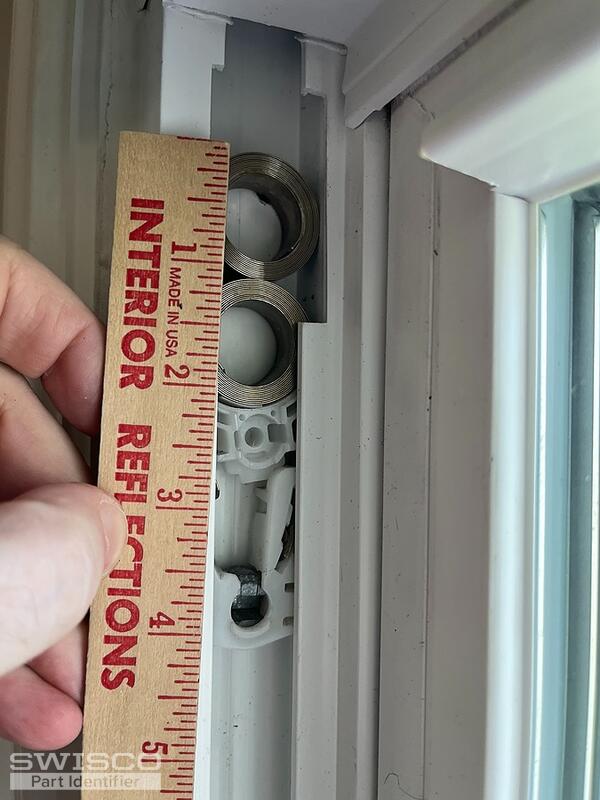

The left one is broken. Can you ID?

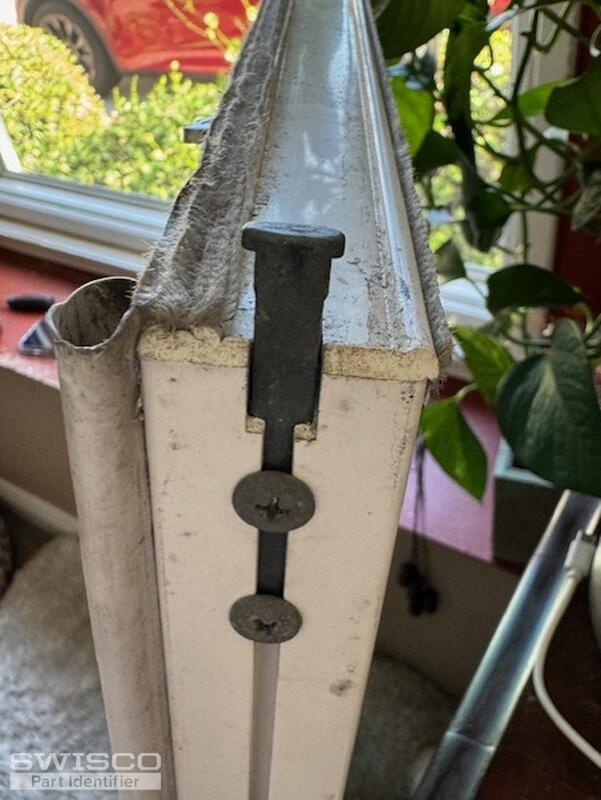

This is a very generic replacement window at least ten years old, possibly older. The last time we cleaned it, there was a "pop" on the left side, and it quit staying open. The left one is definitely broken, and the right one seems to only have one coil connected. The hole at the top of the slide ... (cont.)

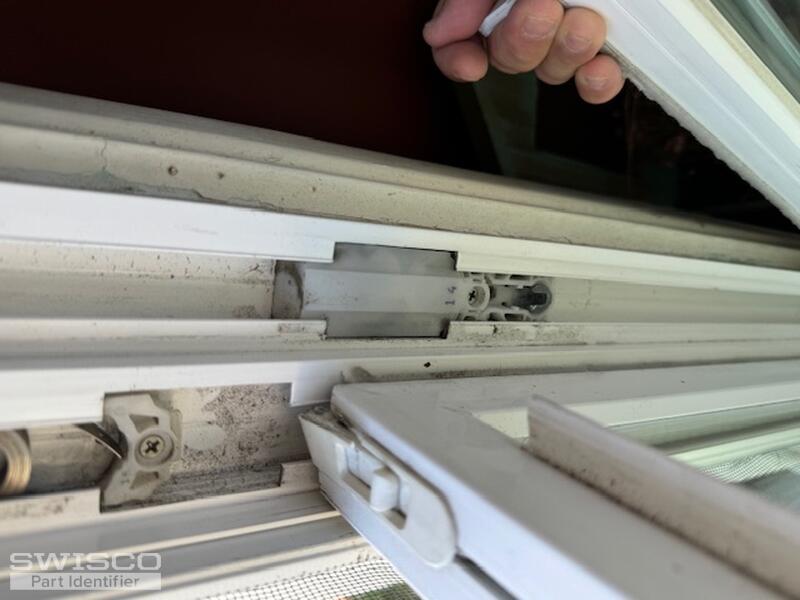

All parts broken on double-hung window

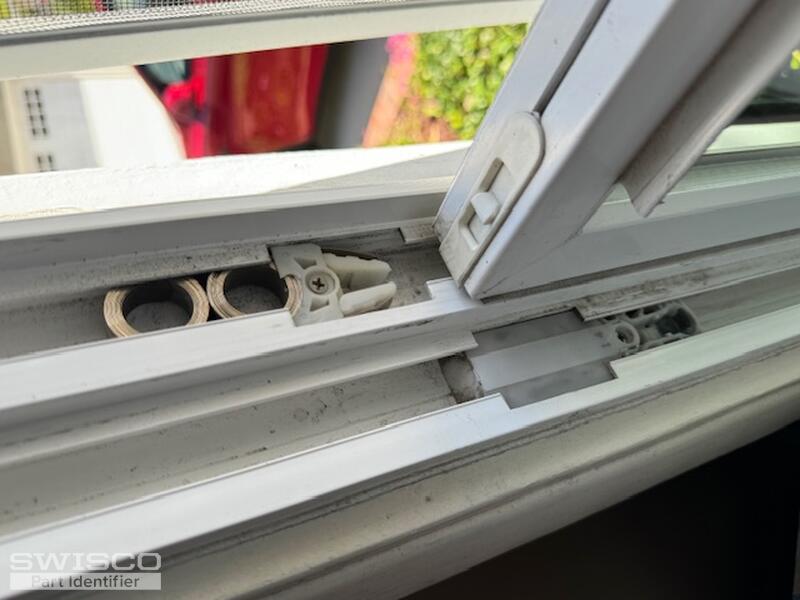

Hi, I also have a double-hung window with almost all the functioning parts broken. I don't know when this window was installed. The locks have a "SWC" stamp. The size of the SASH2 is 45.8125 X 23.59. I have included a picture of the sticker on its side and all the broken parts. Please provide a refe ... (cont.)

Windows Don't open with newly installed S140

Weight of larger window is about 30 pounds and small window is about 27 pounds. There is one label with 13 on small window and 14 on larger window. I installed coil spring with purchased one at right and left side of window with code S140-14. But spring coil keeps going up when set at "U" shape. ... (cont.)

Coil Window Balance Question

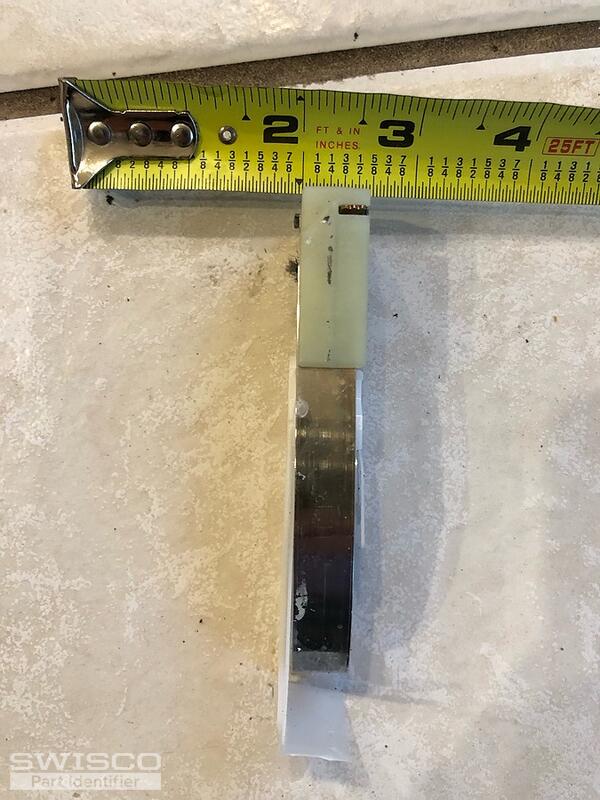

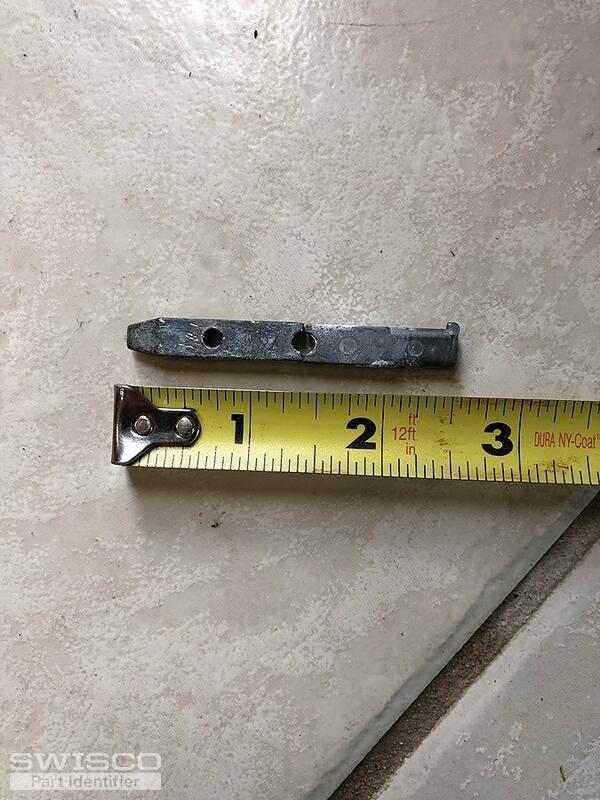

Have fiberglass frame/double pane windows. Need coil window balance and accessories. Please see pictures,thank you. Picture of dimensions too
