S800-23

23" Series 800 Channel Balance

Product Code: S800-23

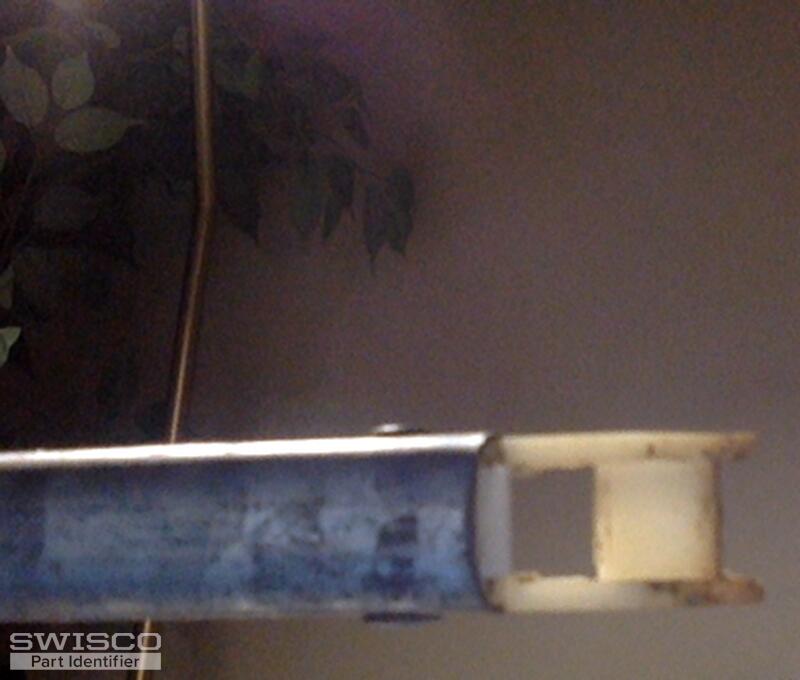

Main product image of the S800-23 23" Series 800 Channel Balance

$30.04/each

Quantity	Price
1+	$30.04

Please Note: Bulk pricing applies only to purchases of the same option

Product Description

This is a Series 800 channel balance for non-tilt windows. It moderates the operation of your window sash using a specifically calibrated spring and pulley system that allows the window to stay open when raised.

This balance has a 23" long metal channel. When determining the length, do not include the attached fittings. Only measure the metal channel.
Comes fully assembled with the 19-007 top and 15-018 bottom fittings and will be ready to install out of the box.
The strength you need should be indicated as a stamp or imprint on your old metal channel. If you do not have a stamp, or cannot match it up to our options, weigh your sash on a scale and refer to the chart below.
The width of the metal channel measures 3/8".
Can work for either the left or right side of the window interchangeably.
Used in windows manufactured by both Binnings and Moss.

Stamp Option	Sash Weight Range
22A	4 to 8 lbs
22B	8 to 13 lbs
22C	13 to 18 lbs

*This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.

Limited Supply, sold while supplies last.

Good Idea!

Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.

Helpful Tip!

The stamp option represents the strength of the channel balance. Locate the stamp on your channel balance. If your stamp does not match any of the stamp options available or you are unsure of which stamp option you should choose: ask our experts for help.

Guides

How to replace a channel balance

Related Item(s)

1/2" Top Sash Clip, Pennco

18-061

$1.57

1/2" Top Sash Clip, Pennco

19-007

$0.89

Channel Balance Top

Customer Questions & Answers

Discussion	# Of Replies	Last Post Date
Channel balance = Block and tackle removal of window	2	May 23, 2020
Ordered Balance from you but it is Too Big. What Do I Need?	5	Dec 10, 2018

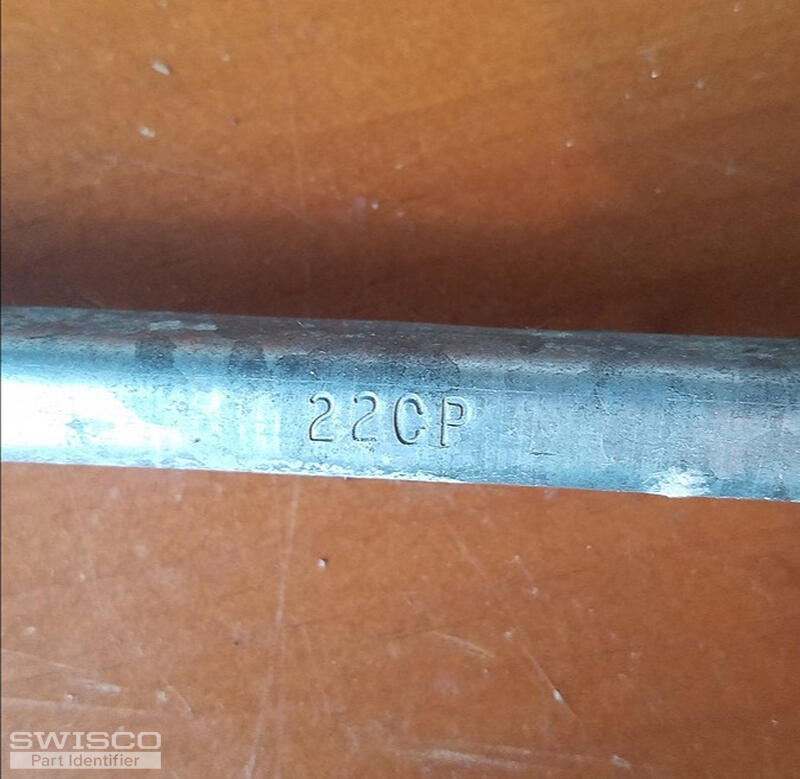

22CP window balance	2	Nov 11, 2018
