Product Code: S765-24

24" Series 765 Balance

Name: 24" Series 765 Balance
SKU: S765-24
Price: 14.8 USD
Availability: InStock

$14.80

How to measure the length of the Series 765 channel balance.

Quantity	Price
1-11	$14.80/ea
12-49	$13.32/ea
50-99	$12.58/ea
100-249	$11.84/ea
250+	$11.10/ea

Please Note: Bulk pricing applies only to purchases of the same option

Quantity

Add to Wishlist

Product Description

This is a Series 765 channel balance for tilt-in windows. It moderates the operation of your window sash using a specifically calibrated spring and pulley system that allows the window to stay open when raised.

This balance has a 24" long metal channel.
Comes fully assembled with a screw clip on top and a pivot shoe hook attached at the bottom and will be ready to install out of the box.
The strength you need should be indicated as a stamp or imprint on your old metal channel. If you do not have a stamp, or cannot match it up to our options, weigh your sash on a scale and refer to the chart below.
Can work for either the left or right side of the window interchangeably.
Used in American Craftsman and Silver Line vinyl, single hung, new construction windows, as well as Silver Line Series 1200 vinyl, double-hung, replacement windows.

Stamp Option	Sash Weight Range
23-1	7 to 10 lbs
23-3	10 to 14 lbs
23-5	14 to 19 lbs
23-7	19 to 25 lbs
23-9	25 to 30 lbs

*This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.

Channel Balancer

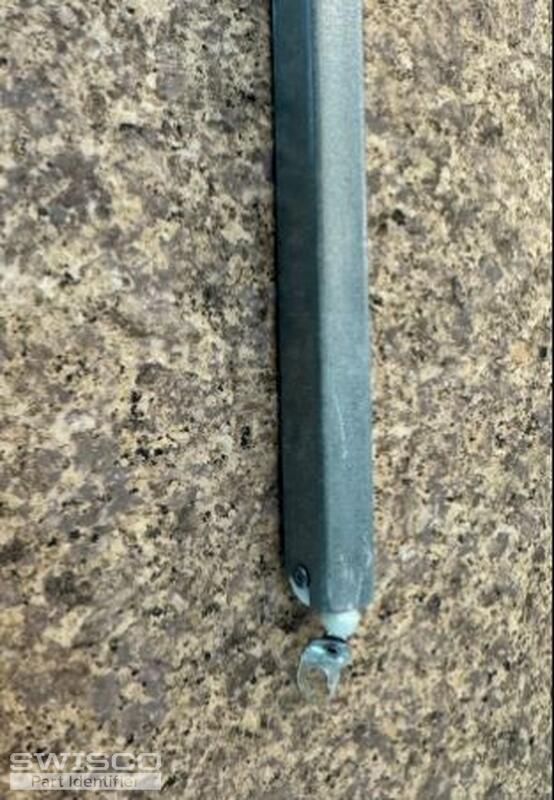

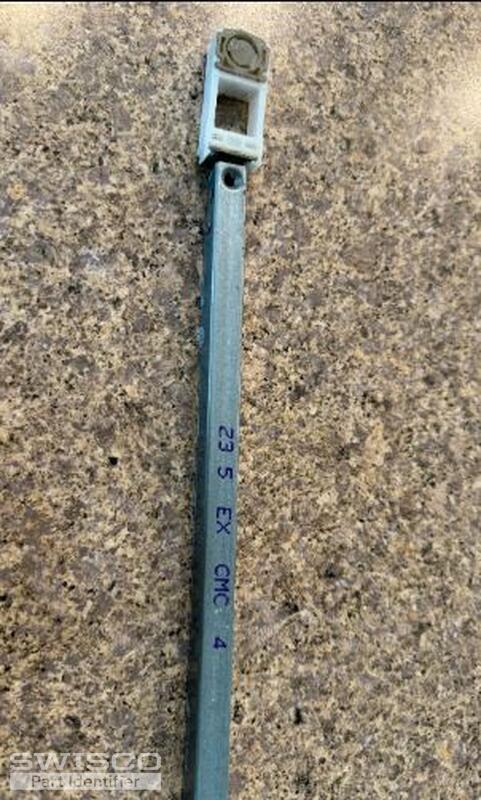

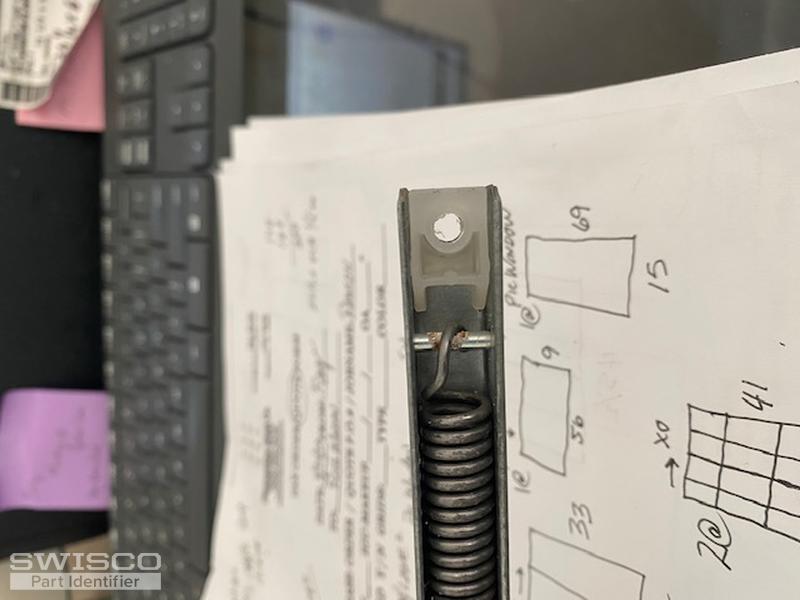

Thank you for your help today. Attached at the pictures I took. Please let me know if you can determine the parts I need. Thank you so much for your help. The handyman that is going to install them will be here Monday. I think he will know exactly what we will need when he sees them. I know ... (cont.)

need sash balances to go with 15-210

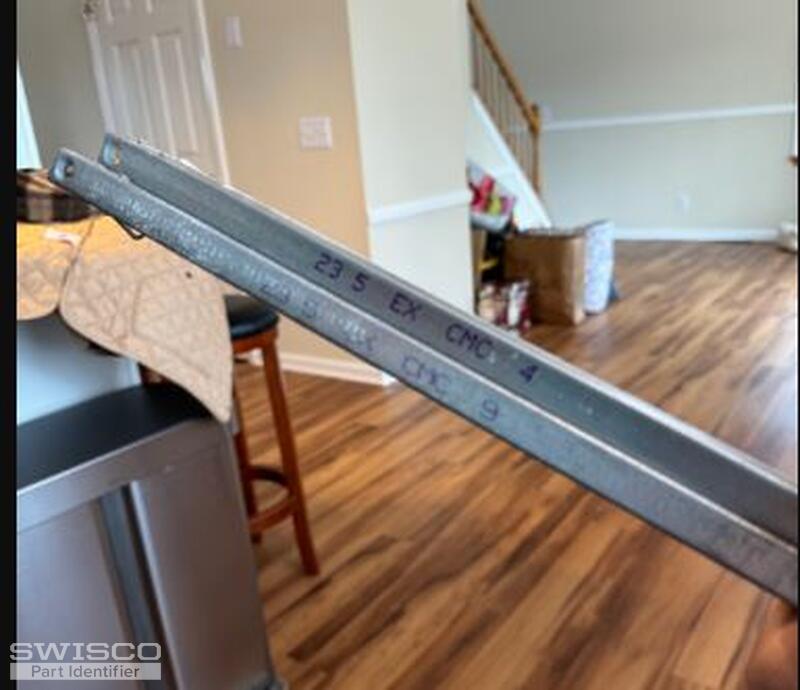

i need one, or two of this type sash balance it goes along with part #15-210 i ordered for the same job can you identify it??

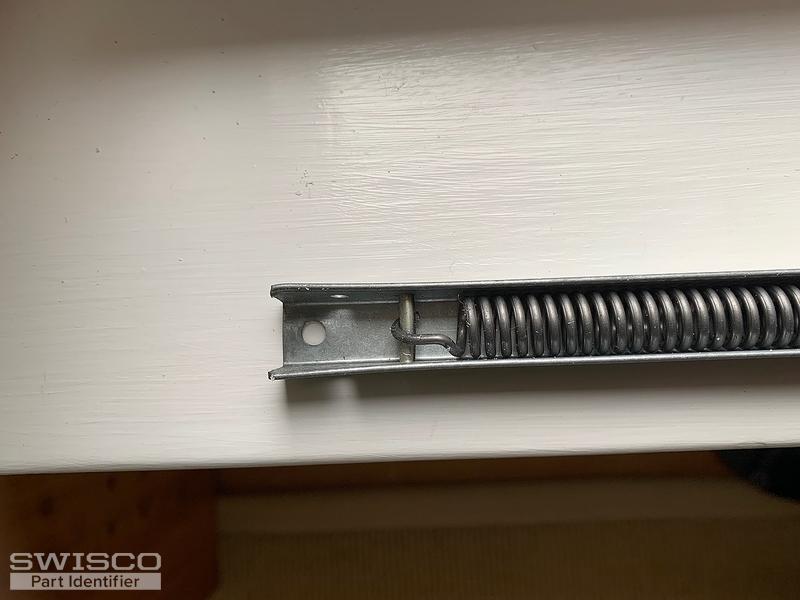

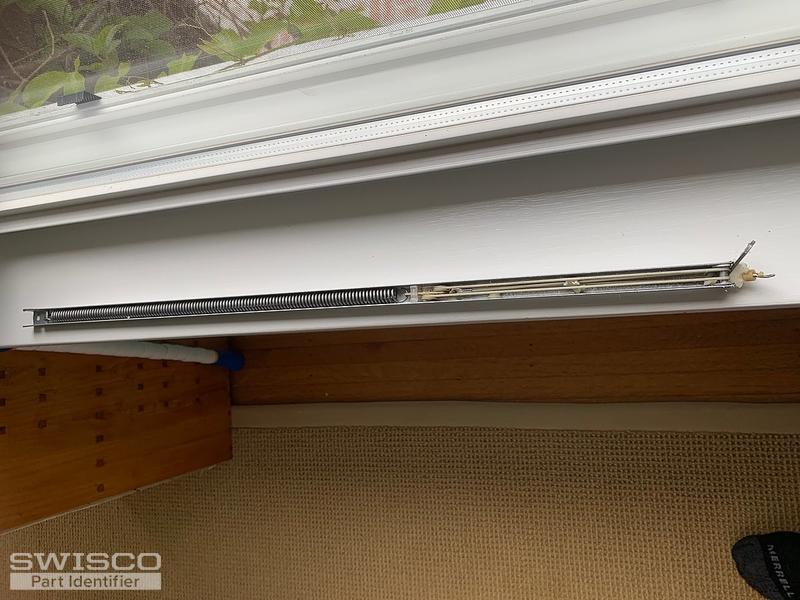

Milgard Replacement Double Hung Window Spring

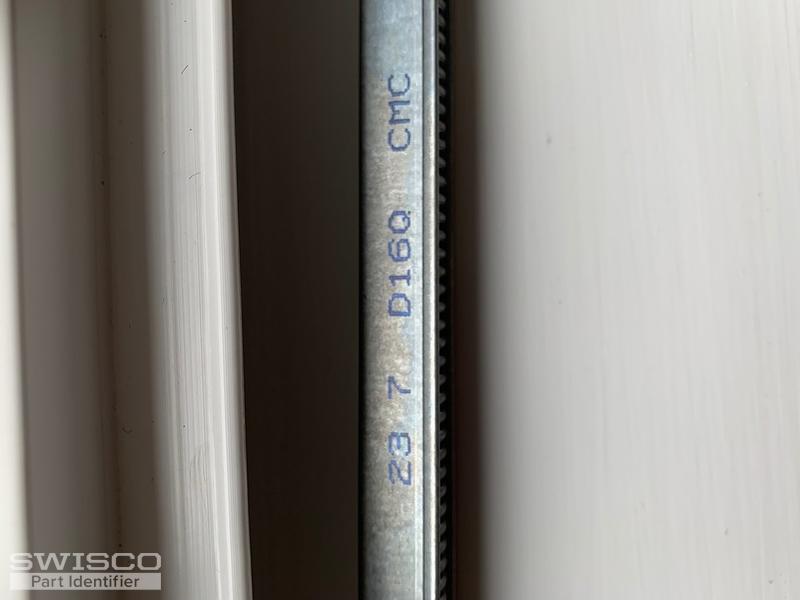

For dual glazed bottom section of sash, vinyl windows. Measures 33 1/4" wide by 26" high. Spring body is 24" long x 9/16" (on face, 5/8" on base) wide x 1/2" deep. Model number on spring body 23 7 D160 CMC

Milgard DH Channel balance

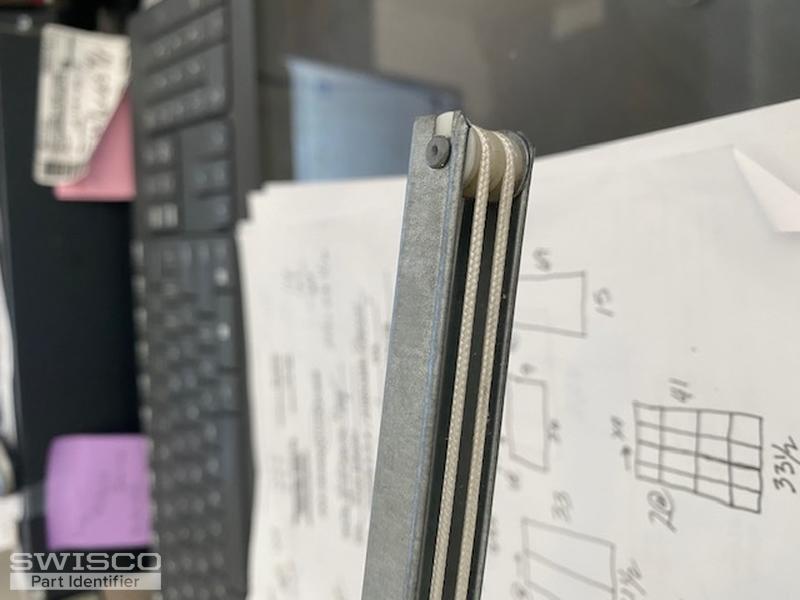

I'm having trouble locating these and was hoping you could help. I need 4 of each type of balance (see pics) for Milgard DH windows. I'm looking to get heavier springs because I installed sound glass in the existing windows and they are a bit heavier because of the laminated glass. ... (cont.)
