40" Series 395 Channel Balance

Product Code: S395-40

40" Series 395 Channel Balance
Main product image of the S395-40 40" Series 395 Channel Balance
$14.01/each
Quantity Price
1-11 $14.01
12-49 $12.61
50-99 $11.91
100-249 $11.21
250+ $10.51
Please Note: Bulk pricing applies only to purchases of the same option
Option:
Product Description
This is a Series 395 channel balance for non-tilt windows. It moderates the operation of your window sash using a specifically calibrated spring and pulley system that allows the window to stay open when raised.
  • This balance has a 40" long metal channel. When determining the length, do not include the attached fittings. Only measure the metal channel.
  • Comes fully assembled with the 19-005 top and 15-001 (1-1/8" deep) bottom fittings and will be ready to install out of the box.
  • The strength you need should be indicated as a stamp or imprint on your old metal channel. If you do not have a stamp, or cannot match it up to our options, weigh your sash on a scale and refer to the chart below.
  • The width of the metal channel measures 9/16" but is considered 1/2" in the trade.
  • Can work for either the left or right side of the window interchangeably.
Stamp Option Sash Weight Range
3910 9 to 14 lbs
3920 14 to 19 lbs
3930 19 to 24 lbs
3940 24 to 30 lbs
3950 30 to 36 lbs
*This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
Good Idea!
Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.
Helpful Tip!
The stamp option represents the strength of the channel balance. Locate the stamp on your channel balance. If your stamp does not match any of the stamp options available or you are unsure of which stamp option you should choose: ask our experts for help.
Additional Images
Related Videos
Related Item(s)
Customer Questions & Answers
Discussion # Of Replies Last Post Date

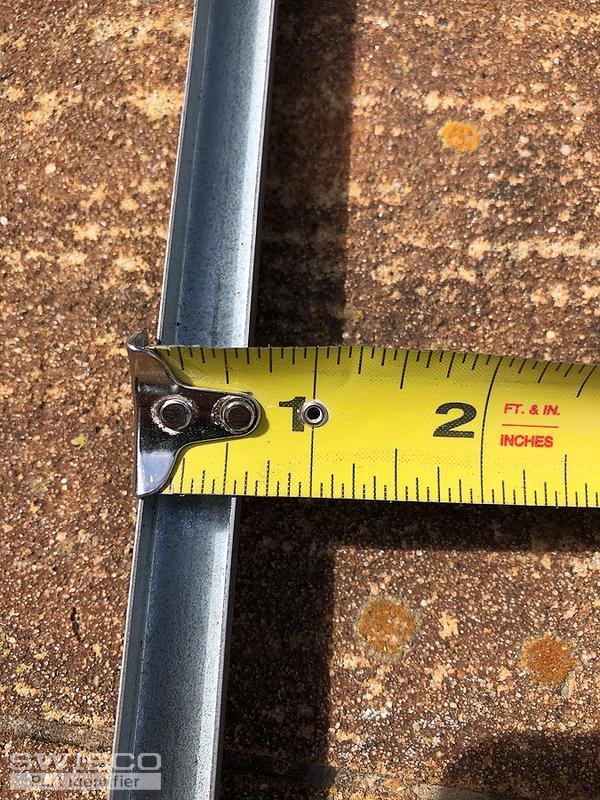

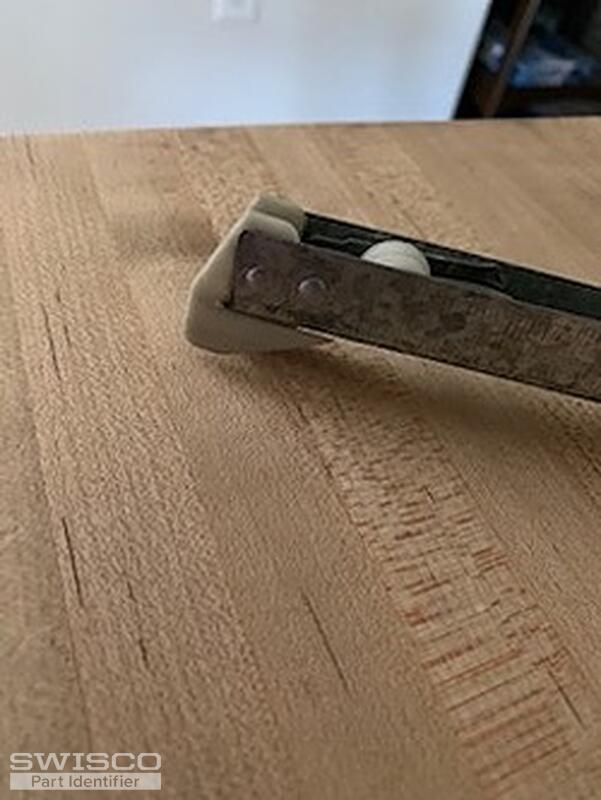

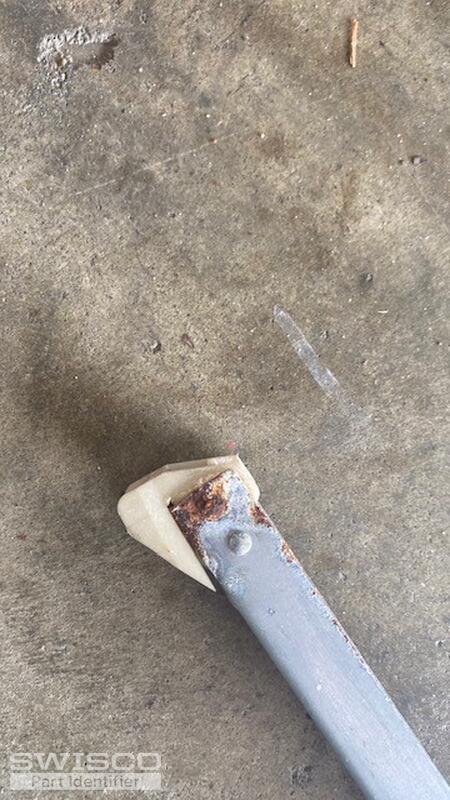

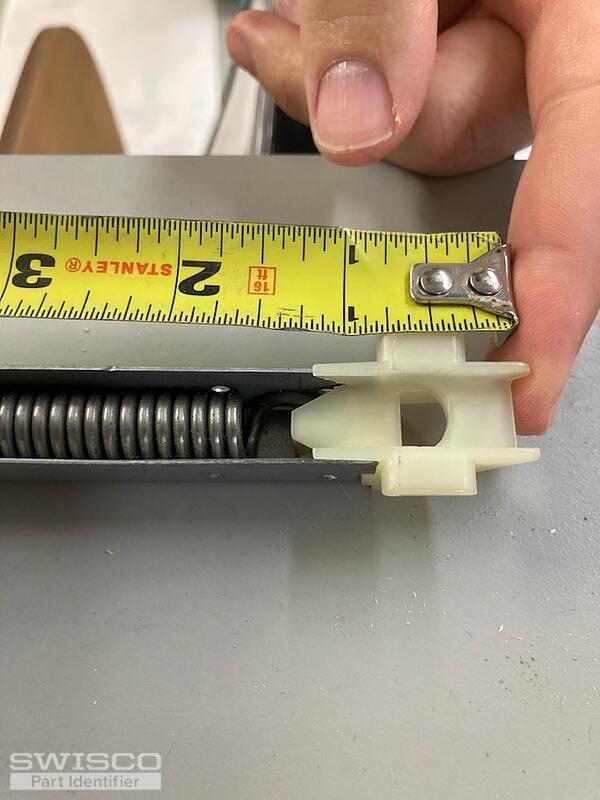

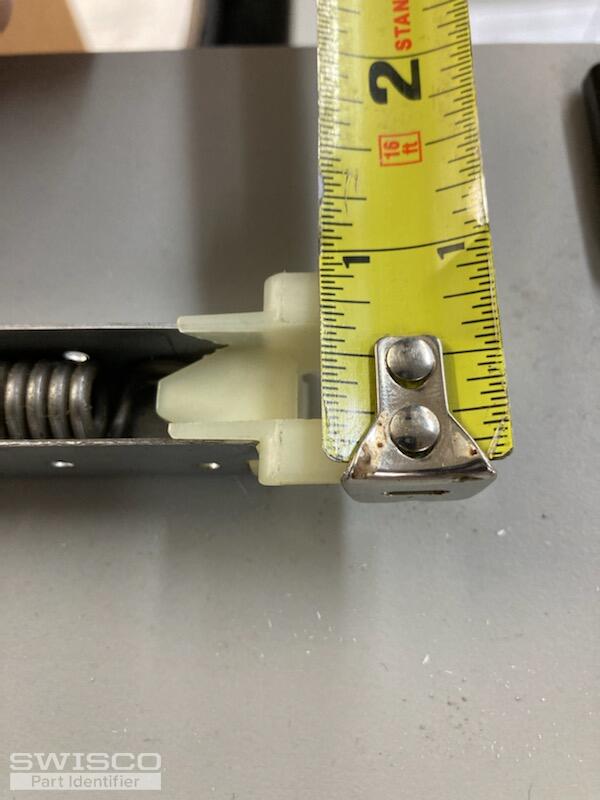

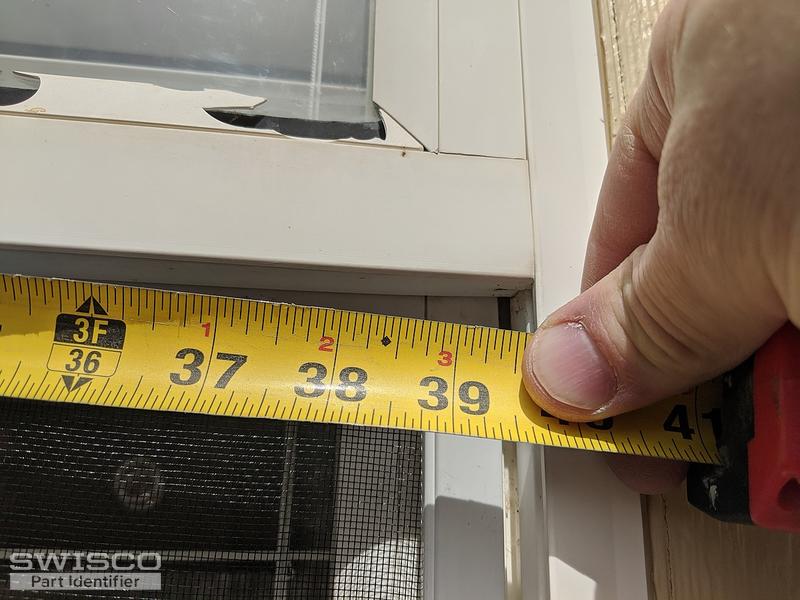

Window BalancerThis discussion includes image(s). 2 Jun 10, 2022
