Product Code: S220-09

9 lbs Series 220 Roller-Tilt .625, Single

Name: 9 lbs Series 220 Roller-Tilt .625, Single
SKU: S220-09
Price: 9.2 USD
Availability: InStock

$9.20

9 lbs Series 220 Roller-Tilt .625, Single Image

Quantity	Price
1-11	$9.20/ea
12-49	$8.28/ea
50-99	$7.82/ea
100-249	$7.36/ea
250+	$6.90/ea

Please Note: Bulk pricing applies only to purchases of the same option

Quantity

Add to Wishlist

Product Description

This is a Series 220 replacement constant force balance system for tilt windows. It moderates the operation of your window sash using a specifically calibrated coil spring that allows the window to stay open when raised and remain shut when closed.

This balance comes complete with a pivot cam, coil spring, and coil spring cover.
The spring is stainless steel and coated for low friction and corrosion resistance.
Fits pocket size 5/8" x 1-1/4" (.625 x 1.292).
A pair of 9 lb assemblies will carry 17 to 18.99 lbs, (sold individually). The weight you need should be indicated as a stamp or imprint on your old balance cartridge cover.

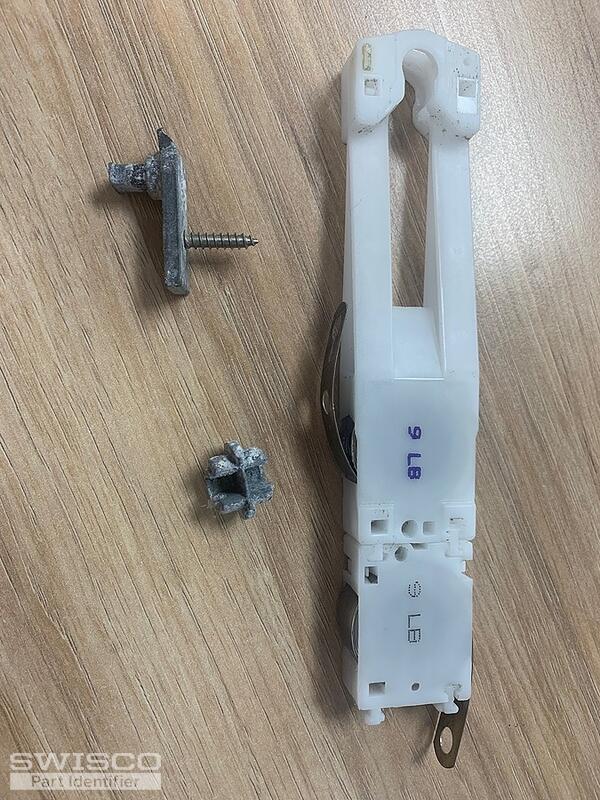

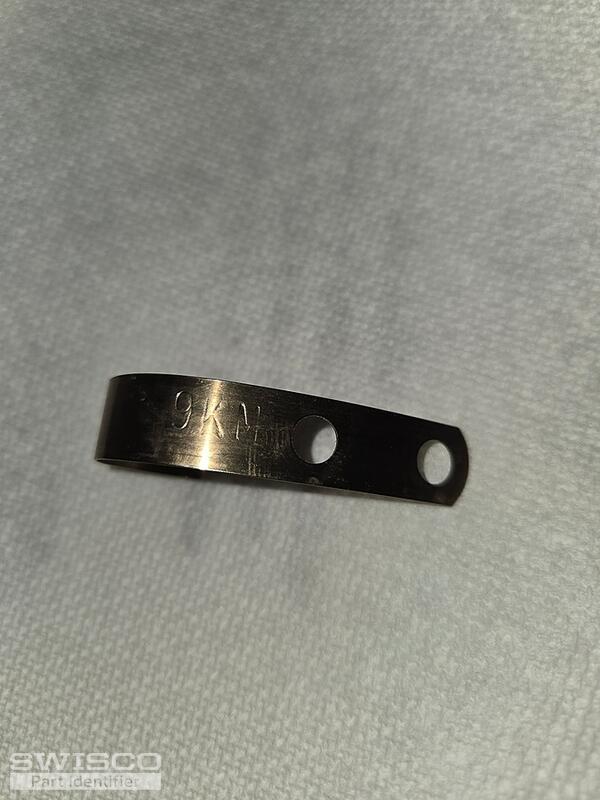

What is this Coil?

Hi what is this coil and what part is can replace it with? Need 2 new ones and also on the bottom of the window there is a metal rod on each corner that goes into thr coil sliders. One of the rods pictured has broken off. Please suggest.

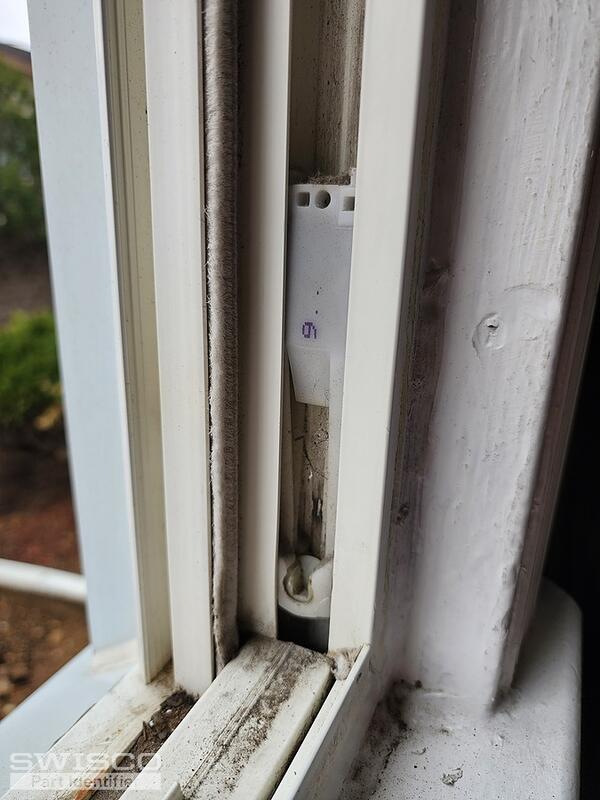

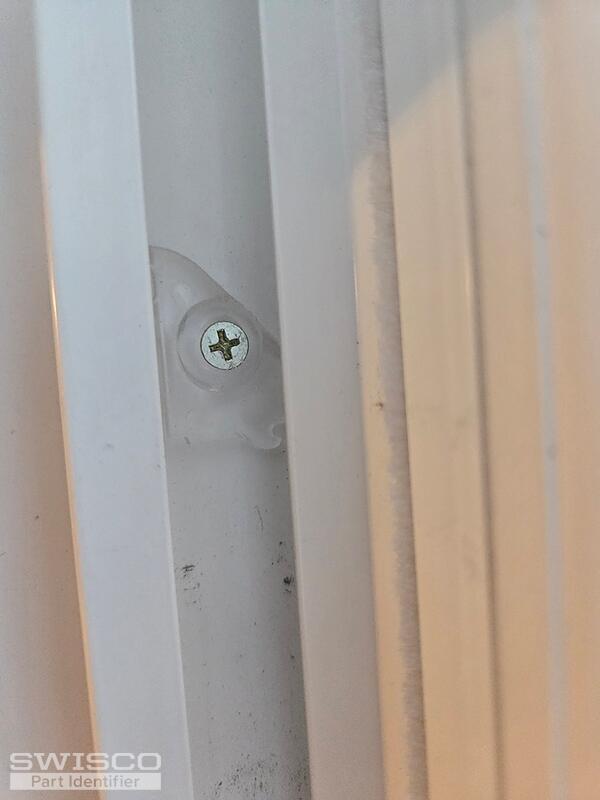

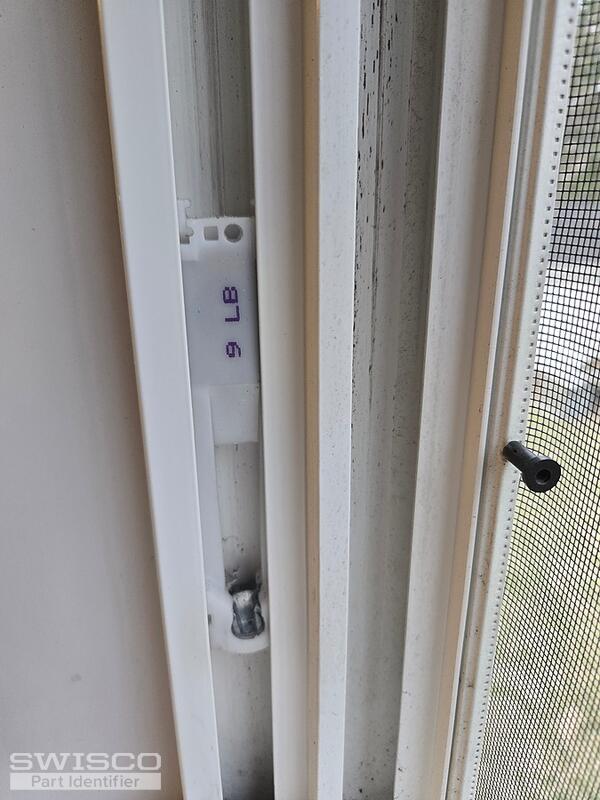

Window balance

I can not find balance for my windows. Visions 3500 series. 9 lb Spring from windows but I don't see any attachments no Spring at all I m so confused. 1 window I can see them but 2 one not open properly but I don't see Springs at all

Anderson 400 series Double hung tilt sash pivot

Please provide a quote for the part in the attached pictures

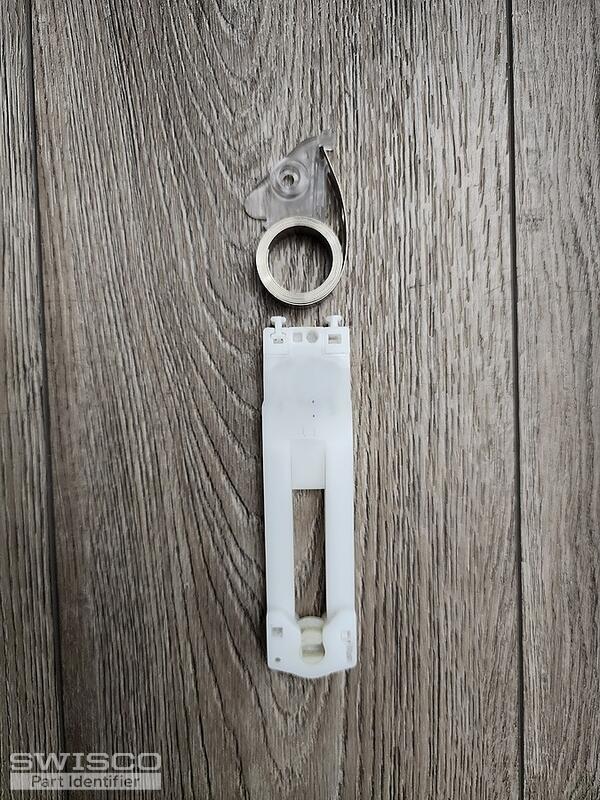

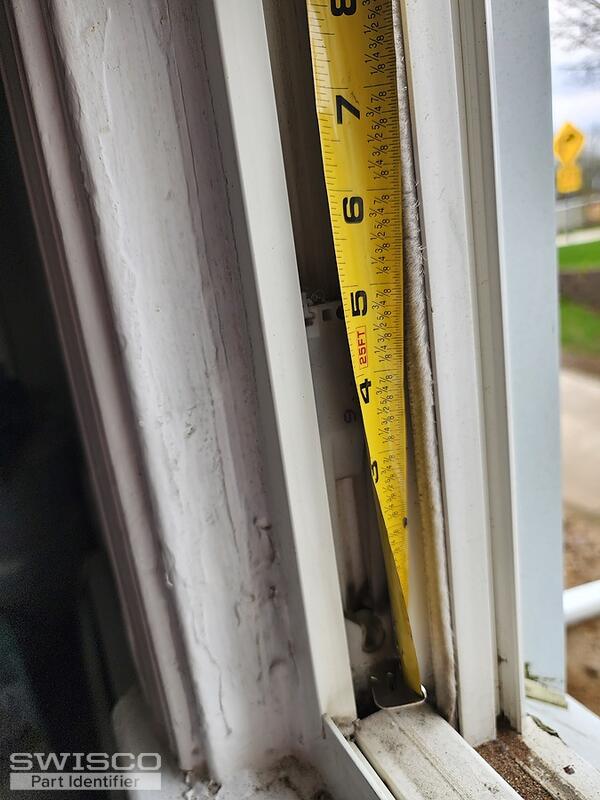

Pivot lock shoe

Hi, I was wondering if you could identify this pivot lock shoe part, or if you are able to get it, I removed the sash and weighted it, it weighs 19 lbs It's from a crest line pocket window, I would need both left and right side, if that exact part cannot be found is there an alternative part that ... (cont.)
