Left 1/8" Recessed Door Offset Pivot Set, Arch Alum

Product Code: 79-121

Left 1/8" Recessed Door Offset Pivot Set, Arch Alum

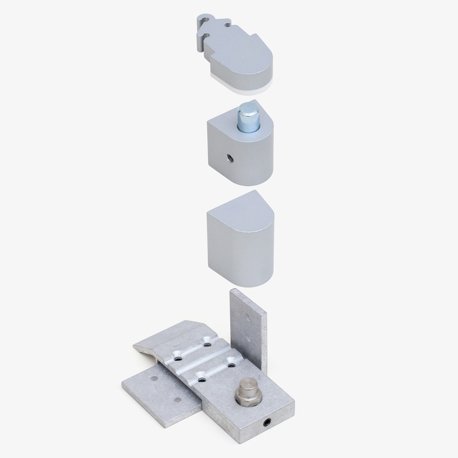

Main product image of the 79-121 Left 1/8" Recessed Door Offset Pivot Set, Arch Alum
Dimensions for 79-121
How to Install a Commercial Door Pivot
$27.51/each
Quantity Price
1+ $27.51
Product Description
This offset pivot set is used to replace the lower and upper pivots in a left hand 1/8" recessed door manufactured by Aldora and Arch Aluminum; HRSO. 3/4" Offset for use with aluminum commercial doors and frames with 1/8" vertical adjustment for doors weighing up to 125 lbs. Features an oilite bronze bushing in top frame portion; case hardened fixed pin in top door portion; full race ball bearing in bottom door portion; stainless steel stud in floor/jamb portion. To adjust the lower pivot you will need a 9/16" open end wrench. Finish/color is a baked satin aluminum paint.
Customer Questions & Answers
Discussion # Of Replies Last Post Date

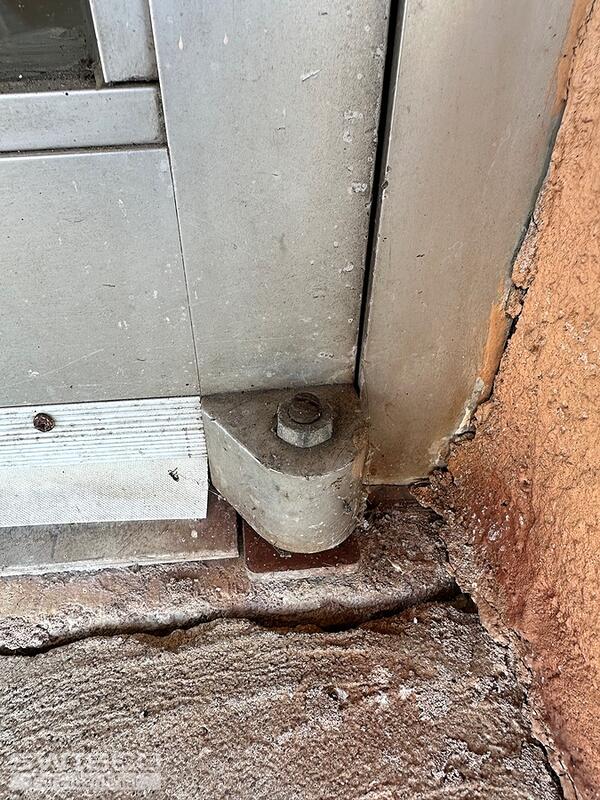

Door is scraping bottom, occasionallyThis discussion includes image(s). 4 Jun 19, 2020

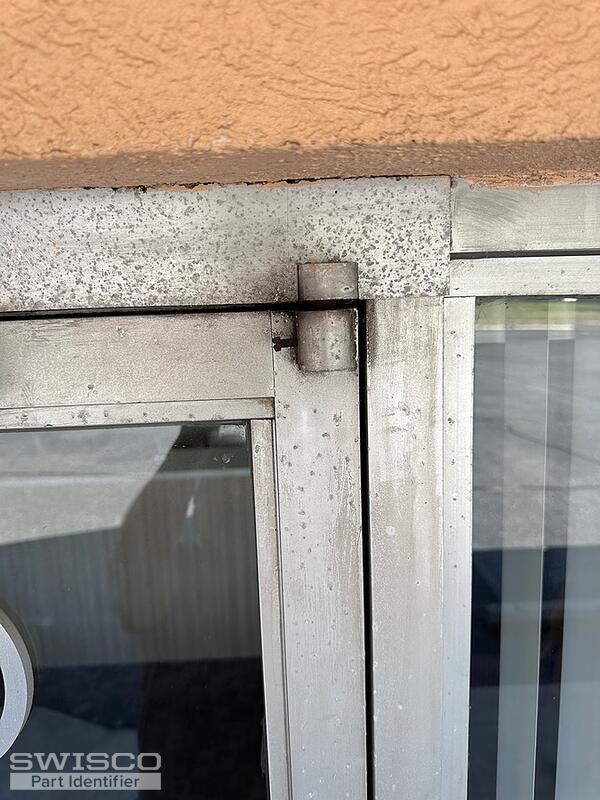

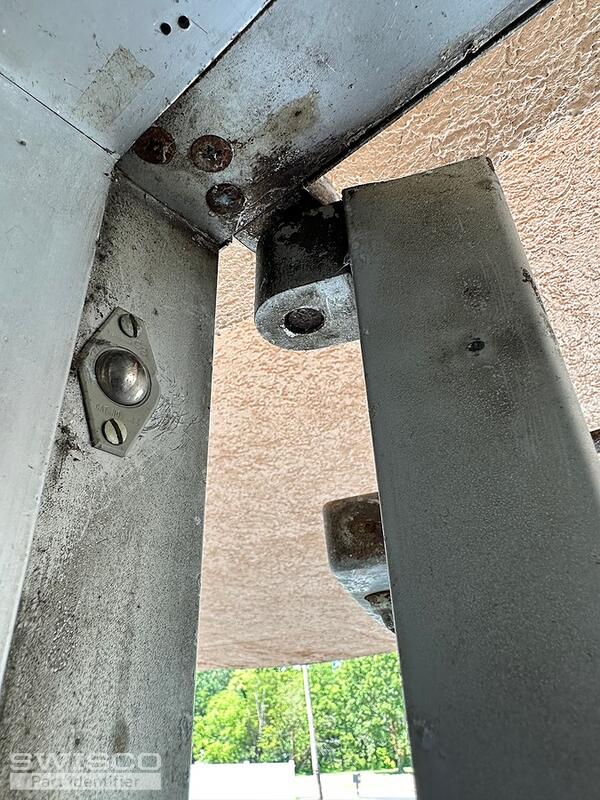

Commercial doors pivot type hingeThis discussion includes image(s). 6 May 2, 2018

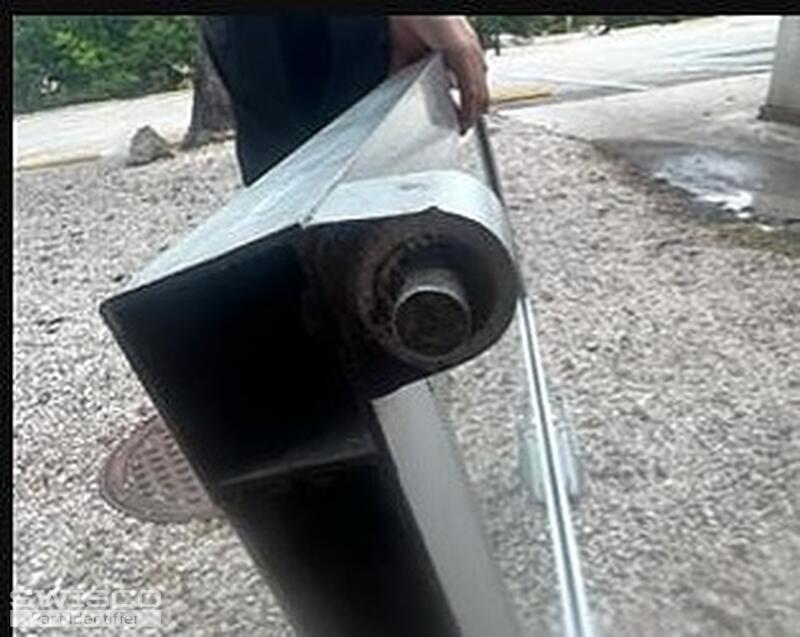

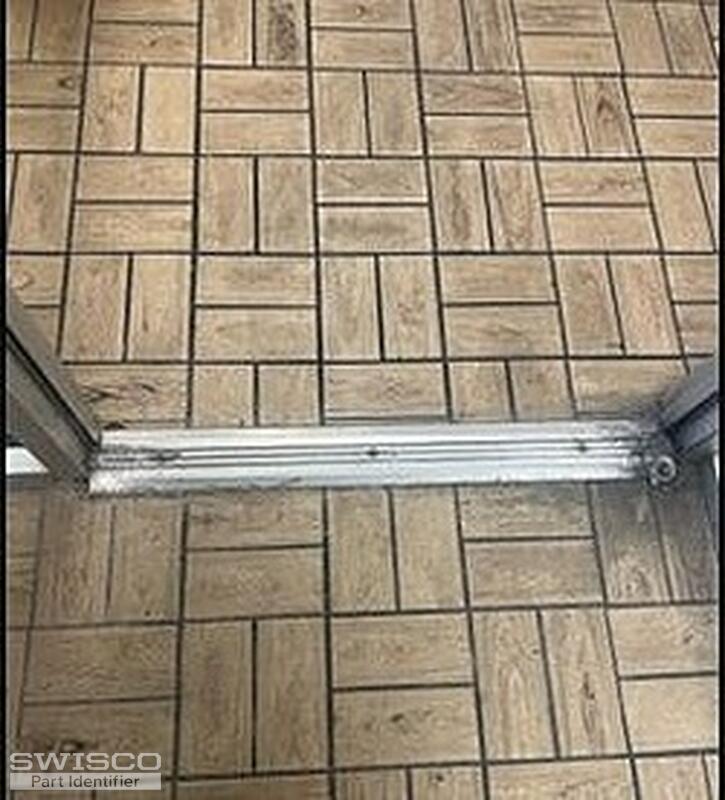

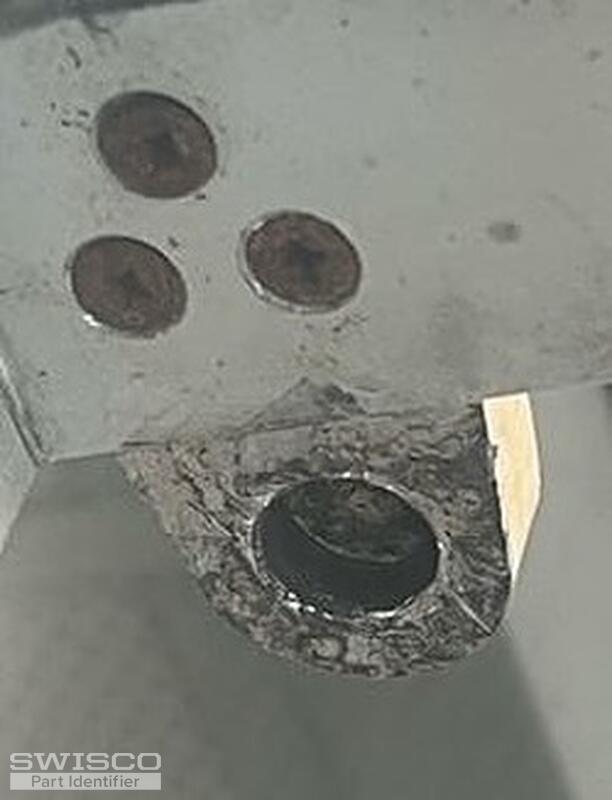

Commercial door pivotThis discussion includes image(s). 2 Jun 27, 2016
Start a new discussion
Use this form to ask questions or to share your experiences regarding this product. Every discussion will be reviewed and answered by our experts.
(your email address will be kept private and is only used to inform you when a response has been made)
Current wait time is 4-7 business days
We promise that one of our experts will personally get back to you as soon as they are able. Thank you very much for your patience and understanding. If your inquiry is time-sensitive, please feel free to reach us at 856-317-6263 or at help@swisco.com.
