Casement cranks

A home owner from Norwich vt says:
September 2, 2021

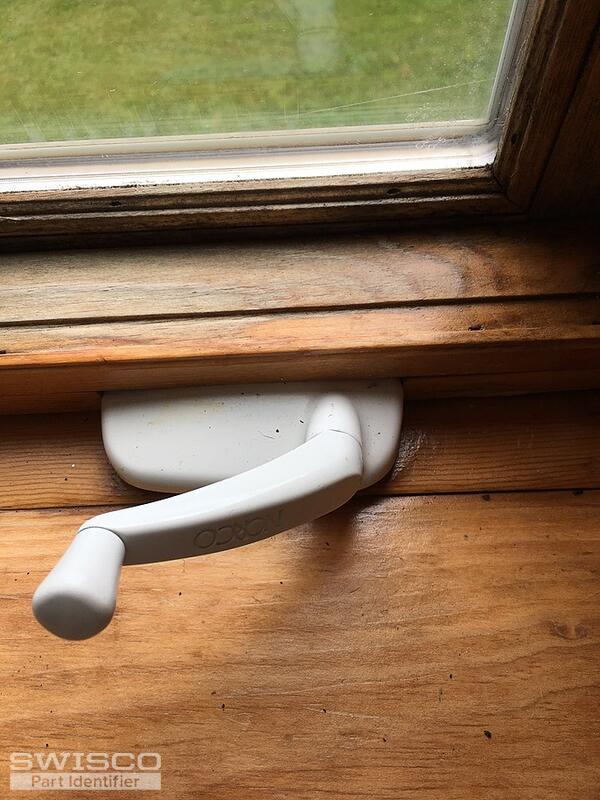

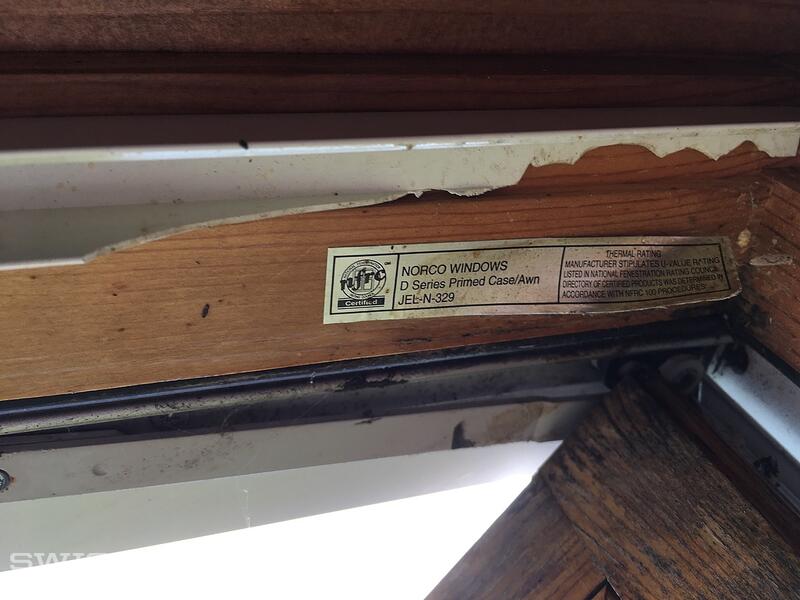

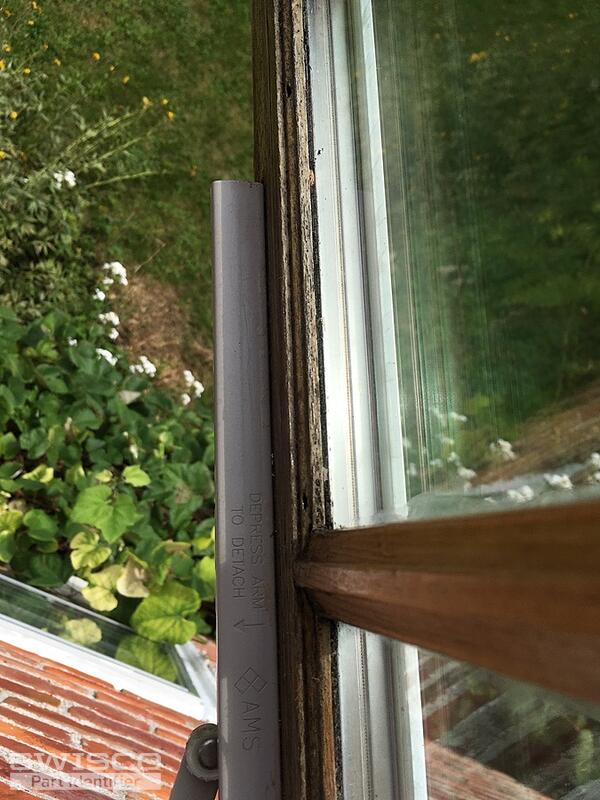

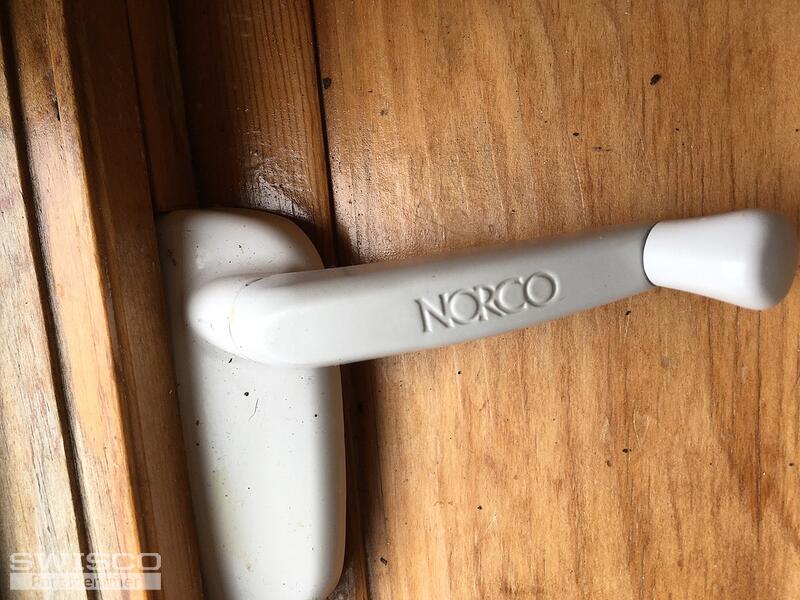

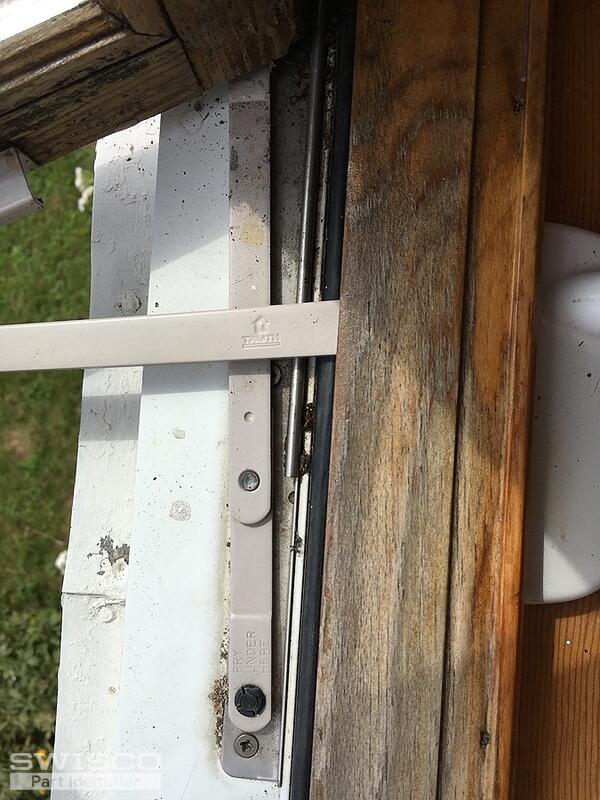

I need to replace these cranks and arms
Thumbnail of the uploaded file named B48AD4E2-8957-412F-A0ED-DE14392CBDC2.jpeg
Thumbnail of the uploaded file named BDAE07C4-90C8-4B7F-91D8-DF648A535E55.jpeg
Thumbnail of the uploaded file named 1F71EB15-059B-4689-8F5C-1CEB622DD8F4.jpeg
Thumbnail of the uploaded file named 7AB95ED1-D628-475E-8F90-4DF3C9769FE4.jpeg
Thumbnail of the uploaded file named 35DB1F15-A599-47C6-B5BE-AB2DBC1FCCF9.jpeg
Profile picture of Emily
Emily from SWISCO responded:
September 8, 2021

Hi there!

Start by taking a look at the three sets of operators we've related for you on this page, our 39-013 & 39-014, 39-254E & 39-255E and 39-027E & 39-028E. Carefully look over the dimensions for each and compare them to yours to see if any match what you need.
Ellipse Style Single Arm Operator, 9-1/2"
Ellipse Style Single Arm Operator, 9-1/2"
39-027E
$20.70
Ellipse Style Single Arm Operator, 9-1/2"
Ellipse Style Single Arm Operator, 9-1/2"
39-028E
$20.70
Casement Window Operator, 13-1/2" Arm
Casement Window Operator, 13-1/2" Arm
39-013
$20.70
Casement Window Operator, 13-1/2" Arm
Casement Window Operator, 13-1/2" Arm
39-014
$20.70
Ellipse Style Single Arm Operator, 7-1/2"
Ellipse Style Single Arm Operator, 7-1/2"
39-254E
$28.15
Ellipse Style Single Arm Operator, 7-1/2"
Ellipse Style Single Arm Operator, 7-1/2"
39-255E
$28.15
Anatomy of a casement window
Anatomy of a casement window
VIDEO
WATCH >
How to identify casement and awning operators
How to identify casement and awning operators
GUIDE
READ >
