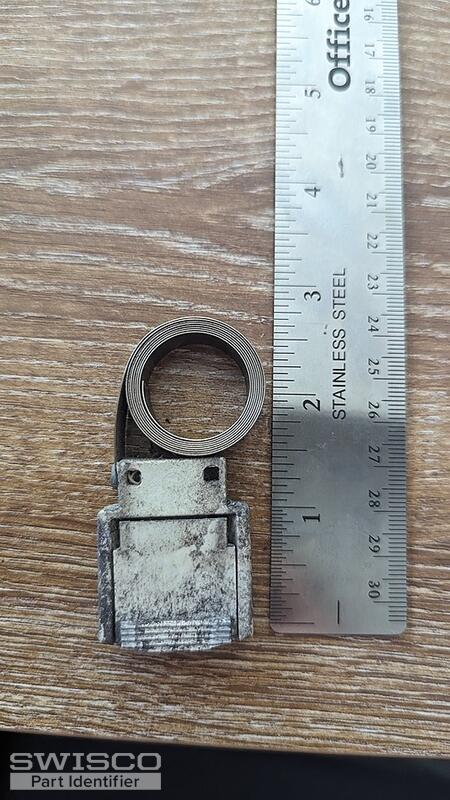

Coil Balance

Hello,

Thanks for reaching out! Your exact Simonton Windows coil balance shoe is no longer made but our 15-199 should work well as a suitable replacement. Take a look over the dimensions. Carefully compare them to your shoe to see if this might be a fit.

Alternate view of 15-199

This coil balance shoe is compatible with the 1/2" thick Series 160 Coil Balance or the 3/8" thick Series 165 Coil Balance. To determine which of these is the right fit, you'll need to confirm the thickness of your coil springs.

• If they are 1/2" thick, you'll need the S160-5 and the S160-6.
• If they are 3/8" thick, you'll need the S165-5 and the S165-6.

Since it appears this window uses two coils on each side, you would need the 15-150D for the Series 160 balances or the 15-204 for the Series 165 balances.

The compatible pivot bar is the 26-378 3" Pivot Bar.
