Malta casement window lock and crank

Hello!

This looks like an older version of our 38-097 and 38-098 locks but compare our dimensions to yours to see if they match up. If they do, you'll need a new keeper, our 38-079.

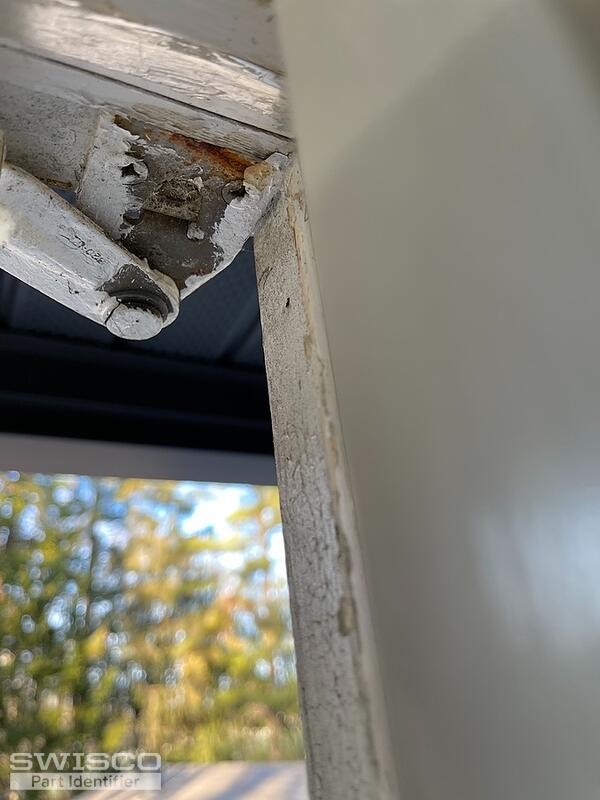

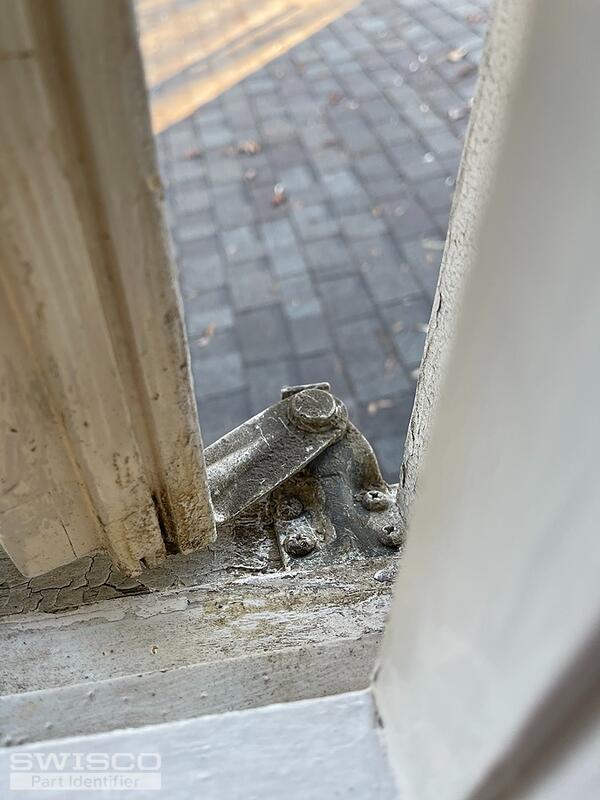

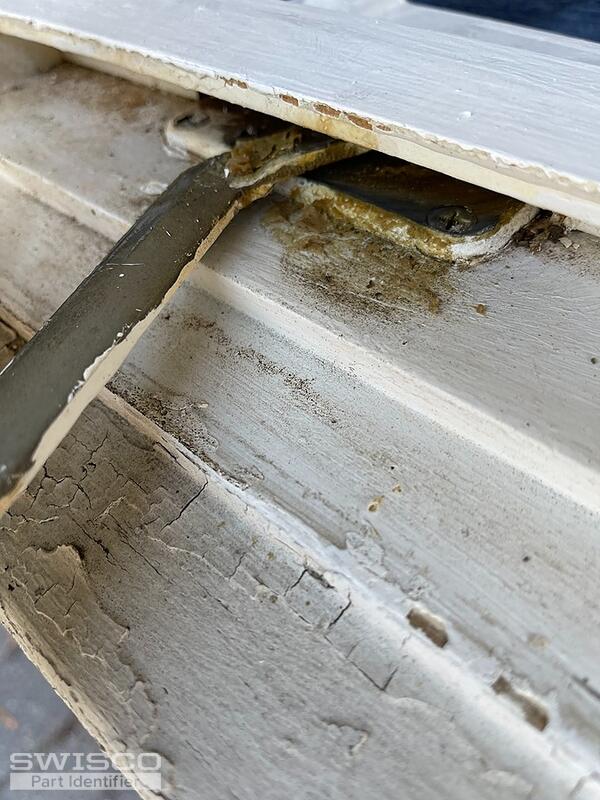

If you need a new operator, we'll need to see a photo of your operator with the window open so that the arms that move the sash are fully visible.

I'm afraid we don't sell the gears and arms separately but we still may be able to help! Can you show us a picture of your operator with the window open so that the arms that move the sash are fully visible? Once we can identify the operator, we can determine which handles are compatible with your assembly.

Thank you for the additional pictures! Depending on the length of the arm, take a look at our 39-013 & 39-014, 39-254E & 39-255E, or 39-027E & 39-028E operators. Compare our dimensions to yours and see if any match what you need. These operators are compatible with the 39-114L and 39-205 handles as well.

If you have any questions just let us know!
