Replacing balance system for 2 windows Both sides of windows have the balance system

Question

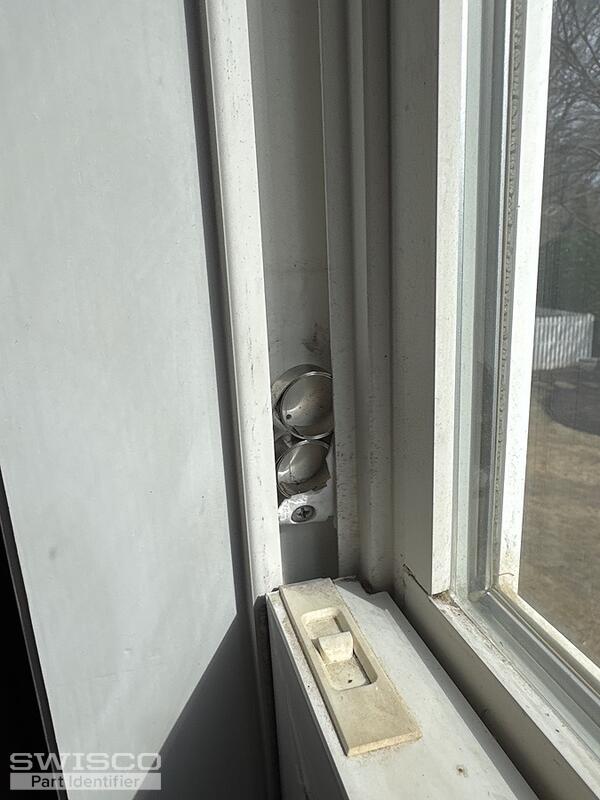

Ok don&rsquo;t know the manufacturer but it&rsquo;s a double coil with markings #5.0 35&rdquo; P5232208 see picture.

Jasmine · Accepted Answer

Thanks for your post! You'll need the 15-199 Pivot Shoe to replace what you have. To confirm it is the correct match, carefully compare the dimensions.

The 26-378 is the compatible pivot bar.

For the coils springs, you'll need either the 1/2" wide S160-05 (uses 15-150D support) or the 3/8" wide S165-5 (uses 15-204 support). To determine which series is the correct match, confirm the width of your existing coils.

Alternate view of 15-199
