Viewing all customer Discussions for:

10-563 Concealed Door Latch

Dear Swisco,See the photo of the door latch mechanism in our toilet stall door at St. Dominic Church, Northfield, MN. Do you have a replacement knob assembly that will work on this latch?Richard

Hi Do you have this complete lock in stock ? the backset is 2 5/8 if so I would need 4 of these David

Im looking to get stall Stall latch , cover and knob

Hello I’m working on a restaurant bathroom that needs new locking hardware and I was wondering if you could point me in the right direction in what parts I may need this are some pictures of the two doors I’m working with one needs the turning hardware and the other need a stop and locki ... (cont.)

I have 3 stall doors that have lost their handles and I'm not sure what ones they take, the old ones that were on there were apparently thrown away when they came off, not sure what the brand of door is, haven't found any markings. any help with this matter would be greatly appreciated. ... (cont.)

Locks and brackets neededWe are looking forward the knob brackets and need a price please

Hello I am thinking I need part #'s 10-556 10-563 10-590 I also have more pictures if needed. Thank you for taking the time!

Slides into lock but handle to this latch gone don't know which will work on this stahl door slides forwzrd

I need to fix this door(see pictures) in our church bathroom. I have not been able to find the parts that came out of the door. Can you help me decide what kind of lock I need to purchase. Thanks Dave NRBC

its a Knickerbocker brand outer diameter is 1 5/8. the internal circle diameter is 1 5/16

Please identify the replacement part for the attached parts.

Please identify the entire knob and bolt assembly. Thank-you.

The photo shows the front of the concealed latch and uses a thumb turn knob , I wanted to know if there is a replacement part for the face plate? Or latch faceplate that covers and holds the concealed latch?

Parts is on a bathroom door partition.

Hello, We have a door lock that appears to be the 10-556 and may have an issue with the bolt portion of the lock assembly so the question comes up how do you remove the hidden portion of the loca assembly? Or is it built into the door and not replaceable? Thanks Dennis, Hill's Brothers Construction ... (cont.)

i looked at the picture of lav door knobs the width is ok but will (Suggested 10-562) they operate this part of the lock

Hi, Im unsure of what part I need to repair this lock. Any finish/look is fine. Any information would be a great help. Thank you

How do you install a 10-563 ? I think ours might be broken??

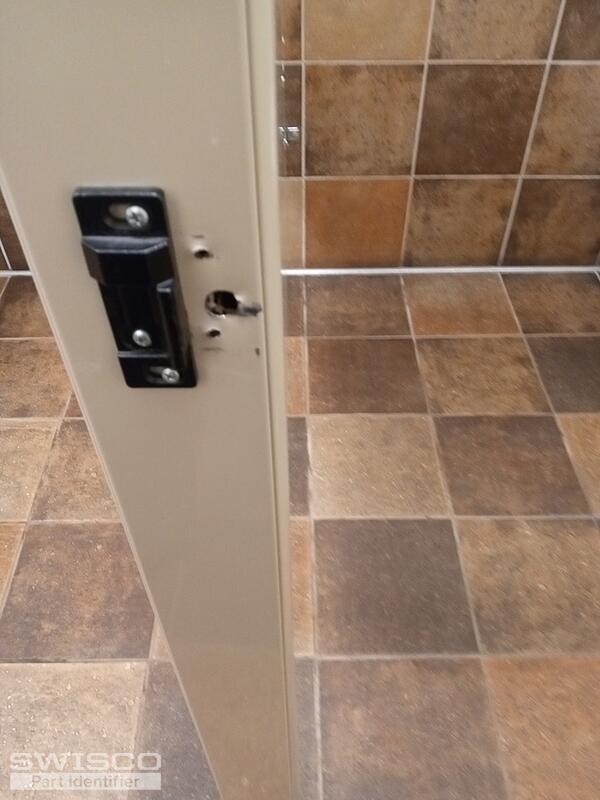

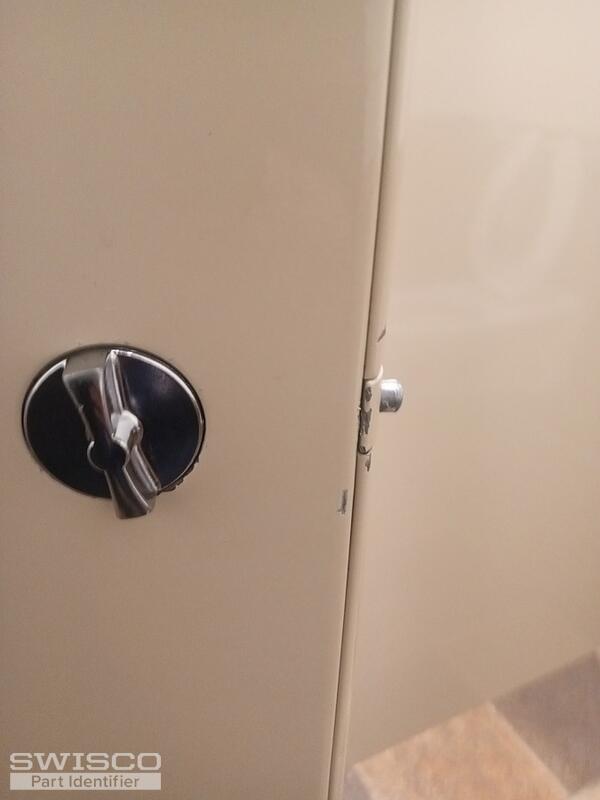

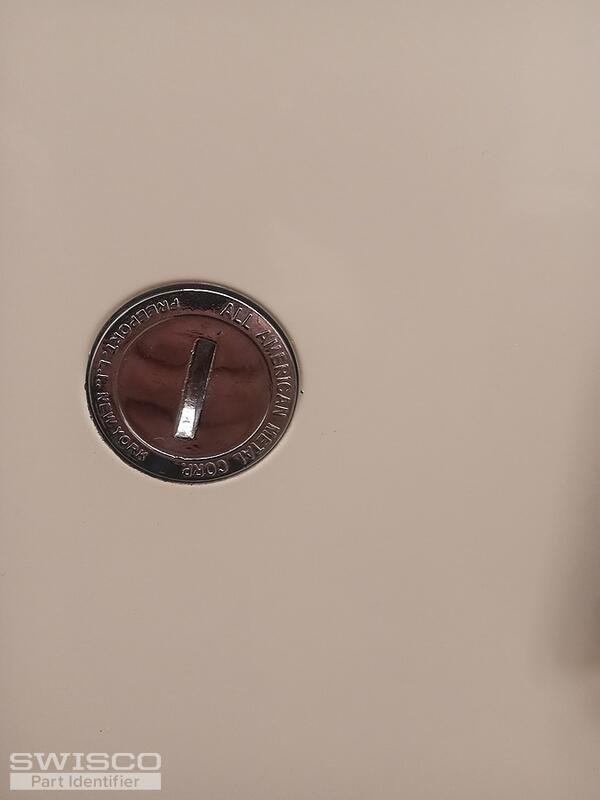

Hello - Do you sell a replacement latch, pin, flat wall bumper to replace this All American Metal stall door latch ? The bumper is mounted on a flat wall vs. the edge. See pics. We need the pin also. Thanks!
