Viewing all customer Discussions for:

39-371 Pella Hinge Shoe Pair

im a handyman looking to get replacement parts for a window that will crank open, but wont close without help. included is a picture of a broken portion that appears to have a part number on it. im afraid i only have assembled photos, and they are limited as well. if you need other photos please let ... (cont.)

This plate attaches to Pella pivot plate hinge shoe 39-363 or similar. The metal plate has a stud that drops into to a small plate on top of the window frame.

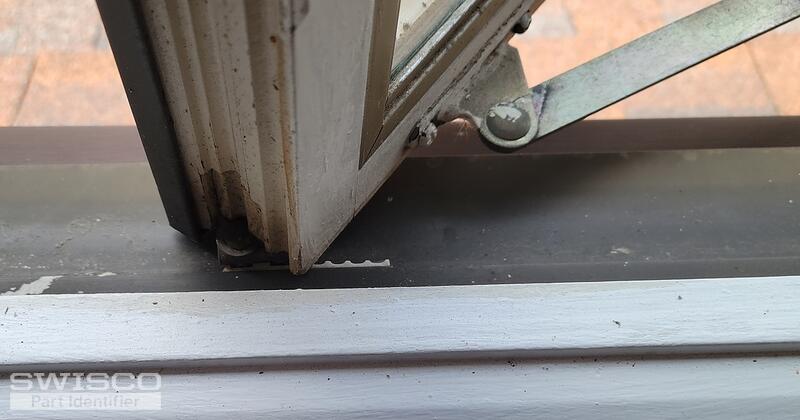

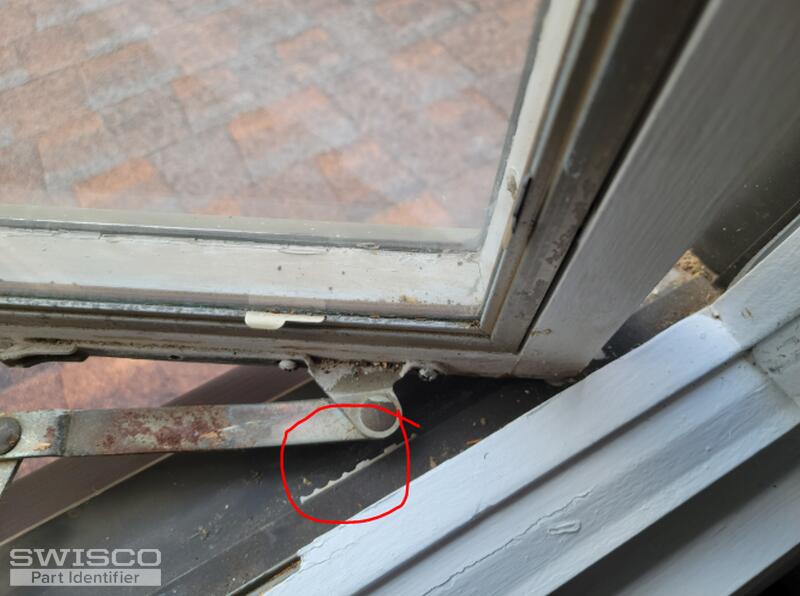

Flat plastic white teeth and roller at corner of window , top and buttom , where it slides in the window frame track, missing the white plastic part

708 cc windows. Doesn't quite look like some of the other parts mentioned in other responses as the full slider mechanism isn't connected to the spacer bar. I think the window is from the early 80s.

These are on the bottom of our windows and most have broken over years. Looking for new parts to replace them.

We are in need of Pella window parts for a casement window installed in 1977 or 78. One part on the top of the window and one part on the bottom of the window that looks like teeth. I am trying to locate the part so that my contractor can repair it.

Hello. Looking for replacement part. It’s the plastic piece in the track the arm is attached to

Lost a part for a pella casement. It attaches to the bottom corner of the window then connects to a groove in the aluminum cladding. It is metal with a plastic fitting that slides to allow the window to open. When fully open one side has enough clearence so you can wash the outside. The window w ... (cont.)

Casement windows from early 90s, i believe 91. The plastic sliders are deteriorating from age. Need top and bottom

Looking for this small brown piece in the bottom corner of the window. It keeps the corner of the window up and in place and sliding smoothly with the shoe hinge but doesn't look like it's attached to the hinge.

I am seeking a hinge/roller assembly for a 40+ year-old Pella casement window, as shown in the attached photo. This assembly mounts on the bottom of the wood/aluminum-clad casement window, enabling it to slide as the roto-operator is actuated. As you can see from the photo the assembly is missing ... (cont.)

The only serial numbers I found on the outside of jamb was a sticker: WTEAS2959L AND WTEAS2959R I need the parts that screw into the top and sill, that connect the arms shown in pictures

These plastic guides are all failing and you have previously identified my window as Pella installed in New Mexico. Thanks!

I have both LH and RH opening windows that need complete hardware replacement. (Both open in opposite directions.) Looking for new opener hinges as well as the crank mechanism and the handle for each. One of the photos has approximate dimensions. I haven't disassembled it and taken pictures yet. ... (cont.)

Recently when I went to close this window it would not close all the way and the inside bottom corner seems to be missing a part. Attached Thank you for your assistance.Cheryl

It is a right window where a pin from a lower end of the window got disconnected from a plastic sliding hinge part. As you could see one picture shows the hinge that is disconnected from the plastic part and the other one shows intact hinge

Trying to identify which company this bottom operating arm off of a casement window has came from. I am guessing pella, but I am unsure

I am missing the plastic piece that mounts to the metal pieces I've sent pictures of. This part I'm missing allows the awning window to slide up and down in its track when opening and closing.

hello. i have a question about pella product code 39-351. does the part come with the roller on the hinge for the bottom hinge? i could not really tell from the picture?

Not sure the manufacturer. But that bottom hinge on this particular model I have never seen !! Can u please help identify
