Viewing all customer Discussions for:

39-393 Roto Vinyl Awning Window Operator

Windows clip and lock

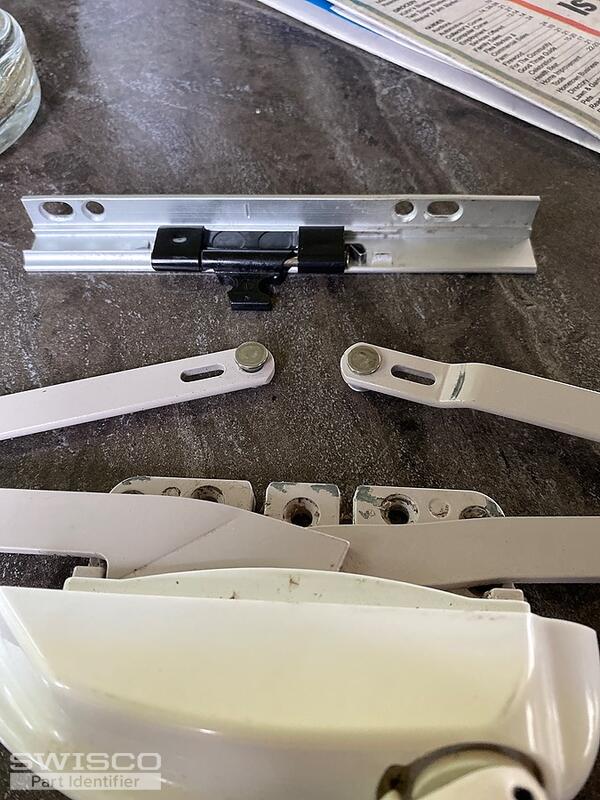

Our awning bracket broke, and we need a replacement. I figured it was the 39-424, but upon receiving the part, it was very clearly not the part. I've attached pictures of the replacement part needed, by itself (it has the broken black plastic piece) and with the 39-424 in the ziploc bag. ... (cont.)

I believe I'm looking for two parts - 1) the window crank handle keeps falling off and 2) and the black rectangular bit has broken bits that have fallen off and as a result won't stay connected to my window. Could you please advise what parts I need to replace? Is it the whole system or just a new b ... (cont.)

I'm looking for a replacement crank. The smell piece of metal broke off- Attached pictures of the assembly and the broken piece

Seems like the model for this awning operator is 39-393? I do need to remove them and get the measurement to be sure. Which handle will go with this? Also, do I need to replace the bracket? How do I know if the bracket needed to be replaced? Appreciate the help.

I have two broken window cranks and I cant seem to find something that looks similar the part says OP05-2018 do you know what I can use to replace it.

I am looking for this model. Would you please advise where can I find it? Thanks

I need to replace the black casement slide for my awning window. Mine is broken. I have glued it back together as you can see in this picture. I have included two pictures of the black casement slide that I need as well as a picture where it goes, and a picture of another window that is all toget ... (cont.)

At the bottom of the window where the operator arms come together there is a small black plastic piece that slides on. It's a two hole for both operator arms. What is this called and do you have any in stock ???

Replacement hardware

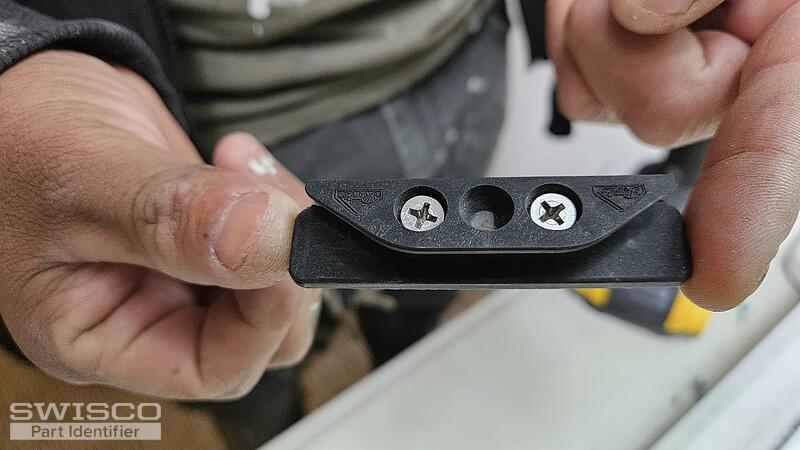

Lock Components The lock is made of 4 components: lock handle, slide lock, slide lock housing, and window keeper need replacement for slide lock need replacement for the slide lock housing need replacement for the window keeper

Awning window crack bracket broke

It is part OPO5-1505 marked on the bottom.

found a lot of numbers - the arm says 0p05-2017, sent a picture of the numbers on the crank, could not find numbers on the lock. it is a vinyl awning window , built in late 84?

I am trying to locate this operator. I cannot find any markings on the window itself that would help.

I have a few broken pieces: 1) Photo with yellow circle: latch mechanism is broken off on other side (this is a photo of the side that still has the piece for reference) Photo with red and blue arrows: 2) Silver bracket is broken and needs replaced 3) black plastic piece on hinge that connects ... (cont.)

The frame side is a up-down sliding rod.

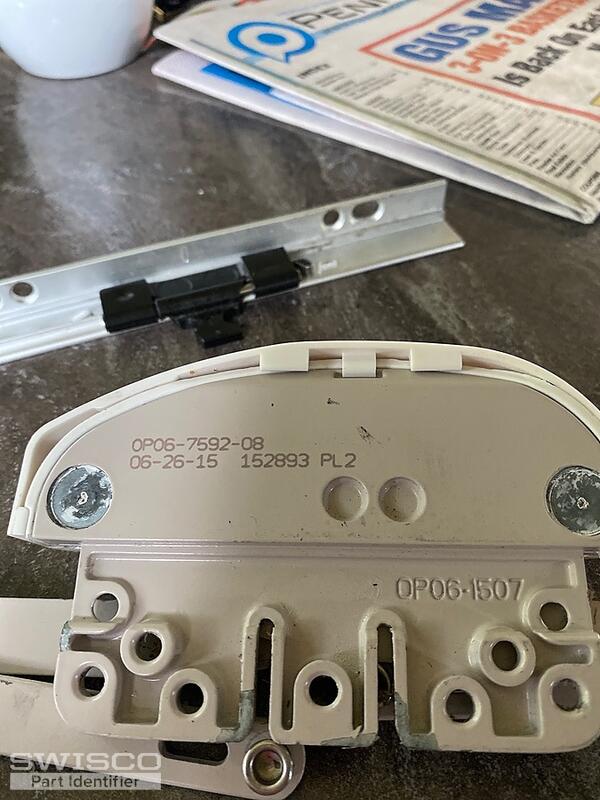

Number of Inside crank OP06-7542-08 Don't stay clipped to bottom of window. Can I just get the clips or do I need to replace the whole assembly? If so how much is the part.

I need the window bracket and clips for 3 Weathershield awning windows. The scissor type push rods are intact, but need the L-shaped bracket that attaches to the window frame with the rotating hinge posts on the bottom and the clips.Also need one casement window crank arm with the hand crank and el ... (cont.)

I'm looking for the left locking mechanism for this window not sure who makes it. The right one works fine the left someone forced and totally bent the mechanism.
