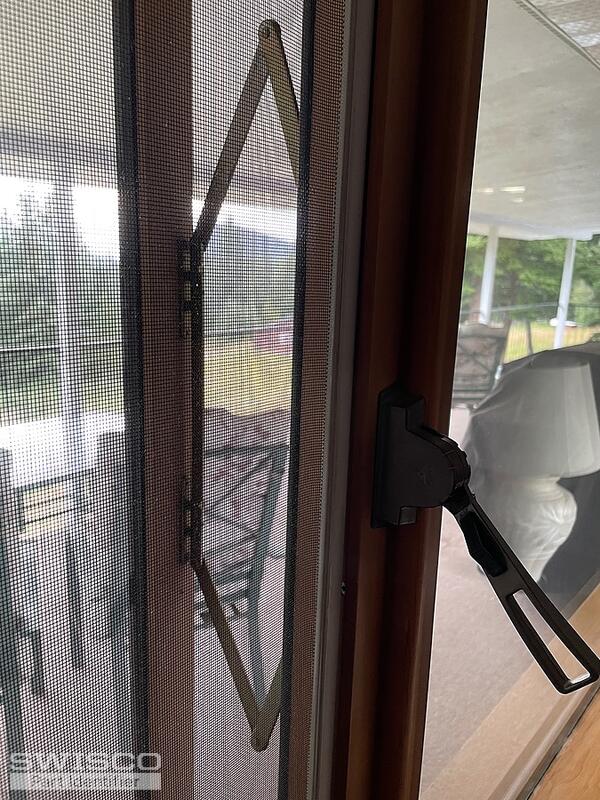

How do you remove and then install a Lever type operator?

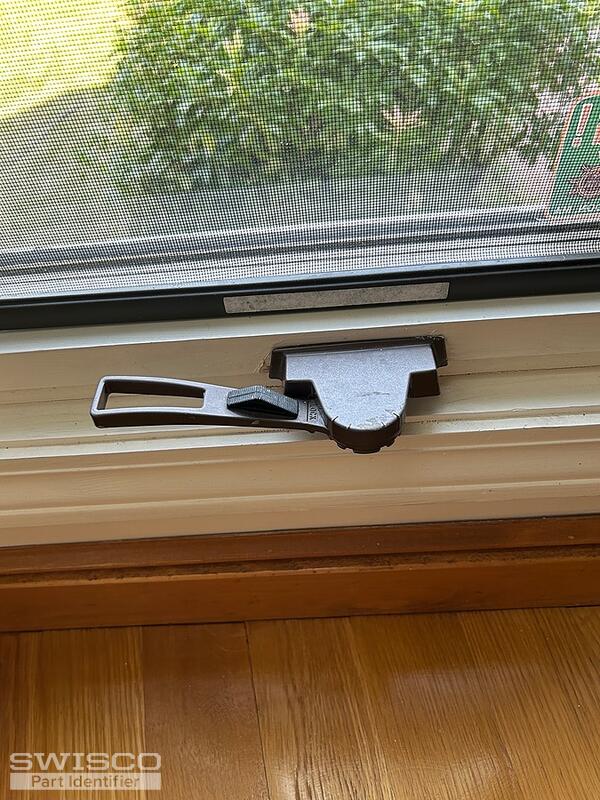

I have been trying to figure out how to replace a broken 39-069 window lever operator for years and now the time really has come! How the heck do you remove the crazy thing? The one pictured is a working window but identical to the broken handled one I want to replace.

How do lock a lever operator?

with the 39-069 lever operator in the fully closed position, is the window essentially locked? or do you need an additional locking mechanism installed? thanks.

How do you connect a lever arm operator to the 39-170?

Hello! I'm sorry to hear that you're having trouble. I'll do my best to advise how the 39-070 operator is meant to work with the 39-170 bracket.After you install the 39-070 operator and the two 39-170 brackets to your window, follow these 3 steps:Unlock the bracket opening on operator using the meta ... (cont.)

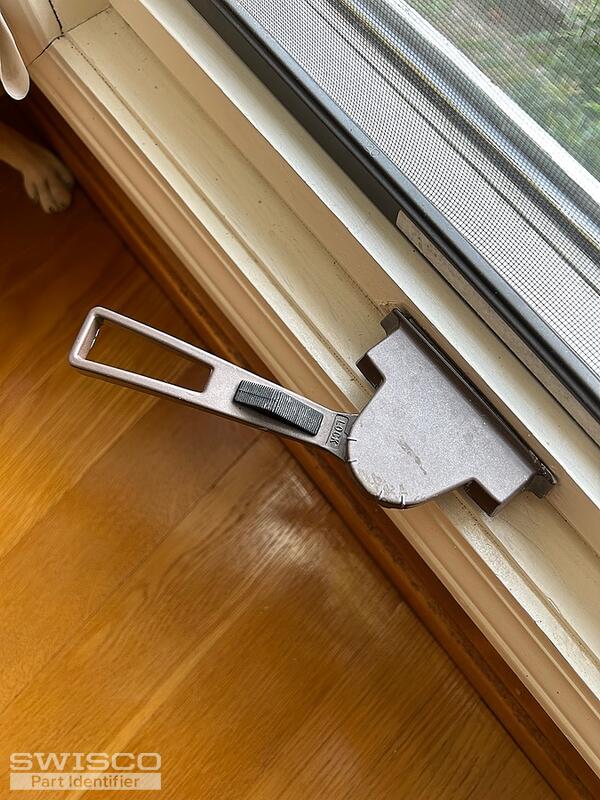

NEED NEW HANDLE AND/OR OPERATER MECHANISM

LOOKING TO REPLACE BROKEN HANDLE

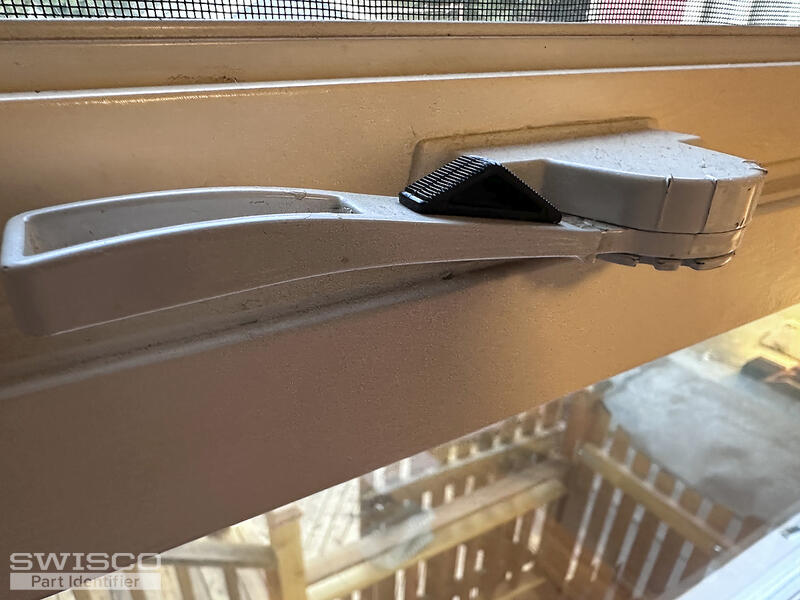

Awning Window Lever Handle

I have a couple handles broken and looking to get a couple replacements.

+3

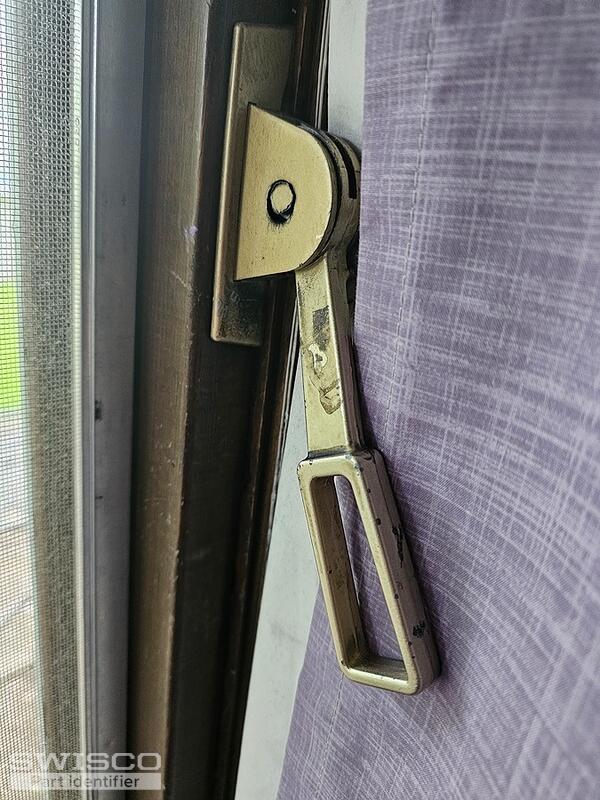

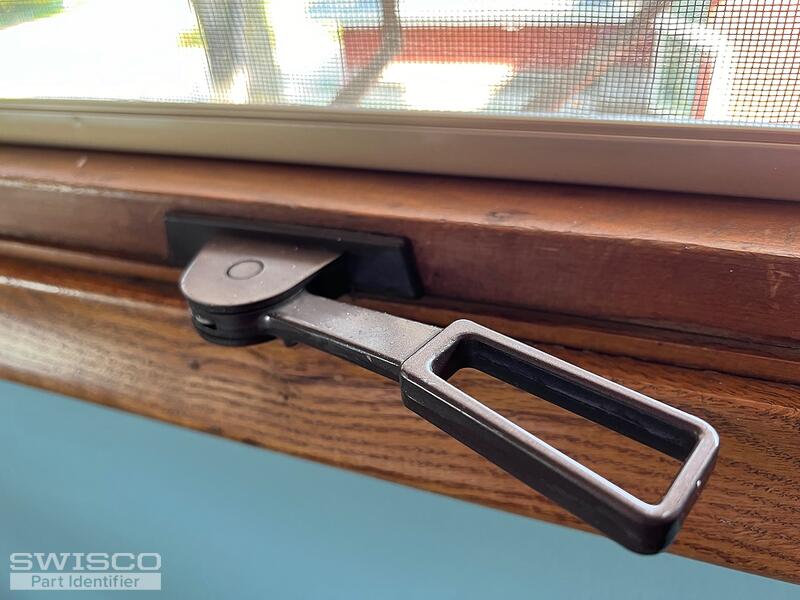

want replacement handles for 1960's (?) Vistarama window opener

I am seeking replacement handles for a few transom-type windows (? terminology?), that are hinged on the top and open with a side-swing of the handle as shown in the picture. The logo says "Vistarama Windows" and the house was built in the 1960's so I am guessing that they are from that era. If you ... (cont.)

Window hardware

Anderson windows from 1968. Need new handles for windows.

+2

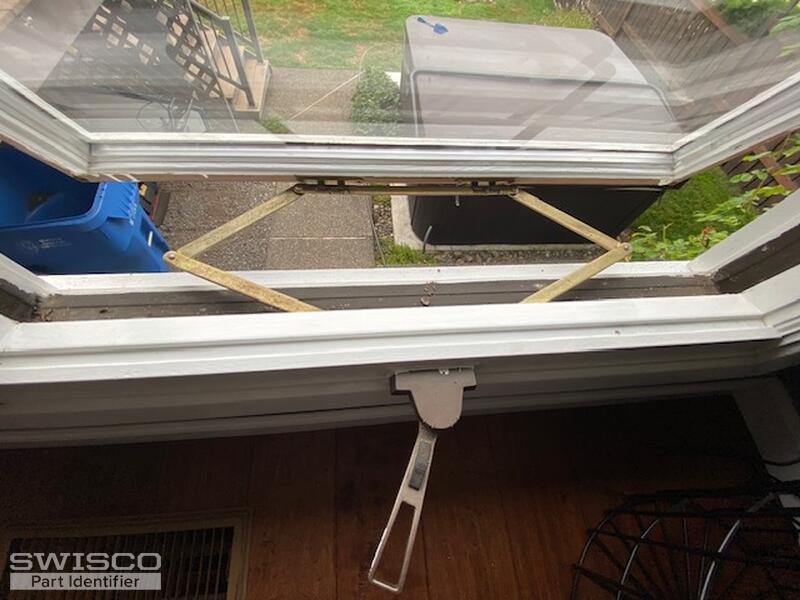

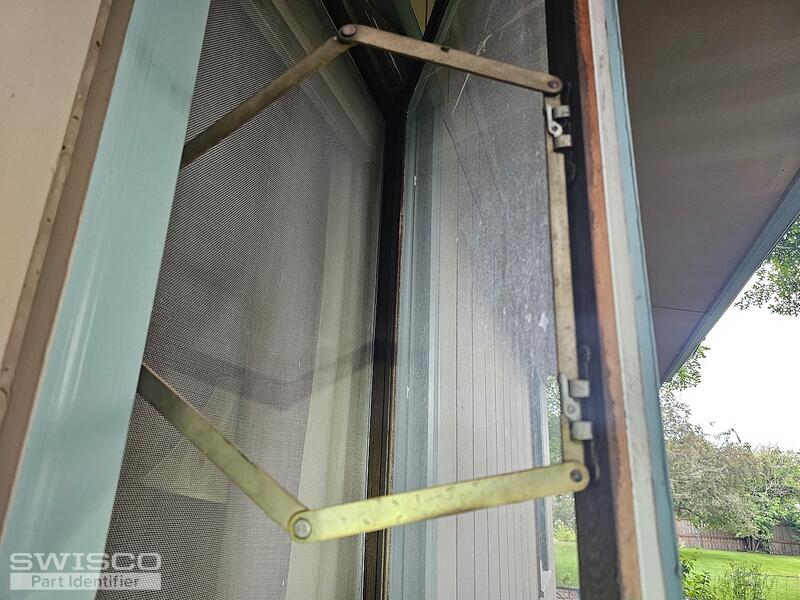

Awning Window crank mechanism

After painting the house exterior, the windows were sticking on opening. One of the opening handles (of two windows side by side) sheared. Assuming that's aluminum. Trying to find a replacement of the part(s) needed.

+1

TRUTH patent 2.775.446

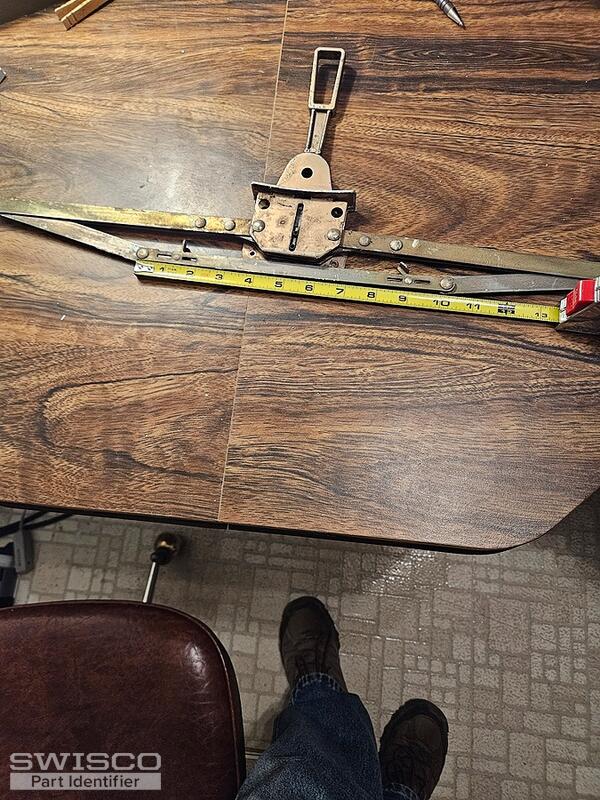

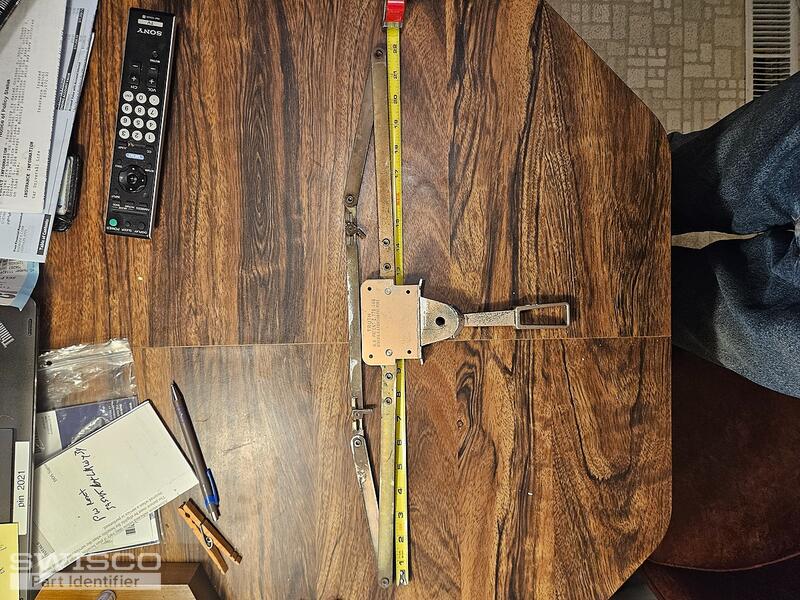

I need to replace Window awning dual arm operator. 22-1/8" with arms flat against the lever plate. the cross piece between the arms is 10-3/8". The Handle portion is 3-1/2"at widest then cuts back t 3" Leaving a 1 inch space for mounting to piece of the side frame of window. x 4" Deep from handl ... (cont.)

Amesbury Truth lever awning operator size

Hi, How do I measure the lever-awning operator to figure out the correct size to order? I think we have an older 39-070 type operator. Ours doesn't have the lock and the pivot point it visible. The pivot pin is worn out and therefore the window opens and closes poorly.

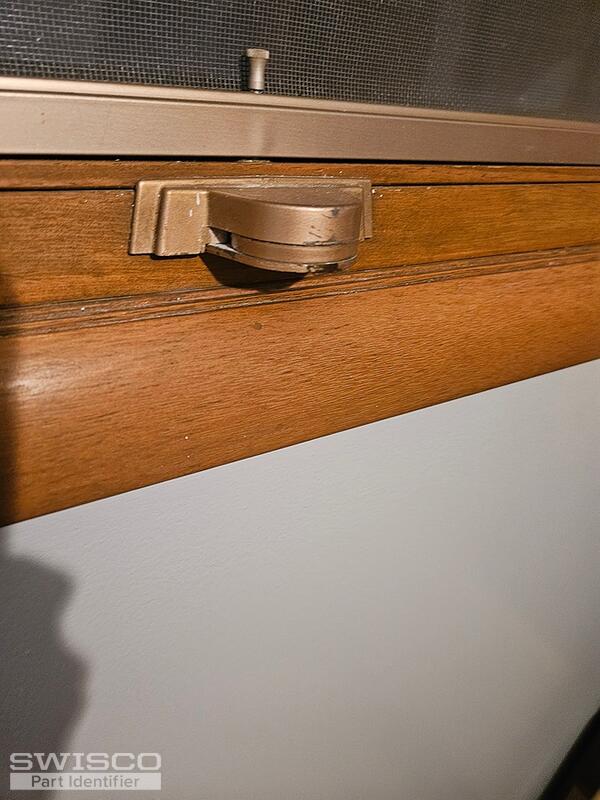

window lock

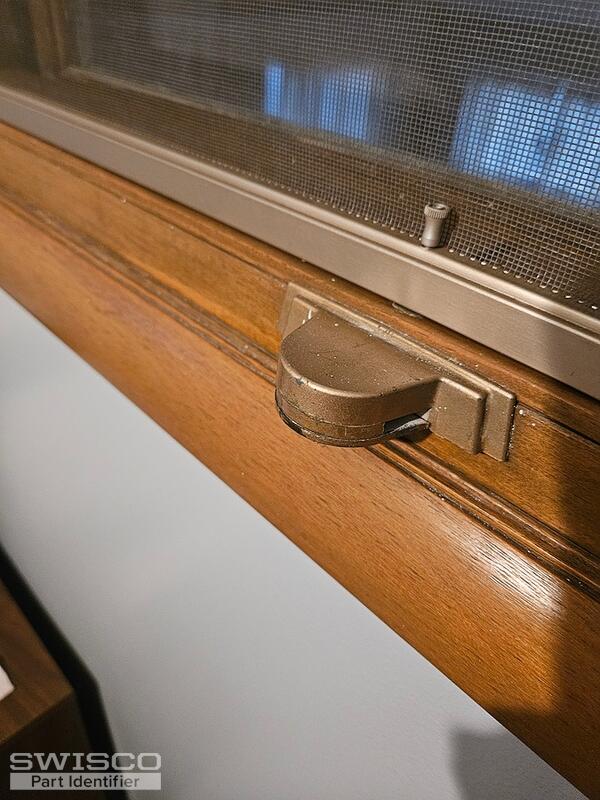

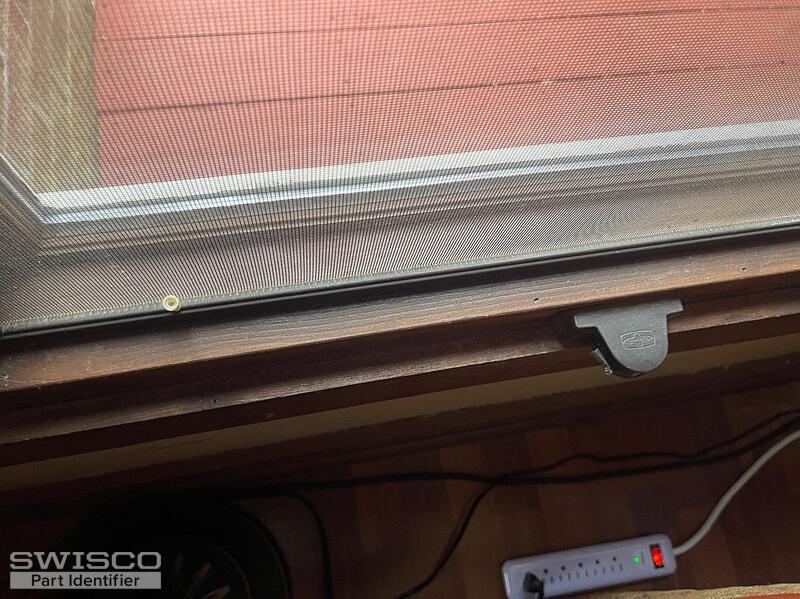

Looking for a replacement lock for the window pictured. Window 3 - the broken lock/lactch. Window 2 - what the unbroken one looks like. Window 4 - the window sash bracket. Thank you!

+1

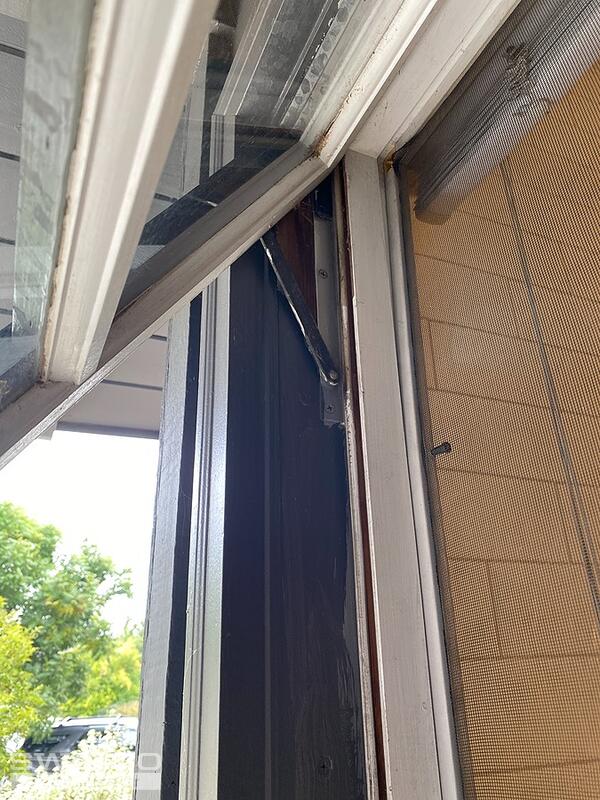

Window hardware questions

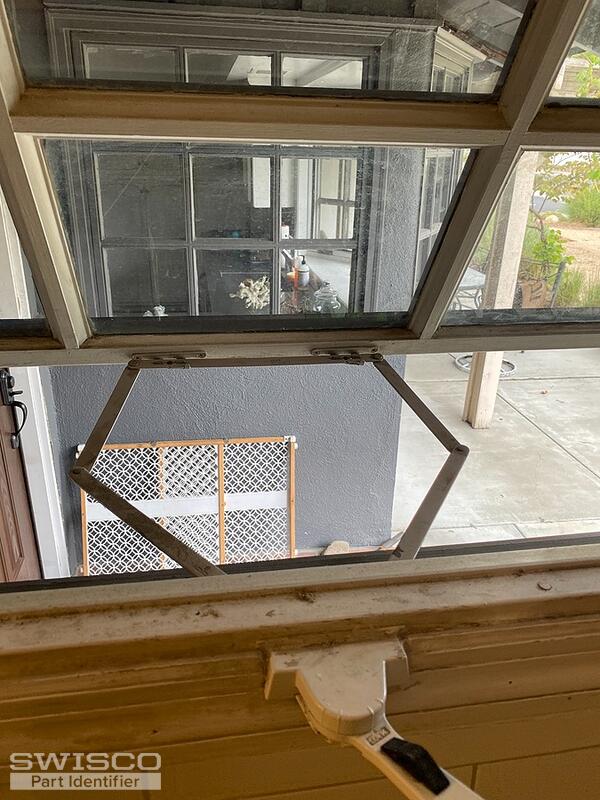

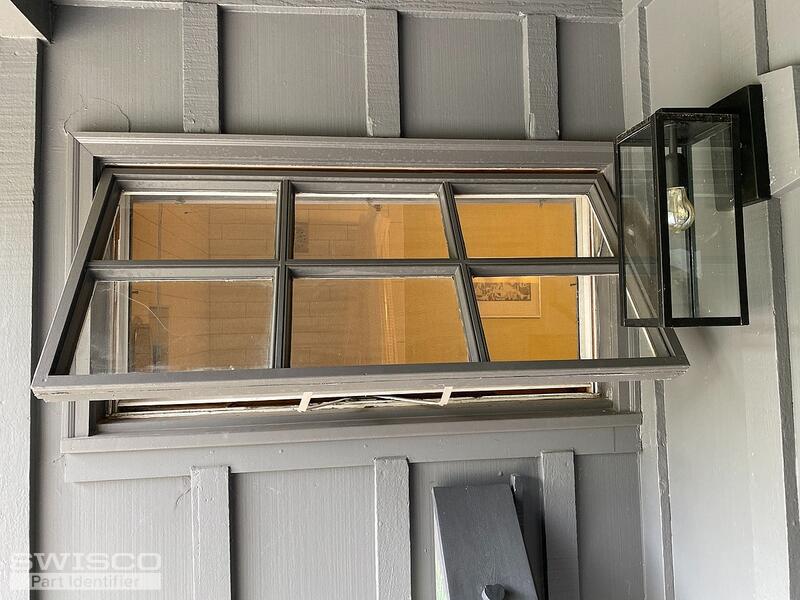

Can you help to identify the hinge and operator hardware in the attached photos? It appears that the hinges could be sprung because the gap between the window and jamb on the left side(outdoor view) is about 1/4" and the right side is up against the jamb. The opening hardware is operating properl ... (cont.)

Awning window broken handle

I've read that a replacement window mechanism is required. You have some labeled as 20 1/4" and 23 1/4" models. What, exactly is being measured?

Alcan window closing mechanism

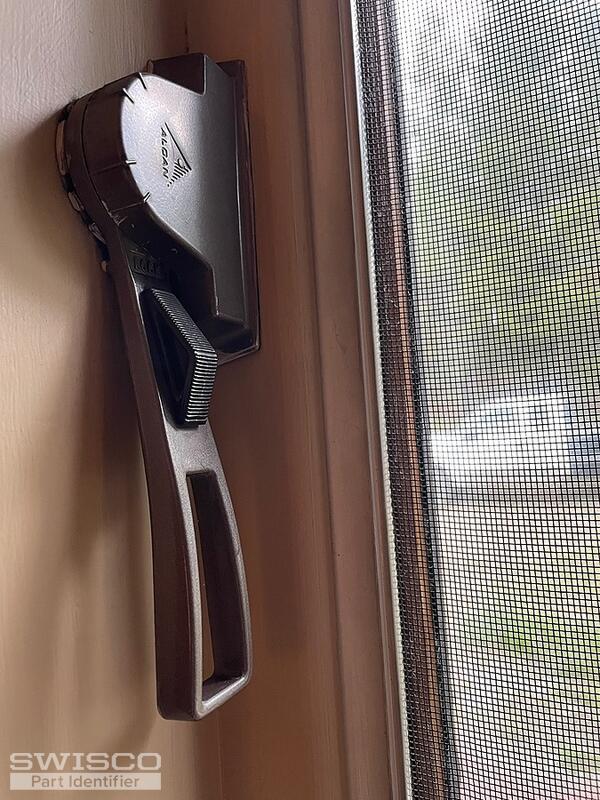

Looking for a replacement part for a Alcan window closing mechanism. This one works but does not close the window tight and correctly. See photo for the part that I need to replace.

Awning Window Lever Handle

Can we purchase the handle assembly for the Awning Window Lever ? Our home was built 35 or so years ago and before we take the steps and replace all our windows we would like to repair what we have. Thank you.

Awning operator arms

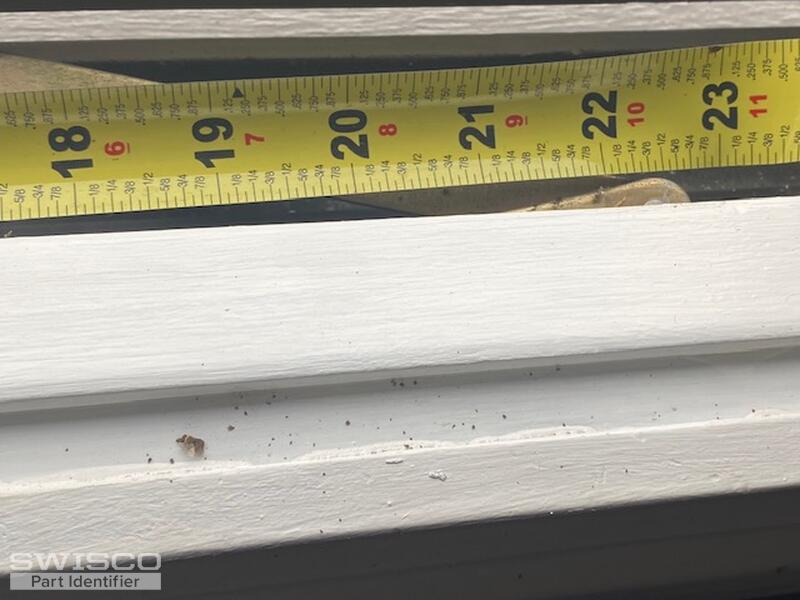

Hello. We have the same issue (3) broken handles. Do you measure the arms as close as possible in the retract position? I measured at 22 1/2 inches.

Broken handle

Dashwood window , Truth marking on handle

+4

Malta crank

Is it possible to get this part?

Crank out window handles

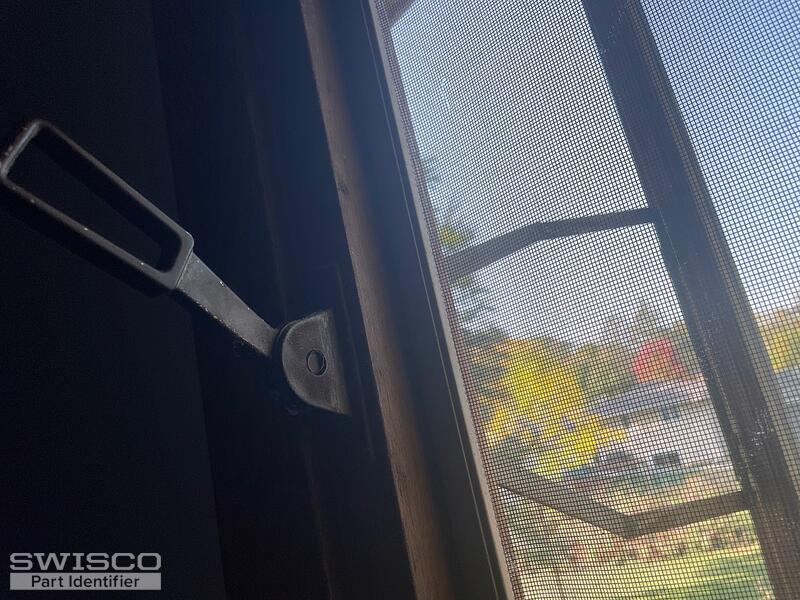

The handle broke off of my window crank. When you pull it, it should open the window and when you push it back, it should close. Do you have this part? I think I would need to replace the whole mechanism on the inside of the window.

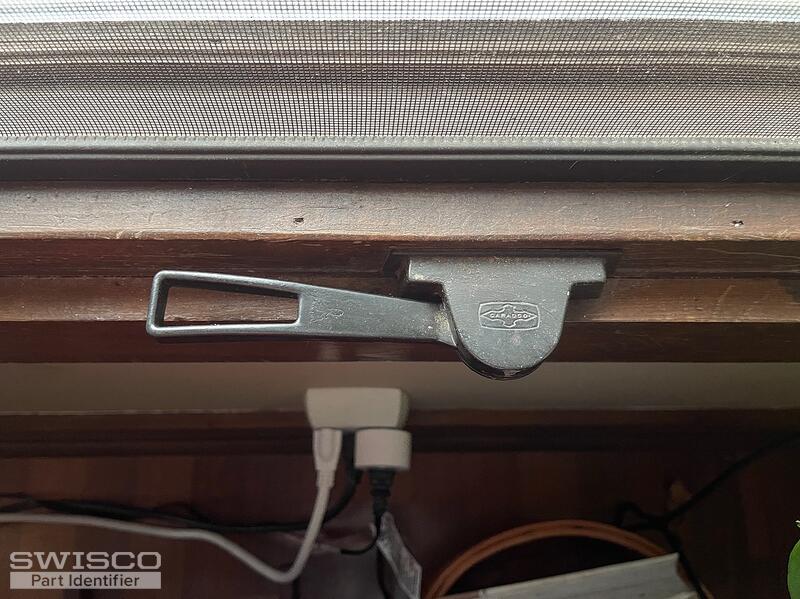

Window opener

Worn out I need to replace 5 of them. House was built in 1966. Could be corado? Windows. Could not find any identifying markings
