Product Code: S751-17

17" Series 751 Channel Balance

Name: 17" Series 751 Channel Balance
SKU: S751-17
Price: 10.45 USD
Availability: InStock

$10.45

Quantity	Price
1-11	$10.45/ea
12-49	$9.41/ea
50-99	$8.88/ea
100-249	$8.36/ea
250+	$7.84/ea

Please Note: Bulk pricing applies only to purchases of the same option

Option Price

16L 16R 16HD +$0.45 16TG +$0.95

Quantity

Add to Wishlist

Product Description

This is a Series 751 channel balance for tilt-in windows. It moderates the operation of your window sash using a specifically calibrated spring and pulley system that allows the window to stay open when raised.

This balance has a 17" long metal channel.
Comes fully assembled with a 15-014 shoe attached and will be ready to install out of the box.
The width of the metal channel measures 9/16".
The strength you need should be indicated as a stamp or imprint on your old metal channel. If you do not have a stamp, or cannot match it up to our options, weigh your sash on a scale and refer to the chart below.
Can work for either the left or right side of the window interchangeably.
Used in windows manufactured by Kolbe as well as others.

Stamp Option	Sash Weight Range
16L	6 to 10 lbs
16R	10 to 17 lbs
16HD	17 to 22 lbs
16TG	22 to 24 lbs

*This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.

Good Idea!

For best results, replace window balances in pairs (though sold individually). An old balance will overwork a new one, causing faster wear and uneven operation. Paired replacement ensures optimal, lasting performance.

Helpful Tip!

The stamp option is a code that indicates how much weight a pair of balances can support. You can use the stamp on your original channel balance as a reference in most cases, or you can weigh your sash and refer to the chart above. If your sash's weight falls outside the weight ranges listed on that chart, or you are still unsure how to proceed, ask our experts for help.

Tilt wood windows with vinyl jams

I need to replace the window balances (series 751)in my kitchen window. They are marked with a "16" and are ribbed with a locking clevis like the 15-041 on the end. I have attached two pictices that show the vinyl jambliner. Do you sell the jambliner also? If not, do you know who does? My are ... (cont.)

S751-17 channel balance?

Doing this for the first time, so I would like to verify that my choice is correct. Also, if you could suggest a sash stop. I am not seeing an exact match on your site. Maybe there's something else that would fit into the channel.

Confusion about the Length of Balance Channels

I am attempting to order some replacement Balance Channels for some Walters tilt-in double hung windows, from 1988, that have compression jamb liners. It would seem that the Series S751 with the 15-014 shoes are the correct ones, however, I am confused about the length. The only markings on my bal ... (cont.)

Need replacement part

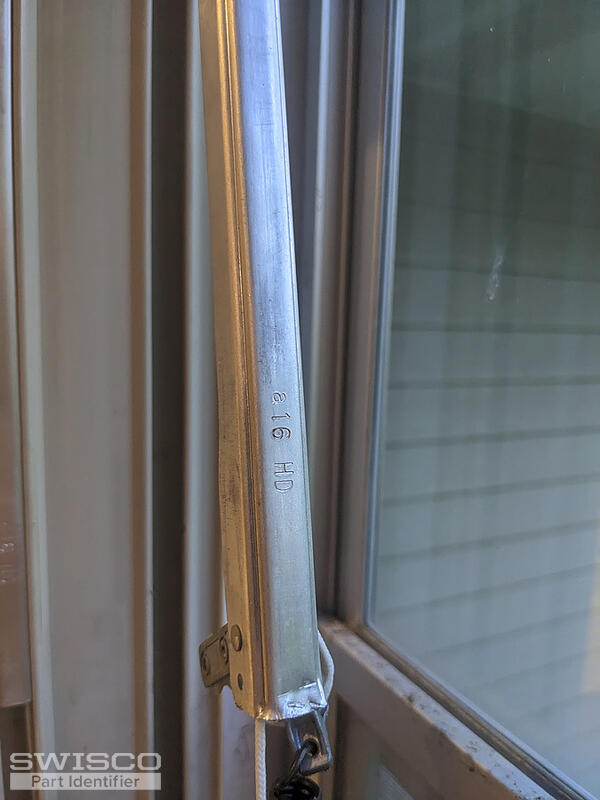

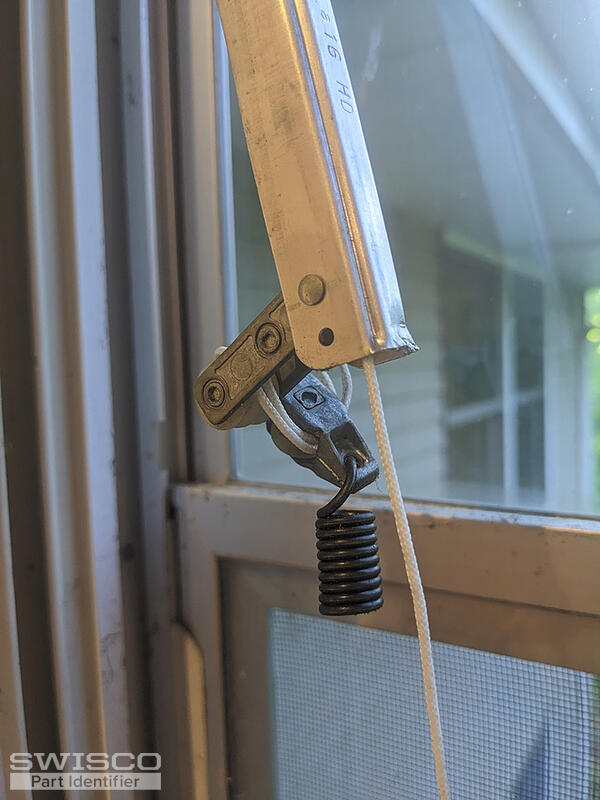

Need replacement for broken spring balance. Marking is "a 16 HD". Measured length is about 16 15/16 inches long. Thanks for your help, Dave

Sash balances

I am looking for 10 sets of sash balances (10 left in 10 right if different) approximately 70s vintage. They are a string and spring construction that rides in the vinyl sash guides. They appear to be encased in an aluminum enclosure. The stamping on the aluminum enclosure reads 16XHD. The vinyl sa ... (cont.)
