Product Code: S140-03

3 lb Series 140 Quick-Tilt, Single

Name: 3 lb Series 140 Quick-Tilt, Single
SKU: S140-03
Price: 7.45 USD
Availability: InStock

$7.45

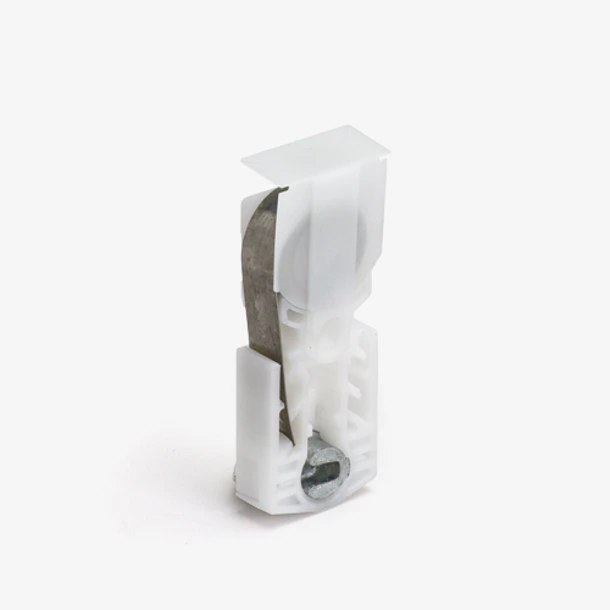

3 lb Series 140 Quick-Tilt, Single Image

Quantity	Price
1-11	$7.45/ea
12-49	$6.71/ea
50-99	$6.33/ea
100-249	$5.96/ea
250+	$5.59/ea

Please Note: Bulk pricing applies only to purchases of the same option

left right

Quantity

Add to Wishlist

Product Description

This is a Series 140 replacement constant force balance system for tilt windows. It moderates the operation of your window sash using a specifically calibrated coil spring that allows the window to stay open when raised and remain shut when closed.

This balance comes complete with a pivot shoe, coil spring, and coil spring cover.
The spring is stainless steel and Teflon-coated to be corrosion resistant.
Travel extension: 32-1/2"

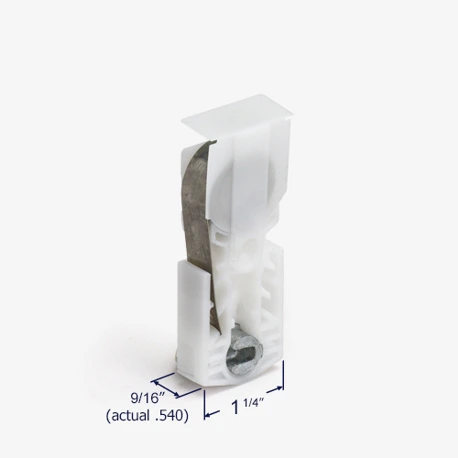

Fits pocket size 9/16" x 1-1/4" (.562 x 1.292).
A pair of 3 lb assemblies will carry 4-6.99 lbs, (sold individually). The weight you need should be indicated as a stamp or imprint on your old balance cartridge cover.
Choose left hand or right hand.

Good Idea!

For best results, replace window balances in pairs (though sold individually). An old balance will overwork a new one, causing faster wear and uneven operation. Paired replacement ensures optimal, lasting performance.

Coil replacement

Hi looking to replace this coil with exact part what part would it be?

Installation Guide

Can you please tell me how these get installed in my windows?

Balance Shoes

This balance shoes use series 159 coil balance. the pivot bar with housing is 1173D.

Help Identifying double tilt coil balance?

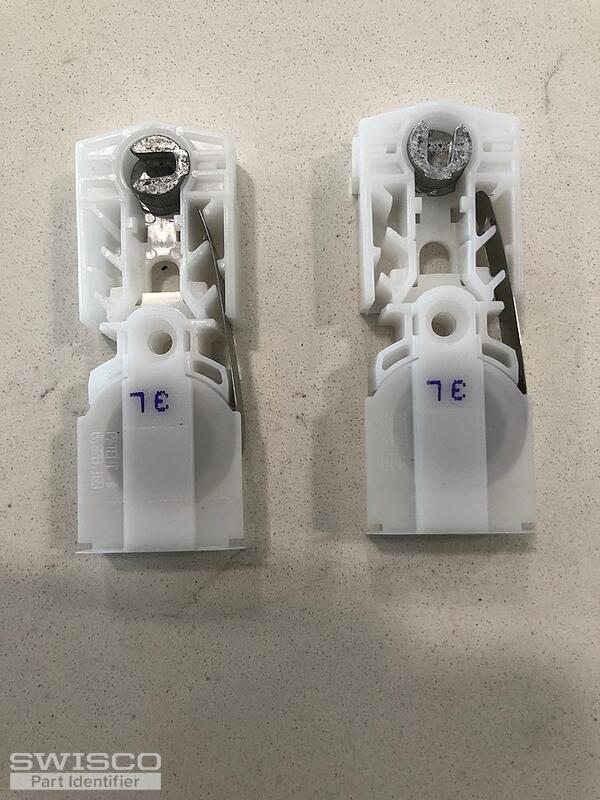

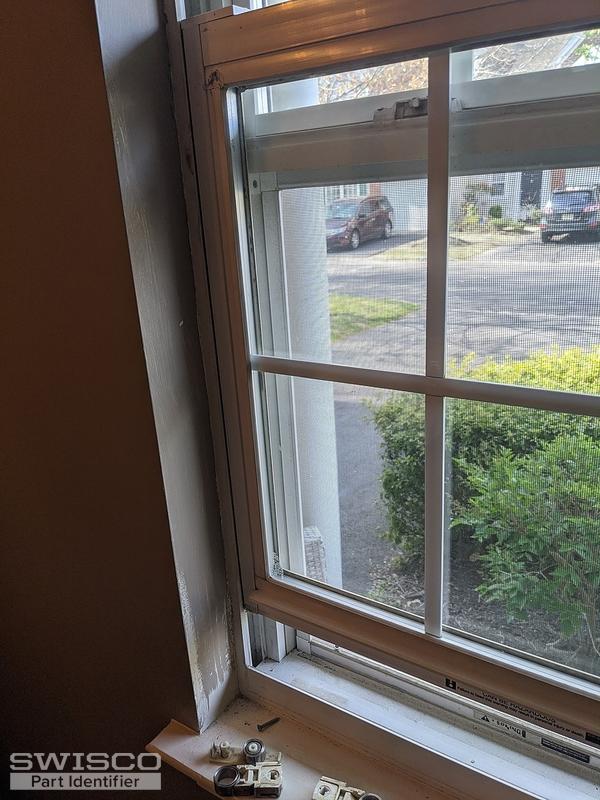

Hello!I am trying to identify replacements for these tilt balances. The image is all of the same side. The have a '3' marked on them so I purchased an S140-3, but that doesn't seem to be correct. The existing ones are about 4.5" tall from the bottom of the shoe to the top of the plastic housing ( ... (cont.)

Installed Coil Balances working but not in all locations of the window

I installed the 3 LB SERIES 140 QUICK-TILT, SINGLE Product Code: S140-3 for a bathroom window and am pleased with your delivery and overall results. I do note that the window will stay open when raised 1 inch and all the way up. However the window does not stay open halfway. Did I order the wrong ... (cont.)
