32" Series 751 Channel Balance

Product Code: S751-32

Main product image of the S751-32 32" Series 751 Channel Balance

$11.45/each

Quantity	Price
1-11	$11.45
12-49	$10.30
50-99	$9.73
100-249	$9.16
250+	$8.59

Please Note: Bulk pricing applies only to purchases of the same option

Discounts starting at 12 pcs.
View Bulk Pricing

Related Item(s)

15-014

$0.98

Balance knife lock Shoe

Product Description

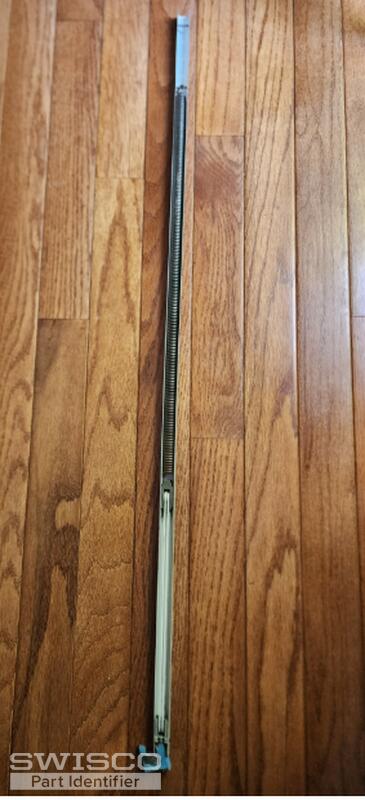

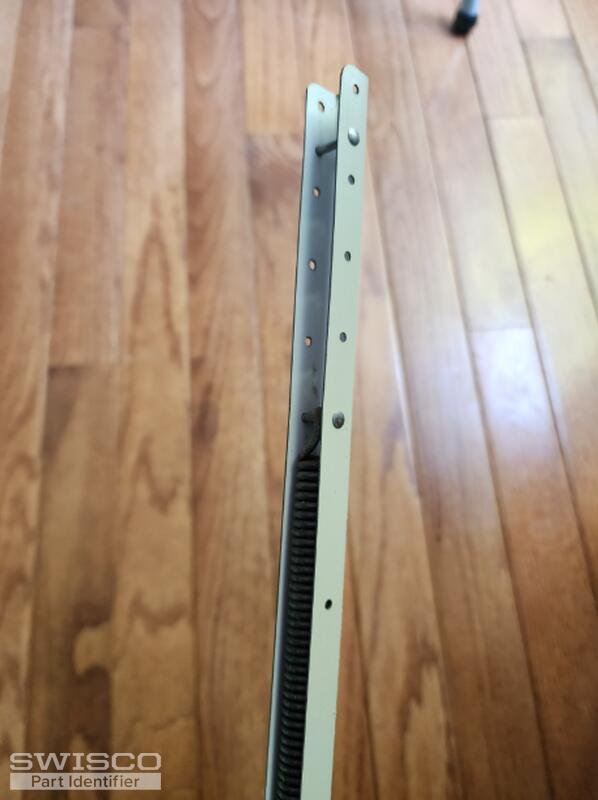

This is a Series 751 channel balance for tilt-in windows. It moderates the operation of your window sash using a specifically calibrated spring and pulley system that allows the window to stay open when raised.

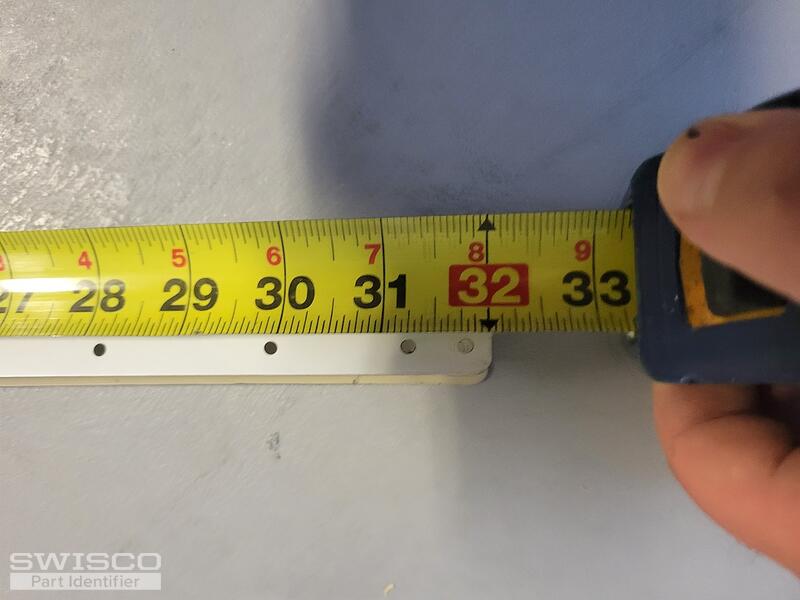

This balance has a 32" long metal channel.

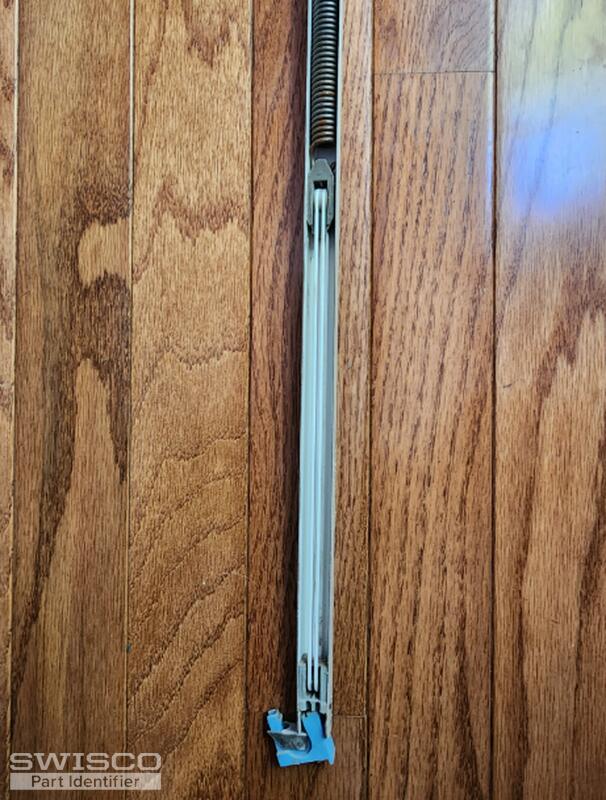

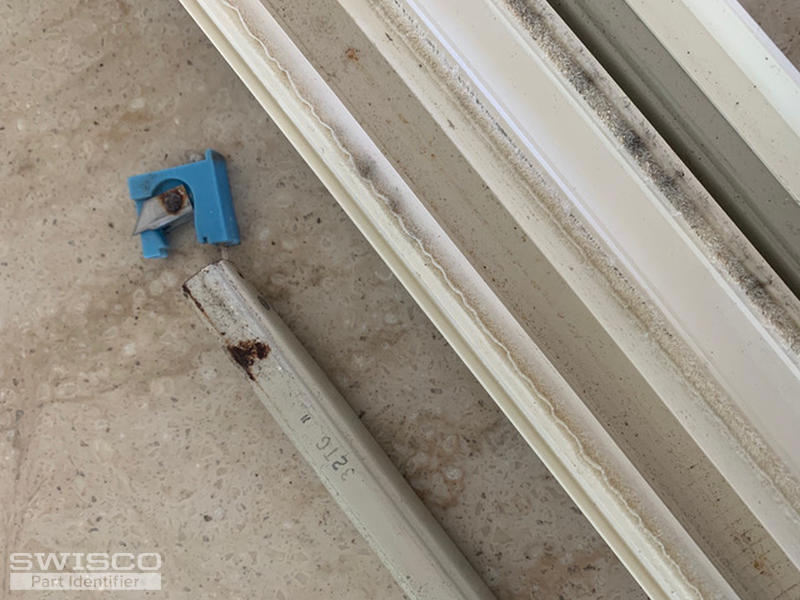

Comes fully assembled with a 15-014 shoe attached and will be ready to install out of the box.
The width of the metal channel measures 9/16".

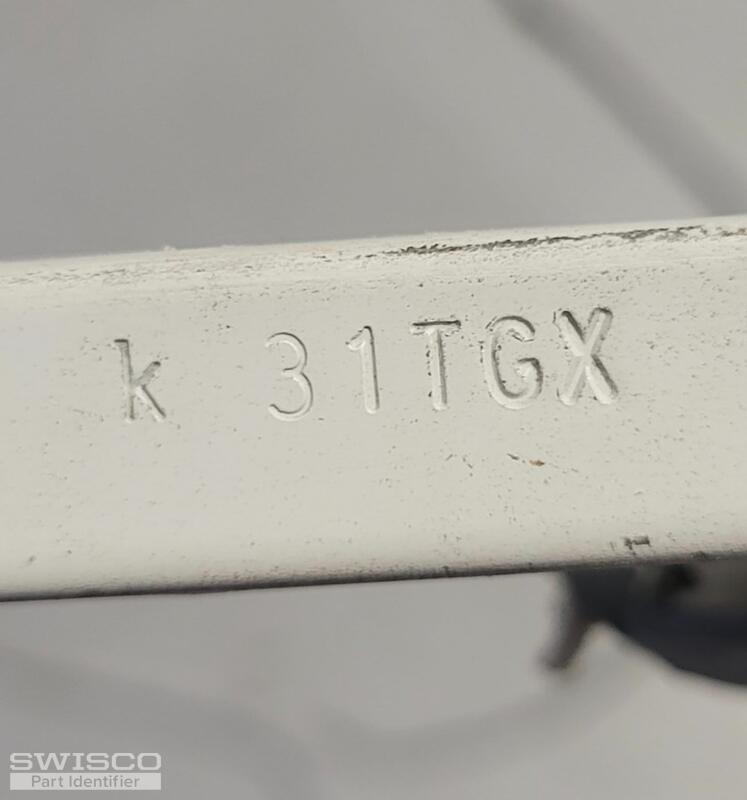

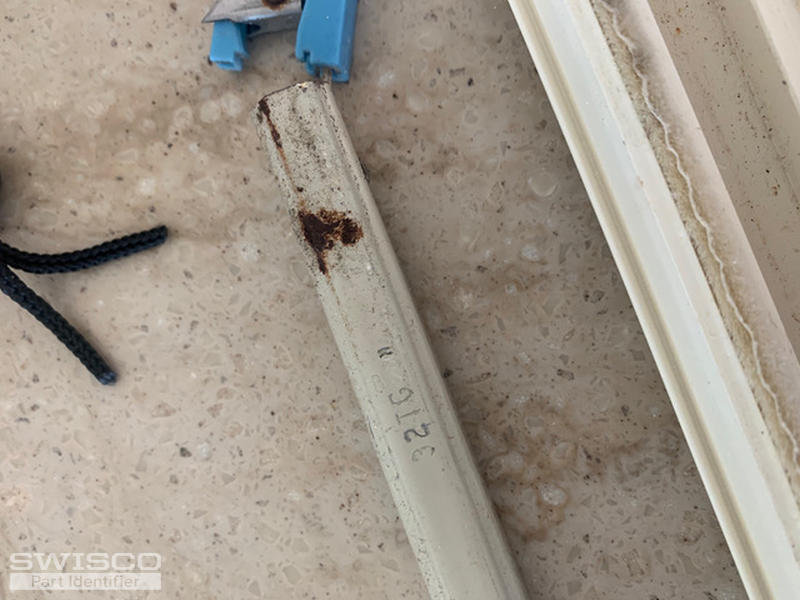

The strength you need should be indicated as a stamp or imprint on your old metal channel. If you do not have a stamp, or cannot match it up to our options, weigh your sash on a scale and refer to the chart below.
Can work for either the left or right side of the window interchangeably.
Used in windows manufactured by Kolbe as well as others.

Stamp Option	Sash Weight Range
31R	15 to 23 lbs
31HD	23 to 29 lbs
31TG	29 to 36 lbs

*This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.

Good Idea!

Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.

Helpful Tip!

The stamp option represents the strength of the channel balance. Locate the stamp on your channel balance. If your stamp does not match any of the stamp options available or you are unsure of which stamp option you should choose: ask our experts for help.
