36" Series 395 Channel Balance

Product Code: S395-36

Product Description
This is a Series 395 channel balance for non-tilt windows. It moderates the operation of your window sash using a specifically calibrated spring and pulley system that allows the window to stay open when raised.
  • This balance has a 36" long metal channel. When determining the length, do not include the attached fittings. Only measure the metal channel.
  • Comes fully assembled with the 19-005 top and 15-001 (1-1/8" deep) bottom fittings and will be ready to install out of the box.
  • The strength you need should be indicated as a stamp or imprint on your old metal channel. If you do not have a stamp, or cannot match it up to our options, weigh your sash on a scale and refer to the chart below.
  • The width of the metal channel measures 9/16" but is considered 1/2" in the trade.
  • Can work for either the left or right side of the window interchangeably.
Stamp Option Sash Weight Range
3510 8 to 13 lbs
3520 13 to 18 lbs
3530 18 to 23 lbs
3540 23 to 30 lbs
3550 30 to 35 lbs
3560 35 to 39 lbs
*This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
Good Idea!
Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.
Helpful Tip!
The stamp option represents the strength of the channel balance. Locate the stamp on your channel balance. If your stamp does not match any of the stamp options available or you are unsure of which stamp option you should choose: ask our experts for help.
Customer Questions & Answers
Discussion # Of Replies Last Post Date
PGT window balancer This discussion includes image(s). 2 Mar 9, 2021
Need .model of Balances for replacement This discussion includes image(s). 2 Mar 4, 2020
Need to ID my channel balanceThis discussion includes image(s). 2 Nov 19, 2019
channel balanceThis discussion includes image(s). 4 Nov 10, 2018
Window balancer replacementThis discussion includes image(s). 2 Oct 6, 2018

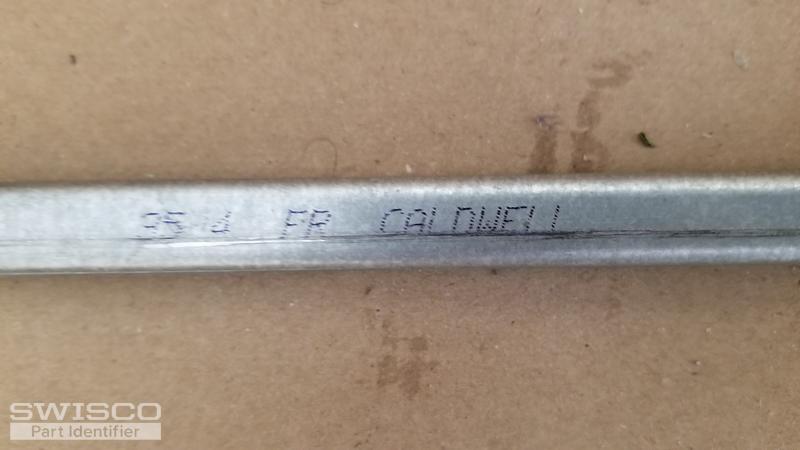

Caldwell Channel BalanceThis discussion includes image(s). 8 Jun 30, 2018
