Product Code: S165-7

7 lb Series 165 Egress Coil Balance

Name: 7 lb Series 165 Egress Coil Balance
SKU: S165-7
Price: 4.97 USD
Availability: InStock

$4.97

7 lb Series 165 Egress Coil Balance Image

7 lb Series 165 Egress Coil Balance Thumbnail Image

Quantity	Price
1-11	$4.97/ea
12-49	$4.47/ea
50-99	$3.98/ea
100-199	$3.73/ea
200-399	$3.28/ea
400+	$3.03/ea

Please Note: Bulk pricing applies only to purchases of the same option

Quantity

Add to Wishlist

Product Description

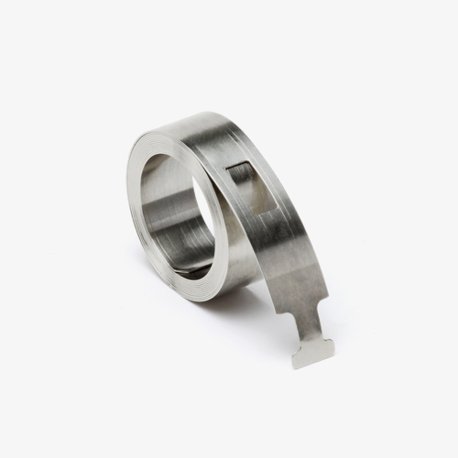

This is a Series 165 stainless steel spring for tilt windows. It moderates the operation of your window sash using a specifically calibrated coil spring that allows the window to stay open when raised and remain shut when closed.

Individually, this coil balance can hold 7 pounds. This is added together with the other coils to support the whole weight of the sash.
The weight you need should be indicated as a stamp or imprint on your old spring.
Measures 3/8" wide with a maximum travel of 35".
Designed to work with the 15-111 or 15-199 pivot shoe (sold separately). These shoes are not interchangeable.
This coil balance spring is sold individually, not in sets.
Can work for either the left or right side of the window interchangeably.
Coil balances are also known as constant force window balances.

Good Idea!

For best results, replace window balances in pairs (though sold individually). An old balance will overwork a new one, causing faster wear and uneven operation. Paired replacement ensures optimal, lasting performance.

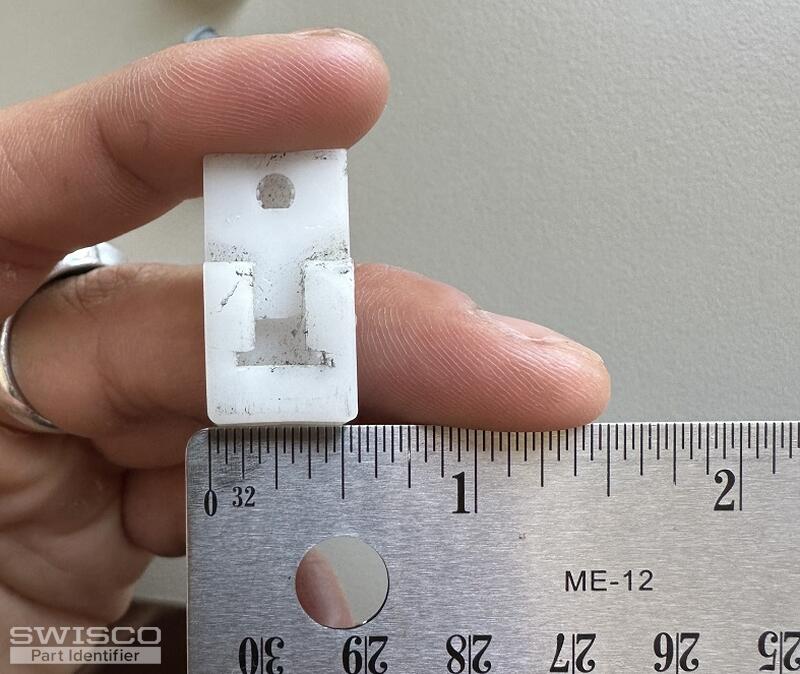

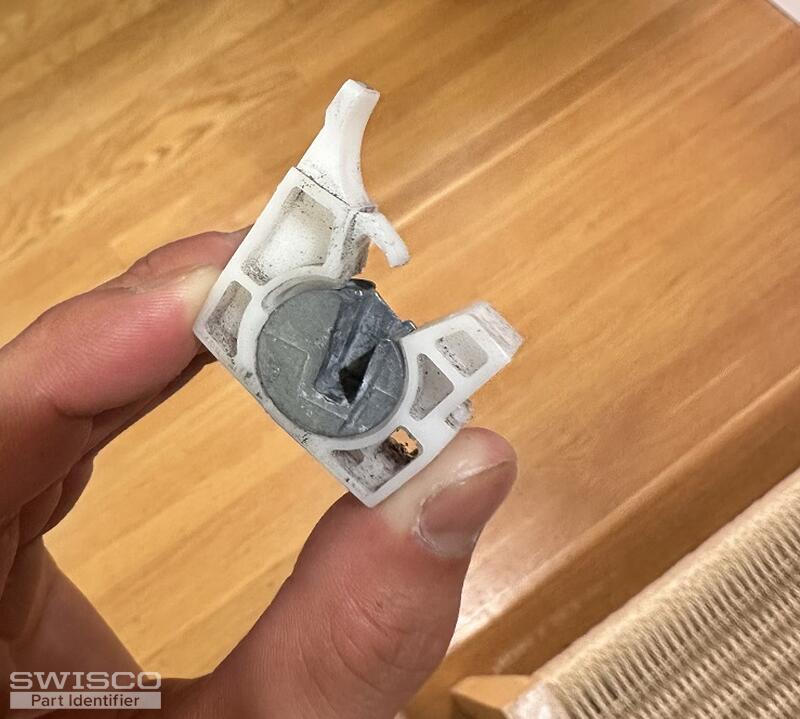

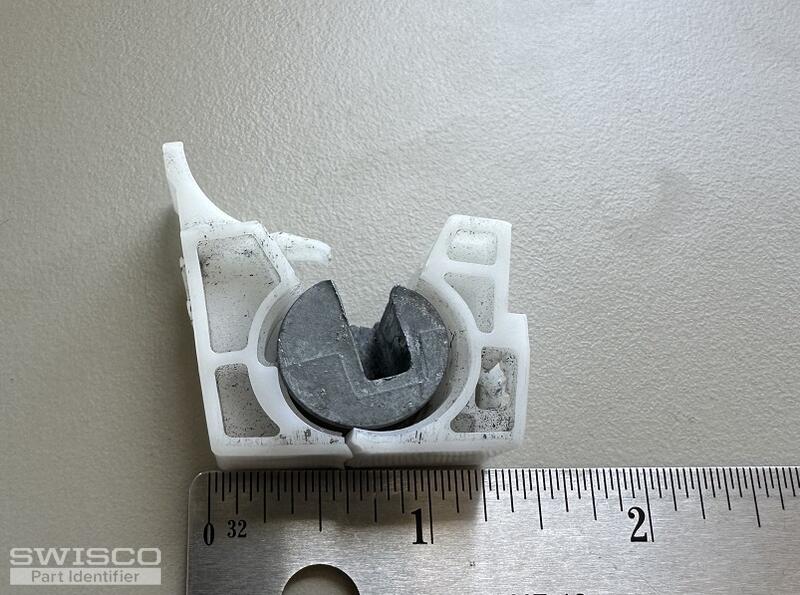

Need to identify these parts

Window balance and pin also latch's needed for vynil single hung windows

window parts

Hi I work in maintenance in apartments and i have multiple windows that wont stay in place and have broken parts. i have attached a photo with all parts that i need . thank you!

Requesting replacement parts

I recently moved into an apartment and my sliding window has started to malfunction. I had a handyman come over to inspect the problem and he instructed me to reach out to your customer service at Swisco and ask for new parts. The shoe seems to be tilted one side higher than the other. I’m ... (cont.)

Coil balance

I will need 3 of these coil balances

Window won't stay up

I have a single hung vinyl window made by Jeld-Wen around 2000 that won't stay up. The sash is approx 27 lbs and has 4 coils (2 on each side). Do you know what replacement parts we need to fix this based on these pictures?
