Viewing all customer Discussions for:

26-336 Pivot Bar, Simonton

Hi I am looking this part

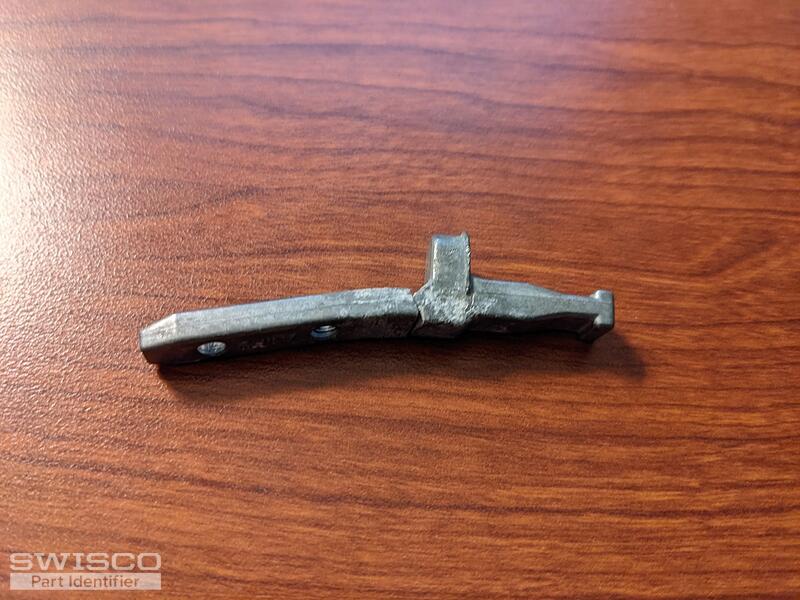

I believe this may be a simonton but it is not an exact match to anything I saw. I coul possibly use the simonton and file off the ring at the end of the new one.

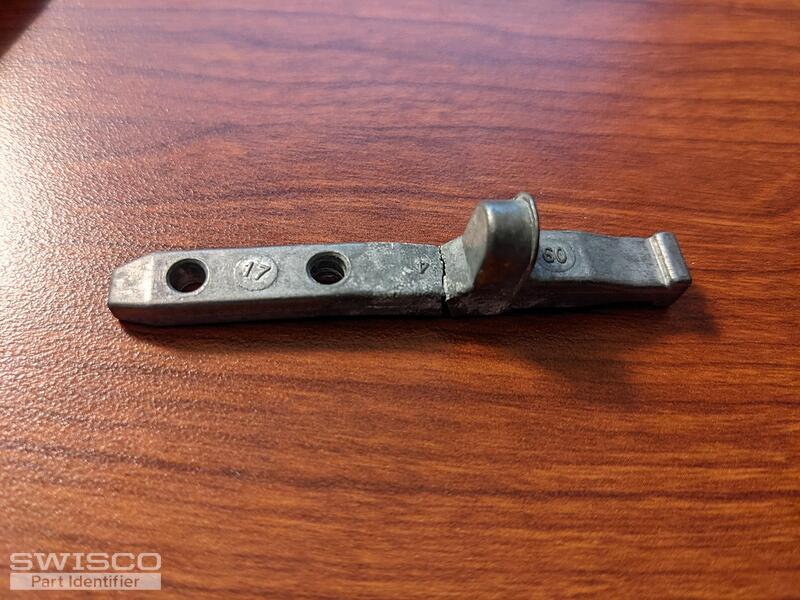

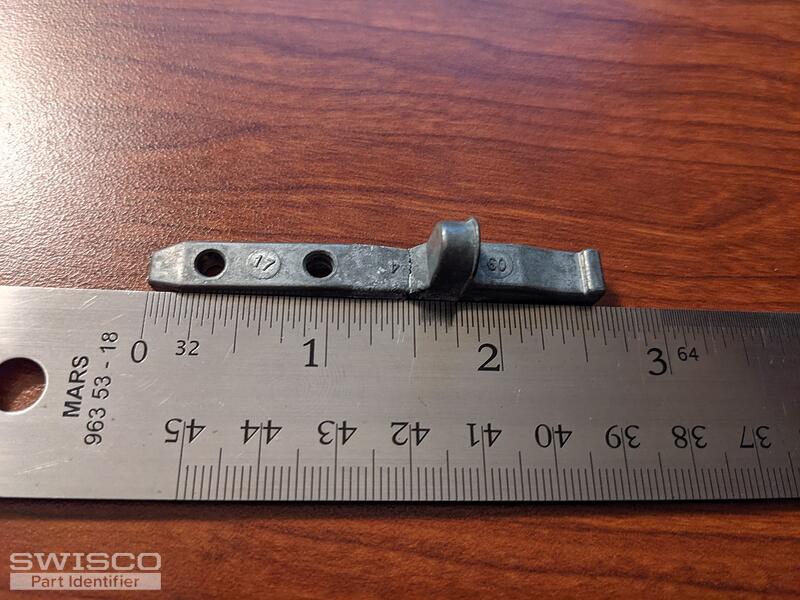

The numbers 17, 4 and 60 are on the top side view in the attached photos. Overall length looks like 2 5/8".

I hope you can help me fix a window I have a double hung window with a broken pivot bar   stamped part number 9808  overall length is 3 3/8" screw hole centers 1" apart Measurement: pin's end to first screw hole center 1 1/8"  pin extends 7/8" from the side of the sash.  Pictures show the part and t ... (cont.)

the total length is 1 5/8 inches but I have not been able to find anything close.Jude

# 9808

I'm unable to locate this pivot bar ANYWHERE! Might you know what could work in it's place? Thank you

Looking to find 2 of these.

Simonton window pivot pin (saw one with 3-holes 26-336 ) Do not know if that will work. I have 2-holes, see attachments.

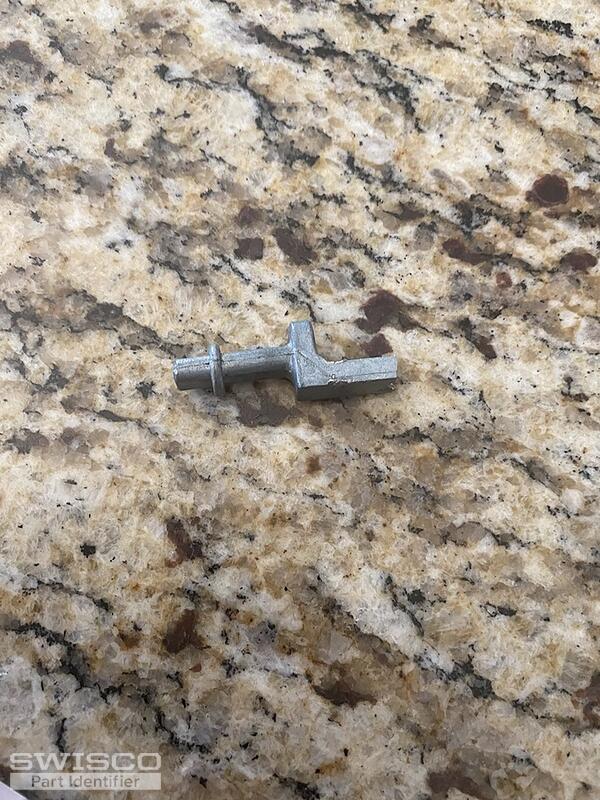

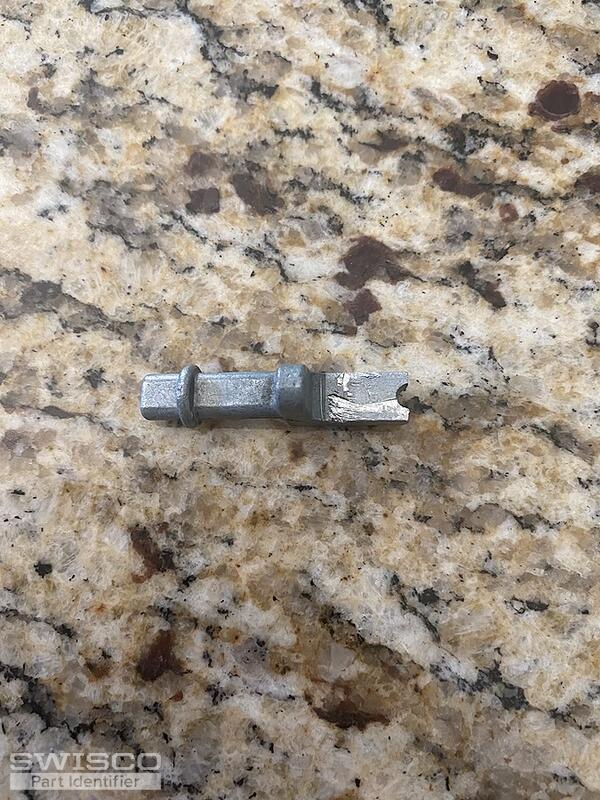

The first picture the part is broken both sides.

O819 is number in a circle on backside. China on same side. Three pictures attached. Thanks for any help you can provide.

the tabs on the bottom of my window do not fit in to the new pivot shoes ...they are too wide ... can i get new tabs that will work in the new pivot shoes? i was able to reuse the old pivot shoes, but their days are numbered ... thx, c

These broke on my window

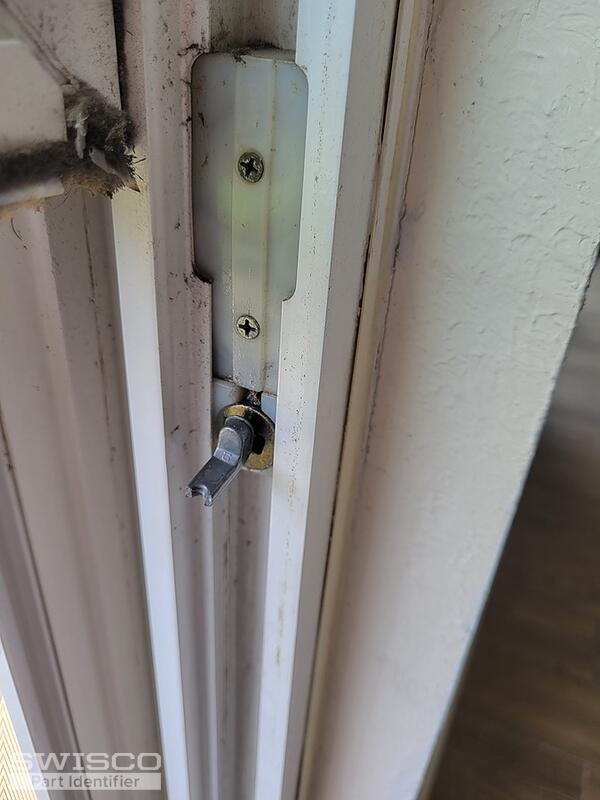

I need the pivot pin for this window, It's a Sears double hung window and old pin sheared off.Can you help? ThanksChris

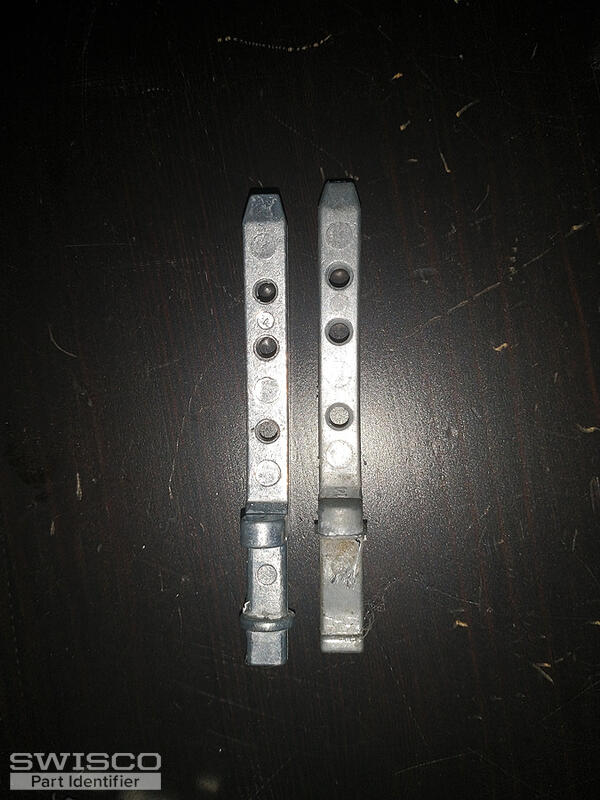

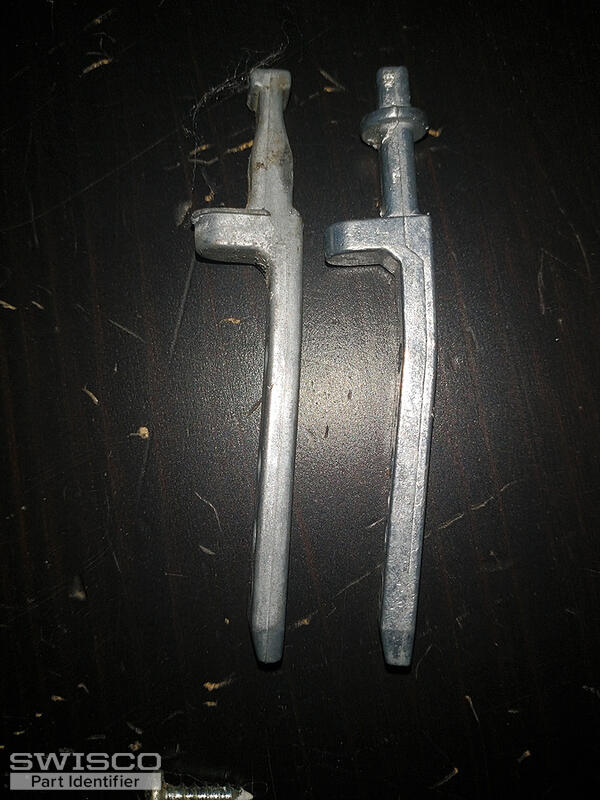

Hello, I bought two parts for my simonsen windows. I was close but they wont work. In the side view photo, I need the one on the left. The one on the right was what I ordered in error. In the top view photo, I need the one on the right

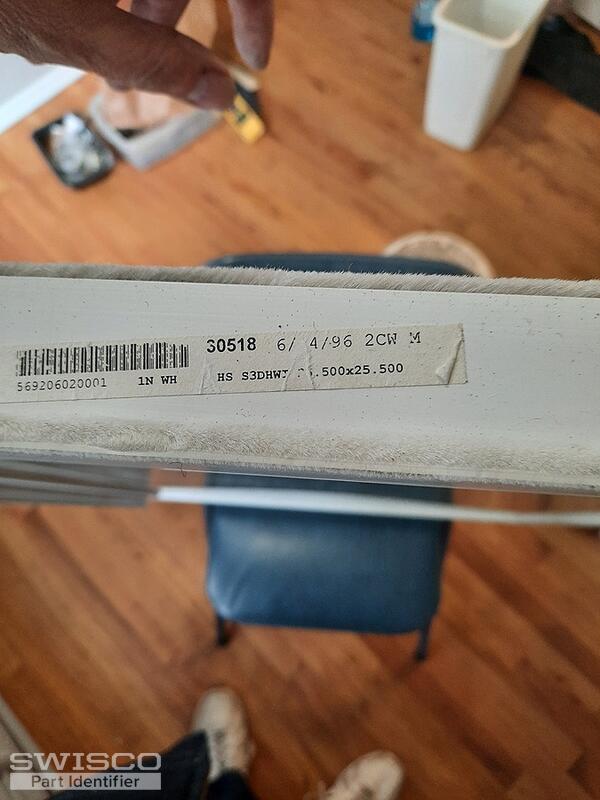

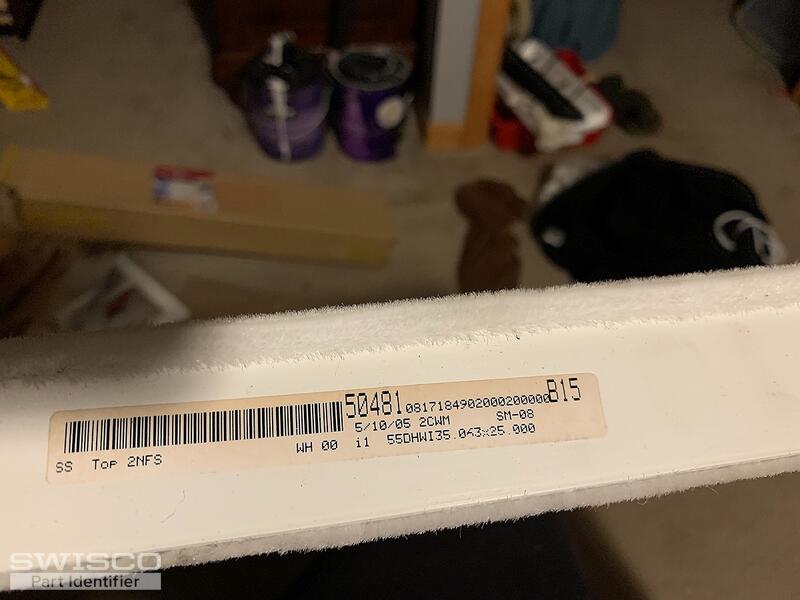

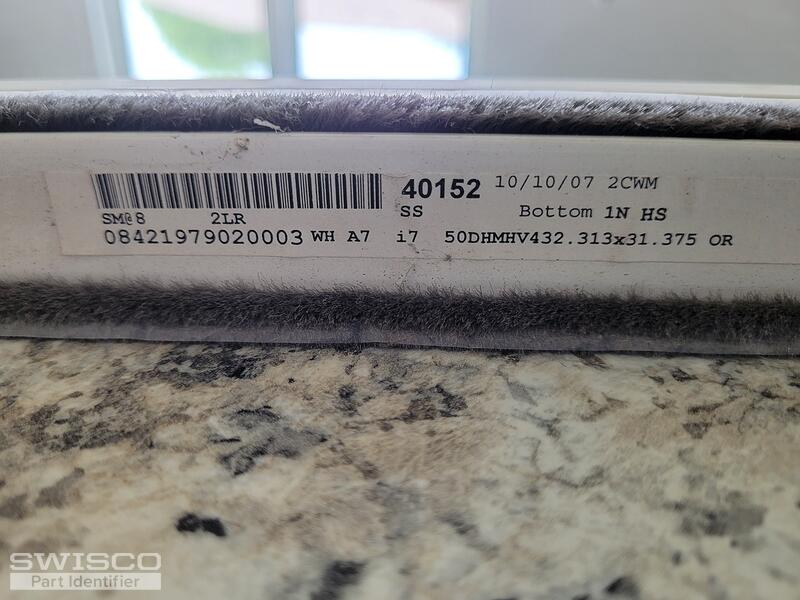

I am looking for replacement pivot posts for Simonton windows. I have included a photo of the part needed, and a photo of the ID sticker on the side of the window sash

This is 2 1/2 inches long, from a Simonton prism window installed 10 years ago.

I have some old windows in this house I purchased. The part that snaps into the pivot cam is broken on one of them. Where can I get a replacement part? R0083 12/12/01 2CWM SS SEARS Sarb FS i1 93DHWI22 This is all I can make out on the lable

I am looking for replacement springs for a simonton double hung window. I am not sure the weight of part needed but they are a mess. The sash metal piece is also broken and all of the plastic pieces are also broken. Any help in finding parts is appreciated! Thanks

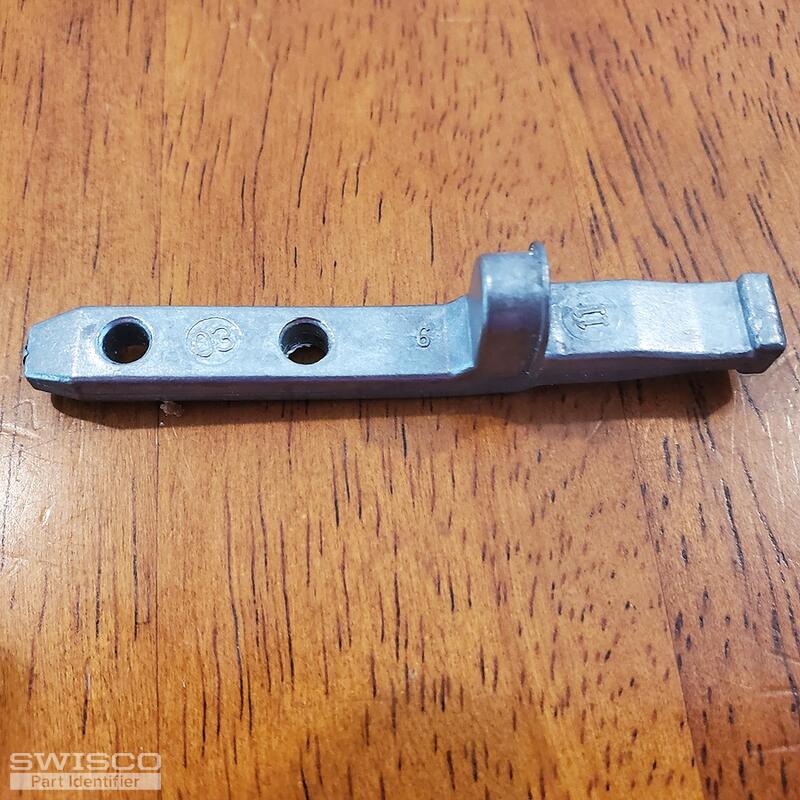

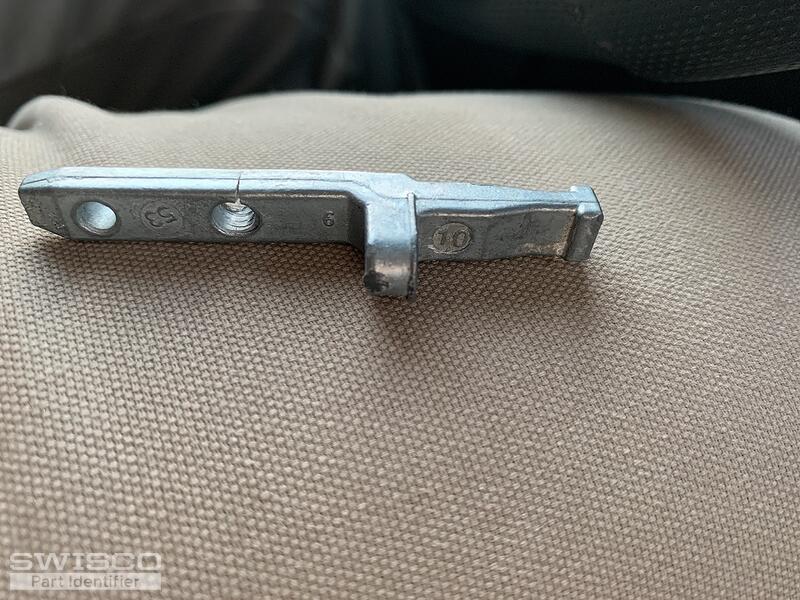

2 5/8" long x 5/16" wide with two 5/32" holes. The number 19 is stamped into the metal between the holes & is visible in the photo with 14 similarly stamp on the other side of the stop. CHINA is stamped on the top between the holes. I need 3. Thank youCharles
