Viewing all customer Discussions for:

15-180 Coil Balance Shoe

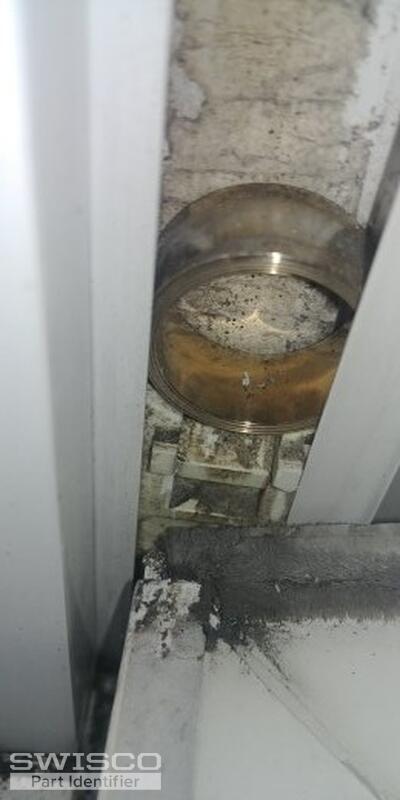

Can you help me identify what part this is for a double hung window? It's the window on the bottom. Window size: 29.5 W X 35.5 H Weight: 21.5 Thanks for your help. Mary

Need coil balance shoe for MI vinyl window

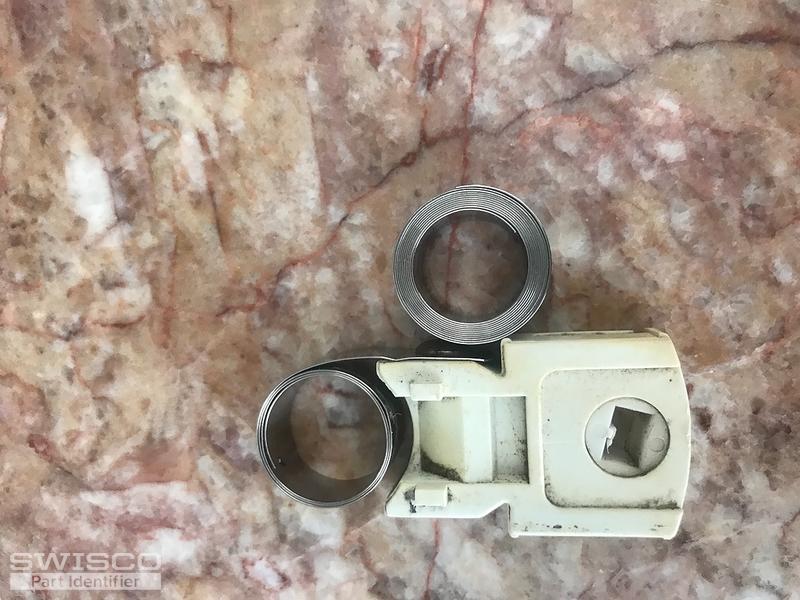

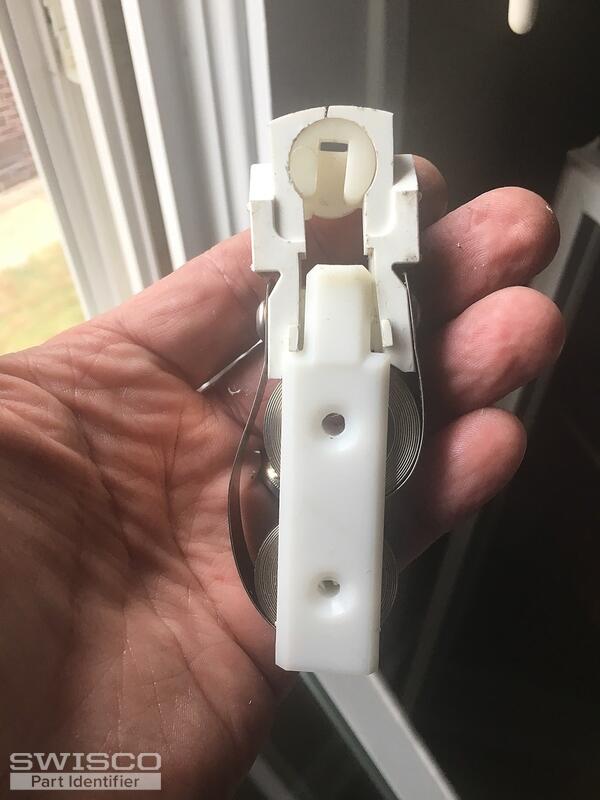

Hi I am trying to identify which coil balance will match the ones shown in the photo. The existing balances are 1/2" x 1 1/4" double coil. Sash weighs about 10 lbs. let me know if you need more information. thanks Jack

Take a look at our 15-180 Pivot Shoe. This shoe is compatible with our Series 190 coil springs. For a new clip cove,r see our 15-186. Let us know if you have any questions.

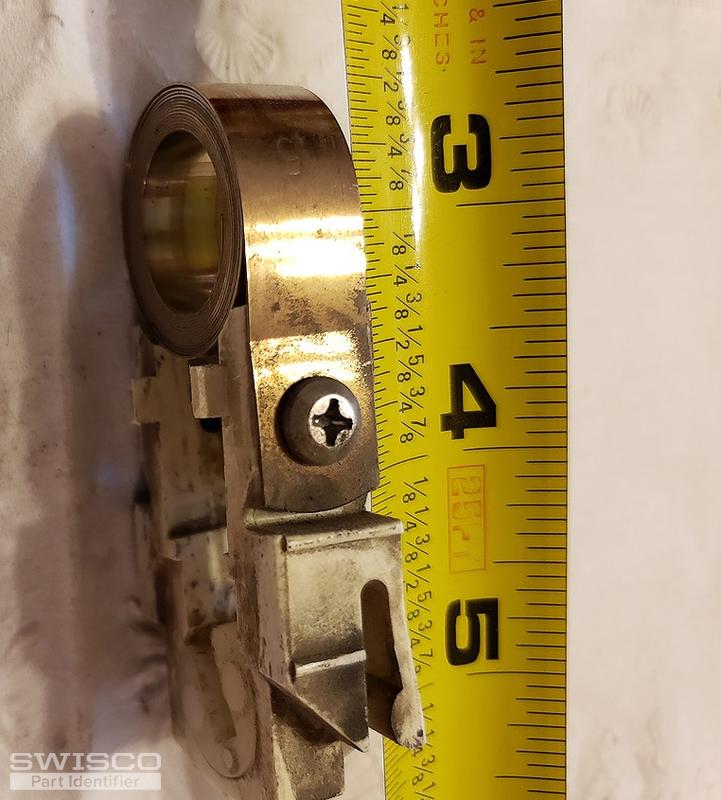

I am looking for a set of replacements for the balances pictured above. The window sash weighs 13#. Thanks

I couldn't find any markings on the part or window. I think the window is 20-21 pounds based on my weight with and without holding the window. I would need 3 left and 3 right although they looked identical. thanks

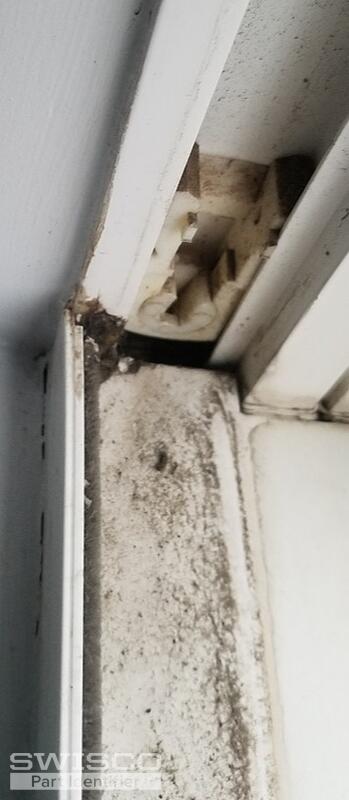

This photo is what I saw when I took the window apart and it is in a vertical position and my assumption is the top portion should connect to the bottom so it will be able to rotate the window,there is the #8 marked on the lower section that is the only mark on this unit. If you can identify this u ... (cont.)

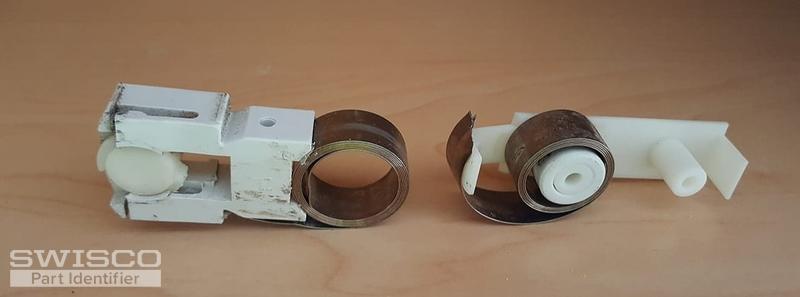

The bottom part is broken and won't hold window up. Not sure is I need the entire spring assemble

Thanks for posting. See our 15-180 Pivot Shoe. This is compatible with our Series 190 Coil Balances. If there is a #6 stamped on one of the coil springs themselves, then see our S190-640, which is meant for 6 lbs of support individually. Let us know if you have any questions.

Window coil spring I WOULD NEED MANY OF THESE SPRINGS IF POSSIBLE.

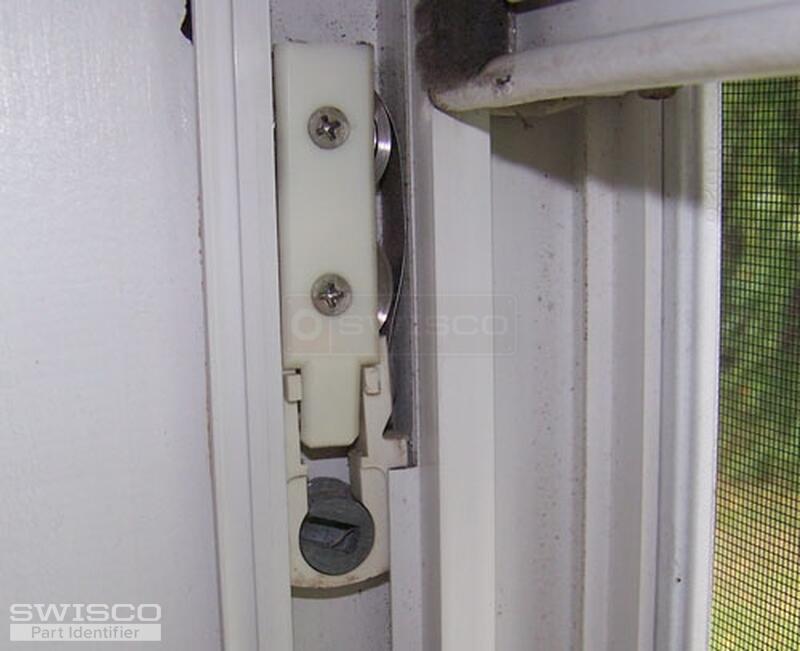

I need the replacement balance for an MI double hung window. The clip where the window rests snapped as can be seen in the picture.

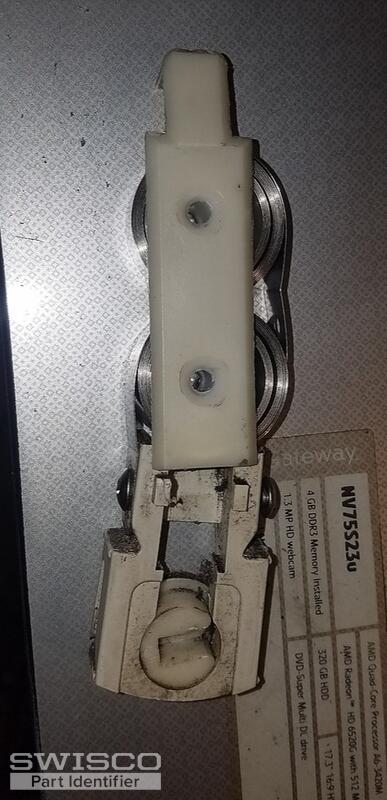

there is a number six on the coil but I have no idea where to find this item, can you be of any assistance. Thank you, Lany

hi I'm trying to replace the tilt window balance assembly in the pictured window and assembly. I don't know the brand of the windows, nor are there any markings on the balance parts. (not sure I am using the correct terminology). The window is approximately 32"H X 33"W.

Hoping you can help - not sure name brand of window - but double hung style and 3 windows are dropping. I was able to fix one by reinserting into this part but the other 2 windows have this part broken. Do you have a replacement part or know the name of it so Iif you don't have it, i could search ... (cont.)

Window is a CertainTeed Bryn Mawr III vinyl window. The pivot shoe is 2" long, and it cracked at the bottom allowing the black cam to fall out. The pivot shoe is 9/16 wide. I think with the help of all the videos I can replace it if I can just identify the correct replacement part. Thanks for yo ... (cont.)

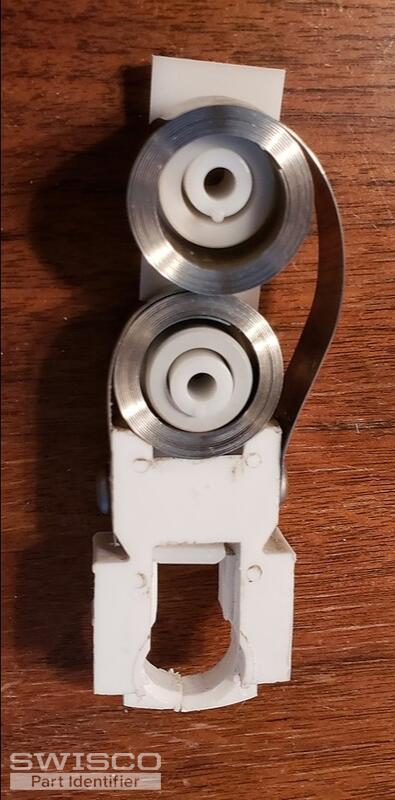

Part that allows bottom window to slide up and down. There are no markings on the part.

I've attached photo of broken coil balancer from 10 lb bathroom window. Both are broken and need replacement. End pivot bars match description of 26-040. I think the 140 series might work but they have difference end pivot bars suggested to match. Thanks for your help.

Do you have this part?

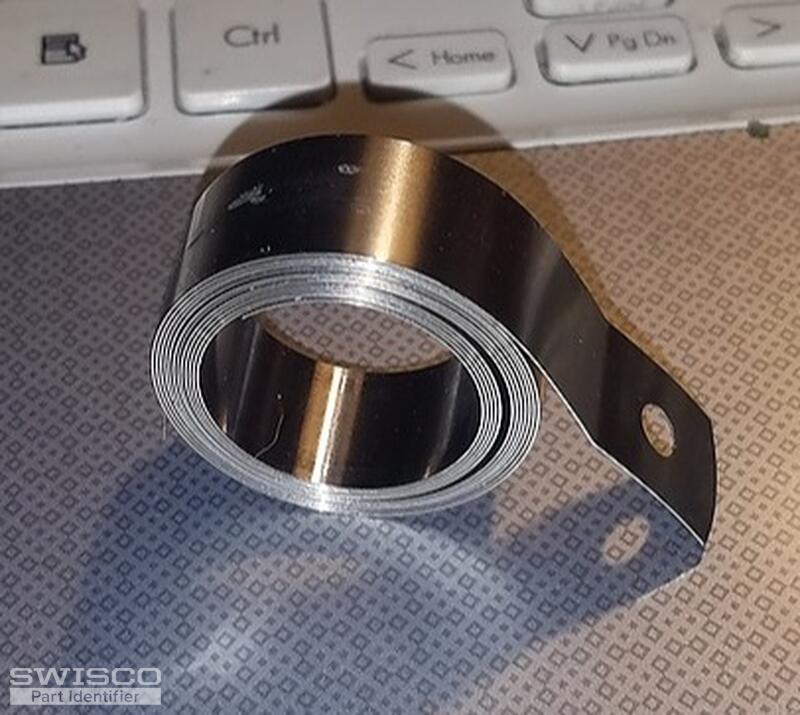

Coil Springs do not have any identifying marks Dimensions of the coil assembly with coil is 1-1/4" wide; 2-15/16" length; depth 1/2" Sash weighs 18.9 pounds Windows are about 12 years old. No markings. Oddly - identical windows sashes and weights - some had 1 coil others had 2.

Didn't see this one on your website, please let me know if you can supply this one for me...ThanksLinda
