Viewing all customer Discussions for:

39-417 Tie Bar Guide

We have 15-year-old JELD-WEN casement windows. One window is missing the three tie-bar guides that the other windows have.

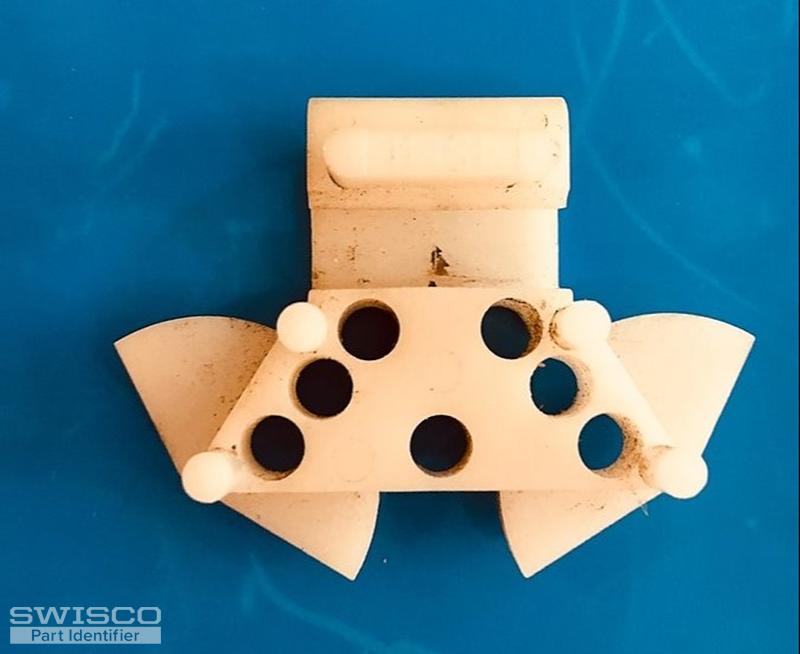

This plastic piece has failed on most windows in my home. There are generally 3 to each window and they hold and guide the metal bar (mostly vertical but some horizontal) that slides up or down when the window is locked and released. Any help identifying this would Be appreciated. I require 20. T ... (cont.)

Greetings, The plastic guides for the locking bar on my Weathershield Awning windows have all broken. Two windows with 2 guides on each. Can you help me? The photo shows it laying upside down. Thanks, Joe

Need this part for a casement window.

Not sure what the parts are called

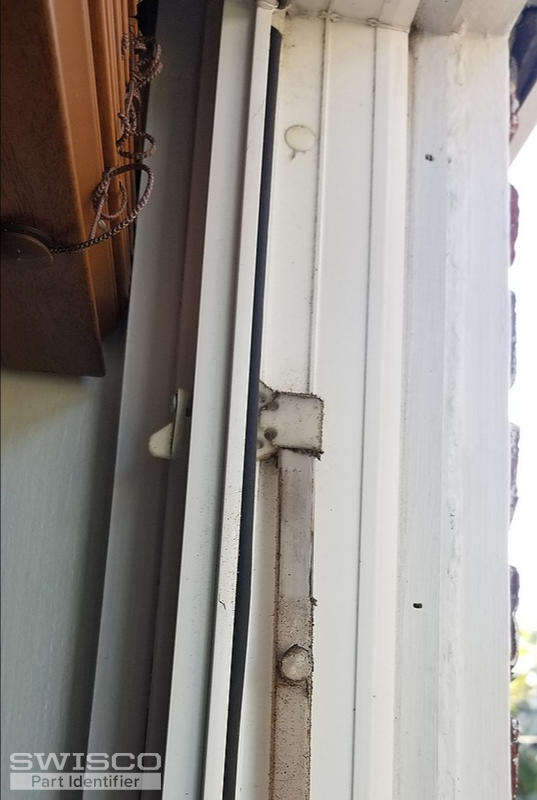

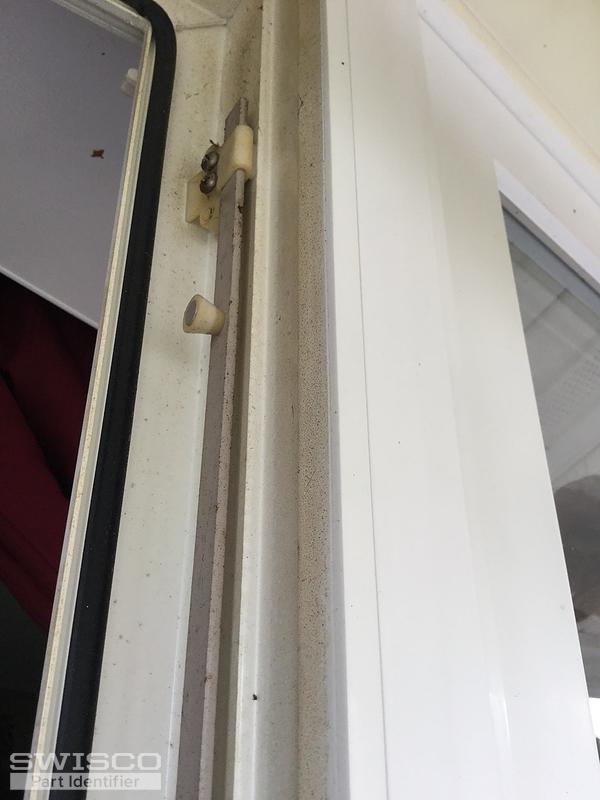

Metal bar that helps lock and unlock side window of picture window.

Please contact me if you have itThank you Joe

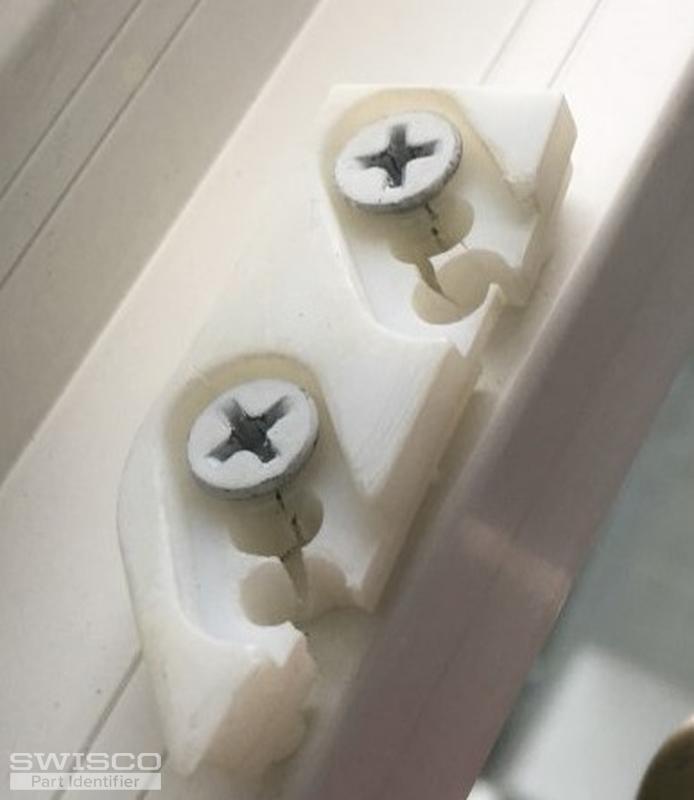

I don't know what part this is. If I lock my crank window the lock comes up but doesn't stay in this part. It sounds locked but you can still crank it open.

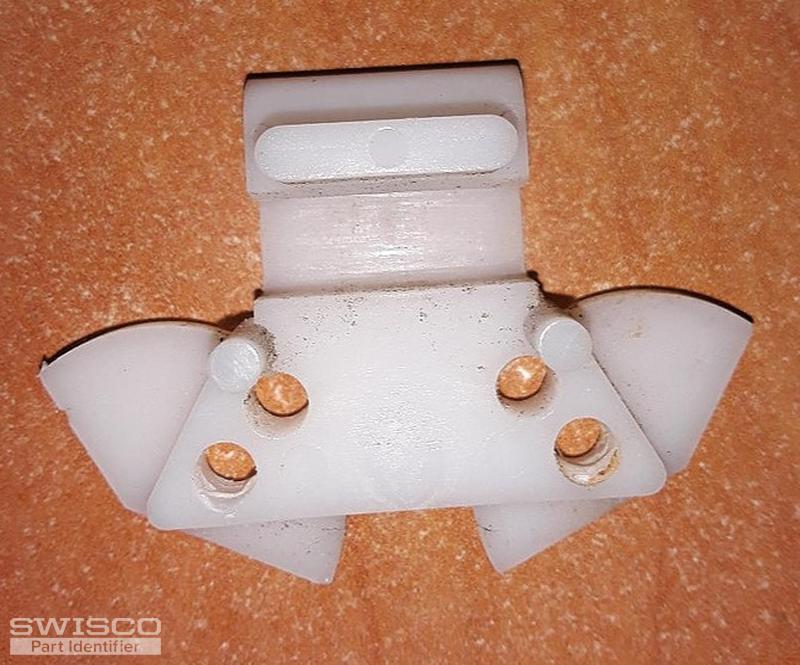

It is for a Weather Shield Casement WindowVision 2000 SeriesWe are also needing other parts for this window.Do you have brochures or catalogs with available parts?Would Appreciate any help finding these parts.Thank you, Greg

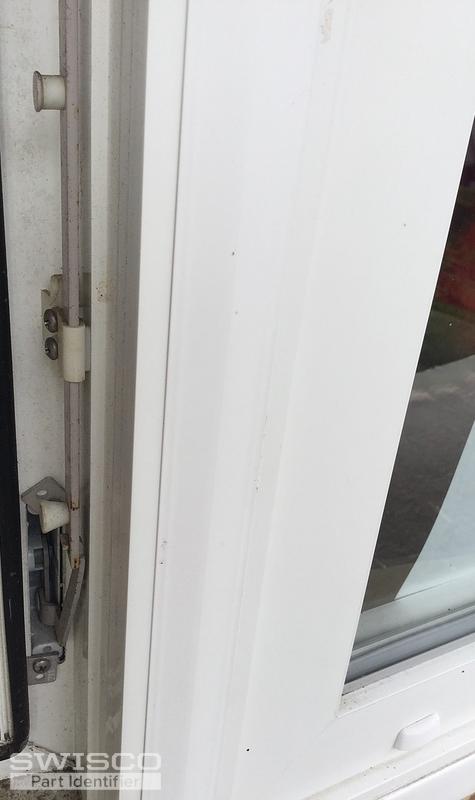

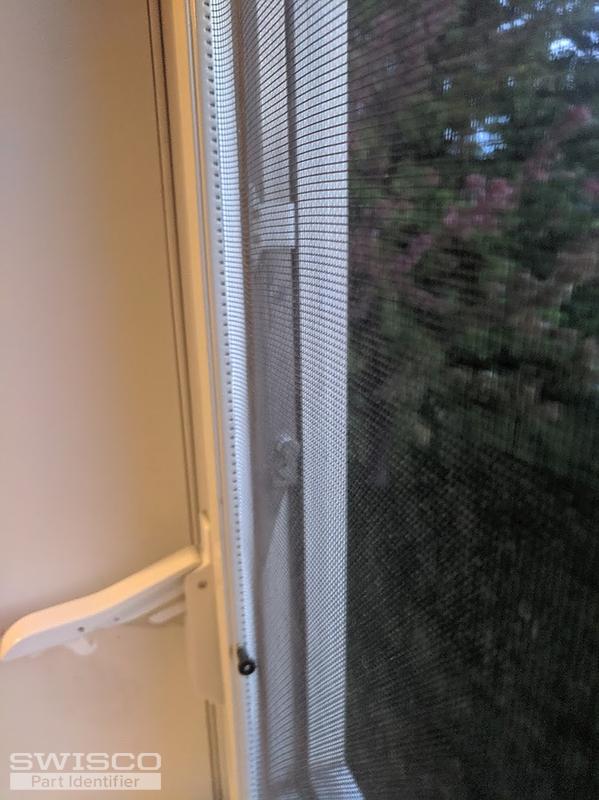

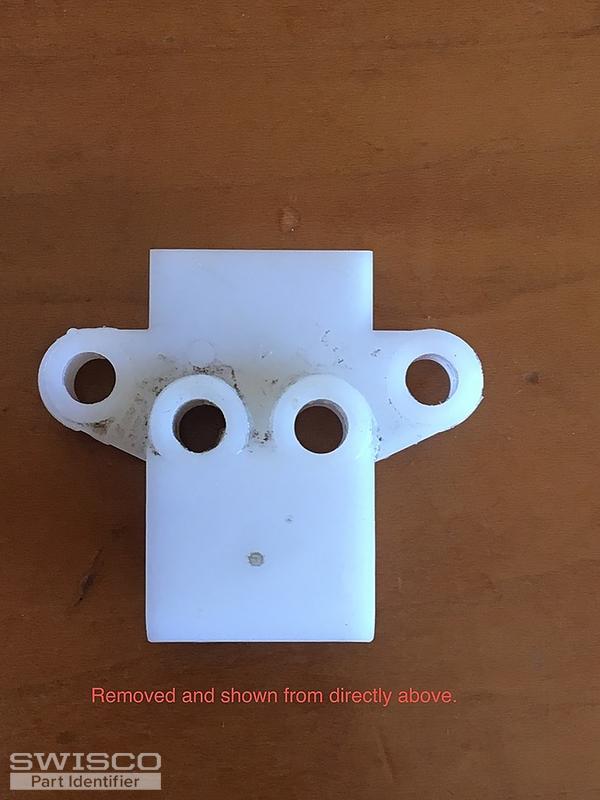

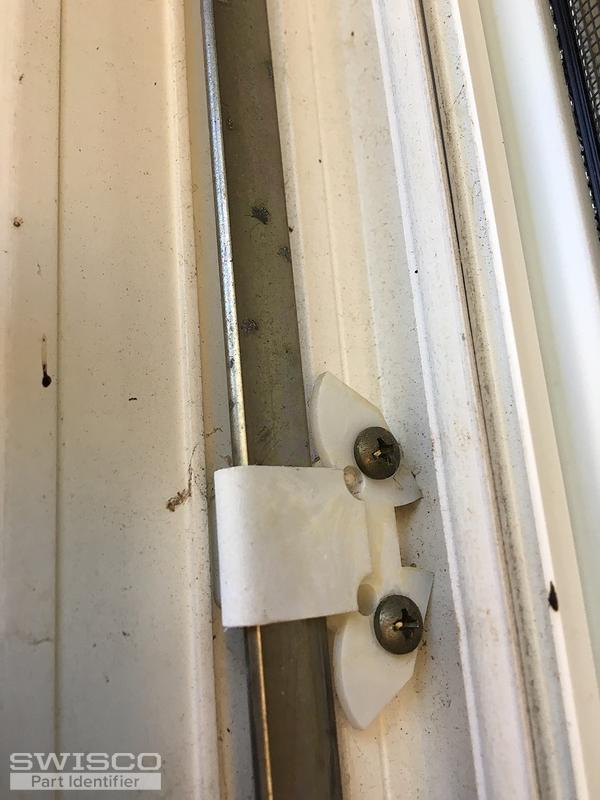

Hi, I'm interested in identifying the part shown in the attached pictures. Its "job" seems to be to help guide a metal part that fits through it and that slides through it, allowing the window to be locked or unlocked. The metal part that slides is shown in the photo labelled "installed.jpg". Th ... (cont.)

looking for parts

Can yous help me with these thanks

We need the replacement clip which holds the long pole in place. Need several or replacement option if possible. Thanks! Email me with questions.

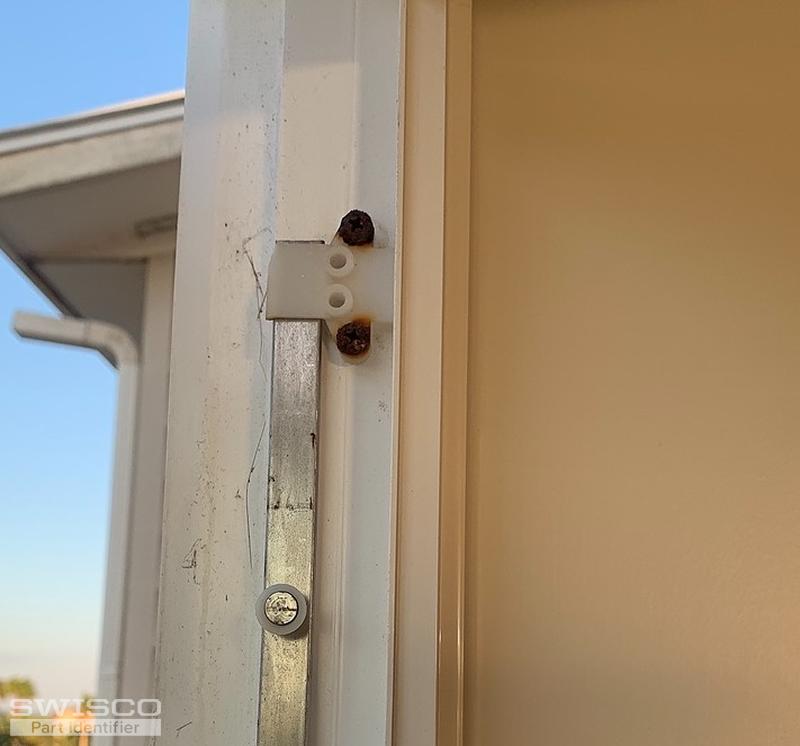

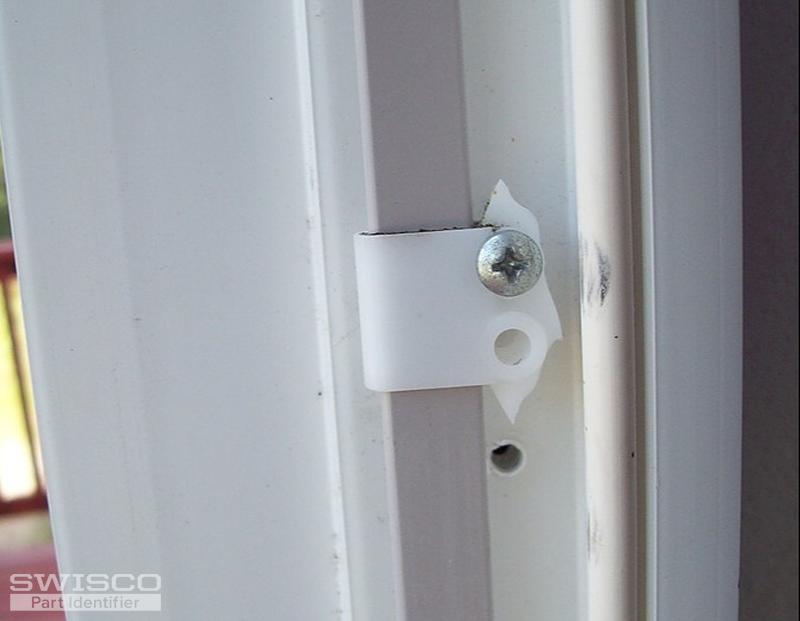

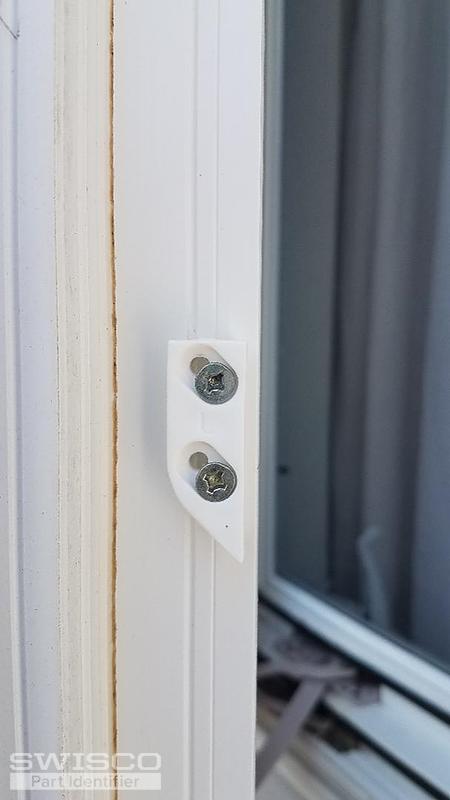

Need replacement for a broken tie bar guide that's identified in above photos. It's a plastic guide that keeps connecting flat rods in place.

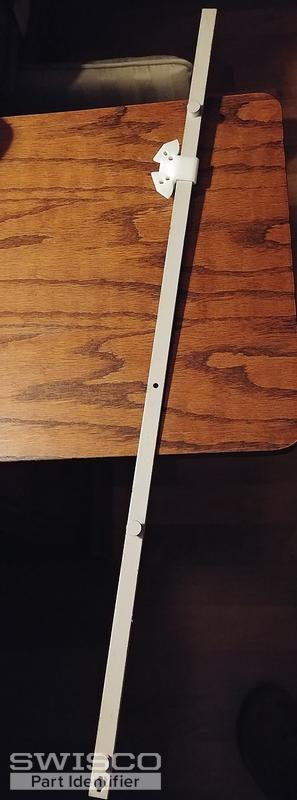

Hey guys, Looking to replace some of the failed parts on my Truth Hardware windows. The Tie bar is 39 inches long with two cone type rollers, one cylinder. Then I need 6 replacement guide clips. Let me know if anything else is needed to clarify.

Hi this is for our Crestline windows its the plastic guide for window bar which's locks or closes the window do you have them ? Robert

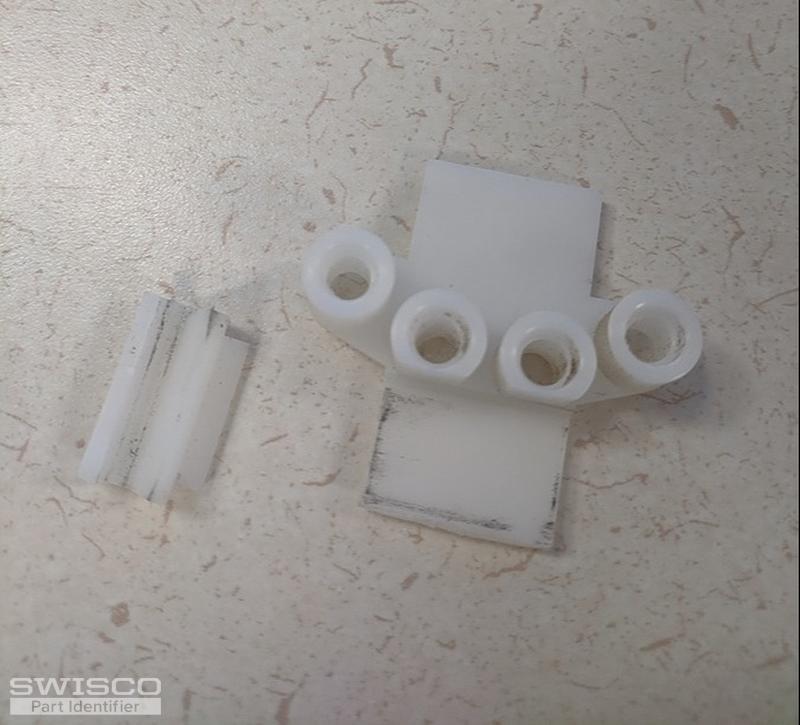

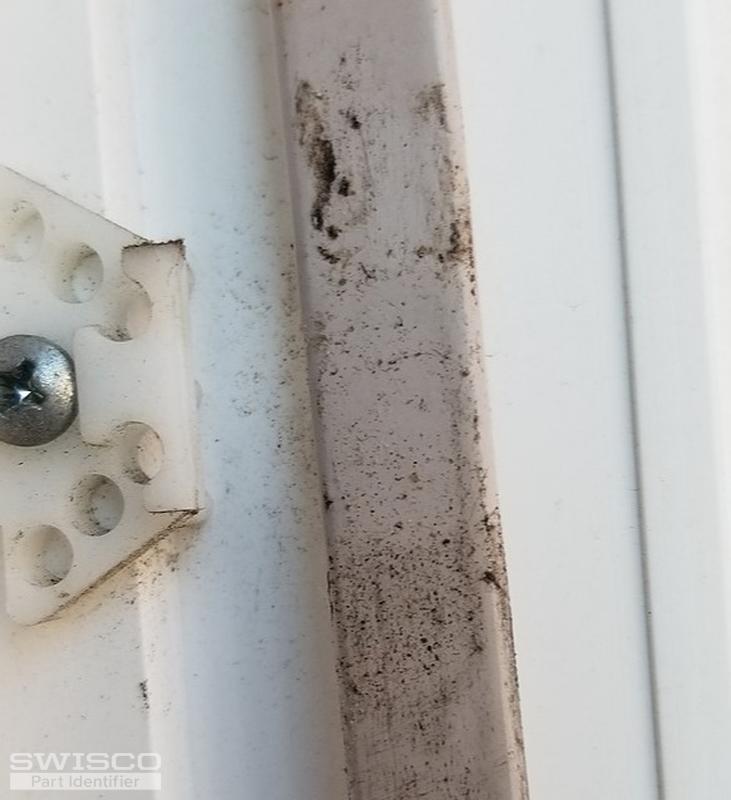

The bottom plastic piece broke off when I went to lock the window.

The overall length of the tie bar is 26 7/8". The first roller is 13/16" (on center) from the end. The distance between the rollers is 21 15/16". I also need a guide that will work with this.

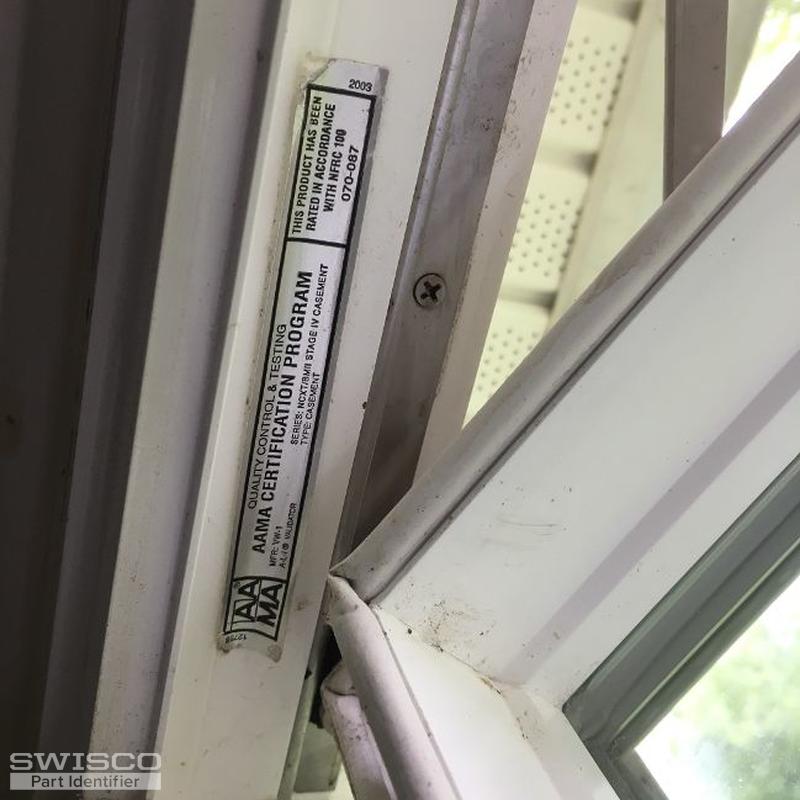

I NEED ABOUT 4 PLASIC GIDES THAT A FLAT MEDLE SHAFT SLIDES THROUGH TO LOCK THE WINDOW. ITS A CASEMENT WINDOW SERIES NCXT/BMII STAGE IV CASEMENTTHE WINDOW NUMBER ON MY BILL IS NS00025436 72 X 60 - M

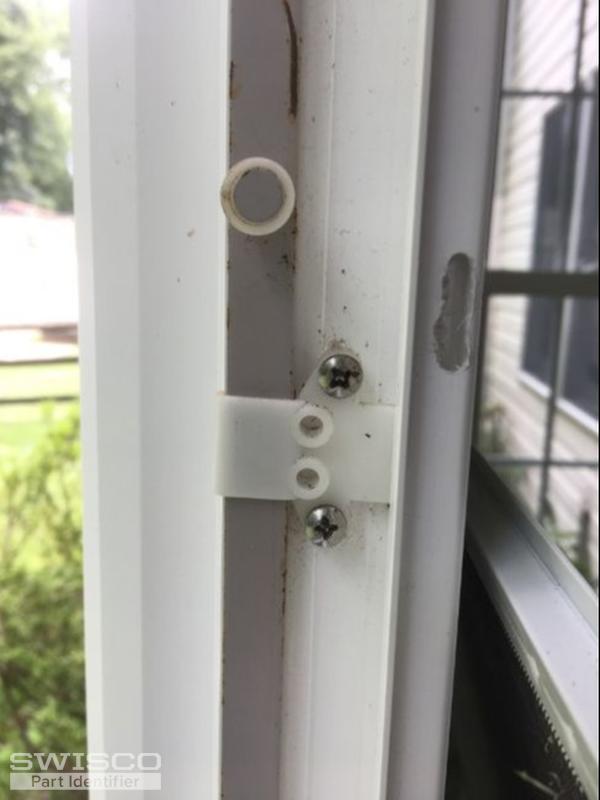

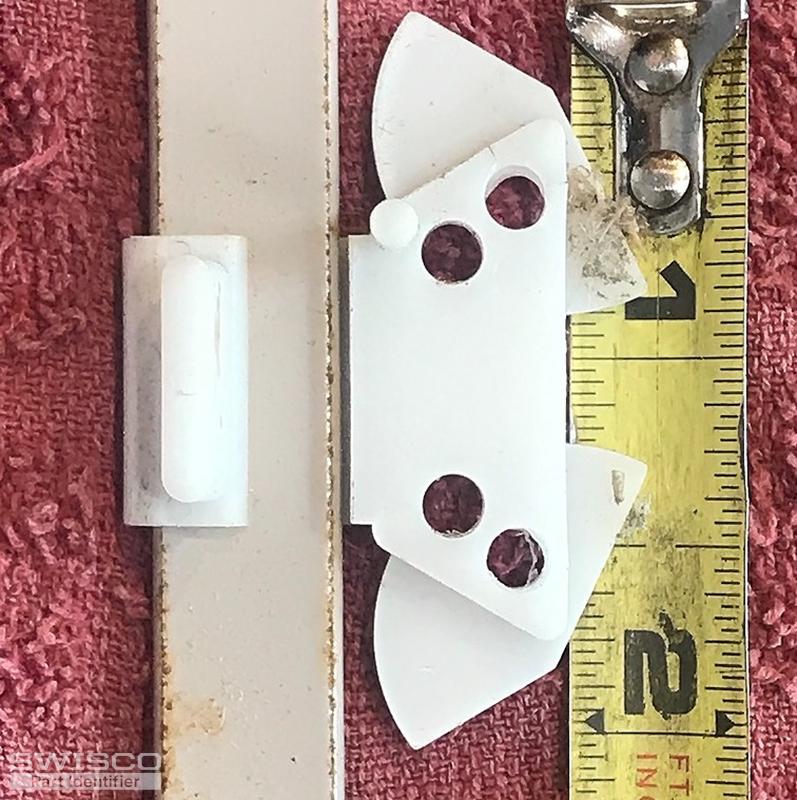

I need the small plastic devices?clips I assume? shown in these photos. One is broken, my window will not latch and close properly. I'd like to order a few extra.
