Product Code: S140-13

13 lb Series 140 Quick-Tilt, Dual

Name: 13 lb Series 140 Quick-Tilt, Dual
SKU: S140-13
Price: 12.79 USD
Availability: InStock

$12.79

Quantity	Price
1-11	$12.79/ea
12-49	$11.51/ea
50-99	$10.87/ea
100-249	$10.23/ea
250+	$9.59/ea

Please Note: Bulk pricing applies only to purchases of the same option

Quantity

Add to Wishlist

Product Description

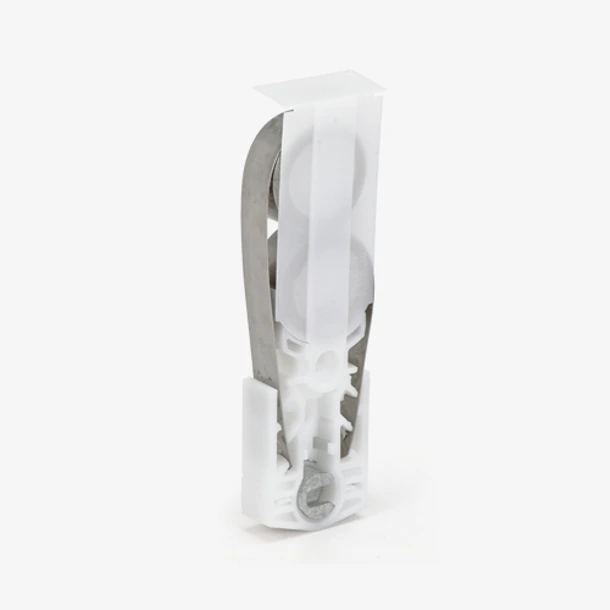

This is a Series 140 replacement constant force balance system for tilt windows. It moderates the operation of your window sash using specifically calibrated coil springs that allows the window to stay open when raised and remain shut when closed.

This balance comes complete with a pivot shoe, dual coil springs, and coil spring cover.
The springs are stainless steel and Teflon-coated to be corrosion resistant.
Travel extension: 32-1/2"

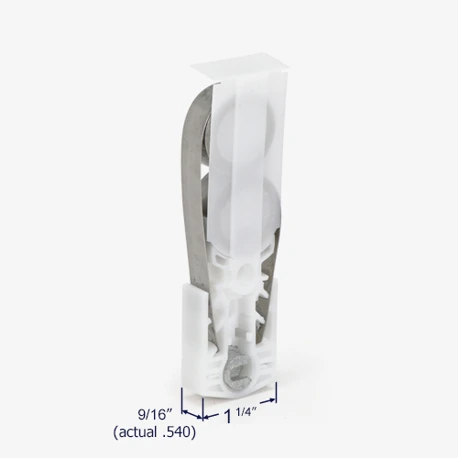

Fits pocket size 9/16" x 1-1/4" (.562 x 1.292).
A pair of 13 lb assemblies will carry 25-26.99 lbs, (sold individually). The weight you need should be indicated as a stamp or imprint on your old balance cartridge cover.
Each assembly can work for either the left or right side of the window interchangeably.

Good Idea!

Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.

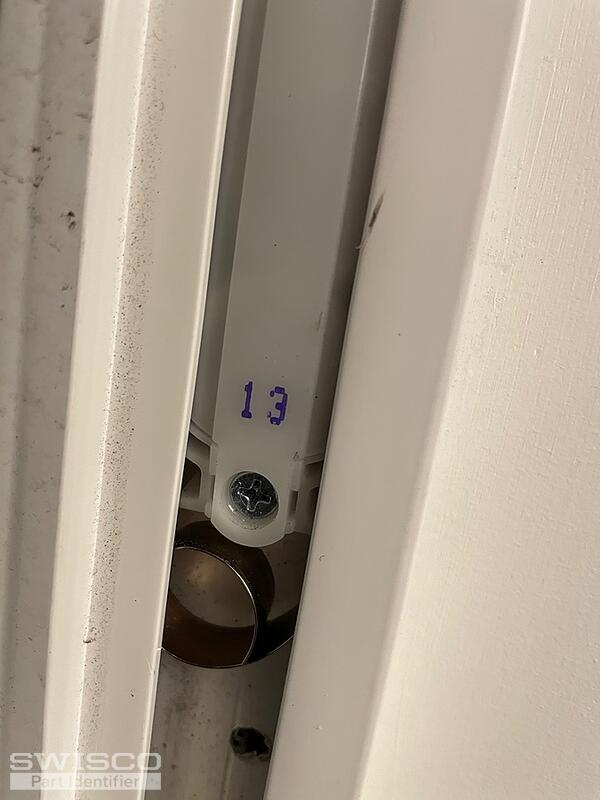

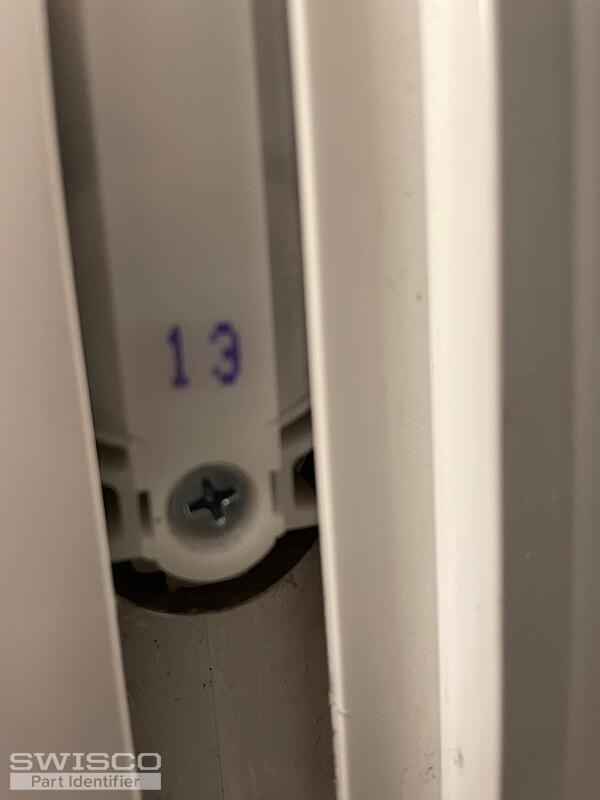

Window coil balance

Balance coil on upper is marked 17. Lower balance coil is marked 14. I also need 3 sets for duplicate windows which are upper balance 15 lower balance coil is 13. Your quick response is greatly appreciated.There are two more windows upper is marked 11and the lower sash is marked 10.Jim ... (cont.)

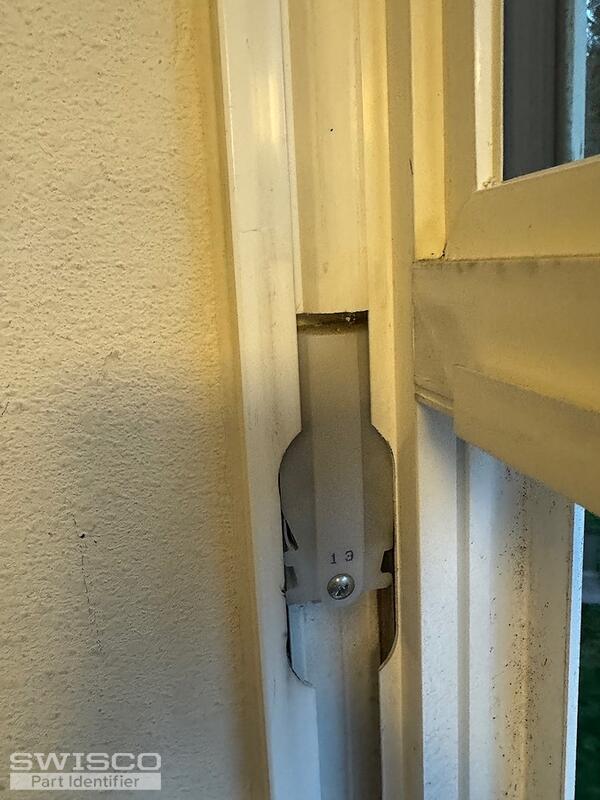

Coil balance shoe

I received the series 140 quick tilt balance kit. I watched the video with the needing a cutout. The video doesn't show where to make the cut out for the upper balance/shoe kit. I don't want to mess up the window and I can't find another video on line that shows where to make the cutout. They all ... (cont.)

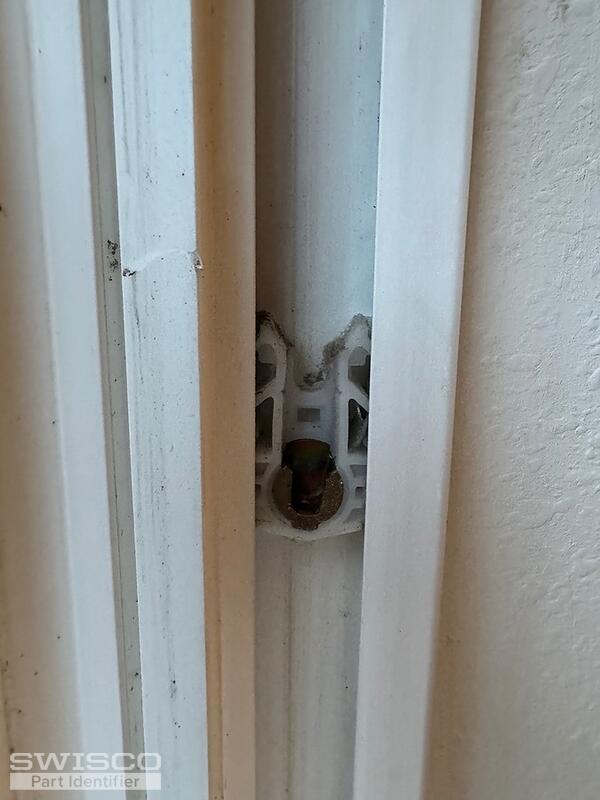

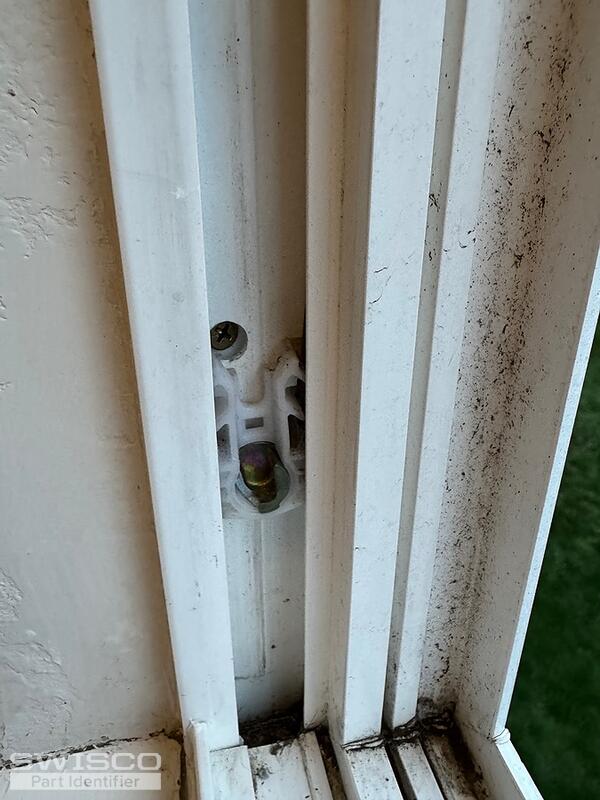

Pivot lock shoe

Which part should I order to replace the broken pivot lock shoe? I included a picture of the unbroken one and the connecting piece as well.

Kensington hop window balance

Window goes up but slides down. Window balance metal broken and plastic cracked.window size w29 1/4 by 34 3/4 long it's a kensington hpp.

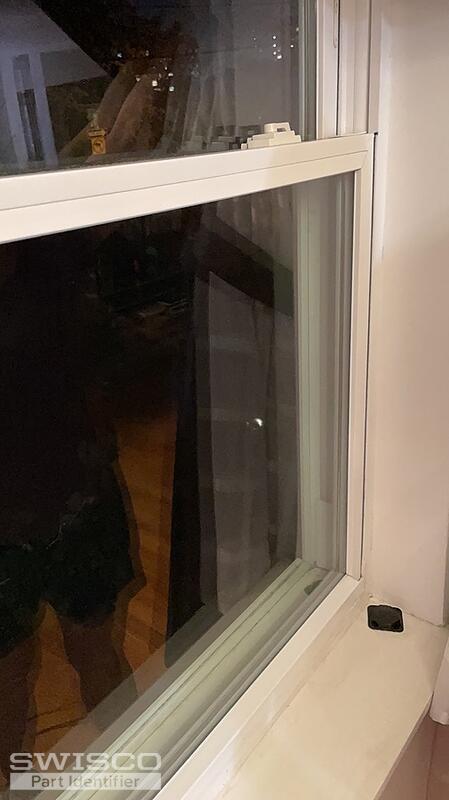

is this spring broken? how to replace

Hi I am located in Fort Lee New Jersey. on the right hand side of my vertical vinyl sliding up windows, I noticed this spring coil unit is broken do you have pot for this? Attach the photos showing the right hand side and the left-hand side of the window. the left inside is intact but the rig ... (cont.)
